Brand:
DEMIItem no.:
SET-12120JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:
5 years

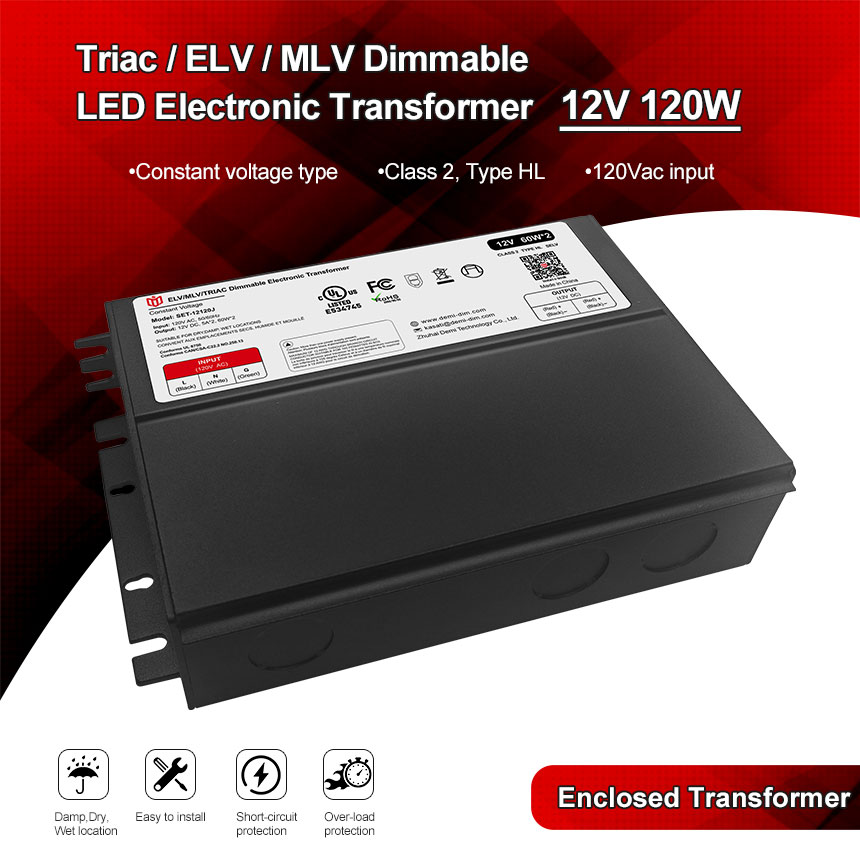

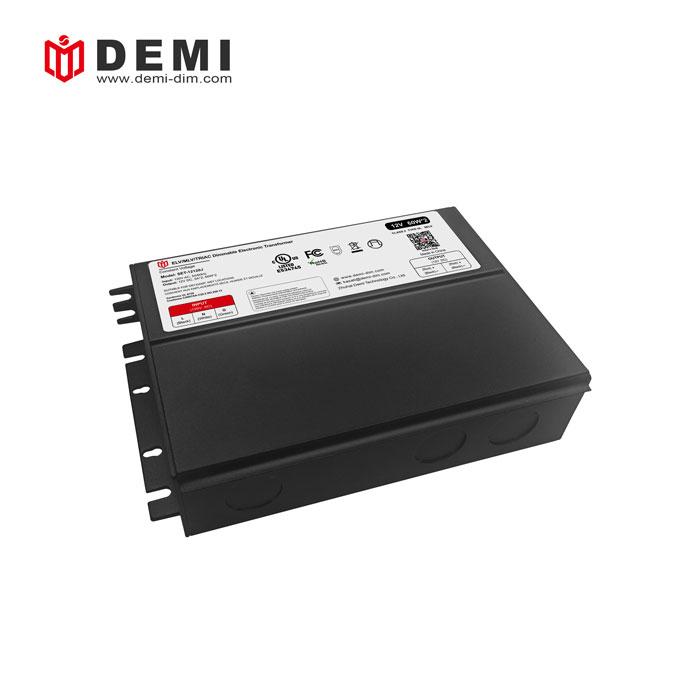

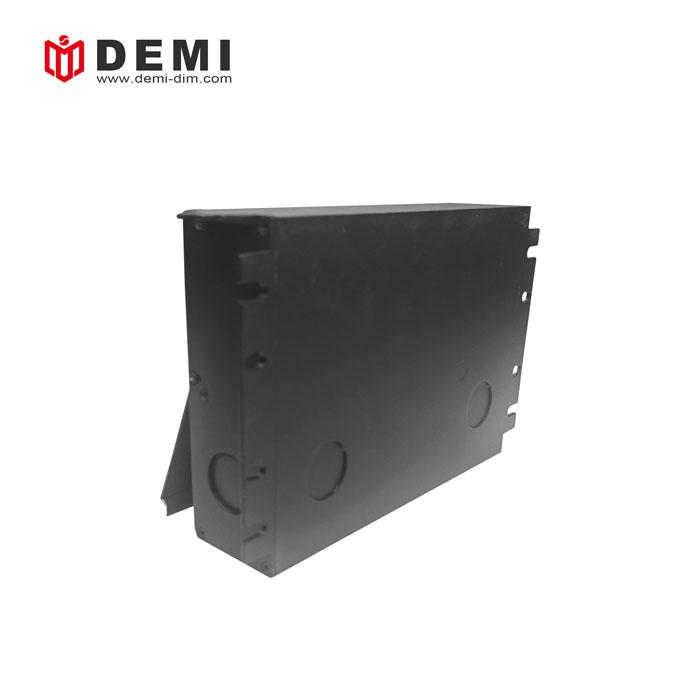

120W triac/ELV/ MLV dimmable 12v LED transformer suppliers for led lights

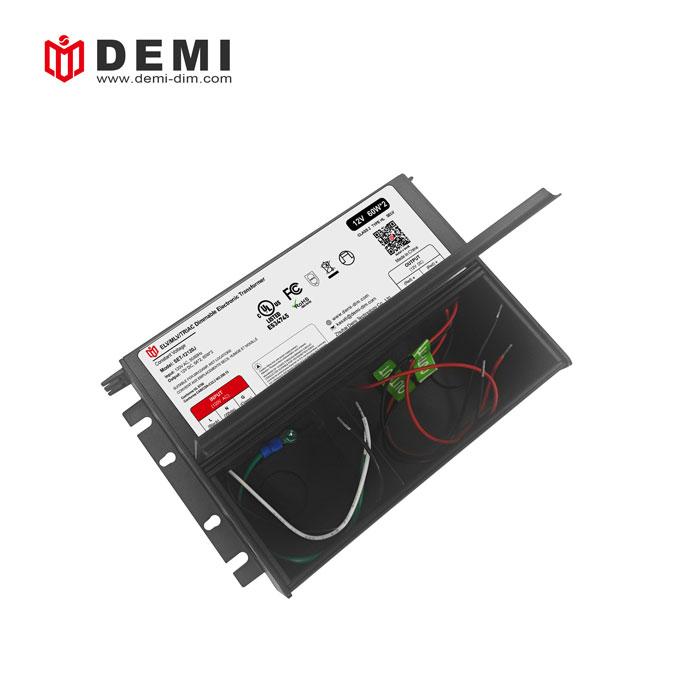

120vac input voltage 12v 120w triac dimmable led transformer with short circuit, overload protection, size 188*120.5*42mm, easy to install, built-in wiring slot, can make the wire not exposed, Compatible with Acuity Brands LED downlight
| Model Number | SET-12120J |
| Output Type | |
| Reted Power | 60W * 2 |
| Reted Voltage | 12V |
| Reted Current | 5A * 2 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 1.16A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension |
7.40x4.74x1.65 inch (L*W*H) |
| Packing | - |
Our triac dimmable LED electronic transformer series uses high-frequency transformers. Its compatibility, dimming softness, dimming range, etc. are much better than most LED electronic transformers on the market. The minimum load range can be from 20% to 100%. Loaded, compatible with most brands of leading/trailing triac dimmers

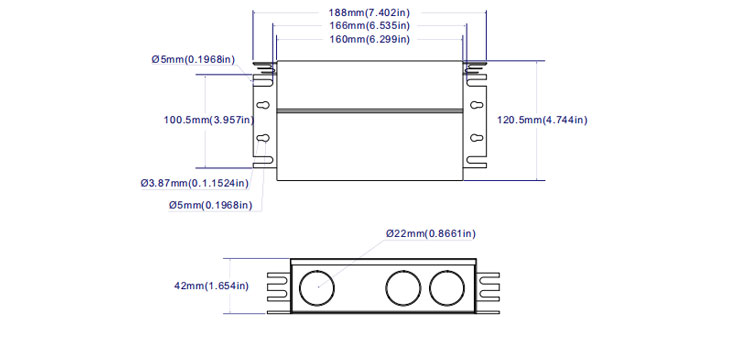

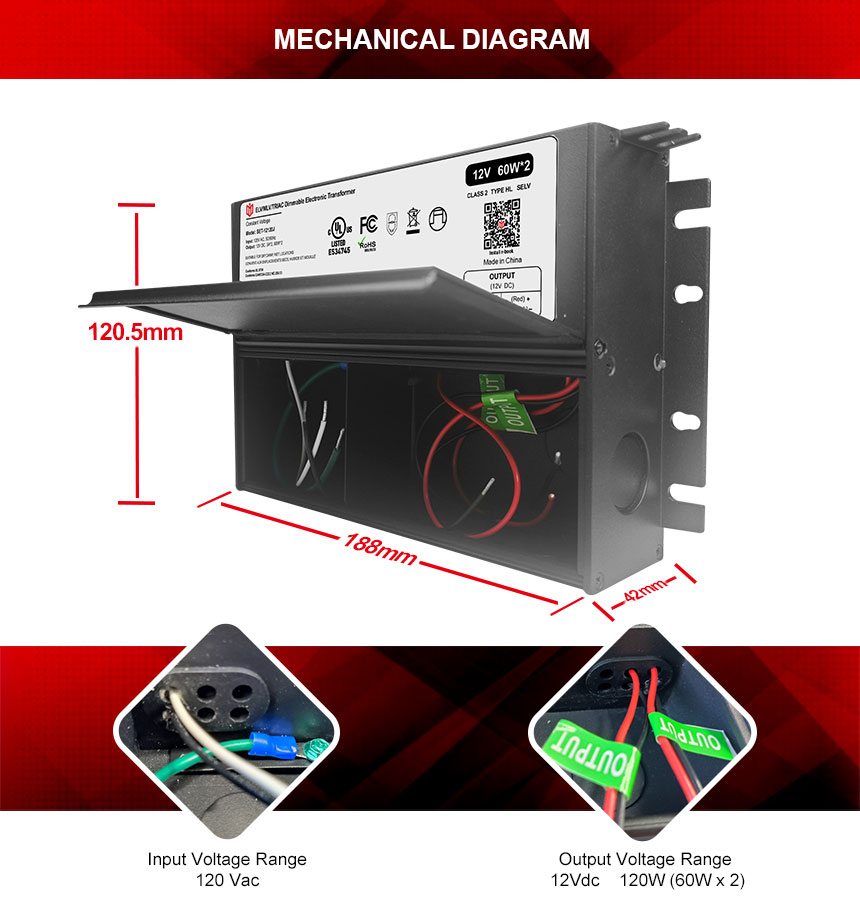

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connection Preparation
Input Connections & Grounding
Output Connections
Wiring Diagram

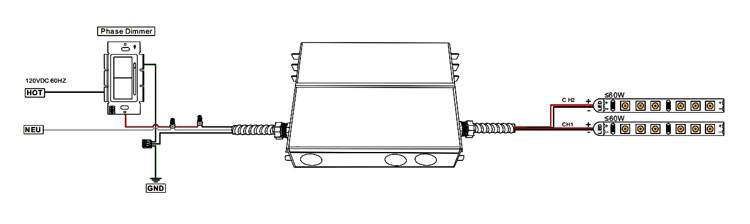

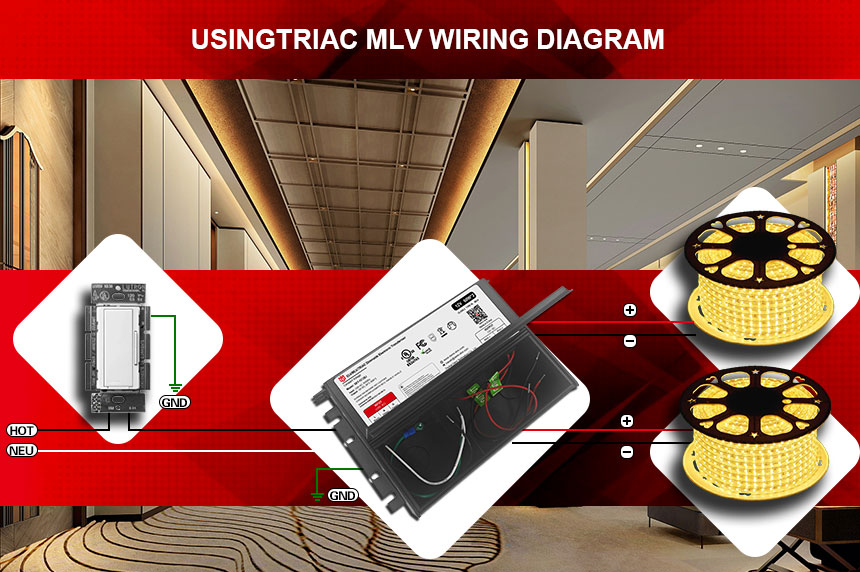

1) Using Triac MLV wiring diagram

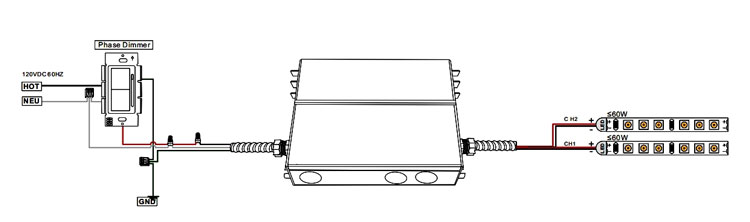

2) Using Triac ELV wiring diagram
