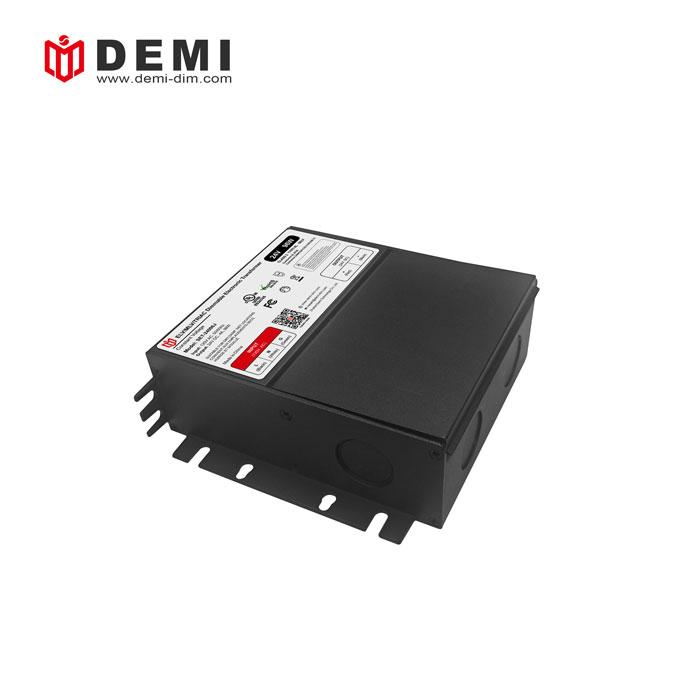

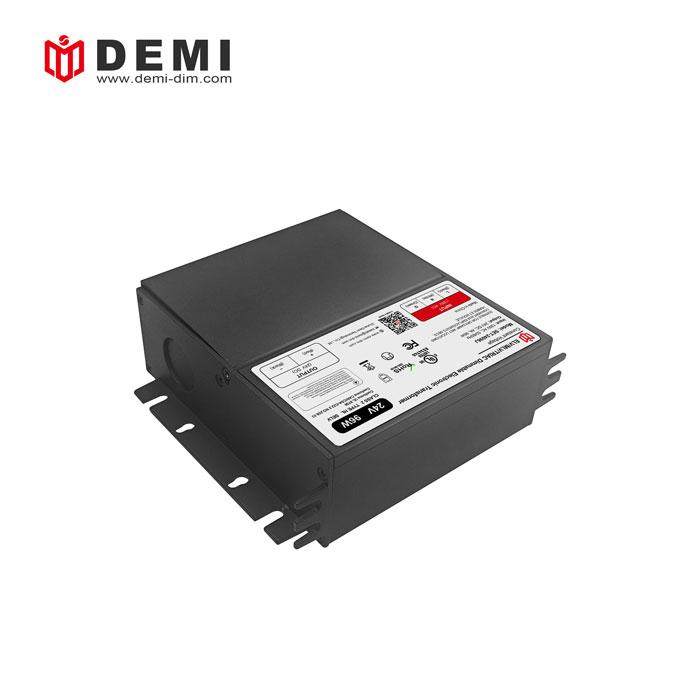

Brand:
DEMIItem no.:
SET-24096JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
96WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
128*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:
5 years24v 96w triac dimmerble led strip light driver electrical transformers manufacturers

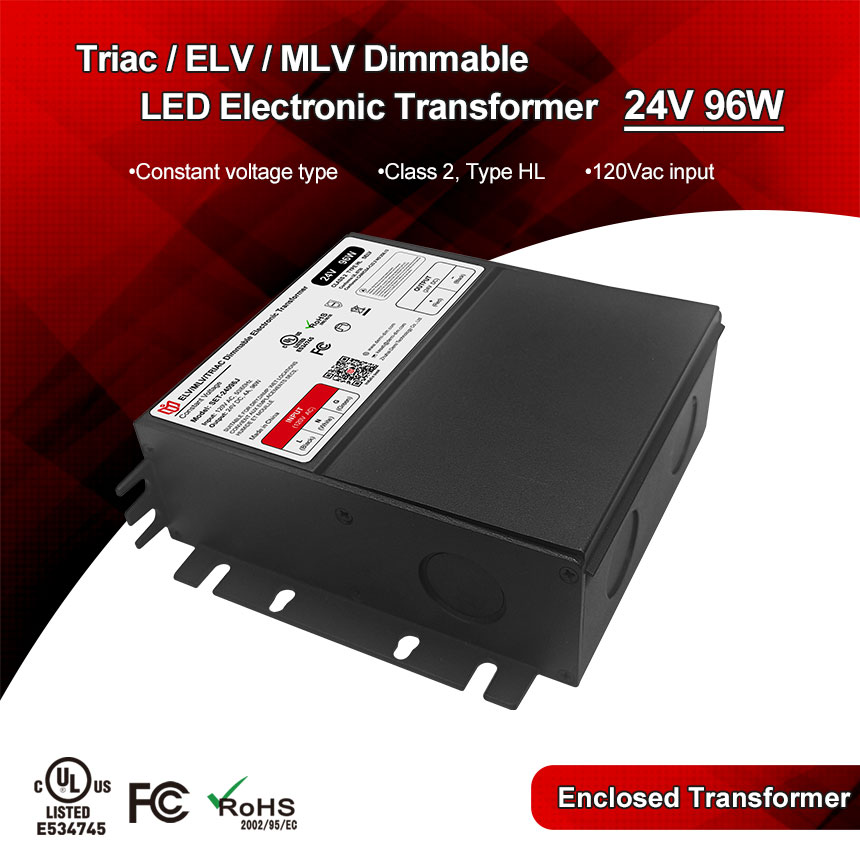

This Metal shell design 24V 96W triac dimmable led electronic transformer, transformer and junction box integrated, can prevent the power from being damaged by external forces, good compatibility, Compatible with most triac dimmers on the market, such as Lutron dimmers
Model Number | SET-24096J |
Output Type | |
Reted Power | 96W |
Reted Voltage | 24V |
Reted Current | 4A |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 120V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 87%@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Power Factor(typ.) | 0.98@120VAC |
AC Current(Typ.) | 0.93A |
Inrush Current(Typ.) | - |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION | |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, Class 2 |
Safety standards | I/P-O/P:1.88KVAC |
OTHERS | |
Dimension | 5.03x4.74x1.65 inch (L*W*H) |
Packing | - |
First, you need to select a suitable triac dimmable LED power supply transformer according to the power requirements of the LED lamp. Follow the instructions during installation. After completing the wiring, you need to check whether the wiring is tight. Loose wiring may cause a short circuit in the power supply, which will affect the service life of the LED lamp.

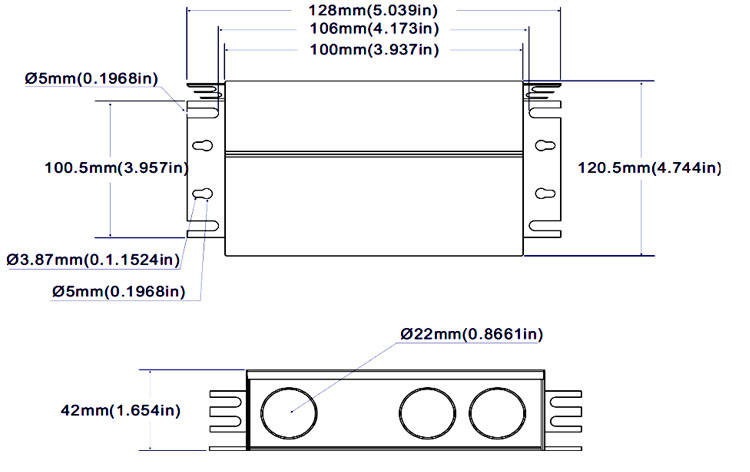

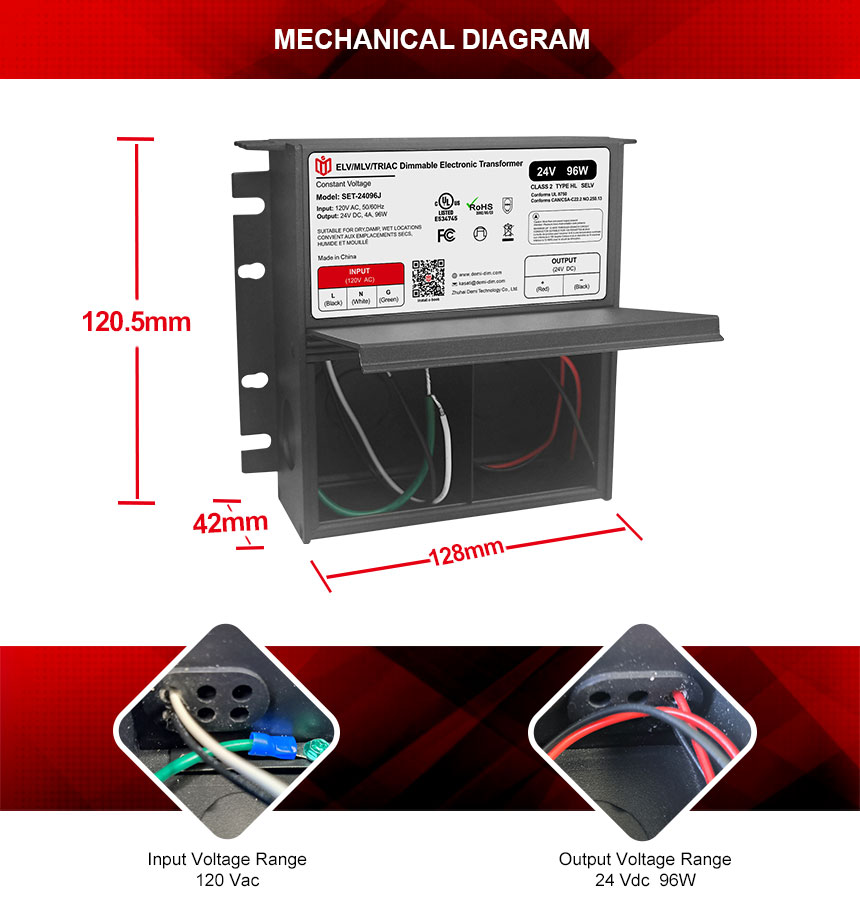

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

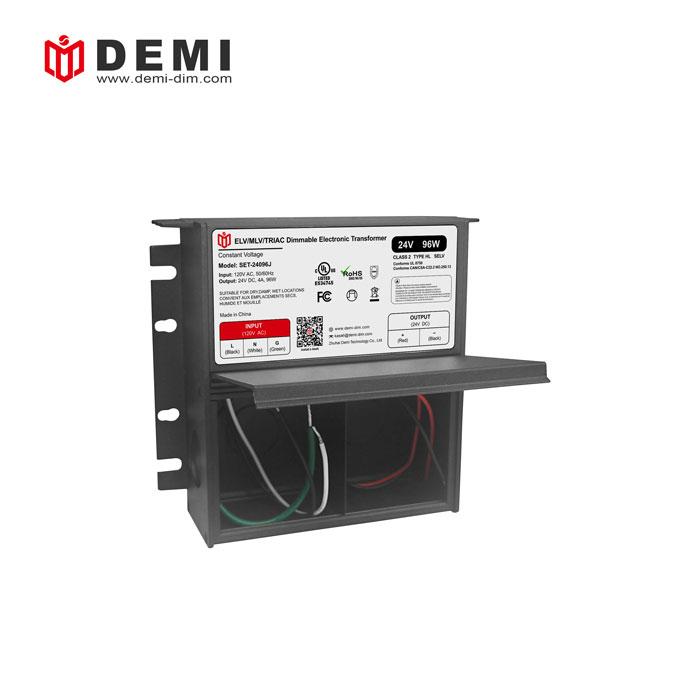

Connection Preparation
Input Connections & Grounding
Output Connections

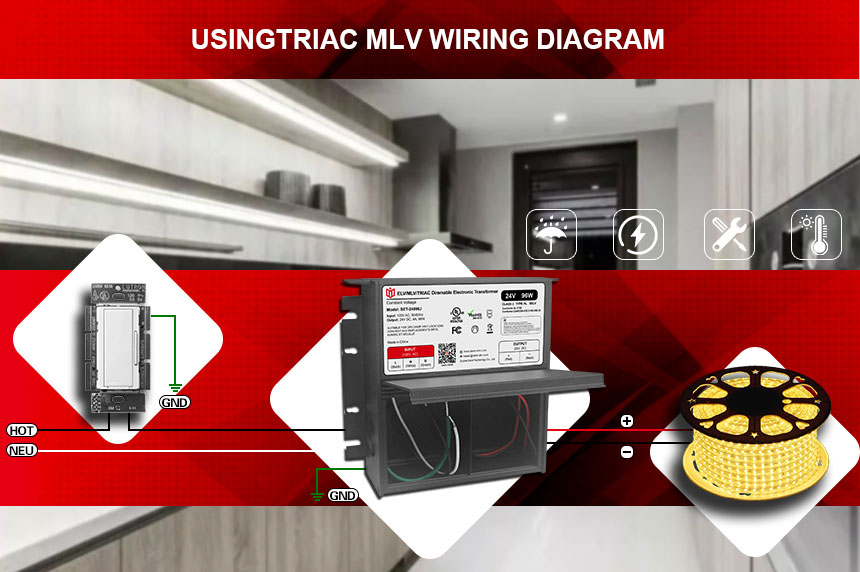

Wiring Diagram
