Brand:
DEMIItem no.:
SET-24192JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
192WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:

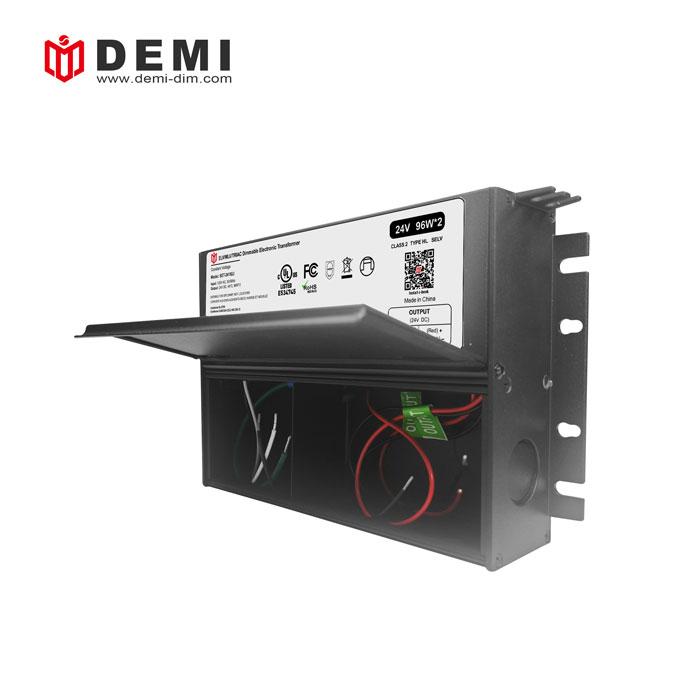

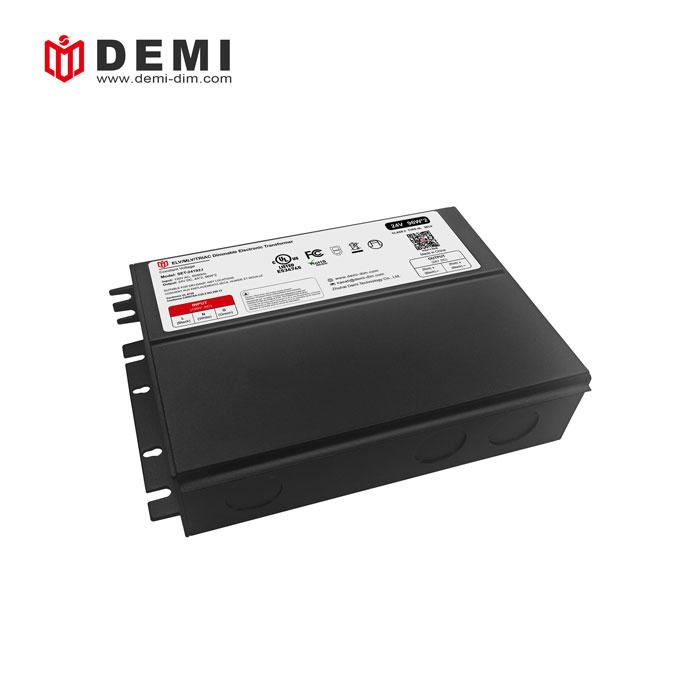

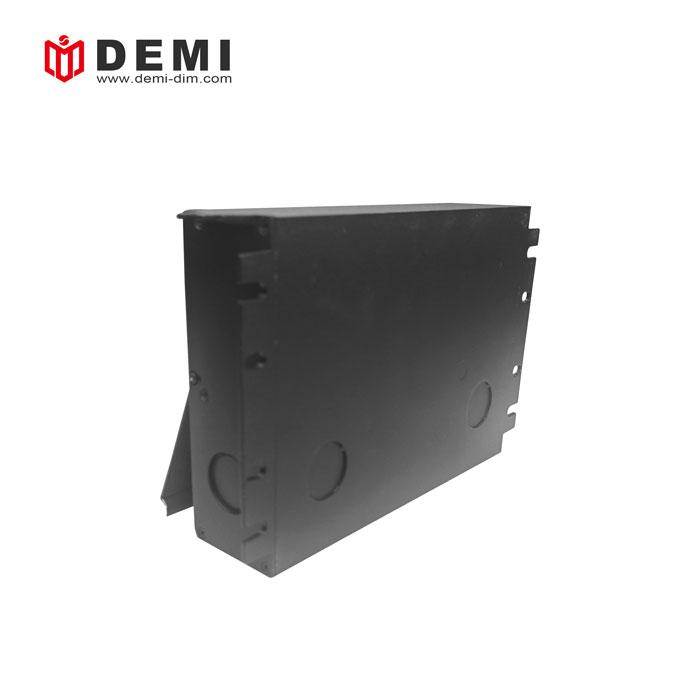

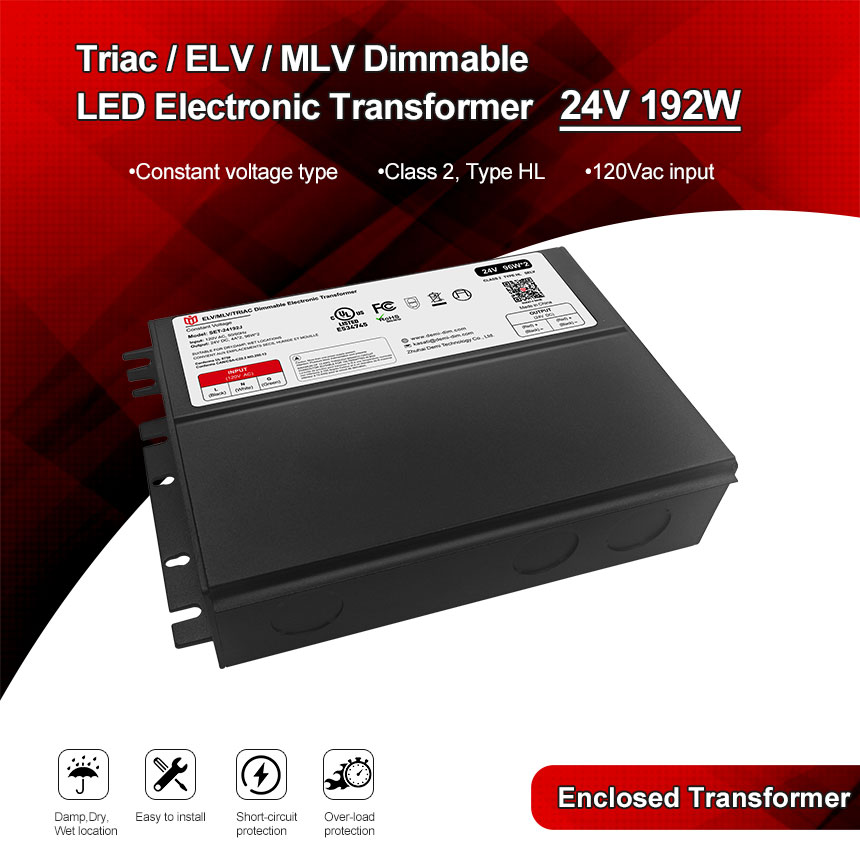

5 years120vac to 24vdc 192W triac dimmable led transformer driver with junction box
UL certified 120vac to 24vdc triac dimmable led transformer has active PFC capability built in, UL Certified CLASS 2 with ultra-low load requirements and works perfectly at 20% to 100% load, complies with global safety lighting regulations, 5-year warranty
Model Number | SET-24192J |
Output Type | |
Reted Power | 96W * 2 |
Reted Voltage | 24V |
Reted Current | 4A * 2 |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 120V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 87%@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Power Factor(typ.) | 0.98@120VAC |
AC Current(Typ.) | 1.86A |
Inrush Current(Typ.) | - |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION | |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, Class 2 |
Safety standards | I/P-O/P:1.88KVAC |
OTHERS | |
Dimension |
7.40x4.74x1.65 inch (L*W*H) |
Packing | - |
To know more product details, please leave message or e-mail us !

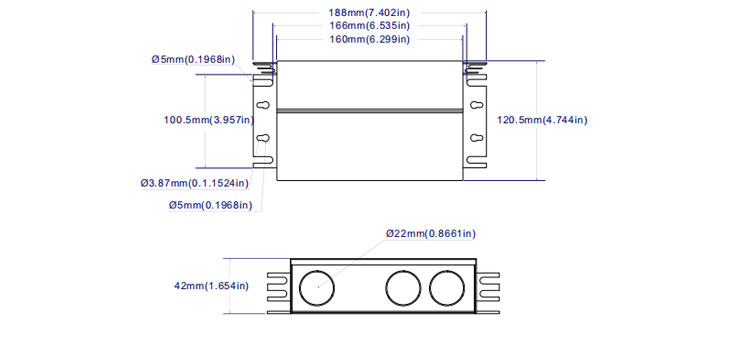

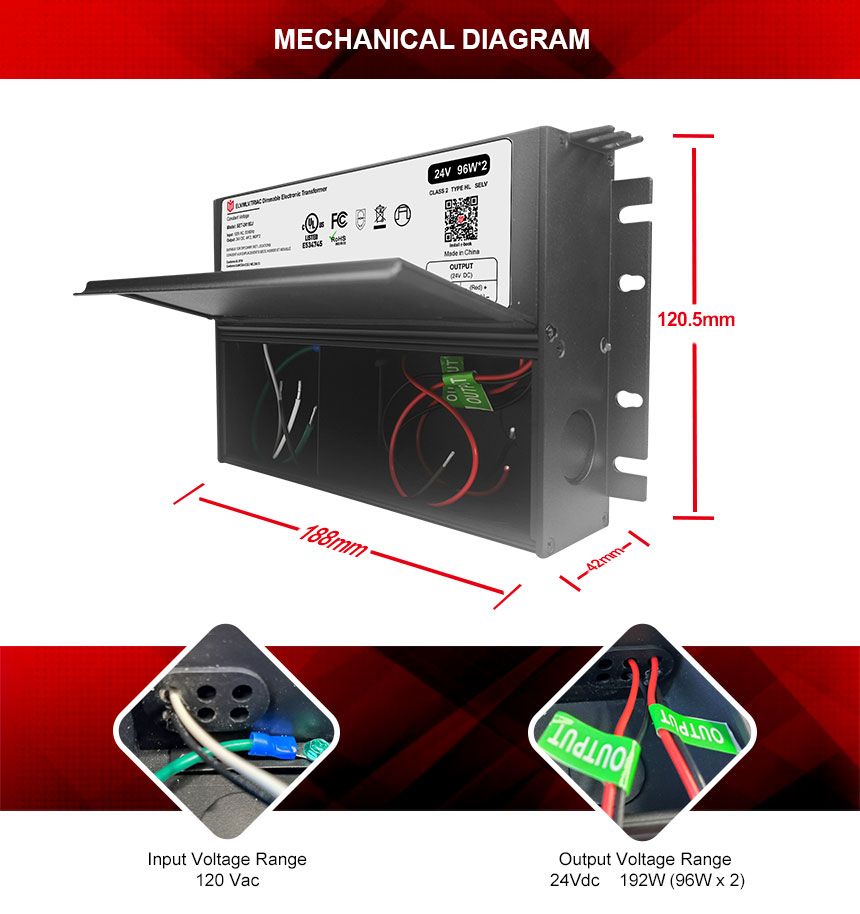

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connection Preparation
Input Connections & Grounding
Output Connections
Wiring Diagram

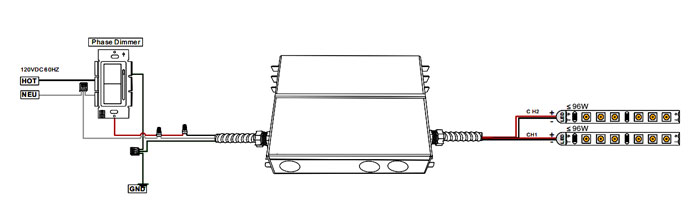

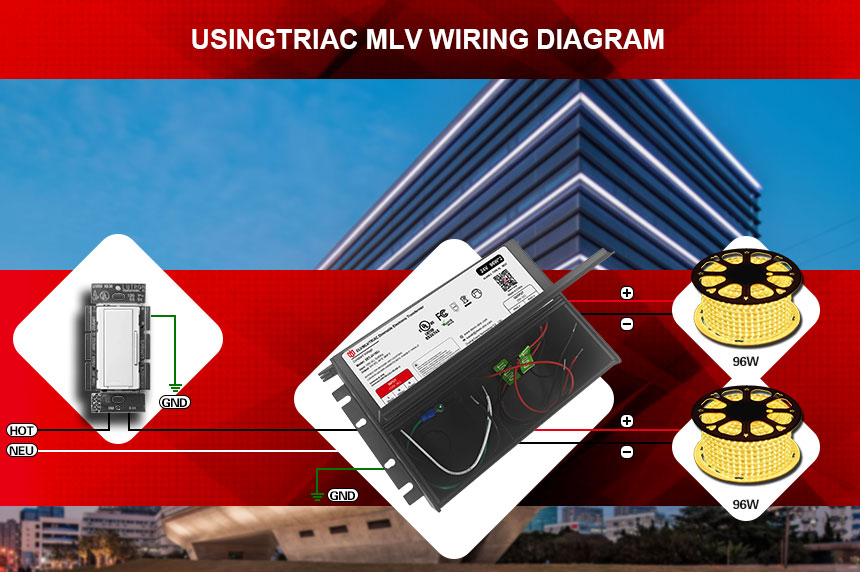

1)UsingTriac MLV wiring diagram

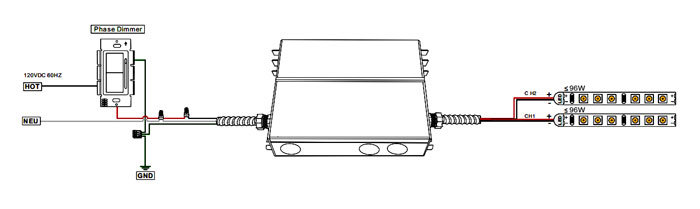

2)Using Triac ELV wiring diagram
