Brand:
DEMIItem no.:
SET-24288JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
288WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:

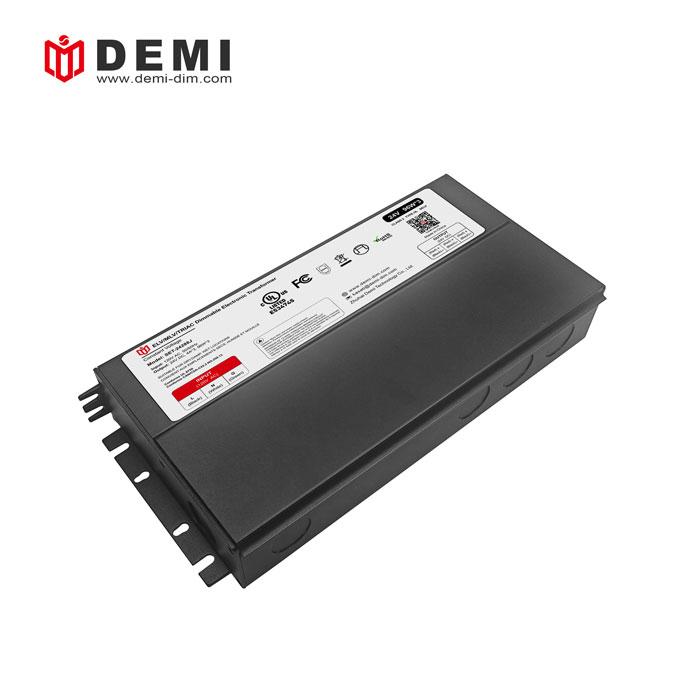

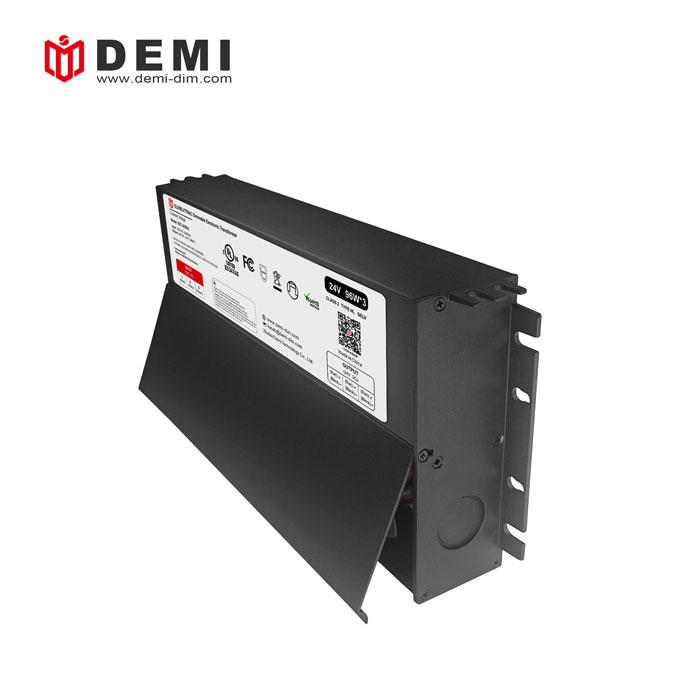

5 yearsUL class 2 24V 288W triac dimmable led electronic transformer suppliers for lights
DEMI Hot Products triac dimmable led electronic transformer working mode is constant voltage, working efficiency up to 87%, with short circuit, overload protection design, can well protect the life of the lamp, we also provide a 5 year warranty for this electronic transformer
Model Number | SET-24288J |
Output Type | |
Reted Power | 96W * 3 |
Reted Voltage | 24V |
Reted Current | 4A * 3 |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 120V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 87%@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Power Factor(typ.) | 0.98@120VAC |
AC Current(Typ.) | 2.79A |
Inrush Current(Typ.) | - |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION | |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, Class 2 |
Safety standards | I/P-O/P:1.88KVAC |
OTHERS | |
Dimension |
10.15 x 4.74 x 1.65 inch (L*W*H) |
Packing | - |
To know more product details, please leave message or e-mail us !
Triac dimmable class 2 led transformer 24v 288w rating ensures low voltage output With overload, short circuit and overvoltage protection functions Can effectively extend the service life of LED electronic transformers.

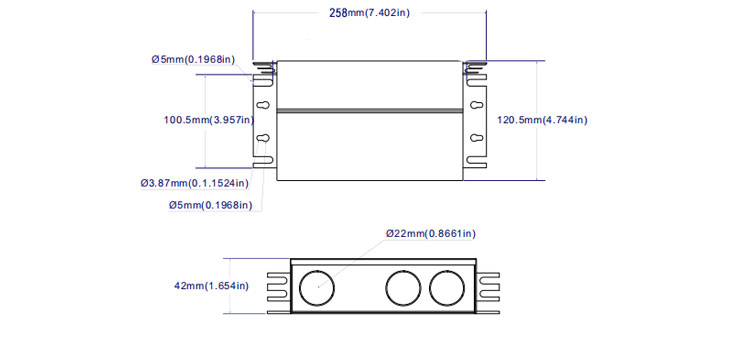

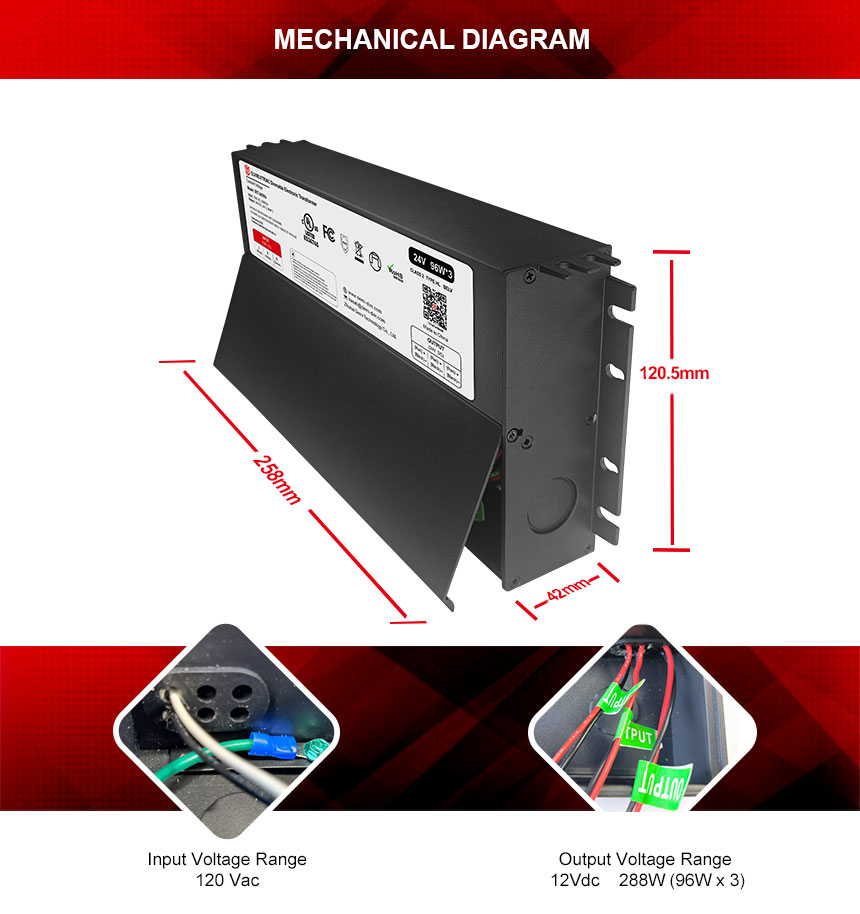

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

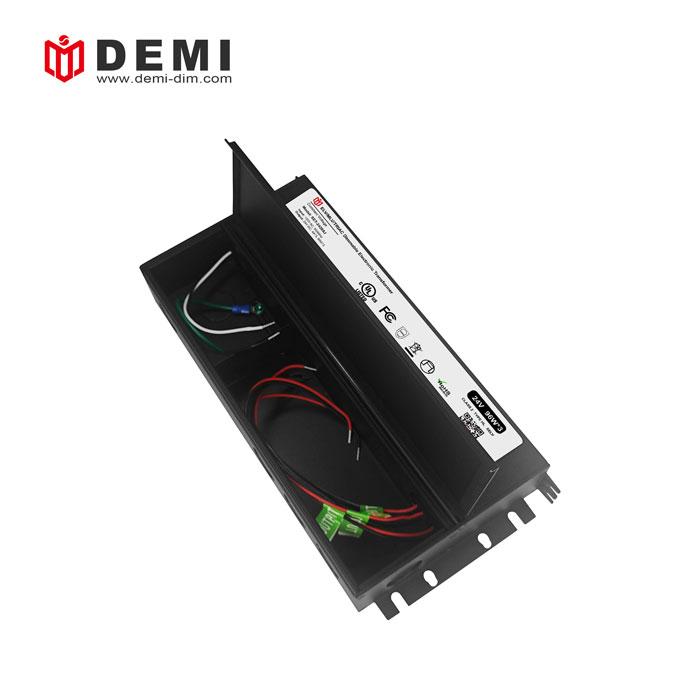

Connection Preparation
Input Connections & Grounding
Output Connections
Wiring Diagram

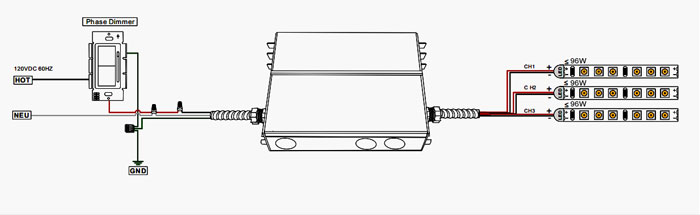

1)UsingTriac MLV wiring diagram

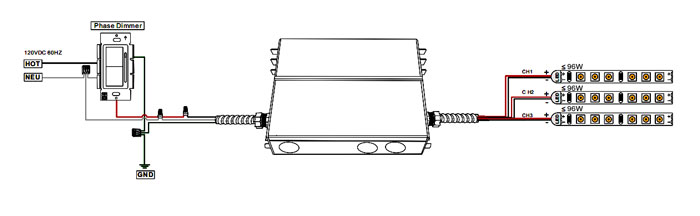

2)Using Triac ELV wiring diagram
