Brand:
DEMIItem no.:
SET-12060JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
12VdcShape & Size:

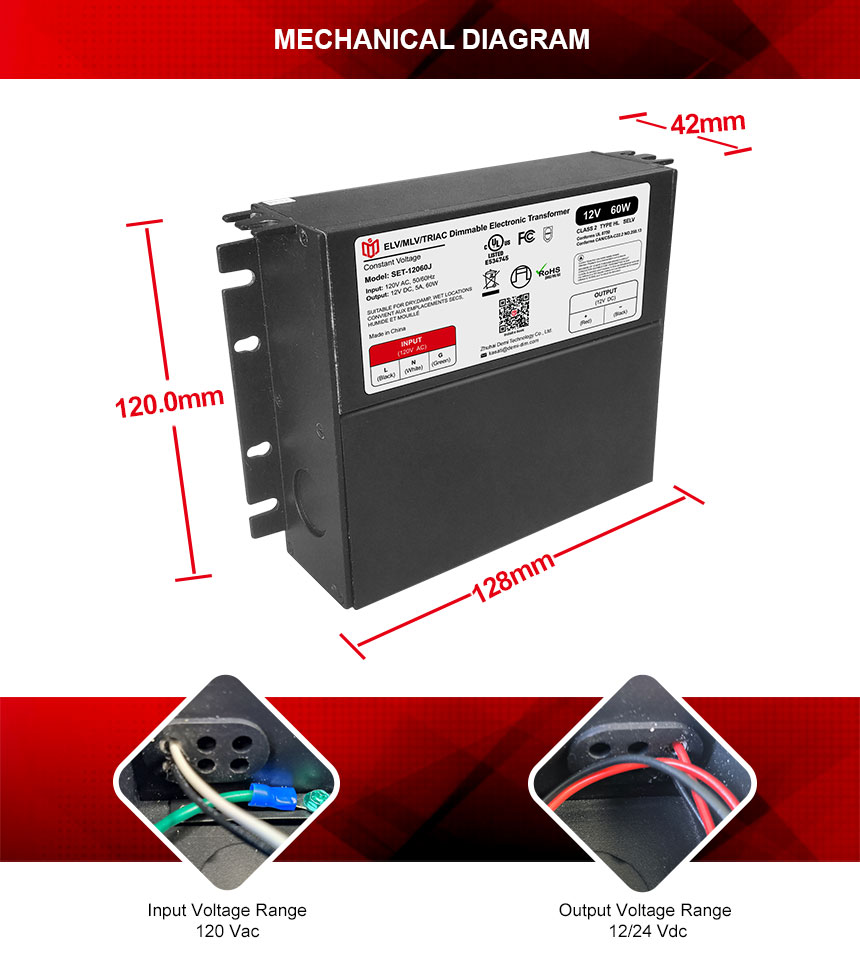

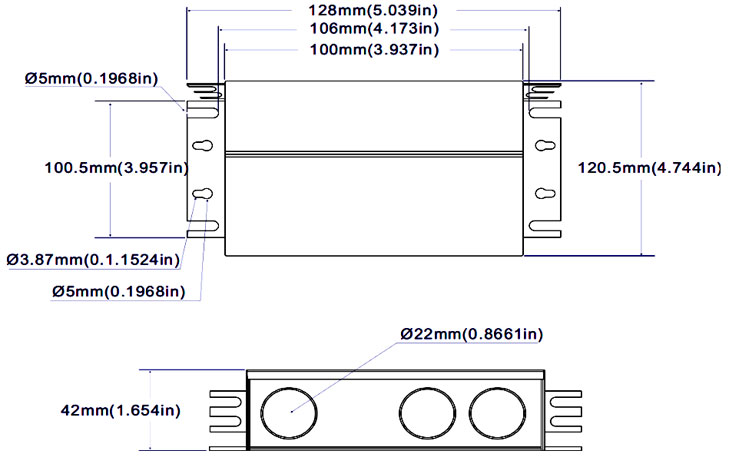

J-box DriverSize:
128*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:
5 years

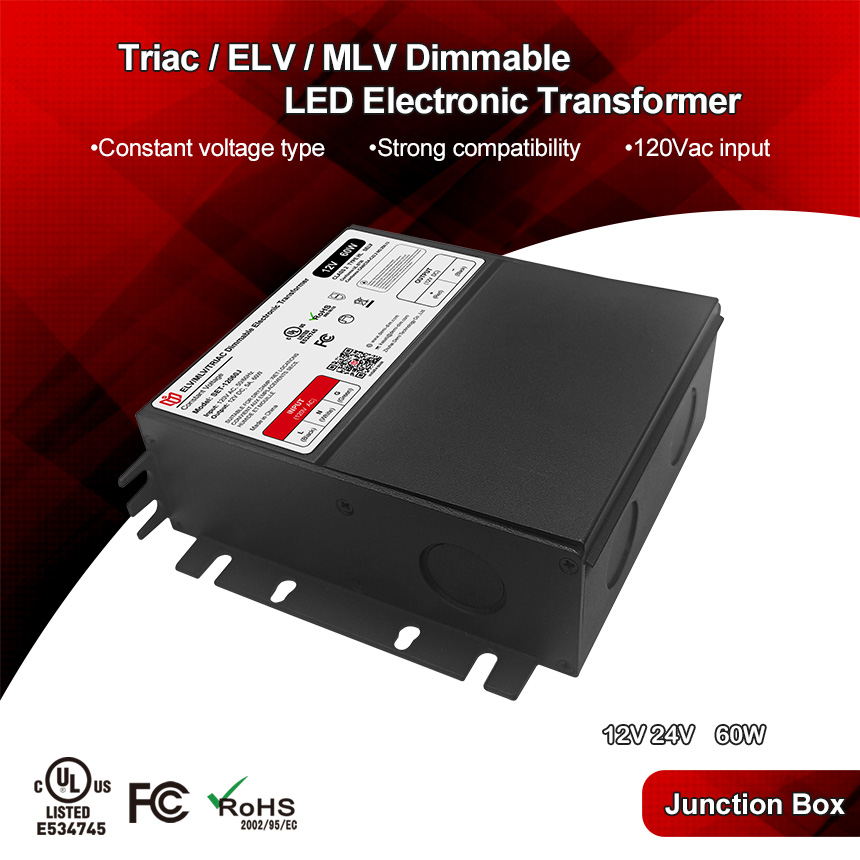

ip67 60w 120vac to 12v/24Vdc triac/ELV/MLV dimmable constant voltage led transformer price
class 2 triac dimmable led electronic transformers, UL certified Class 2 Triac Dimmable LED electronic transformers, with built-in active PFC function, power factor =0.98, constant voltage mode, working efficiency up to 87%, mainly sold in North America, Compatible with most triac dimmers on the market, such as Lutron dimmers
| Part Number | SET-12060J | SET-24060J |
| Output Spec.: | ||
| Reted Power | 60W | 60W |
| Reted Voltage | 12V | 24V |
| Reted Current | 5A | 2.50A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Spec.: | ||
| Voltage Range | 120V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 87%@120VAC | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Power Factor(typ.) | 0.98@120VAC | |
| AC Current(Typ.) | 0.58A | |
| Inrush Current(Typ.) | - | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION: | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT: | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC: | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| OTHERS: | ||
| Dimension | 5.03x4.74x1.65 inch (L*W*H) | |
| Packing | - | |
Many aluminum-cased power supplies have rivets driven into the inner wall of the casing, and the ground wire is led out from these rivets. What is the function of this?
Answer: The metal shell is conductive, and the shell is connected to the ground capacitor on the constant voltage 60W led power supply, which is a mandatory requirement of safety regulations. Therefore, the ground wire must be connected when using a metal-cased power supply.
To know more product details, please leave message or e-mail us !

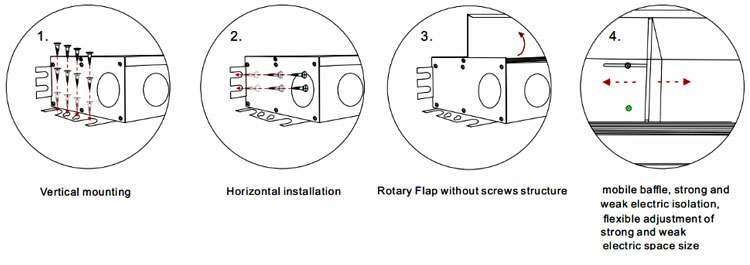

Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

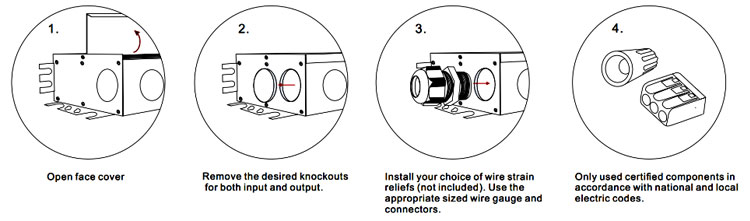

Connection Preparation

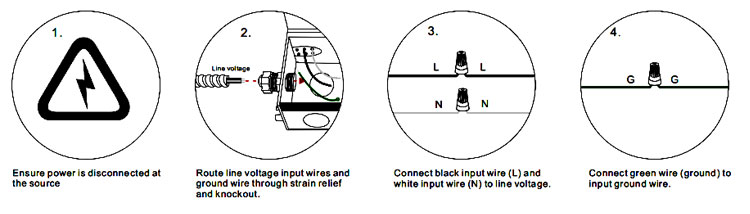

Input Connections & Grounding

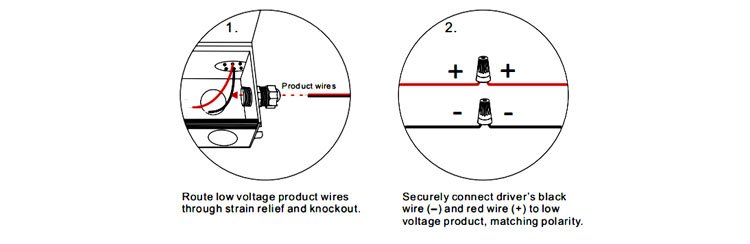

Output Connections

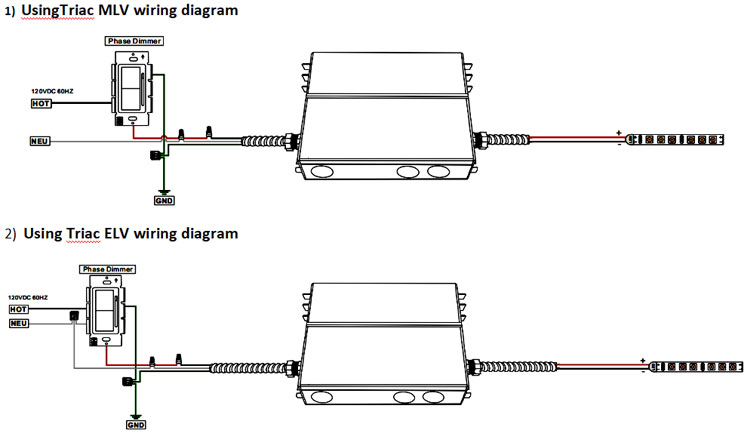

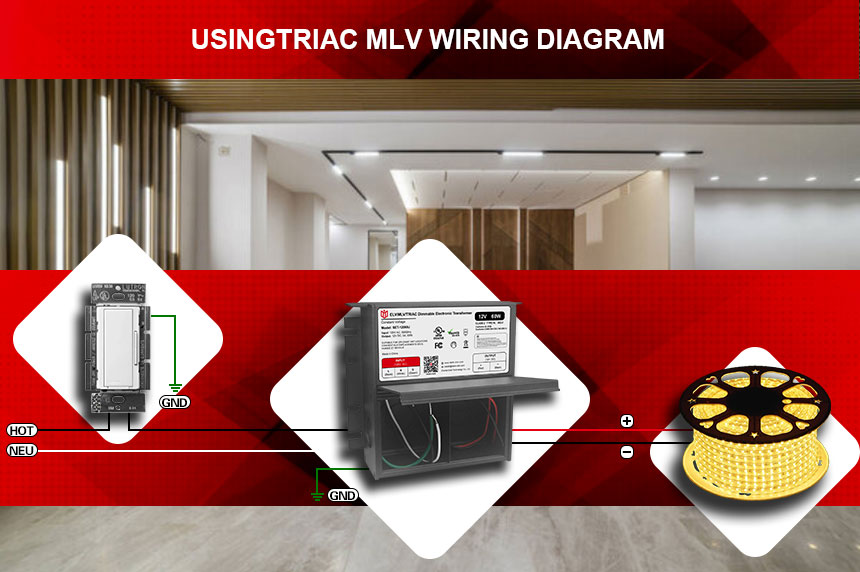

Wiring Diagram
