UL certified VRA series 5 in 1 dimmable led driver, this LED driver has innovative design and excellent dimmable performance, constant voltage working mode, 110-277vac input voltage, complies with global safety lighting regulations, 5-year warranty
Brand:
DEMIItem no.:
VRA-12200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years200W 12V/24V 5 in 1 dimmable led strip light power supply with Junction Box
This constant voltage dimmable led driver has a dimming mode of Triac/0-10V/1-10V/10VPWM/Potentiometer, a dimming range of 100%~0.1% ultra-deep amplitude, and a built-in active PFC function. It has passed UL certification and complies with Global Safety Lighting Code
Model Number | VRA-12200J | VRA-24200J | VRA-48200J |
Output Type | |||
Reted Power | 200W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 16.6A | 8.33A | 4.16A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 2.06A | ||
Inrush Current(Typ.) | 30A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

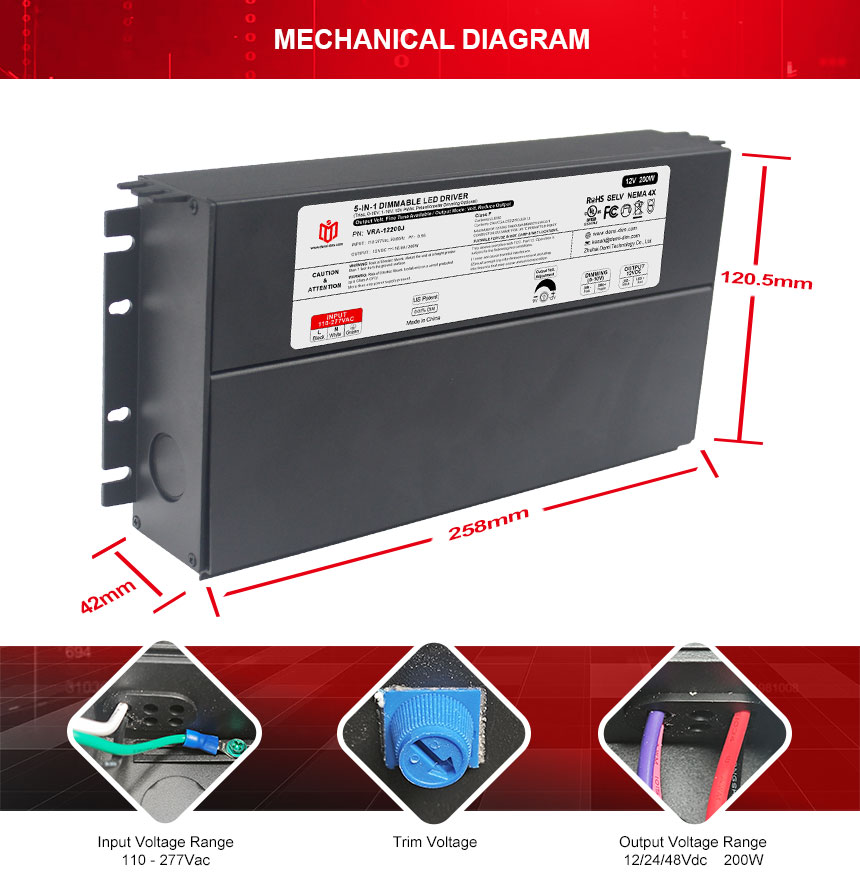

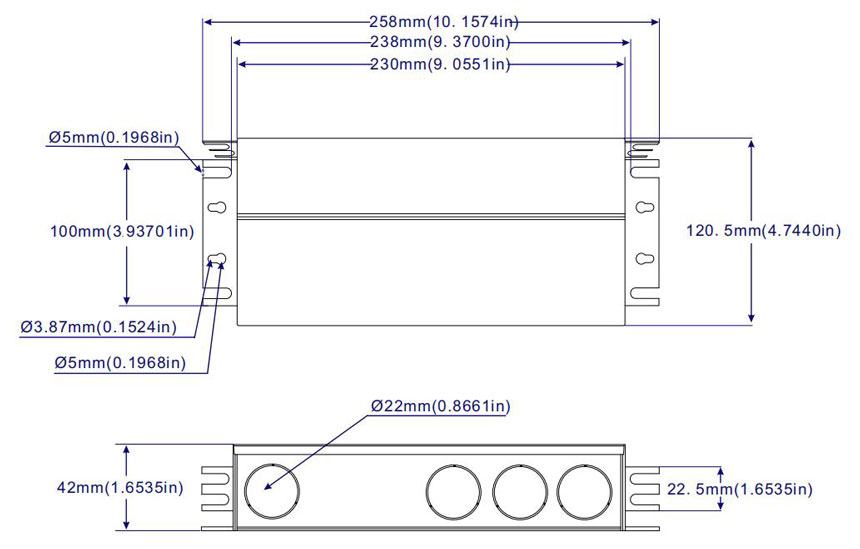

Dimension | 258x120.5x42mm (L*W*H) | ||
Packing | - |
To know more product details, please leave message or e-mail us !

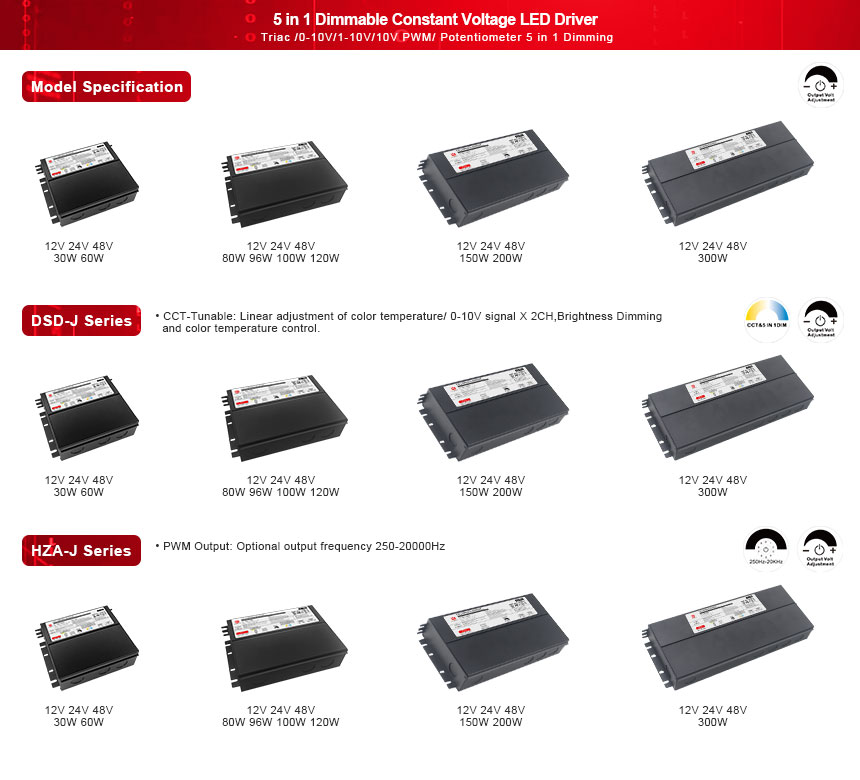

DM's new products include not only the VRA series single-tone dimming LED driver, but also the DSD series triac linear dimming and coloring & 0 10v dual-signal dimming and coloring LED driver, and the HZA series dimmable LED driver with a 9-speed switching output frequency knob function. , can meet the use of lamps with different needs

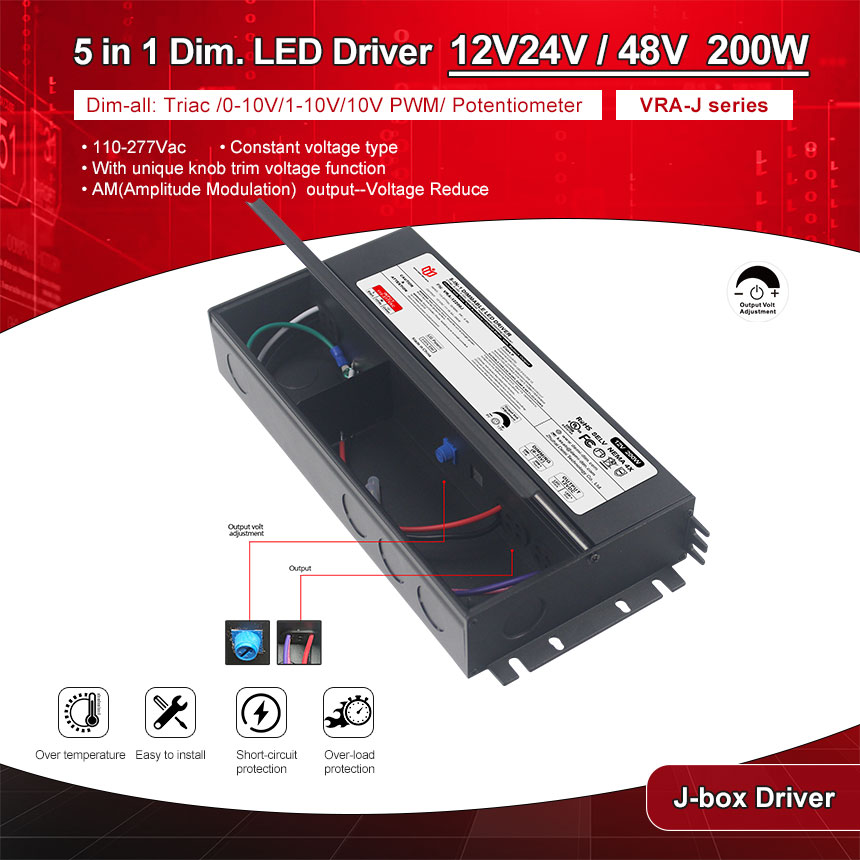

•AM(Amplitude Modulation) Voltage Reduce output type •110-277Vac Universal input •5 years warranty
|
•Dimming range:100-0.01% , flicker-free

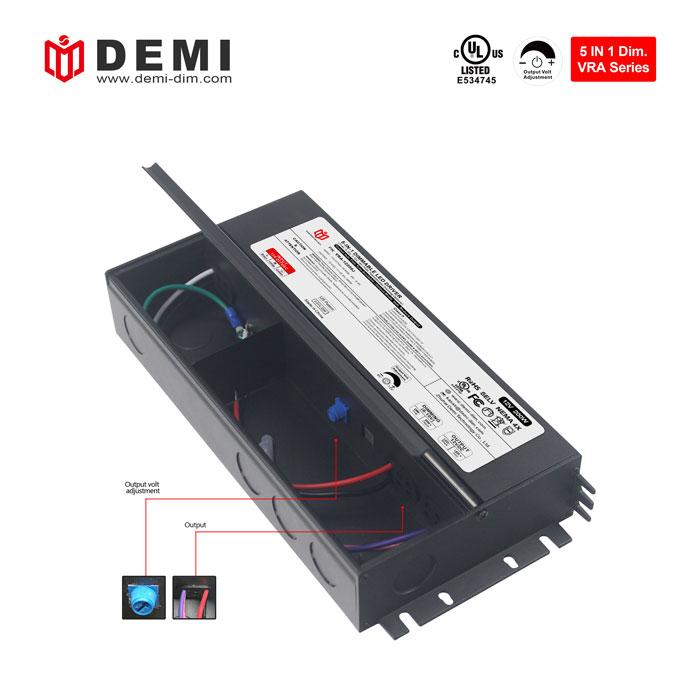

•Exclusive patent design of “Clamshell” junction box •Short-circuit, over-temperature, over-load protection
|
VRA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
200W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram
· Using Triac/MLV wiring diagram
·Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
