Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led driver 96W the dimming range is 0.1~100% ultra-deep amplitude, Voltage Reduce output type constant voltage working mode, 5-year warranty
Brand:
DEMIItem no.:
VRA-24096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:

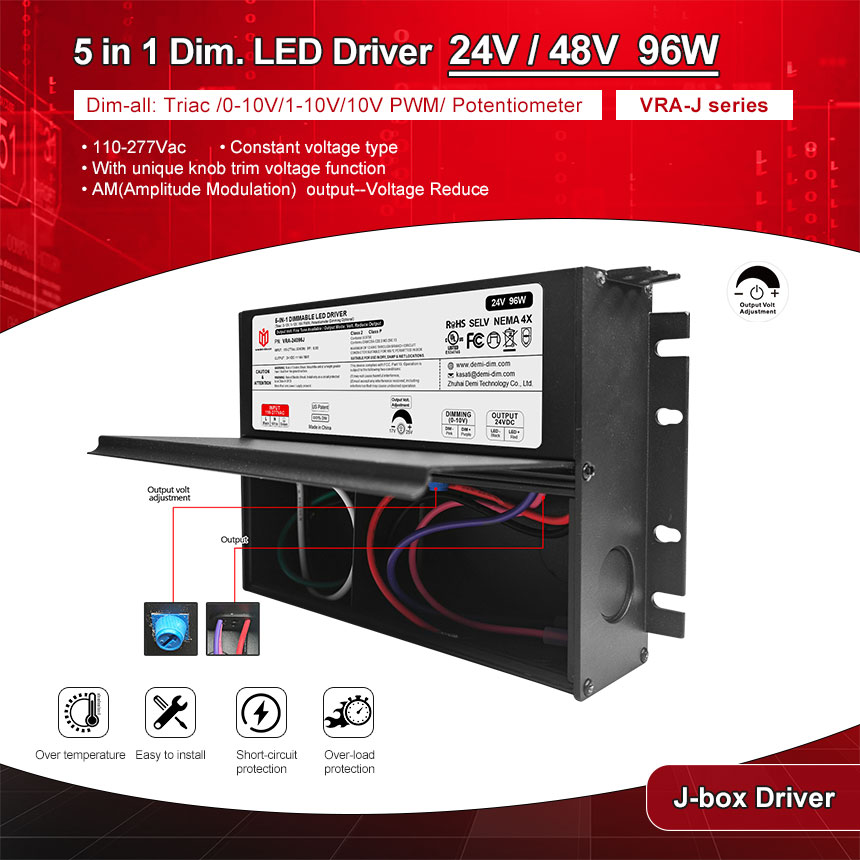

5 years24v/48v 96W triac & 0 10v dimmable constant voltage led driver power supply junction box
This VRA series dimmable 96W 24v/48v led power supply with built-in active PFC function, power factor >0.95, can be used for indoor and outdoor, compatible with most triac and 0 10v dimmers on the market, such as Lutron dimmers Optical device
Model Number | VRA-24096J | VRA-48096J |
Output Type | ||
Reted Power | 96W | |
Reted Voltage | 24V | 48V |
Reted Current | 4A | 2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 89%@120VAC 90%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 1.02A | |
Inrush Current(Typ.) | 25A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

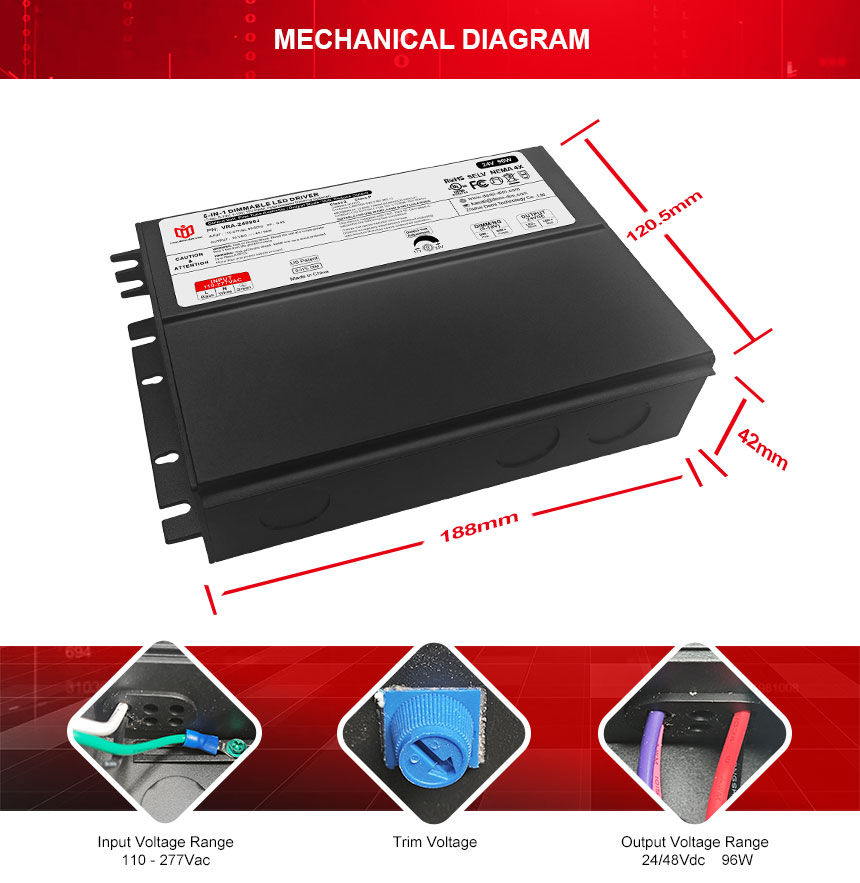

Dimension | 188x120.5x42mm (L*W*H) | |
Packing | - |
•Output type: AM(Amplitude Modulation) output--Voltage Reduce •With unique knob trim voltage function |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Constant voltage type.fine tune of output voltage
|
VRA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
96W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram
· Using Triac/MLV wiring diagram
·Using Triac ELV wiring diagram
