PMA output triac & 0 10v dimmable led driver 100W 12V constant voltage output mode, able to provide stable protection for LED lamps, with short circuit/overload/overtemperature functions, 5-year warranty
Brand:
DEMIItem no.:
PMA-12100JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
100WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years277VAC TRIAC/0 10v dimmable constant voltage 12v 100W led power supply

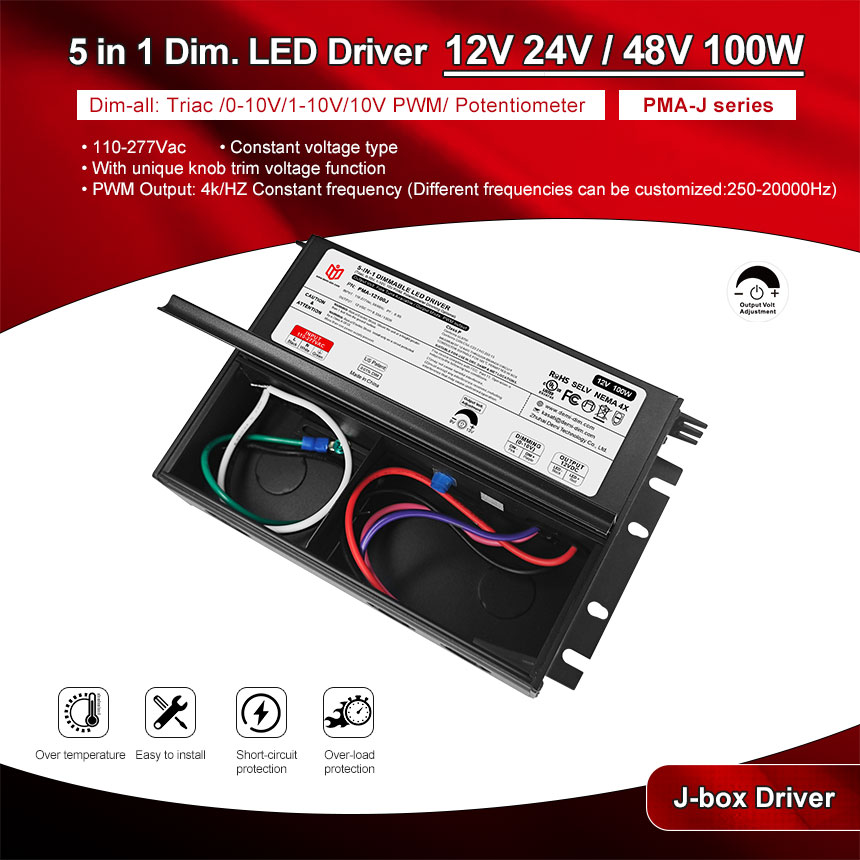

PMA series new product triac & 0 10v dimmable 100w 12v led driver, constant voltage working mode, built-in active PFC function, dimming range between 0.1~100% ultra-deep amplitude, compatible with popular triac dimmers and systems on the market, 0-10V dimmers and systems. Lutron dimmer
Model Number | PMA-12100J | PMA-24100J | PMA-48100J |
Output Type | |||
Reted Power | 100W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 8.33A | 4.16A | 2.08A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 86%@120VAC 87%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.04A | ||
Inrush Current(Typ.) | 26A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

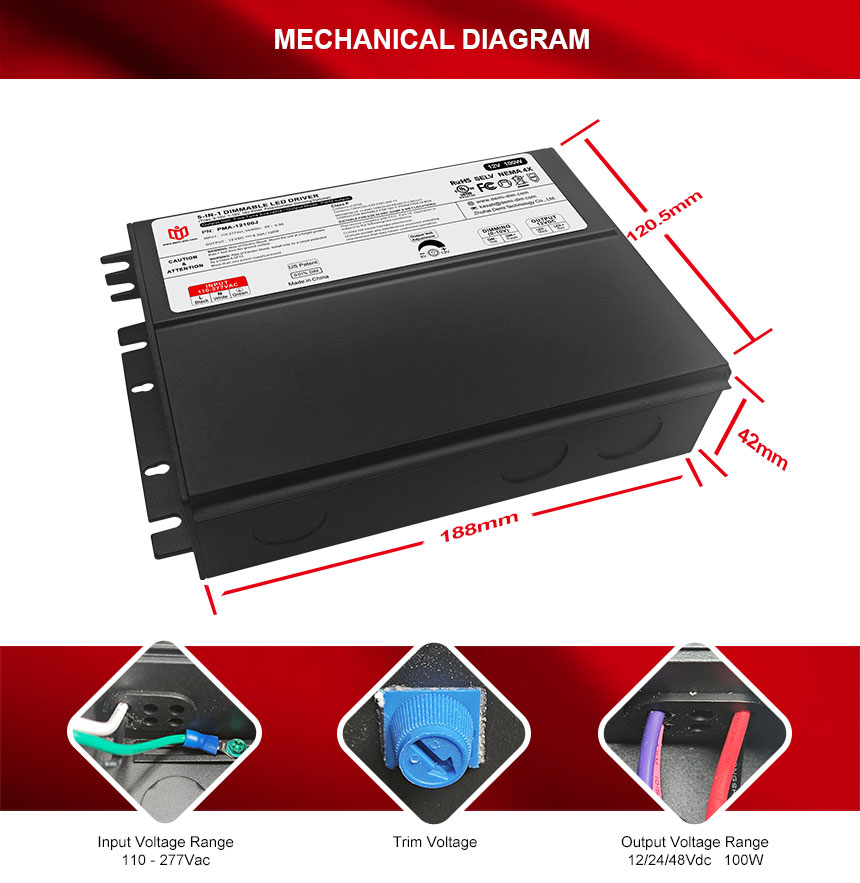

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |
PMA output mode provides multiple application scenarios in 5-in-1 dimmable LED driver. It has multiple mounting feet to meet customer installation and use in different scenarios. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems, as well as 0-10V dimmers and systems on the market.
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Dimming range: 100%-0.1% Ultra Deep Amplitude |

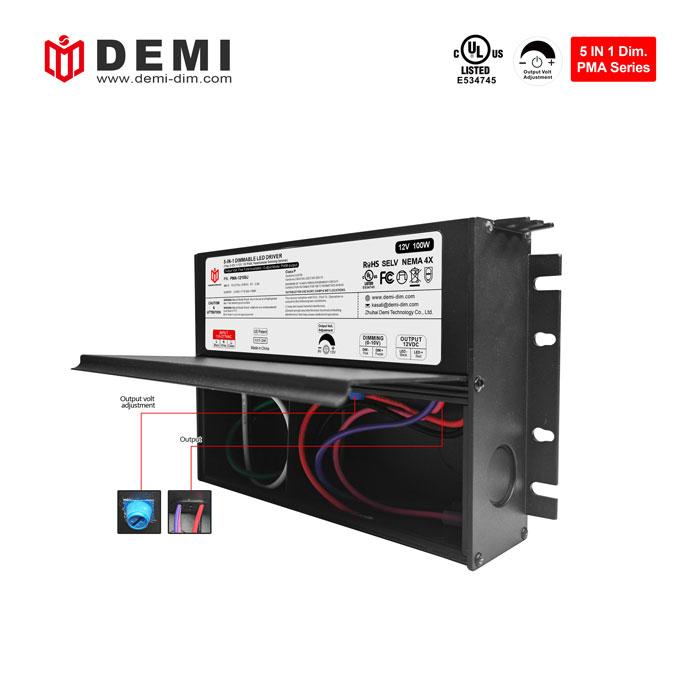

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
PMA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram
· UsingTriac MLV wiring diagram

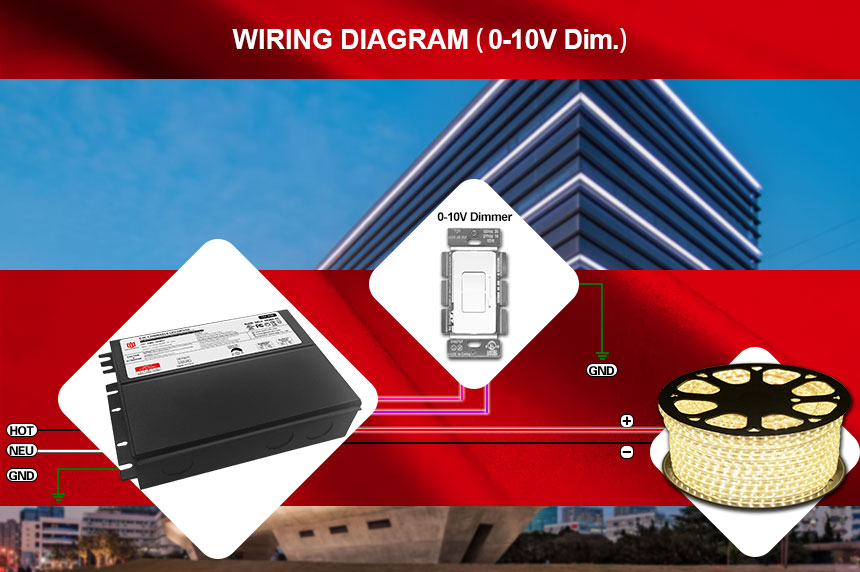

· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
