Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led driver input voltage is 110-277vac universal input, built-in short circuit/over temperature/overload protection function, compatible with most dimmers on the market, such as Insteon 400W dimmer
Brand:
DEMIItem no.:
HVL-NA400JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
120VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
1.3KGCertification:
UL/cUL-listed ClassPWarranty:
5 years

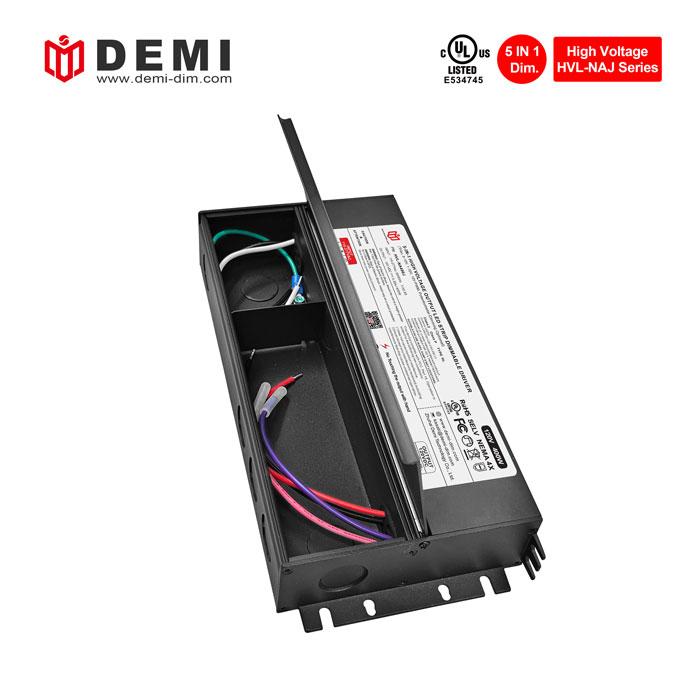

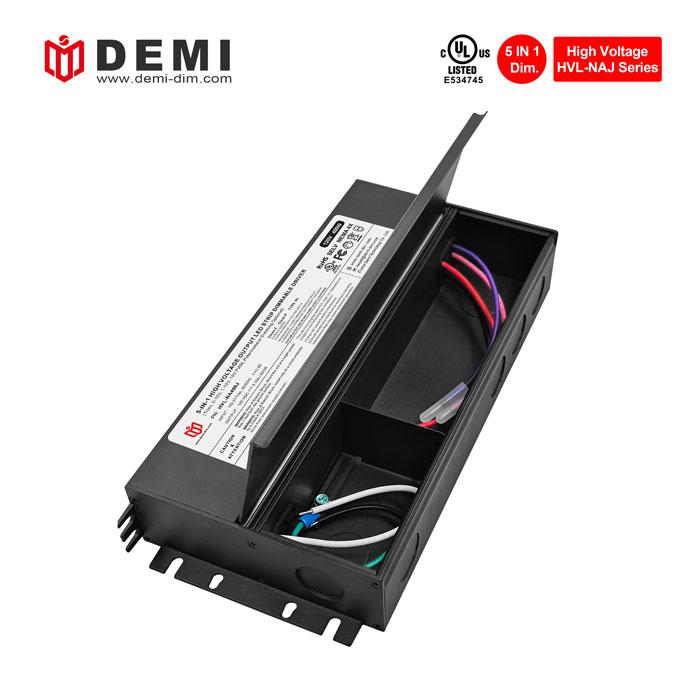

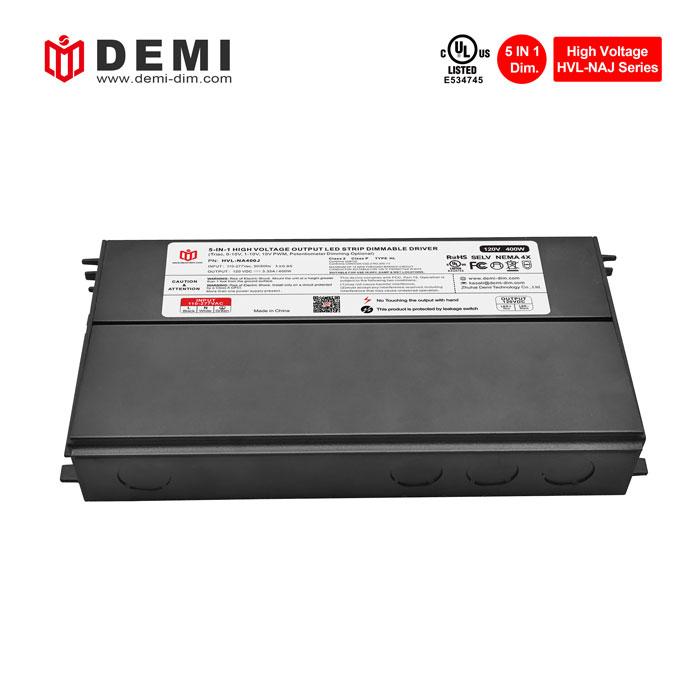

high voltage 120Vdc 5 in 1 dimmable Constant voltage 400W led strip light driver junction box

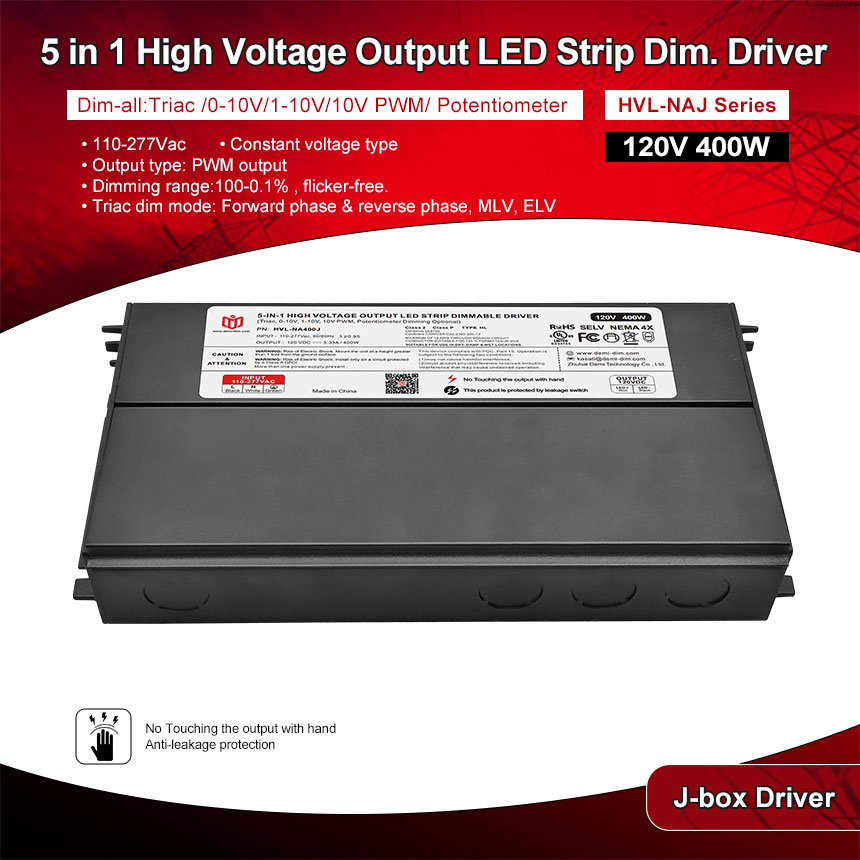

400w constant voltage LED driver output type is PWM, constant voltage operating mode, achieving smooth flicker-free dimming within the range of 100~0.1%, and also has built-in anti-leakage protection to protect users' safety during installation. UL certified, in compliance with global standards Safety lighting regulations, mainly sold in North America
| Model Number | HVL-NA400J |
| Output Type | |
| Reted Power | 400W |
| Reted Voltage | 120V |
| Reted Current | 3.33A±10% |
| Voltage Tolerance | ±1V |
| Voltage Regulation | ±1% |
| Load Regulation | ±2% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 92%@120VAC 93%@277VAC |
| Total Harmonic Distortion | THD< 10%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 3.33A |
| Inrush Current(Typ.) | 40A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | If the unit without damage under the short circuit condition, it recovers automatically after fault condition is removed. |
| Over Load | Intelligently reduce the output voltage,auto-recovery or re-power on to recovery |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10-500Hz,2G 12 minutes/cycle,Period 72 minutes each along X,Y,Z axes |
| SAFETY | |
| Safety standards | UL8750 |
| Safety standards | I/P-shell:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| OTHERS | |

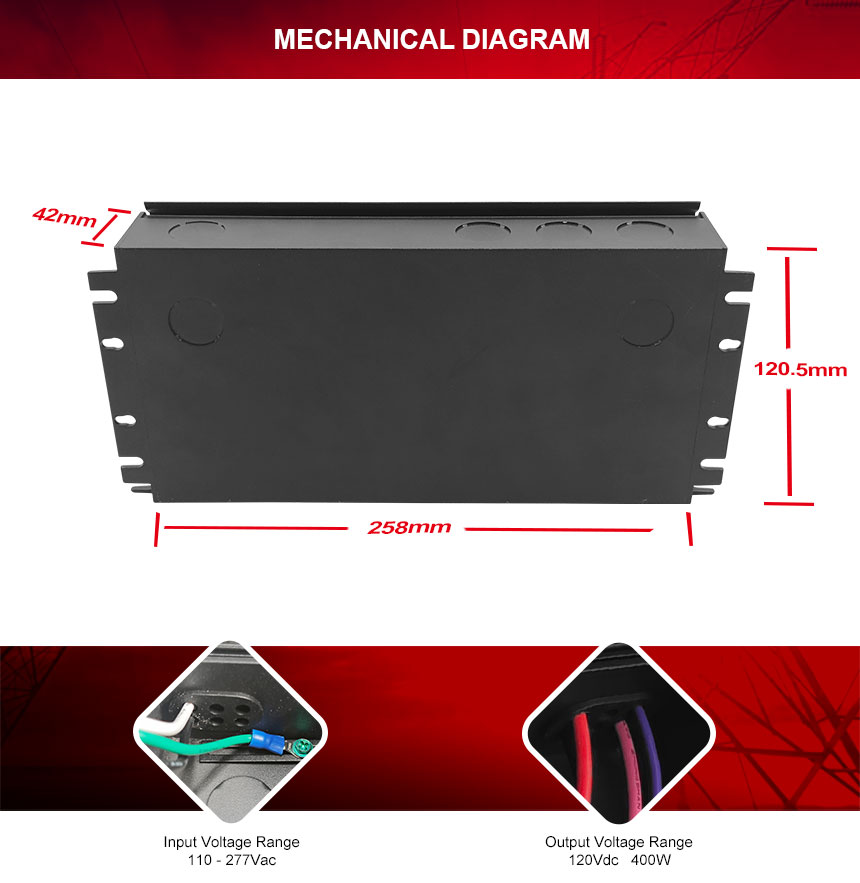

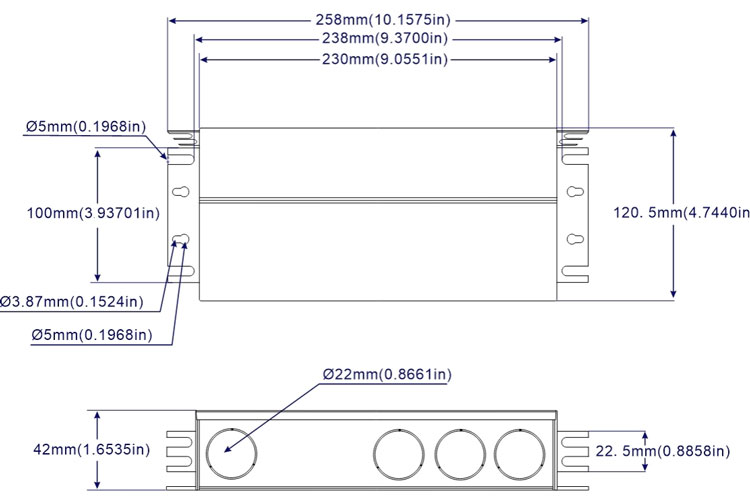

| Dimension | 258x120.5x42mm (L*W*H) |
| Packing | - |
The advantage of high-voltage light strip dimming LED power supply is that the price of low-voltage light strips is higher than that of high-voltage light strips. Traditional high-voltage light strips cannot achieve dimming function. The current emergence of high-voltage light strip dimming power supplies can fill this market gap and reduce costs. . High-voltage light strip dimming power supply can extend the installation distance and simplify the installation process
| HVL-NA400J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 400W | AC L | Black | 18AWG | DC+ | Red |
18AWG 18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
18AWG 18AWG |
Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
To know more product details, please leave message or e-mail us !
Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Wiring Diagram
UsingTriac/MLV wiring diagram

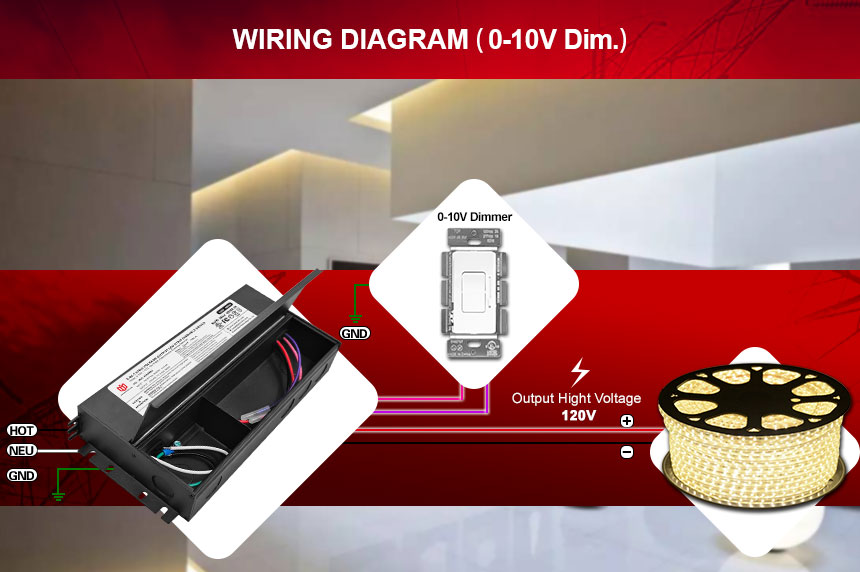

Using 0-10/1-10V dimming(This drive is independently connected to the input)
