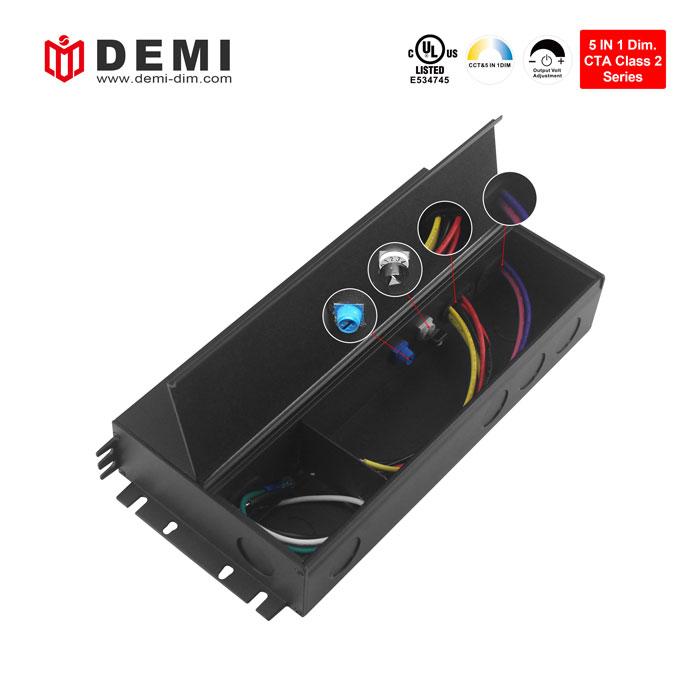

CTA series 192w CCT & triac/0 10v dimmable led driver adopts PWM output mode and has a built-in fine-tuning output voltage function knob, which can compensate for the light attenuation of the lamp at +1v. It has strong compatibility and can be connected to most triac dimmers and 0 10v dimmers on the market, such as casambi dimmer.
Brand:
DEMIItem no.:
CTA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
ul class 2 constant voltage triac & 0 10v dimmable 24v/48v 192W led driver strip lights

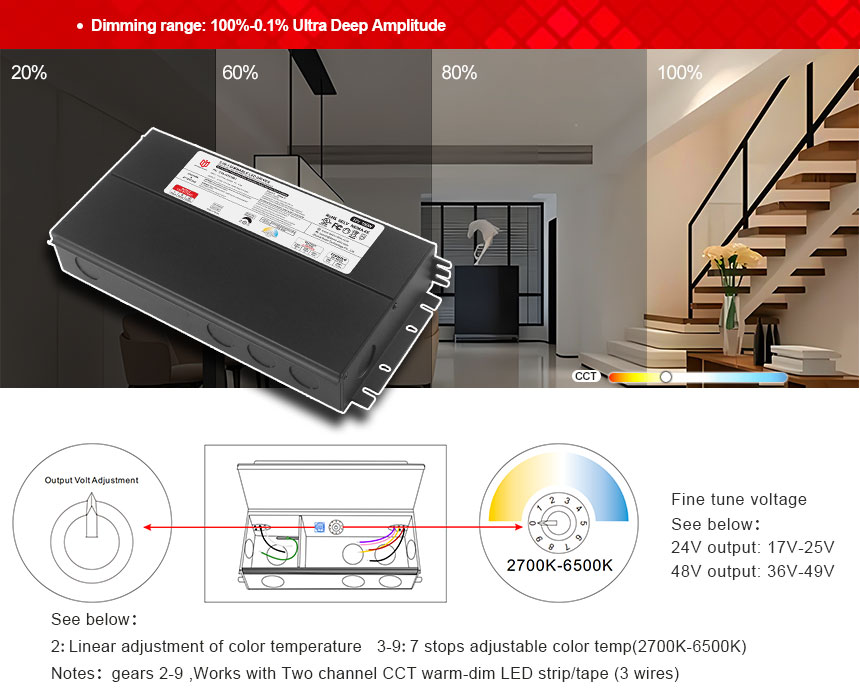

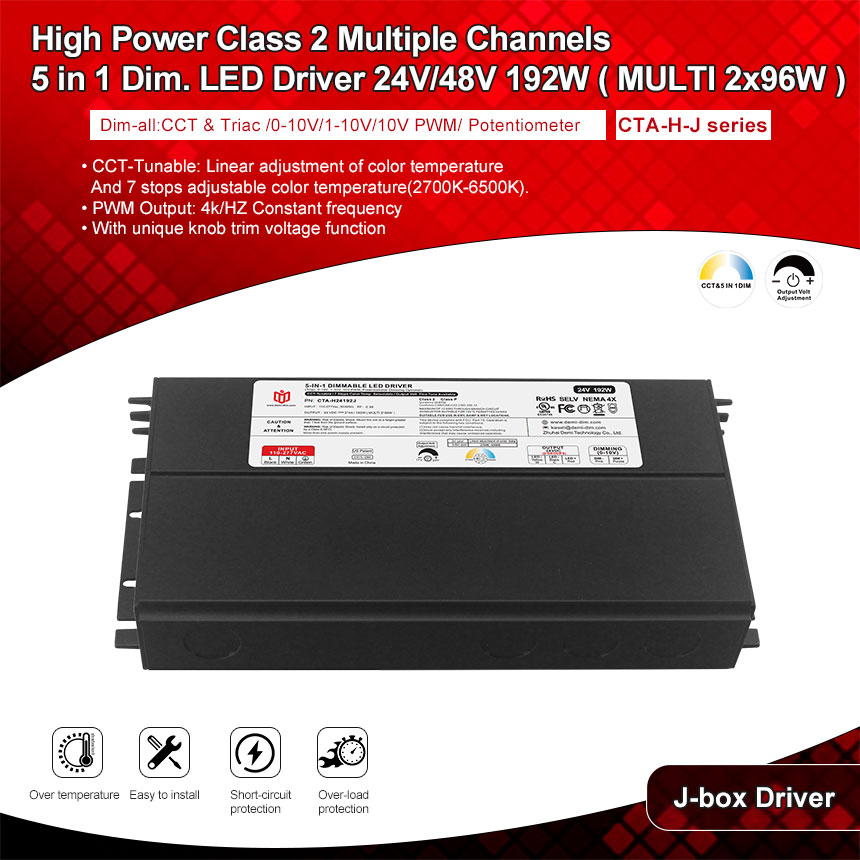

This CCT & 5 in 1 dimmable led driver has a built-in color temperature linear adjustment function and a 7-step color temperature adjustable knob. Users can select the desired color temperature within the range of 2700k-6500k. It has a constant voltage operating mode, has ultra-low load requirements, and can Works perfectly under 10%-100% load.

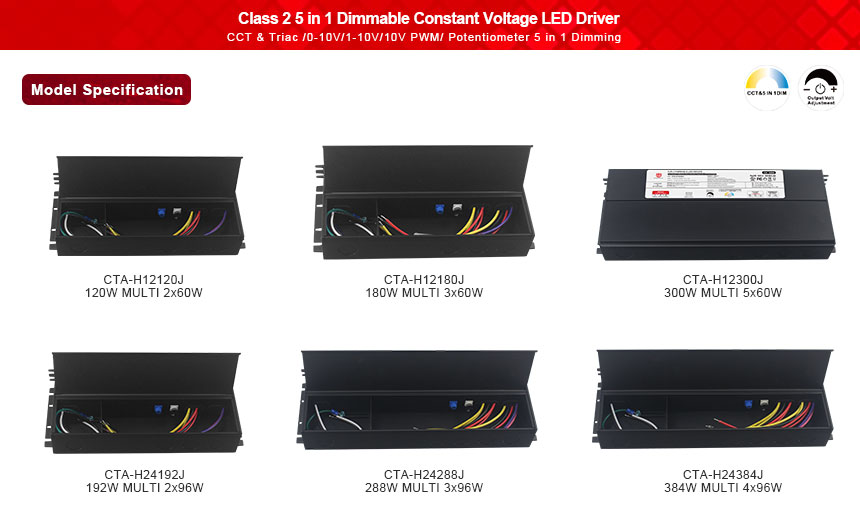

| Model Number | CTA-H24192J | CTA-H48192J |
| Output Type | ||
| Reted Power | 192W(MULTI 2*96W) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 2CH*4A | 2CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.2A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over | |
| load is removed | ||
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

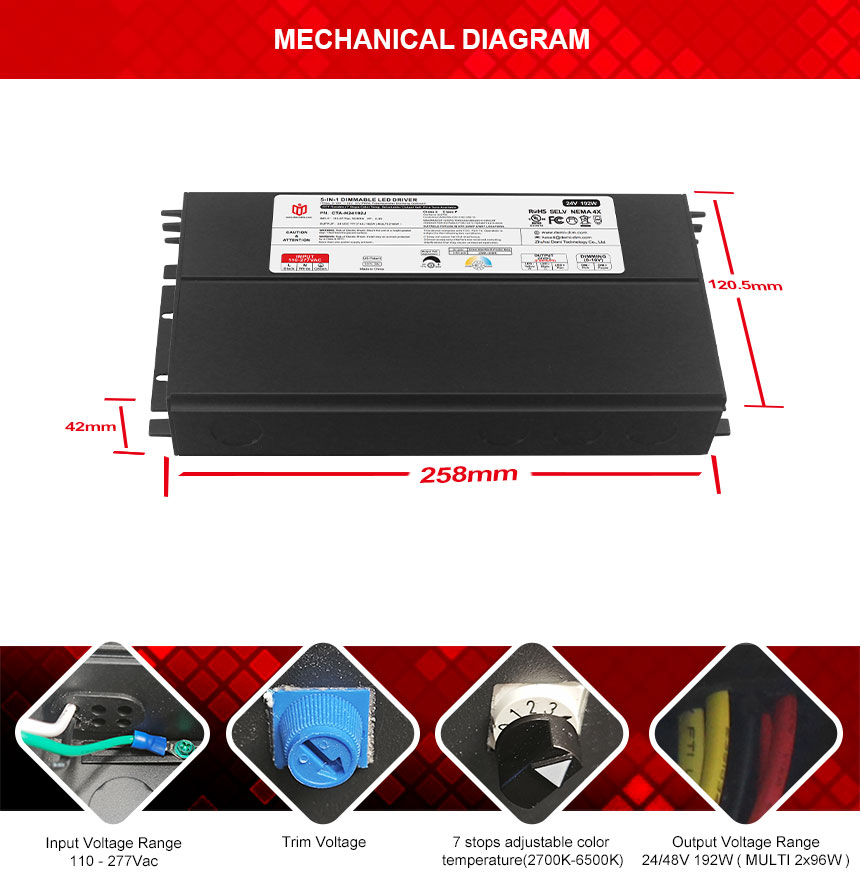

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |
|
•110-277Vac Universal input. •5 years warranty. •PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) |
•Short-circuit, over-temperature, over-load protection. •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load.
|
This Class 2 24V/48V 192W dimmable led driver has multiple outputs and can provide power protection for multiple lamps at the same time. The dimmable color temperature does not change frequency or voltage reduction throughout the entire process, and it can maintain the factory settings from the highest brightness to the lowest brightness. Set at 4k or 20k
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 2*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | Dim- | Orange | 18AWG | |
Wiring Diagram

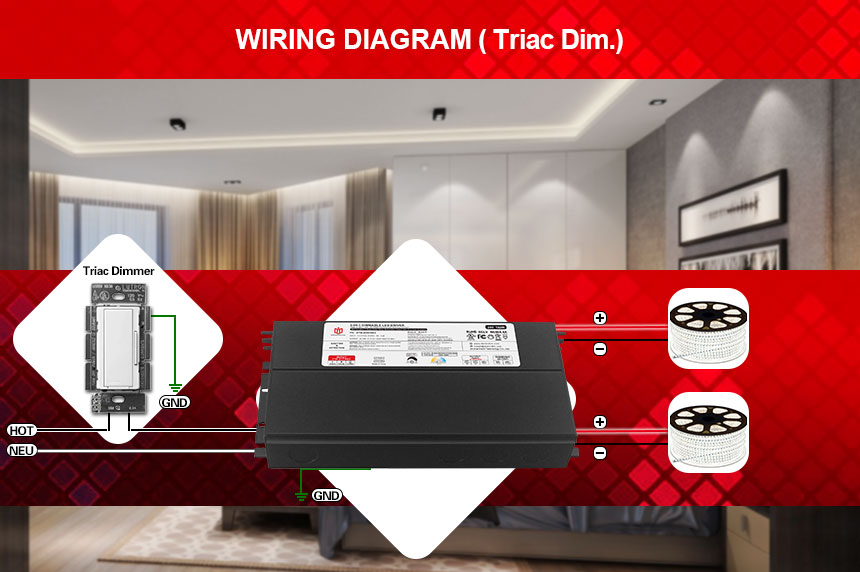

· Using Triac MLV wiring diagram

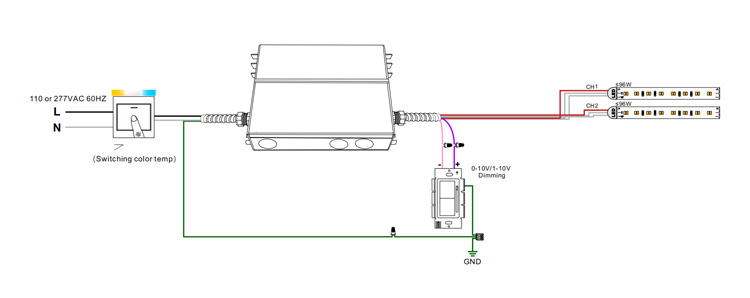

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
