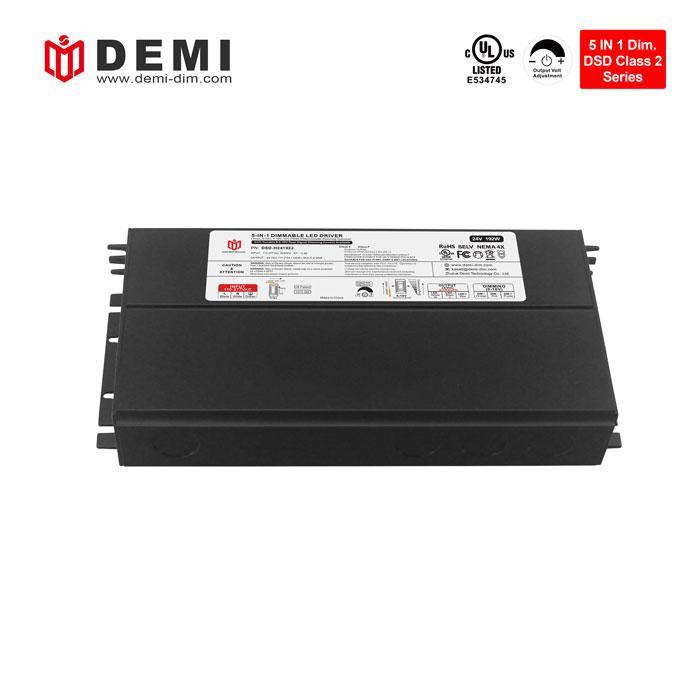

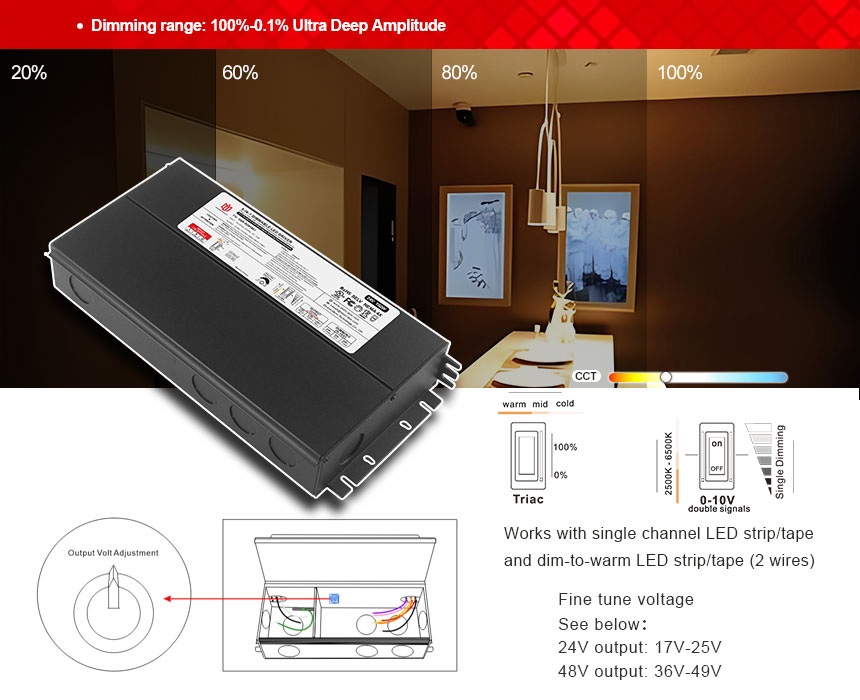

This CCT & triac/0 10v dimmable led driver PWM output mode adopts 4K/HZ constant frequency and has a built-in fine-tuning output voltage function knob, of which +1V can compensate for the light attenuation of the lamp. It has strong compatibility and can be used with most major products on the market. Some triacs work well with 0 10v dimmers such as Leviton dimmers
Brand:
DEMIItem no.:
DSD-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:

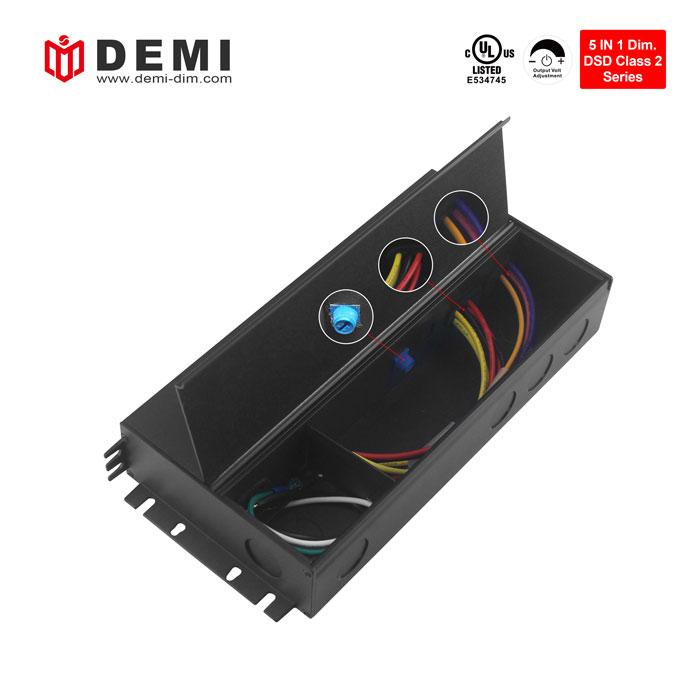

J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

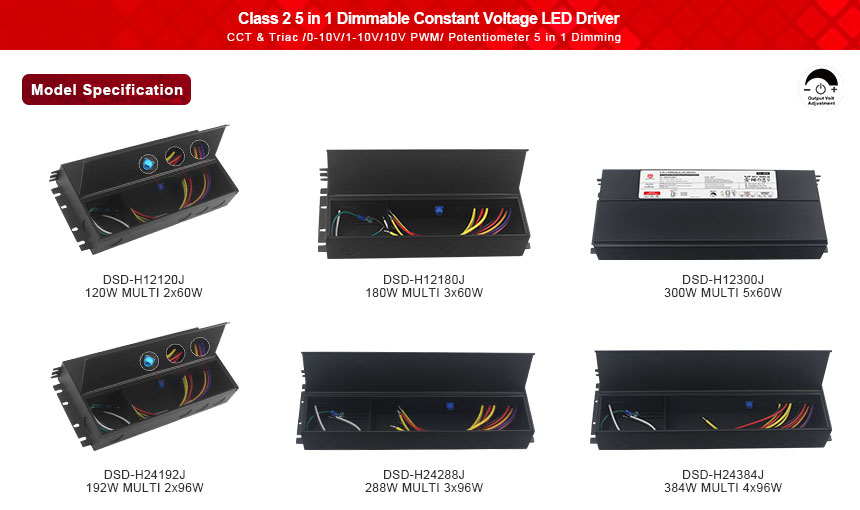

Class 2 24v 192W triac & 0 10v constant voltage dimmable led driver power supply manufacturers
Class 2 DSD series CCT & 5 in 1 dimmable led driver has a universal input voltage of 110-277vac, constant voltage operating mode, and an operating efficiency of up to 91%. With short circuit/overload/over temperature protection function
| Model Number | DSD-H24192J | DSD-H48192J |
| Output Type | ||
| Reted Power | 192W(MULTI 2*96W) | |
| Reted Voltage | 24V | |
| Reted Current | 2CH * 4A | 2CH * 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.2A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

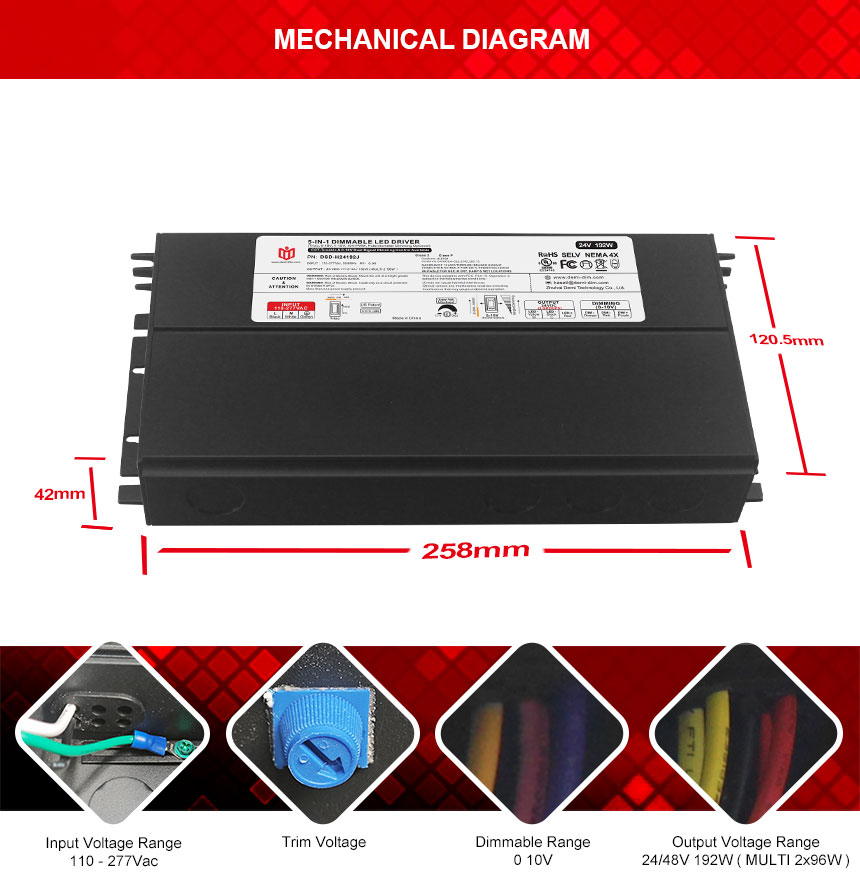

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |
|

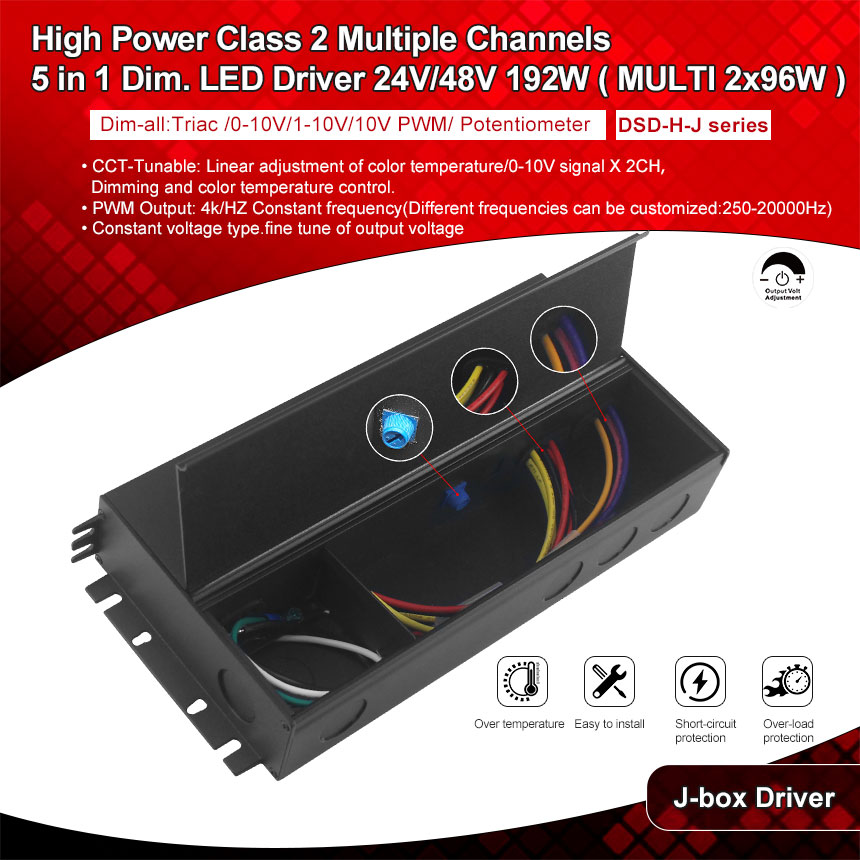

•110-277Vac Universal input. •5 years warranty. •CCT-Tunable: Linear adjustment of color temperature/0-10V signal X 2CH，Dimming and color temperature control. |
•Short-circuit, over-temperature, over-load protection. •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load.
|
The dimmable mode of this DSD series dimmable 192W led driver is CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer. Complies with Class 2 standards, has two outputs, can provide stable voltage support for multiple lamps at the same time, and can work perfectly under 10%-100% load
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 2*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | Dim- | Orange | 18AWG | |

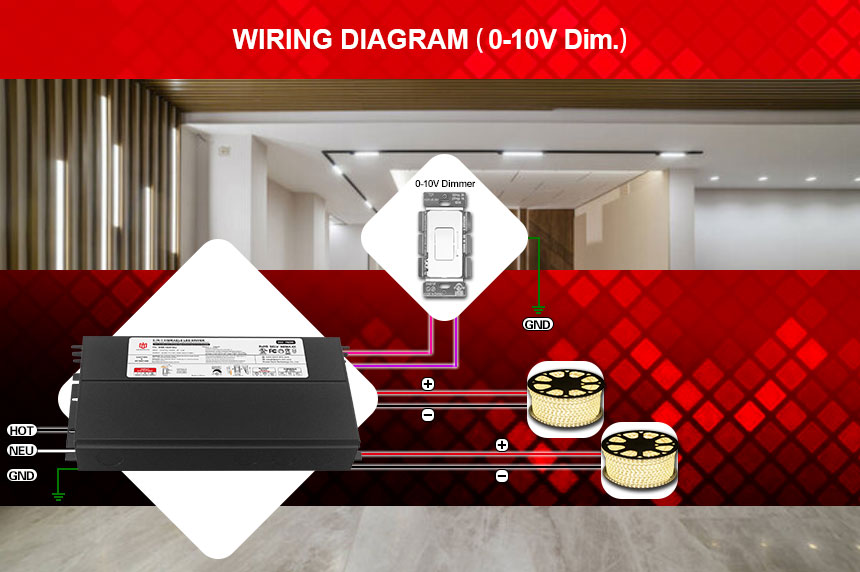

Wiring Diagram
· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming

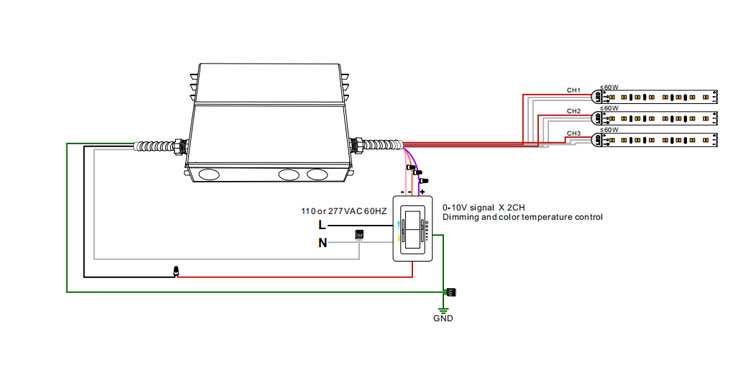

Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
