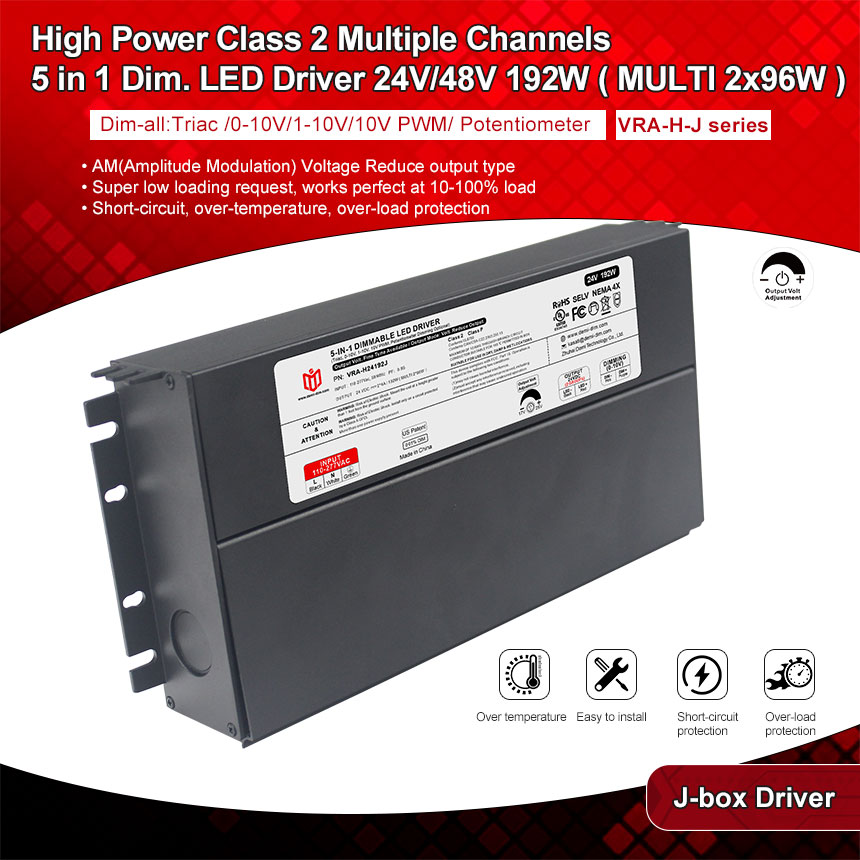

192w 5 in 1 dimmable led driver 110-277vac universal input voltage mode, passed UL certification, constant voltage operating mode, strong compatibility, dimming effect is as good as Magnitude Lighting's 192W dimmable led driver
Brand:
DEMIItem no.:
VRA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years24v/48v 192W class 2 triac & 0 10v dimming constant voltage led power supply for led strip lights
DM Technology's new product VRA series 192W 24V/48V dimmable led driver has built-in active PFC function, power factor >0.95, has ultra-low load requirements, can work perfectly under 10-100% load, and has a five-year warranty

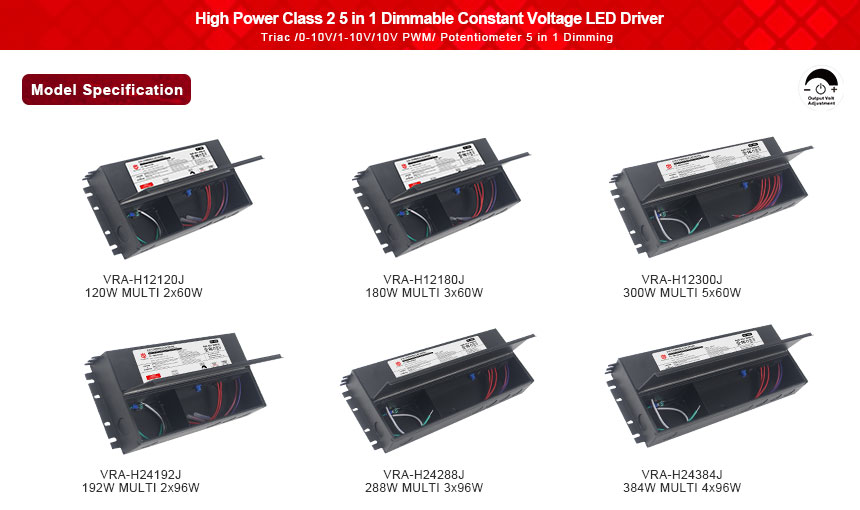

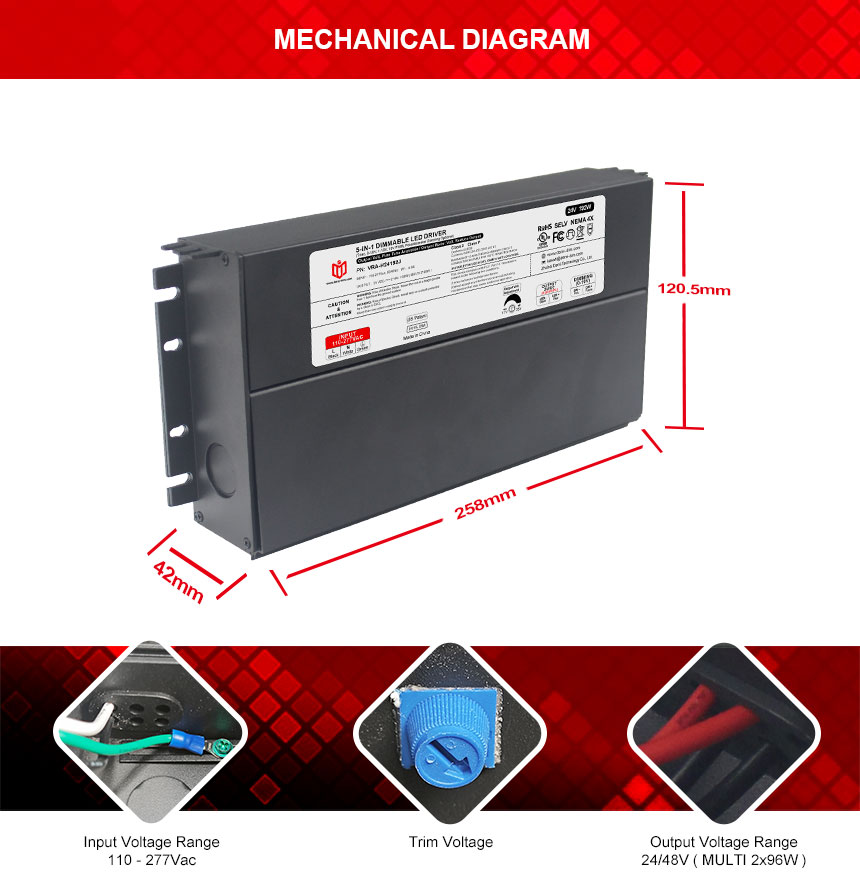

Model Number | VRA-H24192J | VRA-H48192J |
Output Type | ||
Reted Power | 192W(2CH*96W) | |
Reted Voltage | 24V | 48V |
Reted Current | 2CH*4A | 2CH*2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 2.2A | |
Inrush Current(Typ.) | 30A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||
Dimension | 258x120.5x42mm (L*W*H) | |
Packing | - |
•Exclusive patent design of “Clamshell” junction box •Build in active PFC, typical power factor>0.95 |

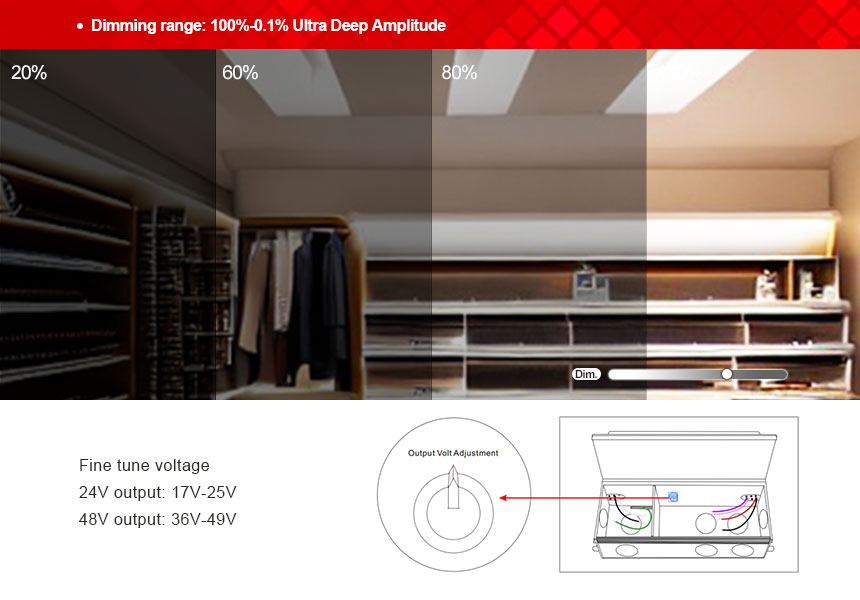

•Constant voltage type.fine tune of output voltage •Title 24 JA8 compliant
|

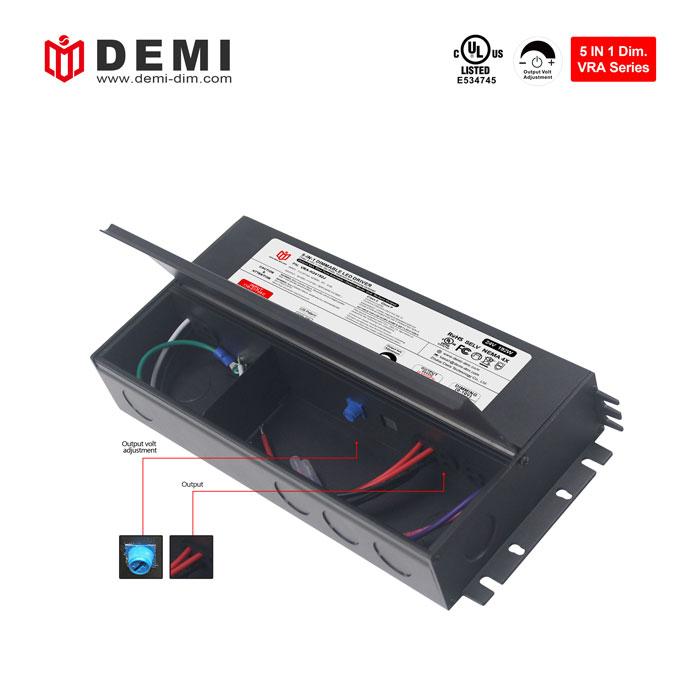

This VRA series dimmable led driver serves as its own junction box, which is easy and quick to install. The junction box material is made of aluminum and has passed NEMA 4X. It has good heat dissipation performance and the height adjustment range is 0.1~100% ultra-deep dimming. It is suitable for advertising On the light board, used together with the LED advertising lighting module
VRA-H-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
192W (MULTI 96W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

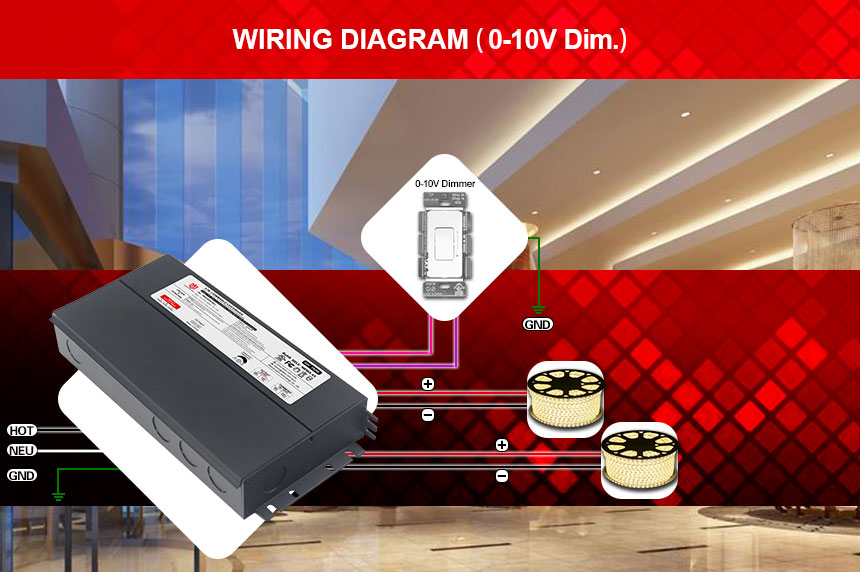

Wiring Diagram
· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
