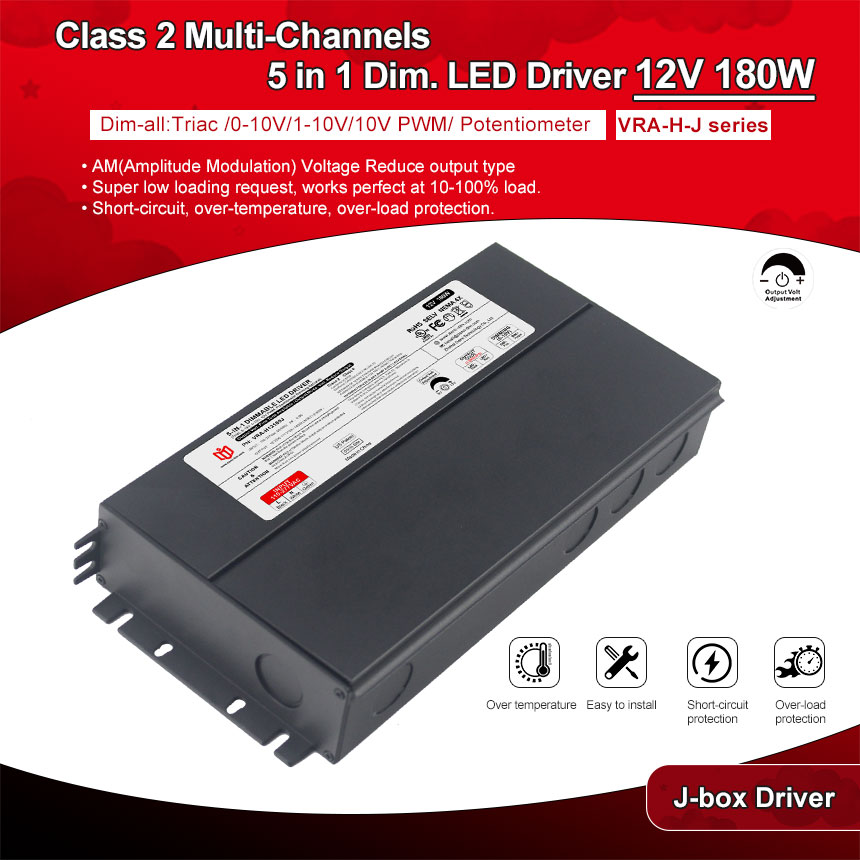

180W triac & 0 10v dimmable led driver has built-in active PFC function, has ultra-low load requirements, can work perfectly under 10-100% load, and the dimming range is 100%-0.1% ultra-deep range. The dimming effect is as good as inventronics’ 180W dimmable led driver
Brand:
DEMIItem no.:
VRA-H12180JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years12v outdoor constant voltage triac & 0 10v dimmable LED strip lights driver power supply junction box

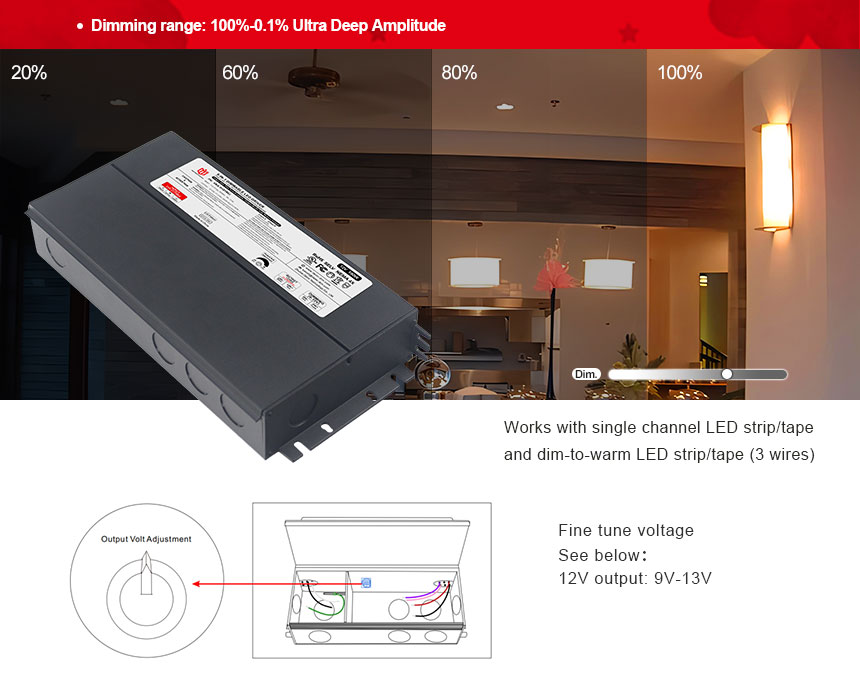

VRA series Class 2 dimmable led driver 180W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp. Constant voltage working mode, with overload/overtemperature/short circuit protection function, 5-year warranty

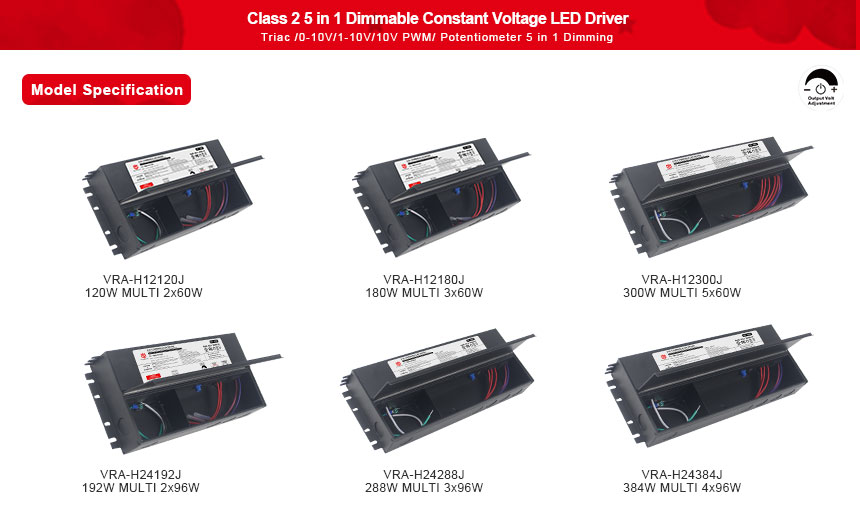

Model Number | VRA-H12180J |
Output Type | |
Reted Power | 180W(3CH*60W) |
Reted Voltage | 12V |
Reted Current | 3CH*5A |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 110-277V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
Total Harmonic Distortion | THD< 15%(@100% load) |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
AC Current(Typ.) | 1.88A |
Inrush Current(Typ.) | 28A |
Leakage Current | <0.5mA |
PROTECTION | |
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
Withstand voltage | I/P-O/P:1.88KVAC |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
EMC Emission | Compliance to FCC part 15 Subpart B |
OTHERS | |

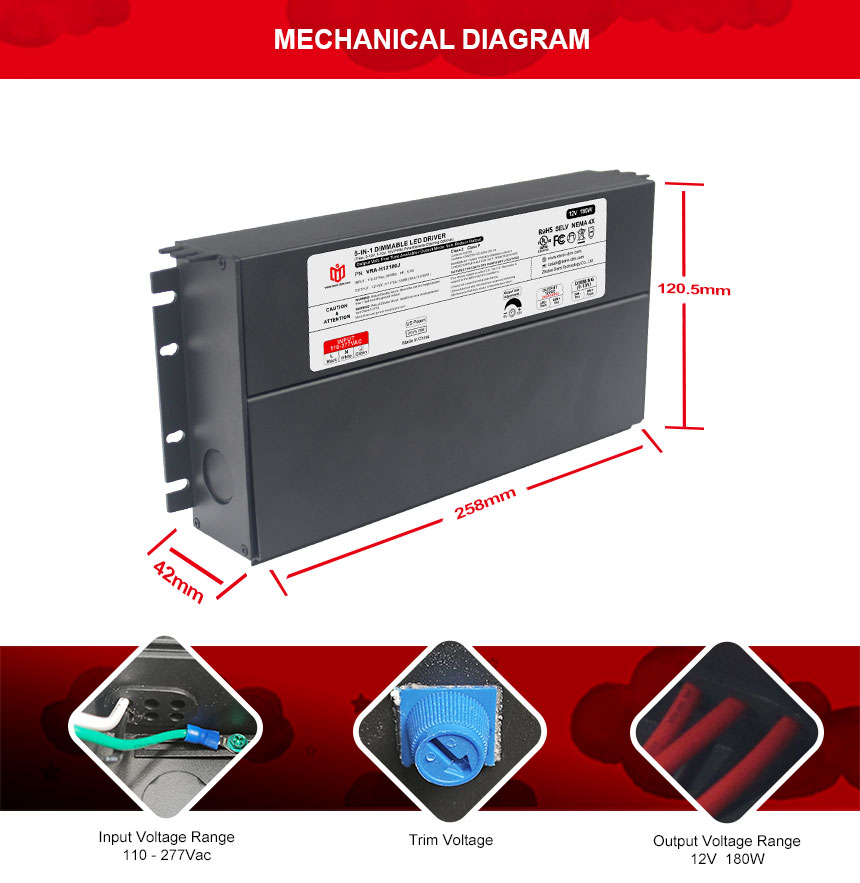

Dimension | 258x120.5x42mm (L*W*H) |
Packing | - |
•AM(Amplitude Modulation) Voltage Reduce output type •Exclusive patent design of “Clamshell” junction box |
•Constant voltage type.fine tune of output voltage •Short-circuit, over-temperature, over-load protection
|
This 3-channel output 180W dimmable led driver can provide stable protection for multiple lamps at the same time. When installing, you need to pay attention to installing it in an open place to maintain air circulation. The junction box has an open structure inside, and the heat dissipation design can effectively reduce the driver temperature
VRA-H-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
180W (MULTI 60W * 3) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram

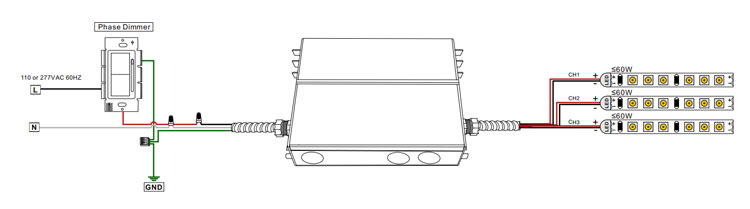

· Using Triac MLV wiring diagram

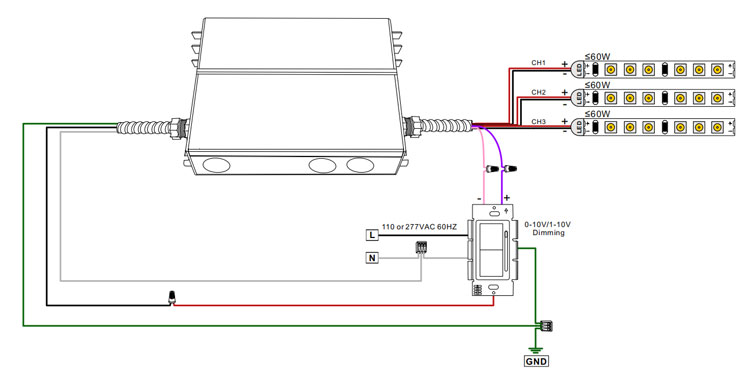

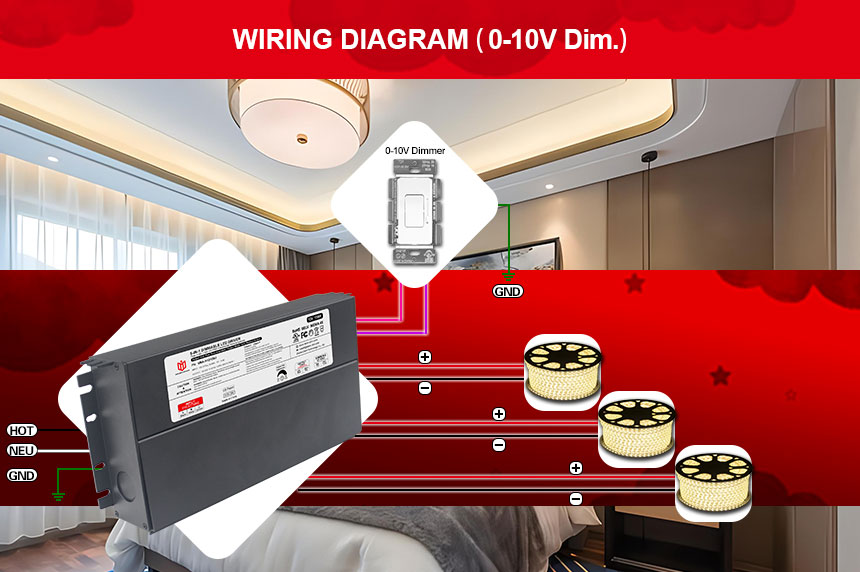

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Tags :
