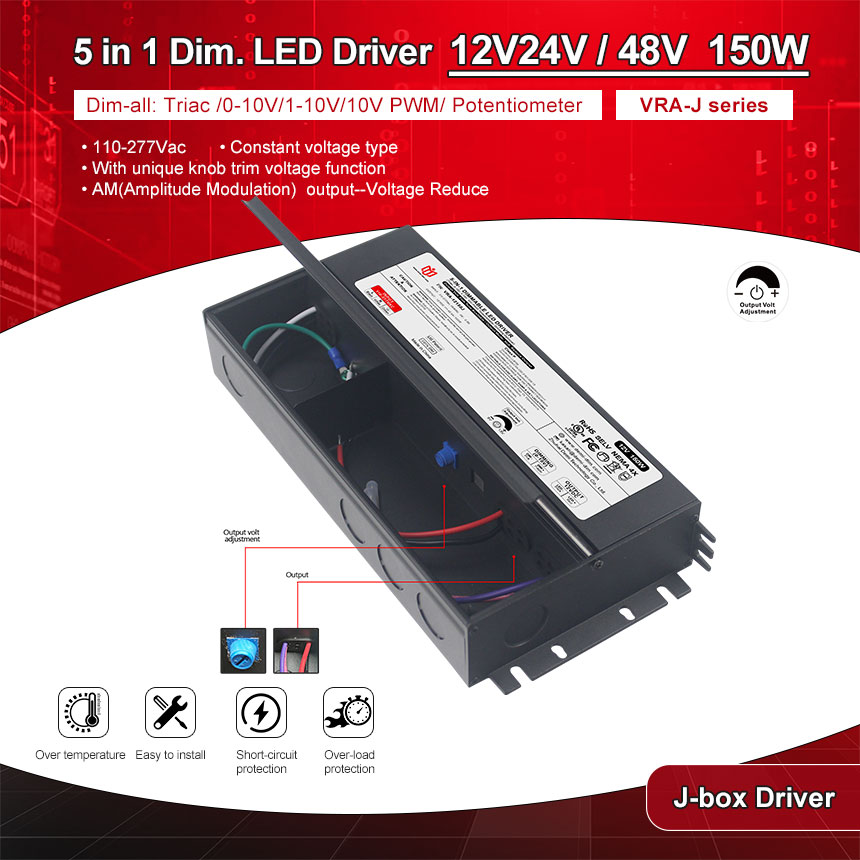

110-277vac triac & 0 10v dimmable led driver AM Voltage Reduce output type, built-in fine-tuning voltage function knob, which can be adjusted according to the user's actual lighting conditions, 5-year warranty
Brand:
DEMIItem no.:
VRA-12150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years150w 12v triac & 0 10V dimmable led power supply for led strip
This Triac/0-10V/1-10V/10VPWM/Potentiometer 150W dimmable led driver works in constant voltage mode and can be applied to single-channel LED strips. It has strong compatibility and can be well connected with AQ Lighting's 150W LED strip. , achieving smooth flicker-free dimming

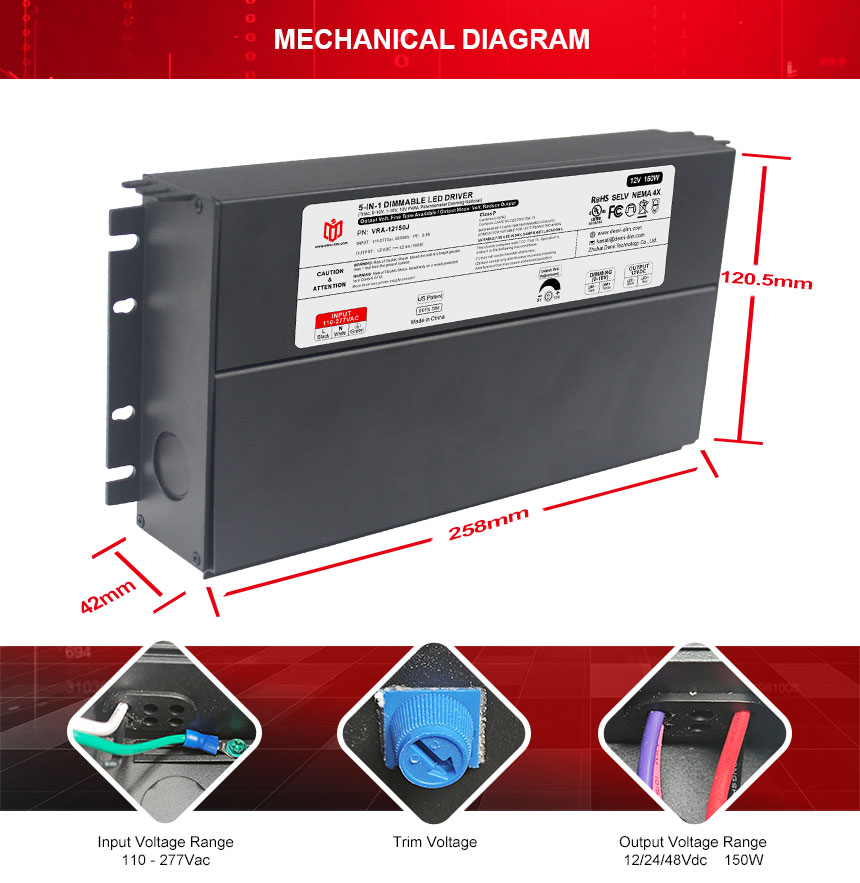

Model Number | VRA-12150J | VRA-24150J | VRA-48150J |
Output Type | |||
Reted Power | 150W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 12.5A | 6.25A | 3.13A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.55A | ||
Inrush Current(Typ.) | 28A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||
Dimension | 258x120.5x42mm (L*W*H) | ||
Packing | - |
To know more product details, please leave message or e-mail us !

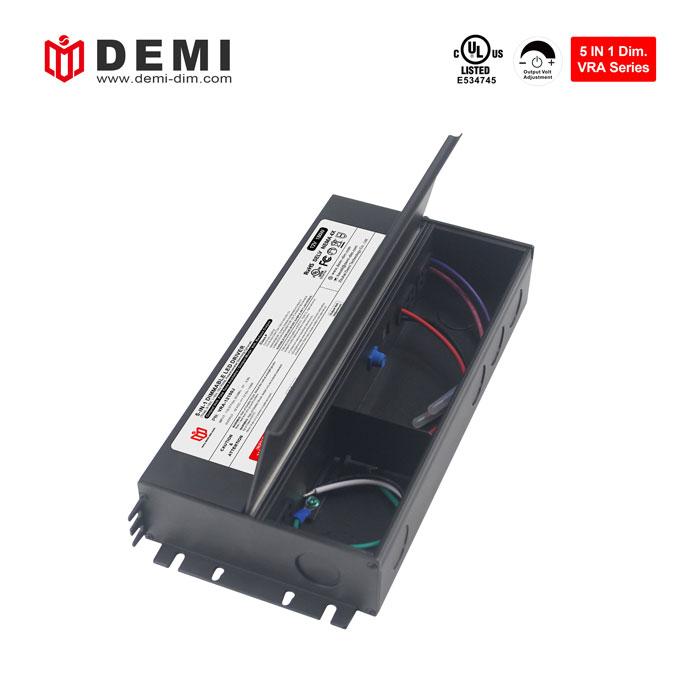

When wiring the VRA series 150W dimmable led driver, you need to ensure that short circuits between the wires are avoided. The exposed parts of the wires can be isolated with materials such as insulating sleeves or insulating tape to avoid unnecessary current backflow.

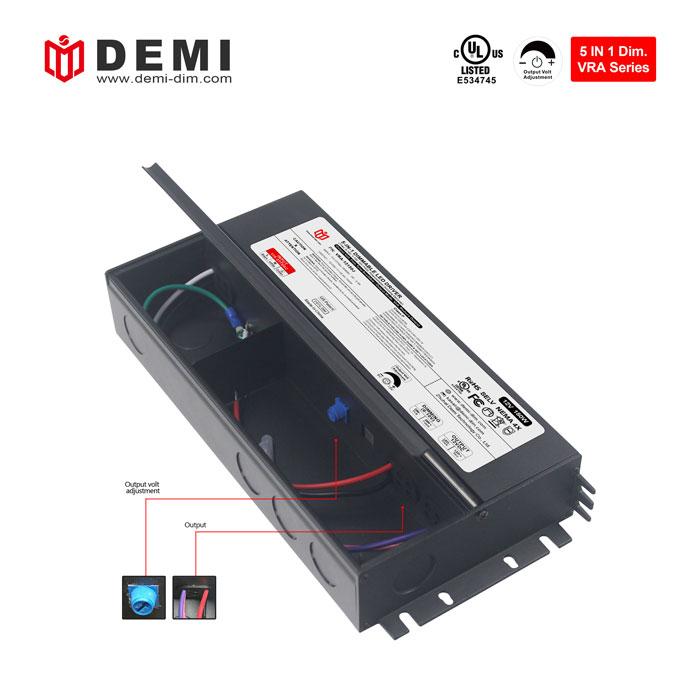

Fine tune voltage
See below: 12V output: 9V-13V 24V output: 17V-25V 48V output: 36V-49V
|
Application: •LED strip/LED tape/LED module •Residential Lighting •Commercial Lighting
|
VRA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram

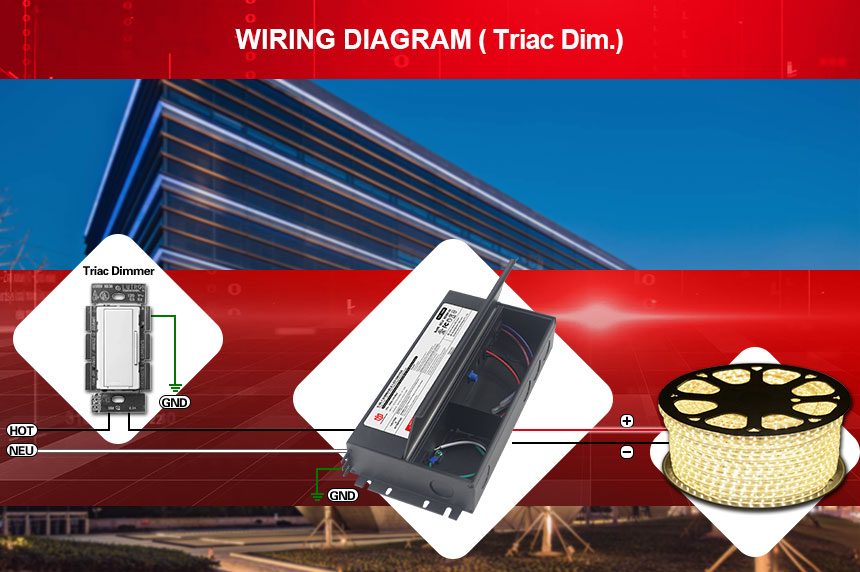

· Using Triac/MLV wiring diagram

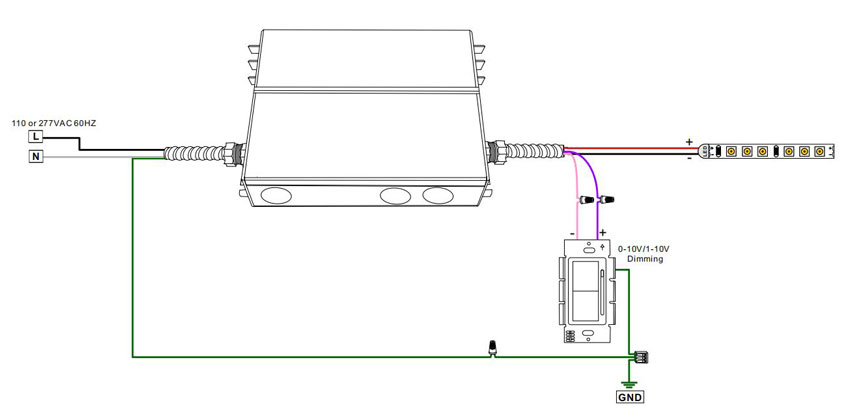

·Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
