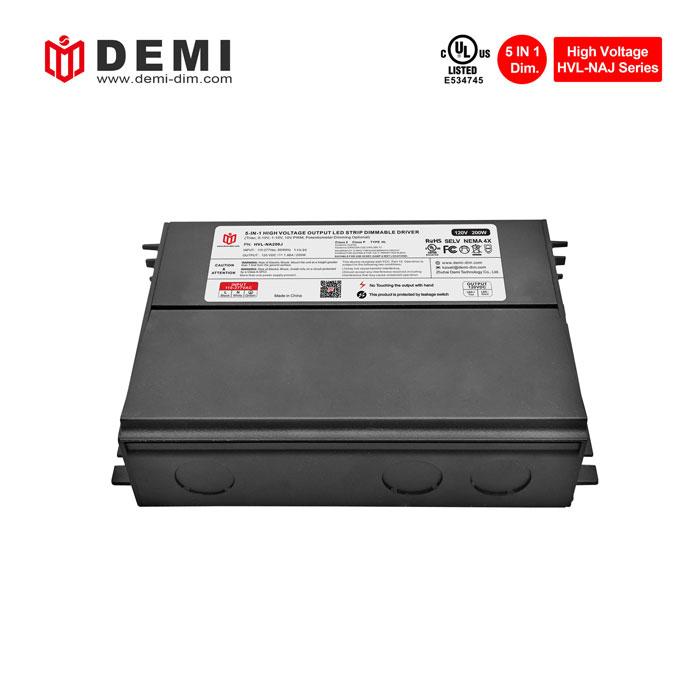

This 120vdc output voltage 5 in 1 dimmable led driver has built-in active PFC function, ultra-low load requirements, can work perfectly under 10%-100% load, and is very compatible with BESTTEN's 200W dimmer.
Brand:
DEMIItem no.:
HVL-NA200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
120VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL/cUL-listed ClassPWarranty:
5 years

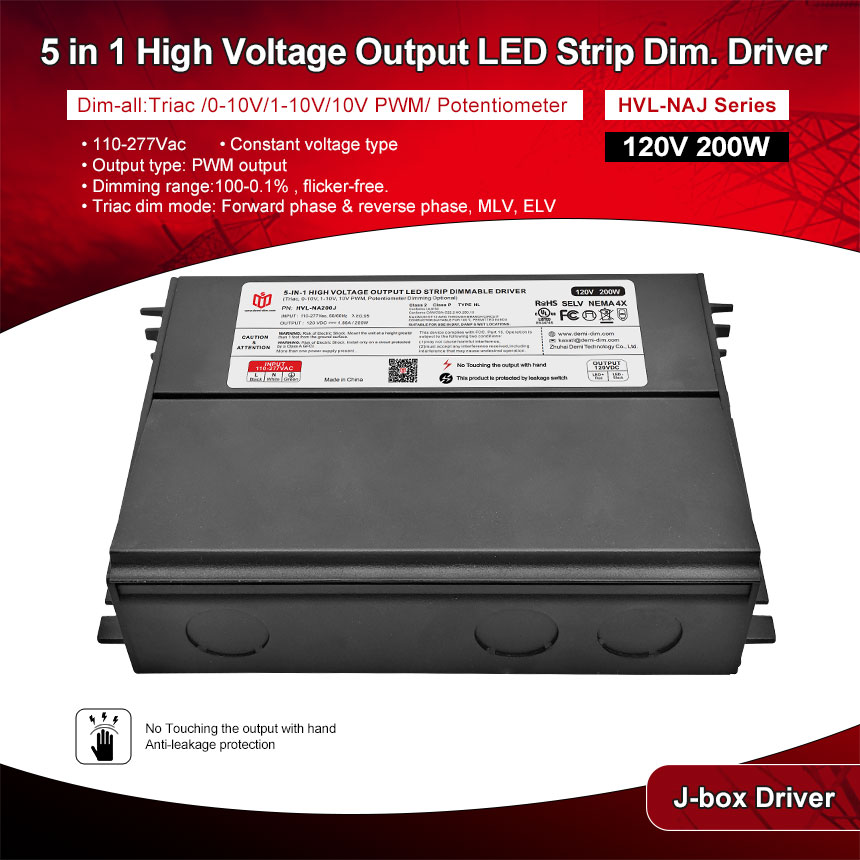

110-277v Input voltage 5 in 1 dimmable constant voltage 200W LED strip light driver power supply

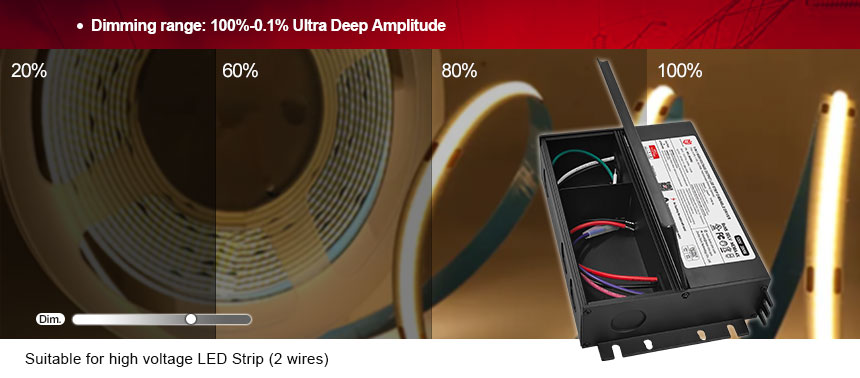

DM's new product high-voltage lamp strip output series 5 in 1 dimmable constant voltage led driver provides users with another option, which can achieve dimming effects at a lower cost and fill the gap where high-voltage lamp strips cannot be dimmed. The dimming range is 0.1~100 % Ultra-deep dimming with 5-year warranty

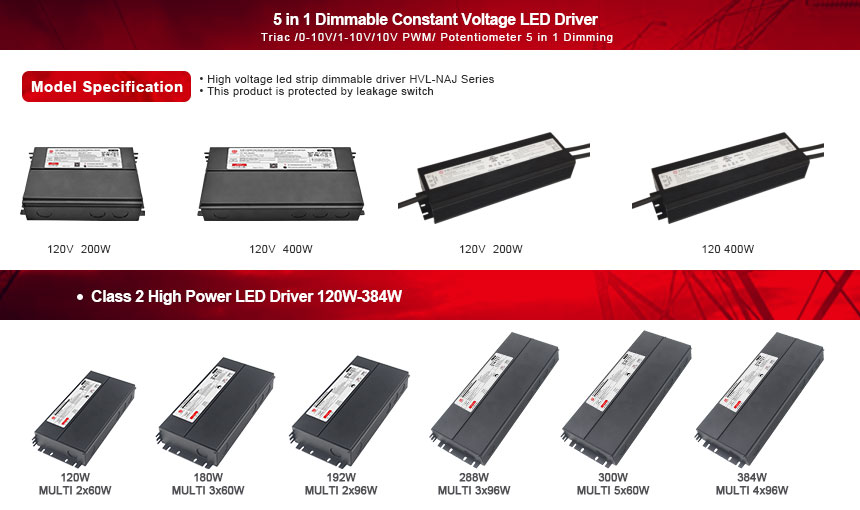

| Model Number | HVL-NA200J |
| Output Type | |
| Reted Power | 200W |
| Reted Voltage | 120V |
| Reted Current | 1.83A±10% |
| Voltage Tolerance | ±1V |
| Voltage Regulation | ±1% |
| Load Regulation | ±2% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 92%@277VAC |
| Total Harmonic Distortion | THD< 10%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 1.8A |
| Inrush Current(Typ.) | 40A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | If the unit without damage under the short circuit condition, it recovers automatically after fault condition is removed. |
| Over Load | Intelligently reduce the output voltage,auto-recovery or re-power on to recovery |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10-500Hz,2G 12 minutes/cycle,Period 72 minutes each along X,Y,Z axes |
| SAFETY | |
| Safety standards | UL8750 |
| Safety standards | I/P-shell:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| OTHERS | |

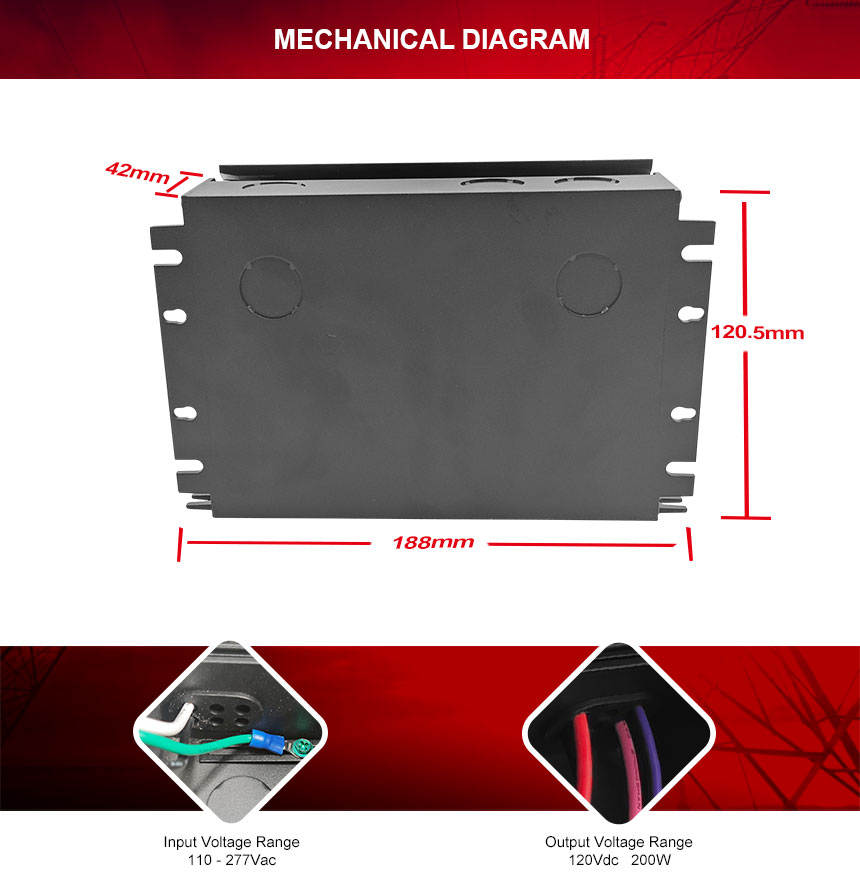

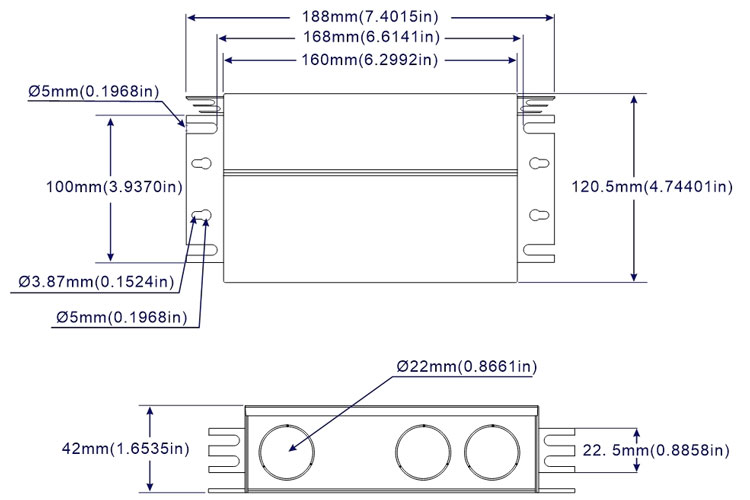

| Dimension | 188x120.5x42mm (L*W*H) |
| Packing | - |

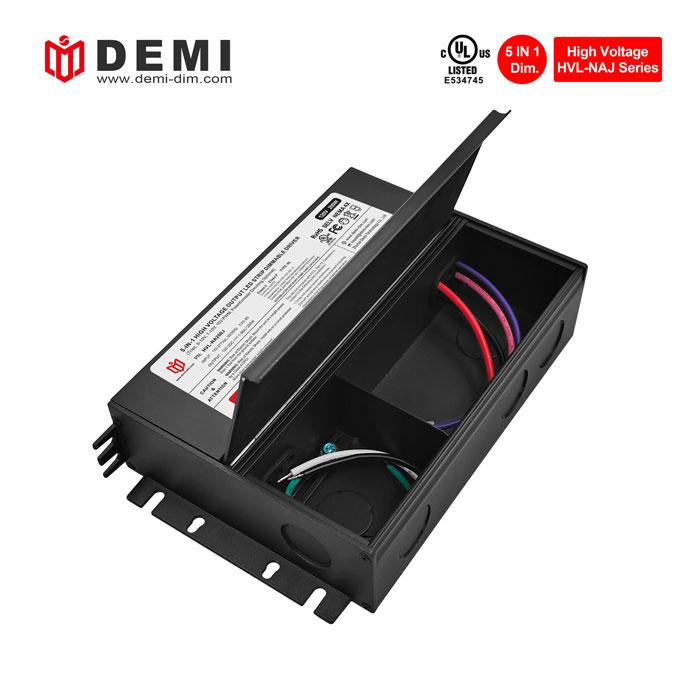

When installing this product, you need to pay attention. This high-voltage 200W dimmable led driver must be installed in a well-ventilated location. Air circulation is crucial for heat dissipation. This constant voltage led driver also has output leakage protection, which can help users during installation. Add an extra line of security during use
| HVL-NA200J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 200W | AC L | Black | 18AWG | DC+ | Red |
18AWG 18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
18AWG 18AWG |
Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
To know more product details, please leave message or e-mail us !
Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Wiring Diagram

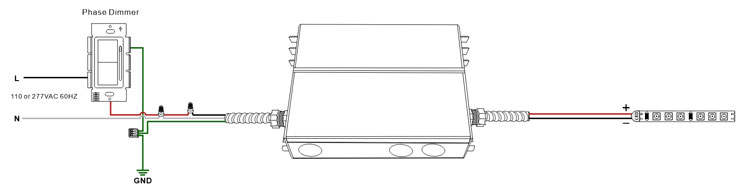

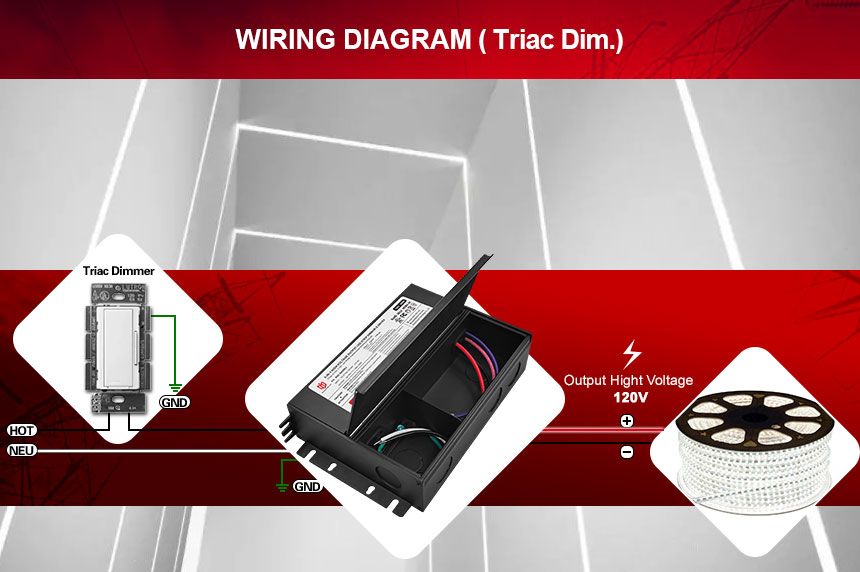

UsingTriac/MLV wiring diagram

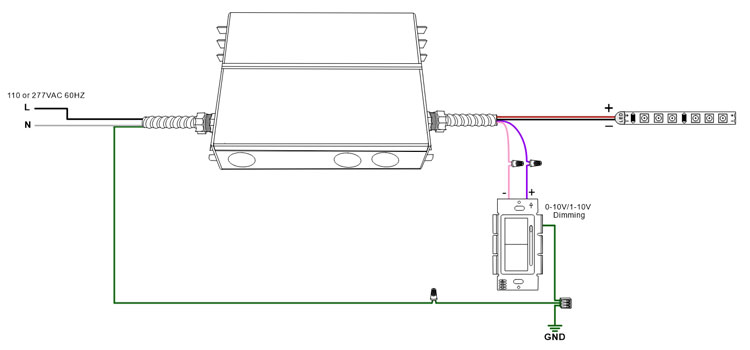

Using 0-10/1-10V dimming(This drive is independently connected to the input)
