VRA series 120W 5 in 1 dimmable led driver 110-277vac input voltage mode, passed UL certification, can be applied to LED light strip dimming and color matching. Strong compatibility, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as casambi dimmer
Brand:
DEMIItem no.:
VRA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:

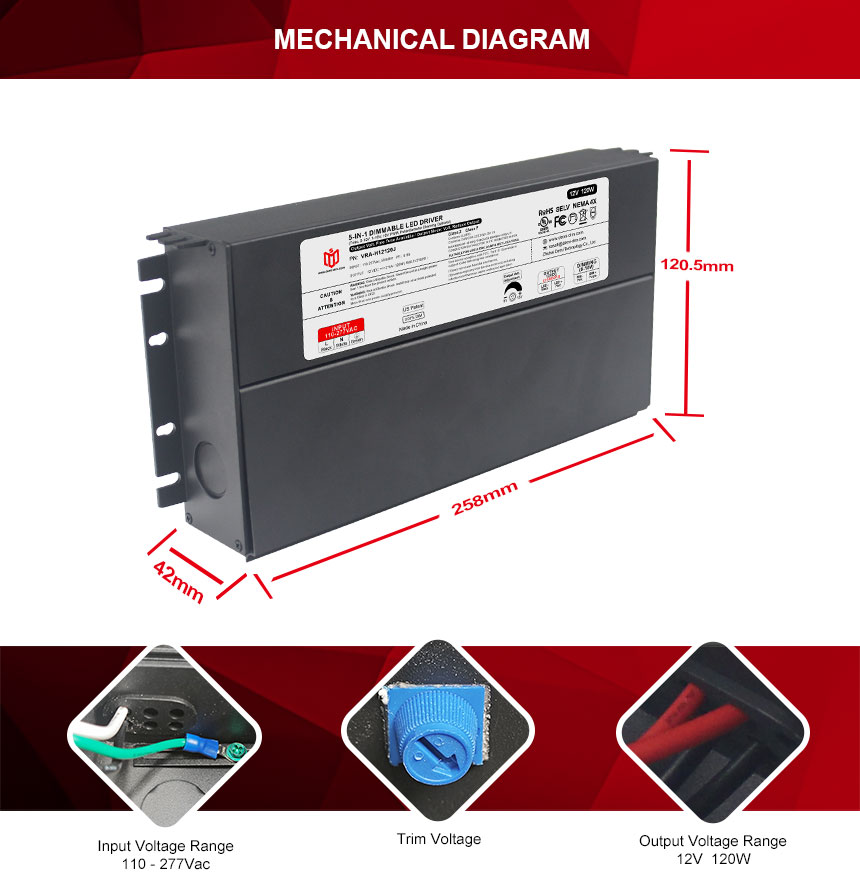

258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

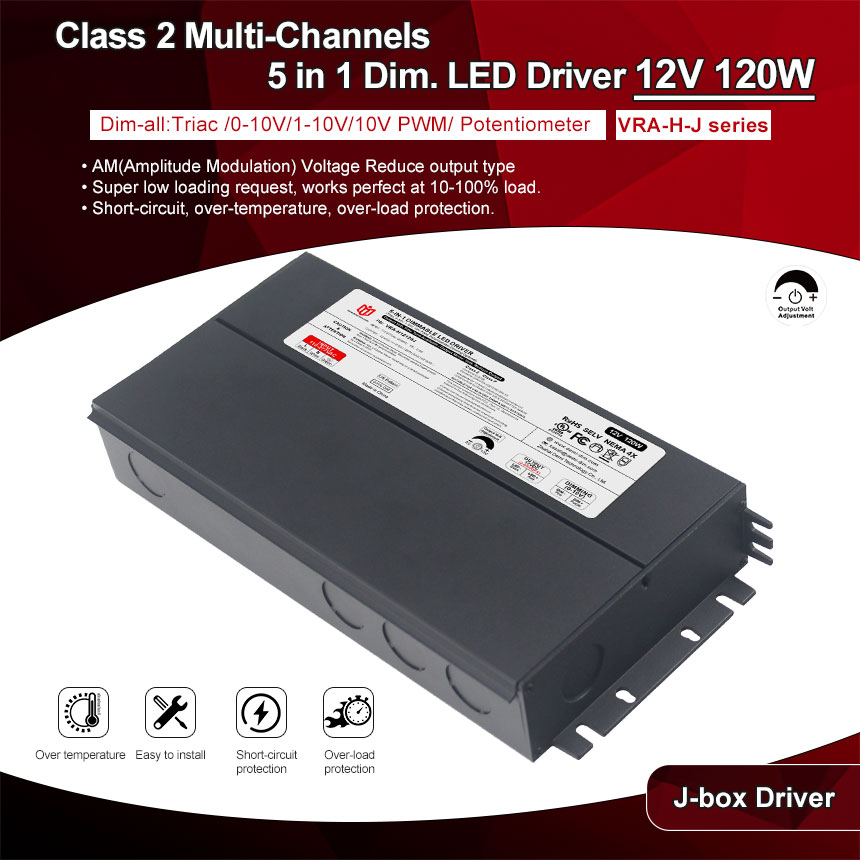

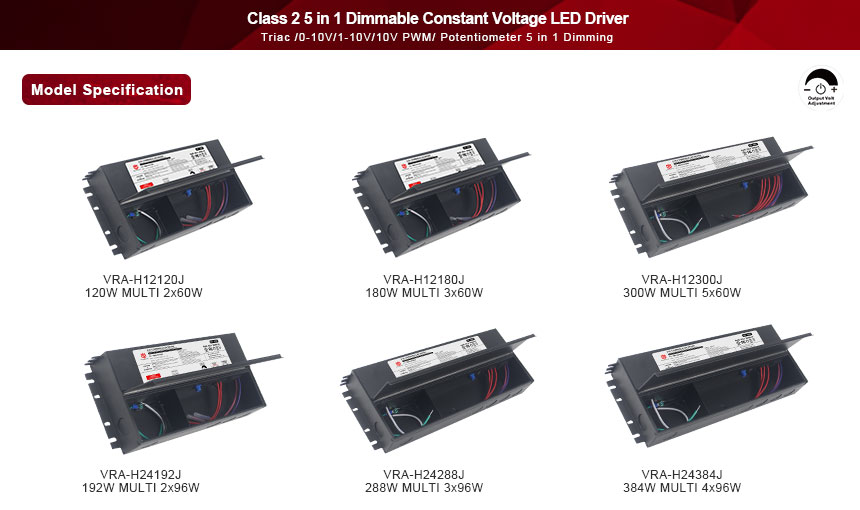

class 2 120W 12v triac & 0 10v dimmable constant voltage led driver power supplier

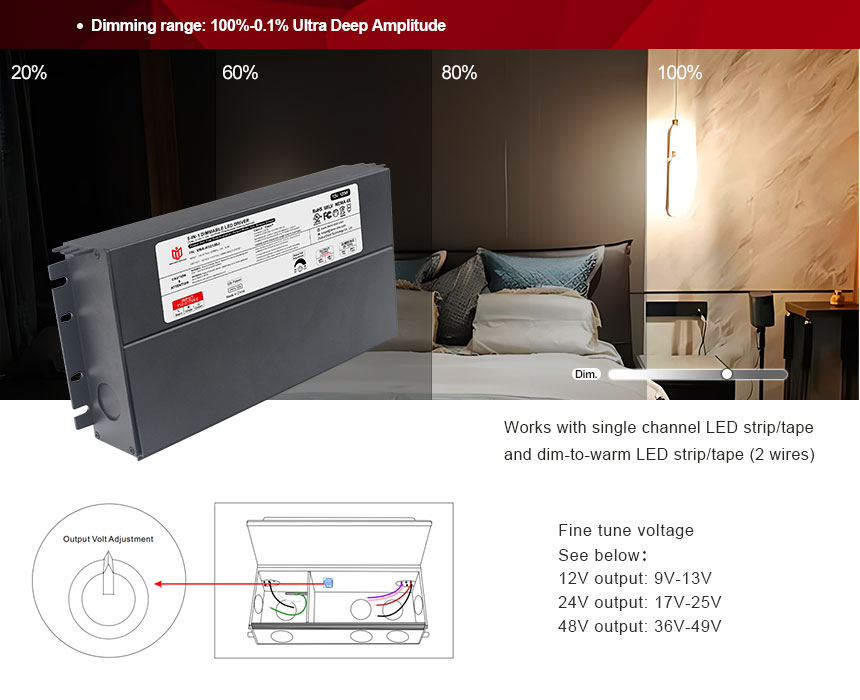

This class 2 120W dimmable led power supply has a constant voltage working mode, using Voltage Reduce output type, with a dimming range of 100%-0.1% ultra-deep range, and a five-year warranty.
| Model Number | VRA-H12120J |
| Output Type | |
| Reted Power | 120W(2CH*60W) |
| Reted Voltage | 12V |
| Reted Current | 2CH*5A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 1.26A |
| Inrush Current(Typ.) | 27A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |
| Dimension | 218x120.5x42mm (L*W*H) |
| Packing | - |

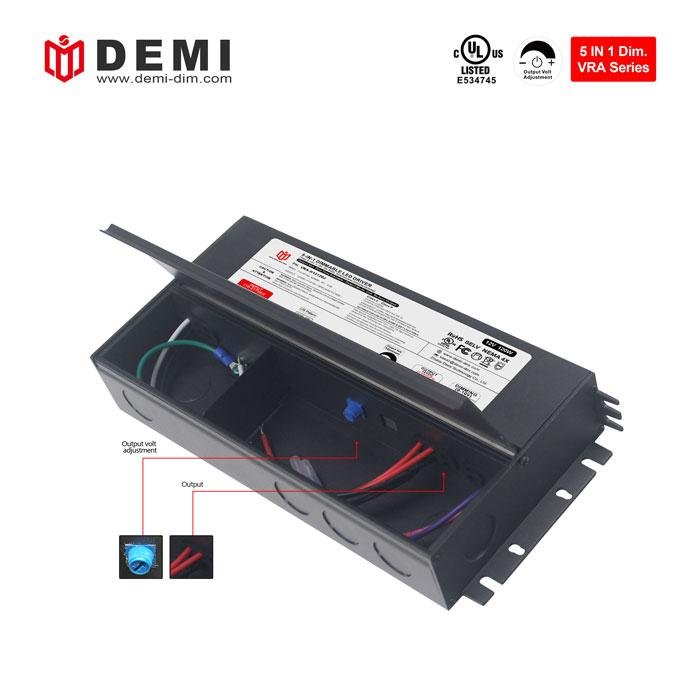

This class 2 VRA series 120W dimmable led driver has two outputs, which can provide stable circuit and protection for two lamps at the same time. It needs to be installed in a well-ventilated place. It has an aluminum shell design and good heat dissipation. It has multiple mounting feet and can be installed sideways, flat, or vertically. The required installation method can be selected according to user needs.
|
•110-277Vac Universal input. •5 years warranty. •Triac dim mode: Forward phase & reverse phase, MLV, ELV |
•PWM Output: 4k/HZ Constant frequency •Constant voltage type.fine tune of output voltage
|
| VRA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
120W (MULTI 60W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

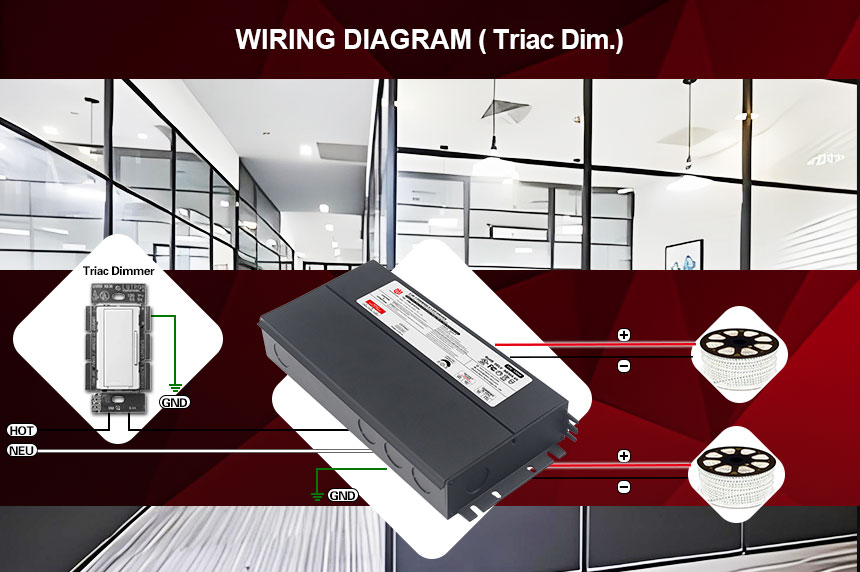

· Using Triac MLV wiring diagram
· Using Triac ELV wiring diagram
