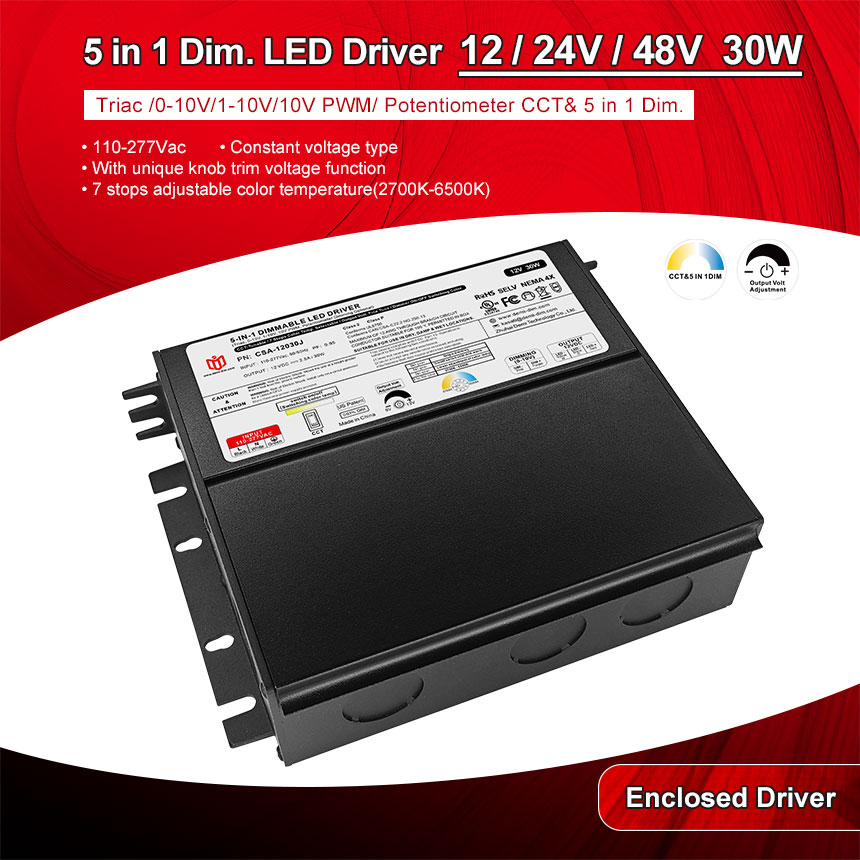

CCT & triac/0 10v dimmable 30W 12V Constant voltage led driver has active PFC function, power factor>0.95, input voltage is between 100-277vac, has strong compatibility, can be compatible with CreeLighting's 30W LED floodlight
Brand:
DEMIItem no.:
CSA-12030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
CCT & triac/0 10v dimmable led driver 30w 12v led power supply Junction Box
This CCT & triac/0-10V/1-10V/10VPWM/Potentiometer 30W dimmable led driver is made of aluminum shell with good heat dissipation. It has passed NEMA 4X. The flip cover does not require screws. The patented design is easy and fast to install and has a 5-year warranty
Model Number
CSA-12030J
CSA-24030J
CSA-48030J
Output Type
Reted Power
30W
Reted Voltage
12V
24V
48V
Reted Current
2.5A
1.25A
0.63A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
Input Type
Voltage Range
110-277V
Frequency Range
47-63HZ
Efficiency(Typ.)
79%@120VAC 80%@277VAC
Total Harmonic Distortion
THD< 15%(@100% load)
Power Factor(typ.)
0.99@120VAC 0.98@277VAC
AC Current(Typ.)
0.35A
Inrush Current(Typ.)
18A
Leakage Current
<0.5mA
PROTECTION
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Load
Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp.
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity
20 ~ 95% RH non-condensing
Storage temp., Humidity
-40 ~ +90, 10 ~ 95% RH
Temp .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards
UL8750, CSAC22.2 No. 250.0-08
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission
Compliance to FCC part 15 Subpart B
OTHERS

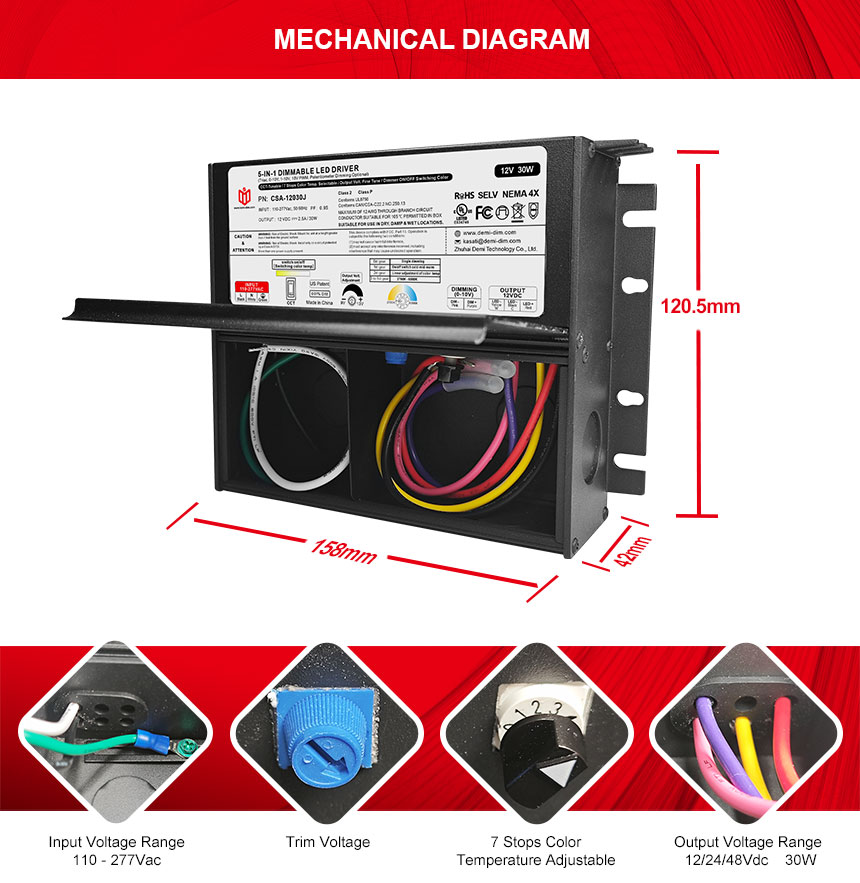

Dimension
158x120.5x42mm (L*W*H)
Packing
-
1. With fine-tuning voltage function knob, +1V: compensates for light attenuation and solves the problem of voltage drop during installation and wiring. Fine adjustment can be used as a dimmer: customers can also adjust a certain brightness when using without a dimmer.
2. The knob switches working modes in multiple gears, among which gear 0 is the default factory monochrome adjustment, and gear 1 AC switch switches dimming. Color adjustment, level 2 is linear dimming and color adjustment, a certain color temperature can be selected between level 3 to level 9 (2700K-6500K)
|
•Triac dim mode: Forward phase & reverse phase, MLV, ELV •7 stops adjustable color temperature(2700K-6500K). |
•CCT-Tunable: Press Dimmer ON/OFF button to change color temp.）Linear adjustment of color temperature •With unique knob trim voltage function |
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
