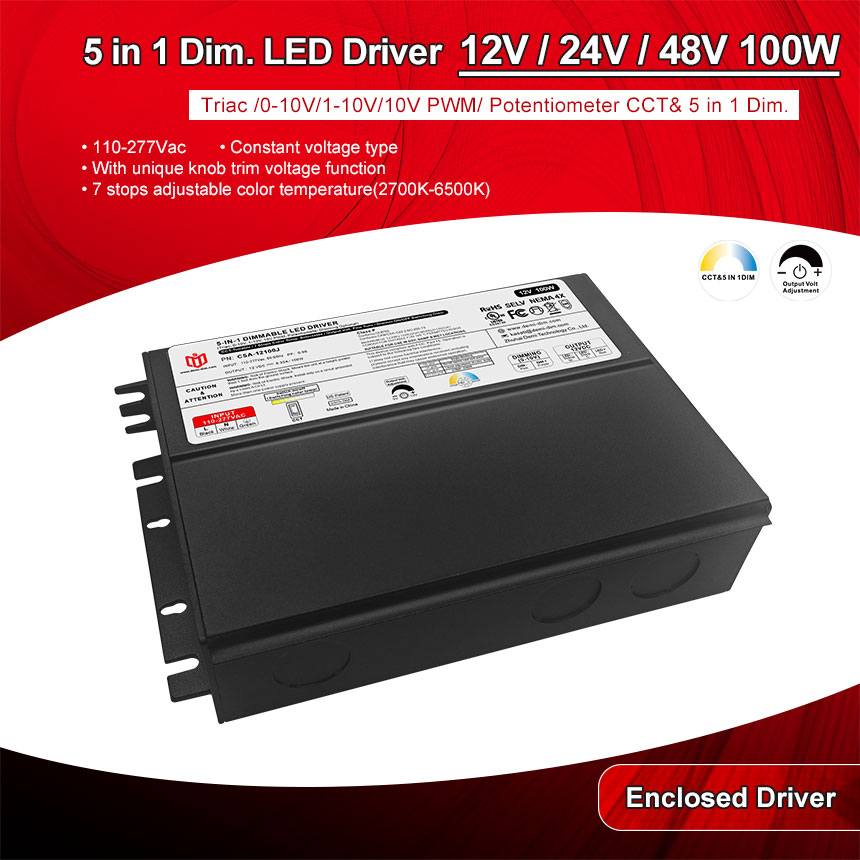

The triac & 0 10V constant voltage dimming 100W led driver is a pwm output mode, with a built-in fine-tuning voltage function knob, the input voltage is 110-277vac, passed UL certification, high working efficiency, and can be well connected with amplighting's 100W LED spotlight to achieve smooth dimming
Brand:
DEMIItem no.:
CSA-12100JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
100WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years12v 100w CCT&triac/0 10v constant voltage dimming led driver inside junction box

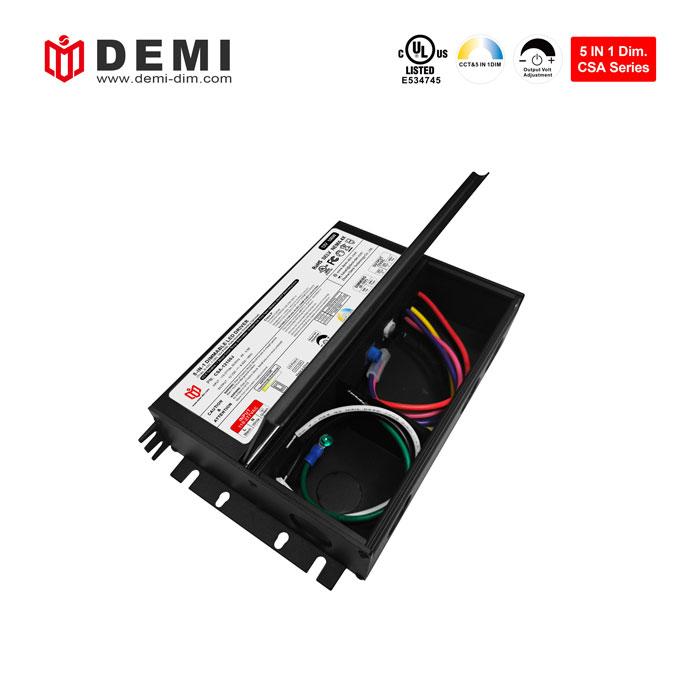

100W 12V CCT & Triac/0-10V dimmable led power supply has multiple installation angles, which can meet the needs of customers for installation in different scenarios, with short-circuit/overload/over-temperature protection functions, 5-year warranty, and guaranteed quality
Model Number | CSA-12100J | CSA-24100J | CSA-48100J |
Output Type | |||
Reted Power | 100W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 8.33A | 4.16A | 2.08A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 86%@120VAC 87%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.04A | ||
Inrush Current(Typ.) | 26A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

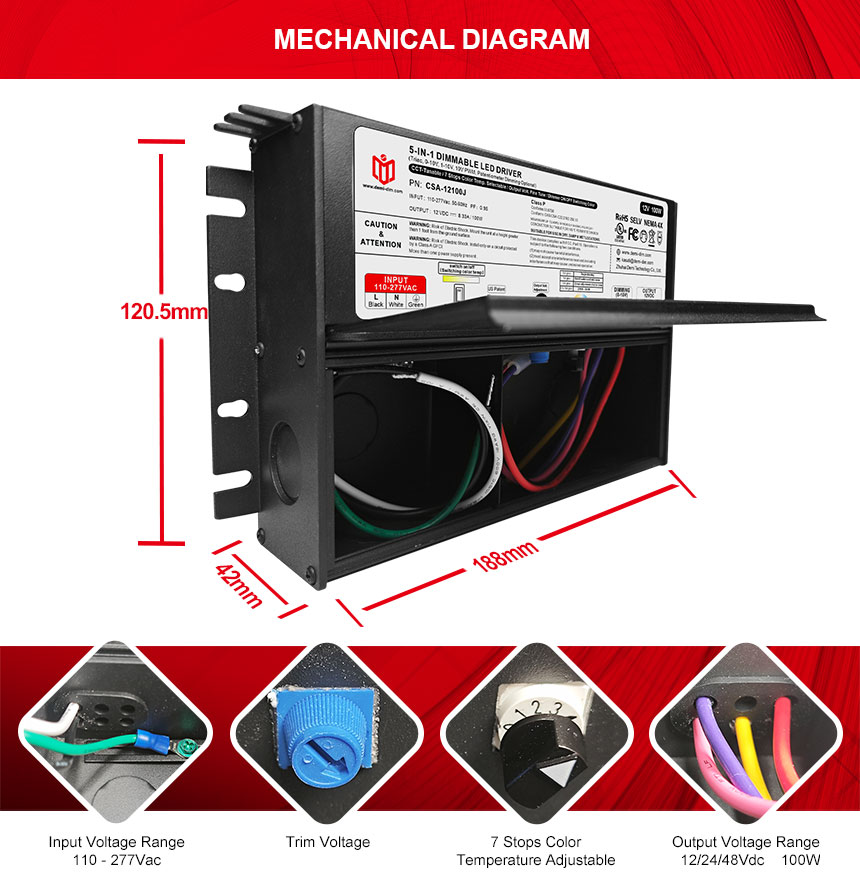

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |

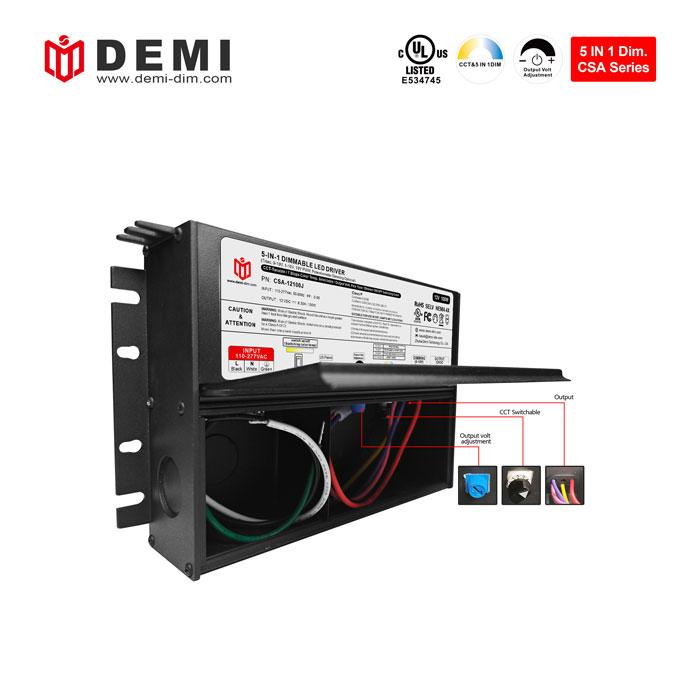

Fine tune voltage
See below:
12V output: 9V-13V
24V output: 17V-25V
48V output: 36V-49V
|
Switch to different gears See below:0:Single dimming{single channel LED strip/tape (2 wires)} 1:Switch on/off (Switching color temp) 2:Linear adjustment of color temperature 3-9:7 stops adjustable color temp(2700K-6500K)
Notes:gears 1-9 ,Works with Two channel CCT warm-dim
LED strip/tape (3 wires)
|
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
