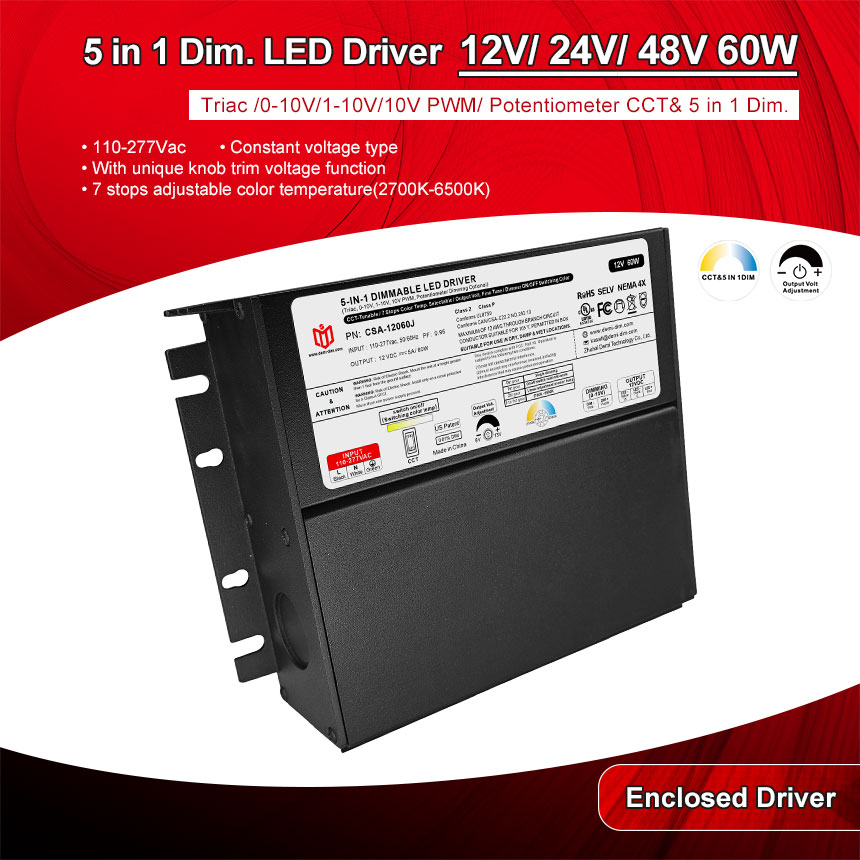

277VAC 60w constant voltage dimmable led driver works in constant voltage mode, has ultra-low load requirements, can work perfectly under 10-100% load, and is compatible with most dimmers on the market, such as Lutron triac /0 10v dimmer
Brand:
DEMIItem no.:
CSA-12060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
Constant voltage CCT & triac/0 10v dimmable 12v 60w led power supply driver
110-277Vac 60W constant voltage triac & 0 10v dimmable led driver the dimming range is 0.1%~100% ultra-deep amplitude , With short circuit/overload/over temperature protection function
| Model Number | CSA-12060J | CSA-24060J | CSA-48060J |
| Output Type | |||
| Reted Power | 60W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 5A | 2.5A | 1.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.65A | ||
| Inrush Current(Typ.) | 20A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp.,Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

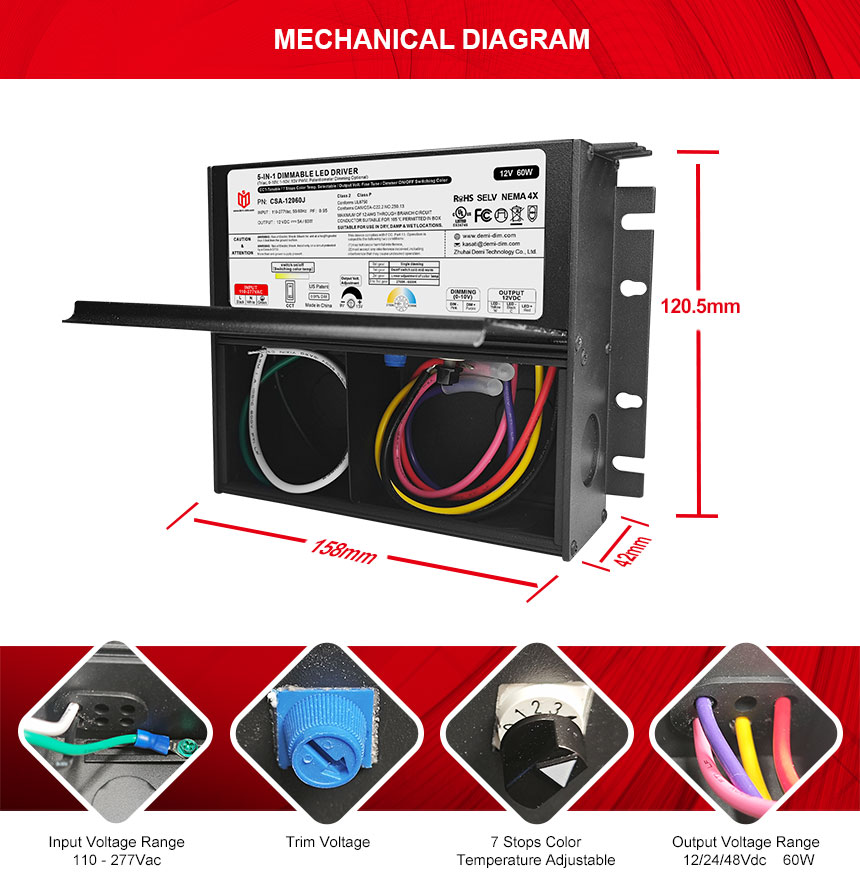

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||

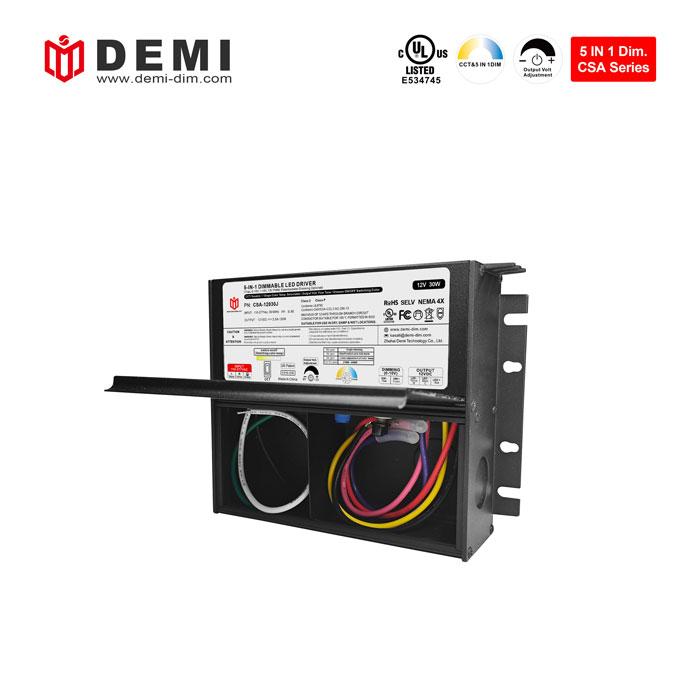

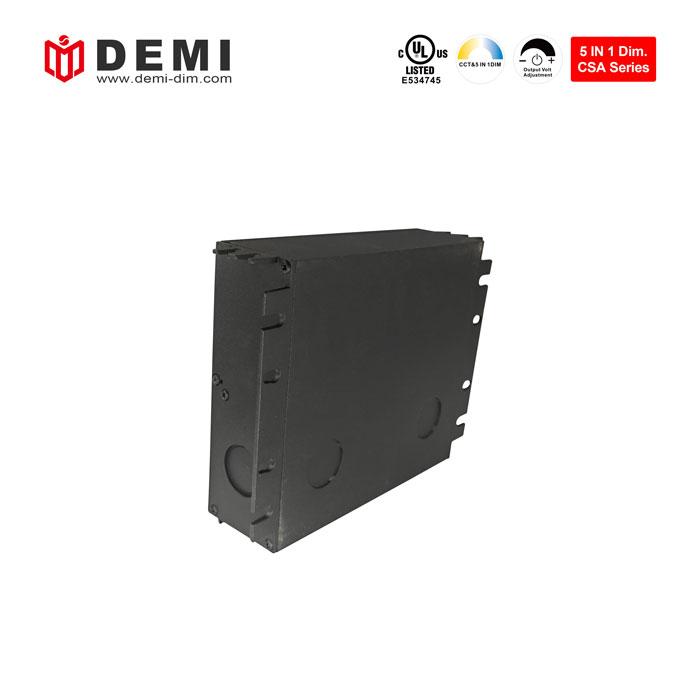

This 12v dimmable led power supply Integrated junction box has multiple installation feet design, side installation, packet, vertical installation, which can meet the user's installation needs in different scenes.Build in active PFC, typical power factor>0.95, Suitable for use with 12V/24V/48V underground lights in entertainment venues or squares
|

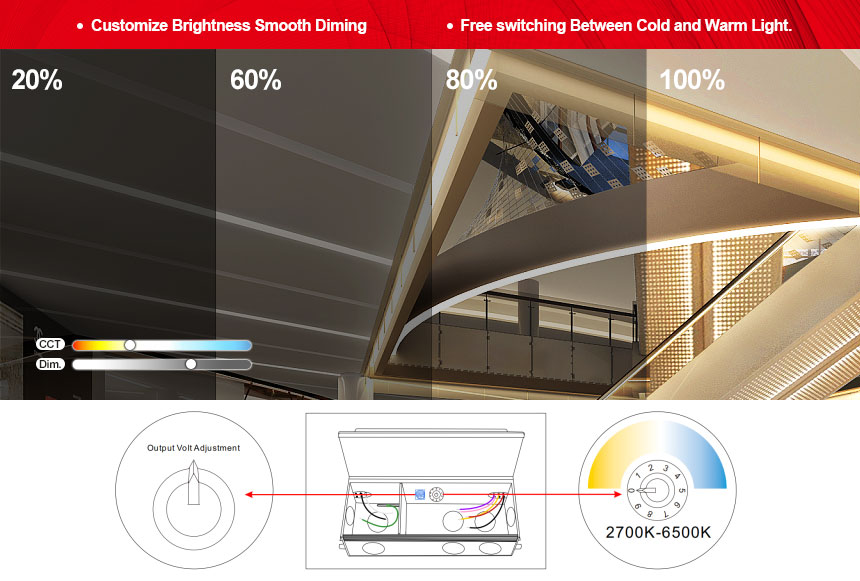

•Triac dim mode: Forward phase & reverse phase, MLV, ELV •7 stops adjustable color temperature(2700K-6500K). |
•CCT-Tunable: Press Dimmer ON/OFF button to change color temp.）Linear adjustment of color temperature •With unique knob trim voltage function |
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |

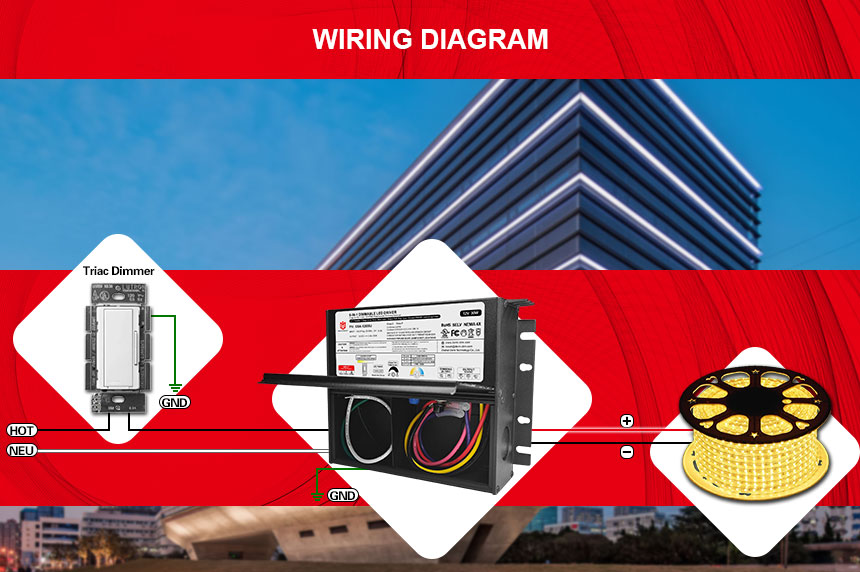

Wiring Diagram

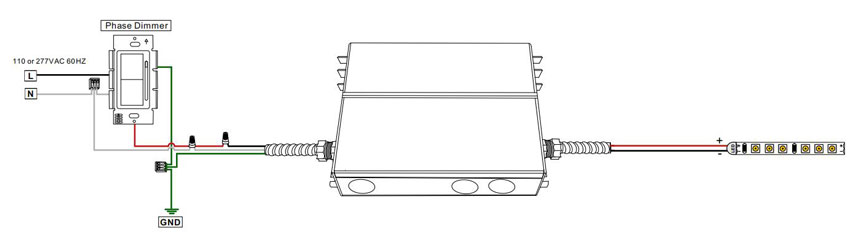

· Using Triac/ELV wiring diagram

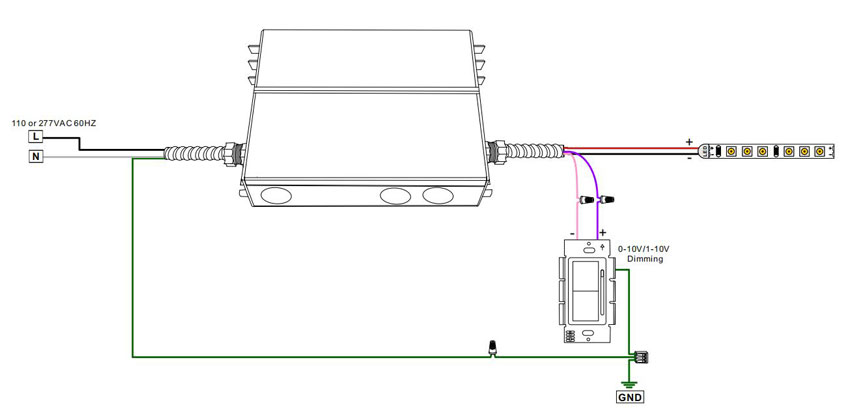

· Using 0-10/1-10V dimming(The driver is independently connected to the input)
Tags :
CCT & triac/0 10v dimmable 30W 12V Constant voltage led driver has active PFC function, power factor>0.95, input voltage is between 100-277vac, has strong compatibility, can be compatible with CreeLighting's 30W LED floodlight
UL listed CCT & 5 in 1 dimmable constant voltage 80w led power supply, the dimming mode is PWM, 0.1%~100% ultra-deep amplitude dimming range, which can match Lithonia Lighting's 80w LED downlight is well compatible to achieve smooth and flicker-free dimming
The triac & 0 10V constant voltage dimming 100W led driver is a pwm output mode, with a built-in fine-tuning voltage function knob, the input voltage is 110-277vac, passed UL certification, high working efficiency, and can be well connected with amplighting's 100W LED spotlight to achieve smooth dimming
This 96w triac & 0 10v dimmable led driver has a dimming range of 0.1~100% ultra-deep dimming, and is compatible with popular leading and trailing-edge thyristor dimmers and systems, 0-10V dimmers and systems, such as Lutron 96W dimmer
