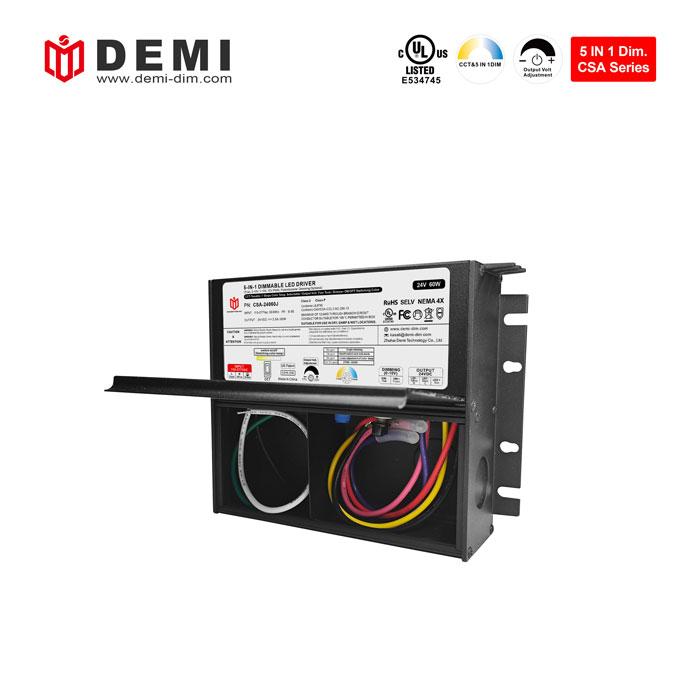

CSA series triac & 0 10V dimmable led driver unique PWM output, built-in 9-speed switchable working mode function. It has strong compatibility and can be used with most triac dimmers and 0 10v dimmers on the market to achieve smooth and flicker-free dimming. For example INSTEON dimmer
Brand:
DEMIItem no.:
CSA-24060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years110-277vac CCT & triac/0 10v 60W 24V dimmable constant voltage led driver
24v 60W CCT & 5 in 1 dimmable led driver has built-in active PFC function, power factor >0.95, ultra-low load requirements, and can work perfectly under 10-100% load. UL certified, compliant with global safety lighting regulations, mainly sold to North America, with 5-year warranty

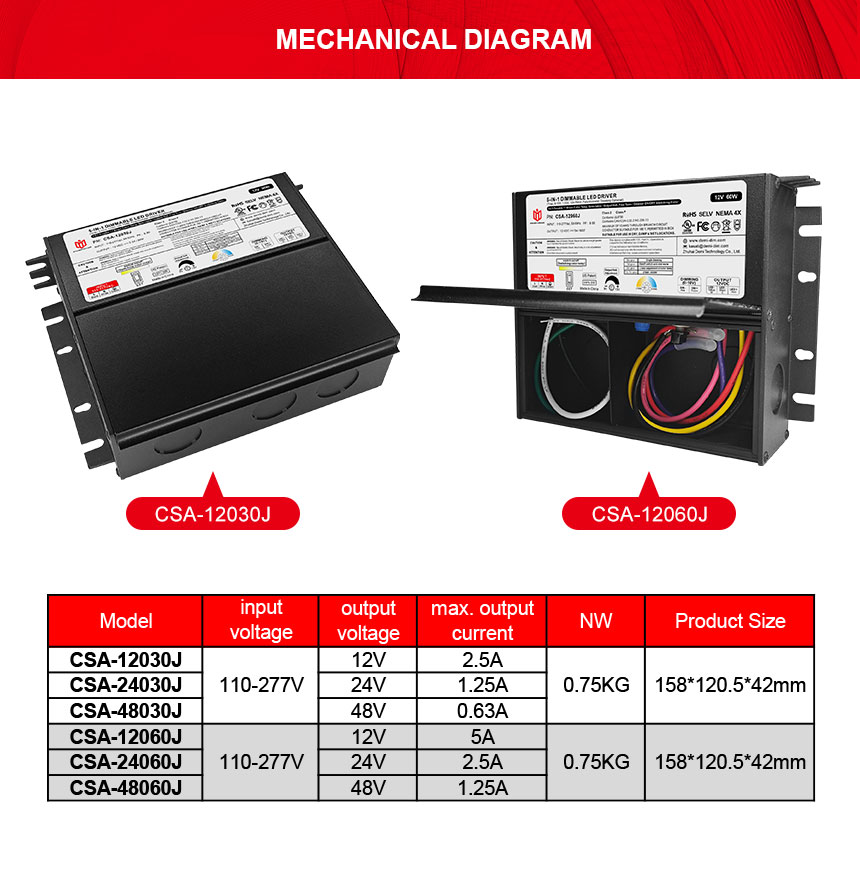

Model Number | CSA-12060J | CSA-24060J | CSA-48060J |
Output Type | |||
Reted Power | 60W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 5A | 2.5A | 1.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.65A | ||
Inrush Current(Typ.) | 20A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp.,Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||
Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |

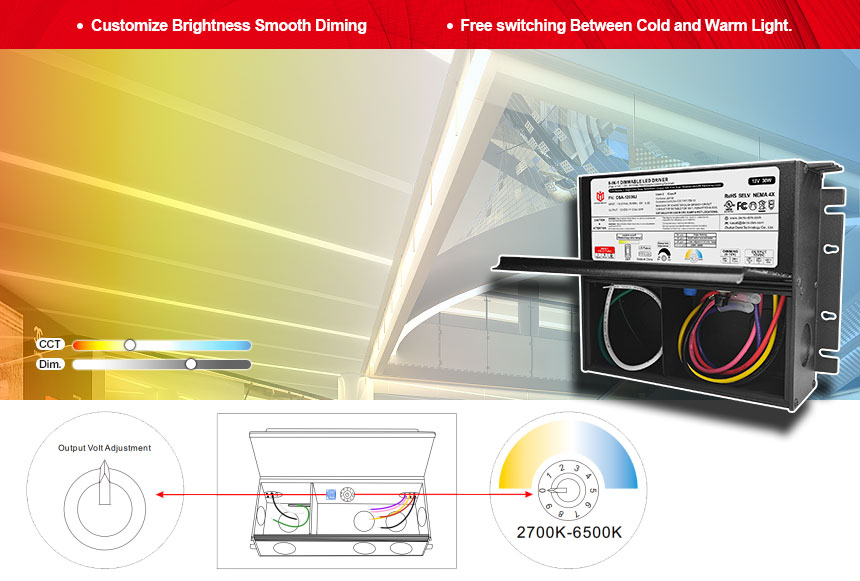

•Triac dim mode: Forward phase & reverse phase, MLV, ELV •7 stops adjustable color temperature(2700K-6500K). |
•CCT-Tunable: Press Dimmer ON/OFF button to change color temp.)Linear adjustment of color temperature |

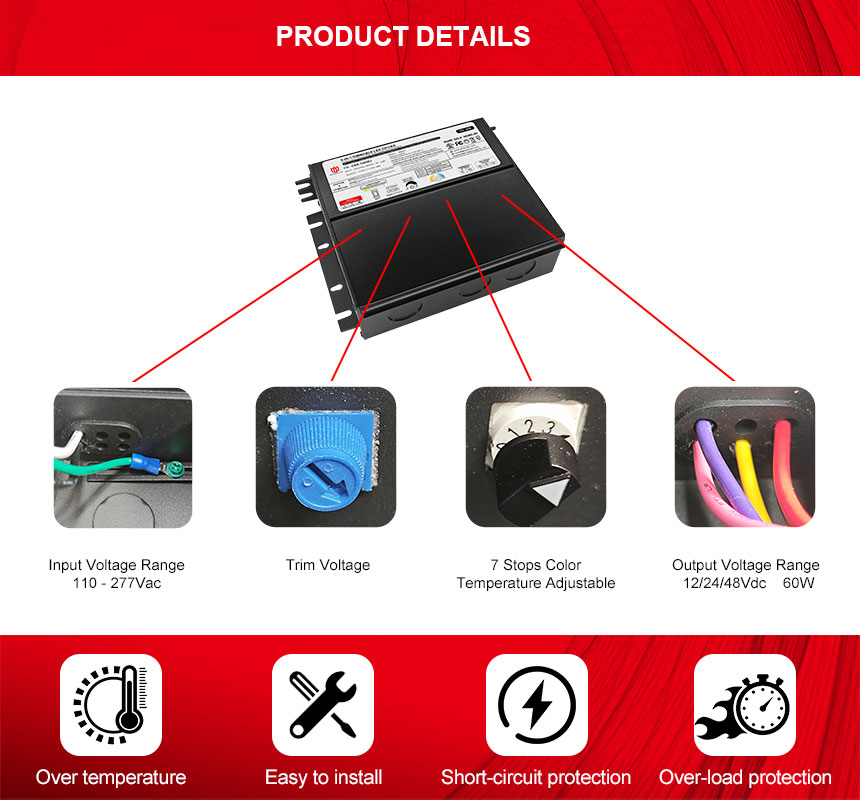

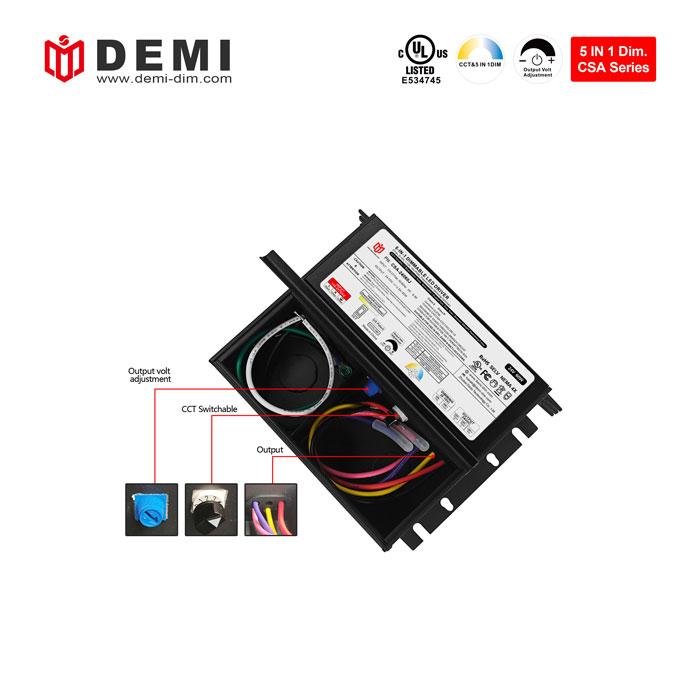

The CSA series constant voltage dimmable led driver serves as its own junction box and is designed with an aluminum casing. It has passed NEMA 4X and its heat dissipation performance is better than most iron casing products on the market. It has multiple mounting brackets to meet users’ installation needs in different scenarios.
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
