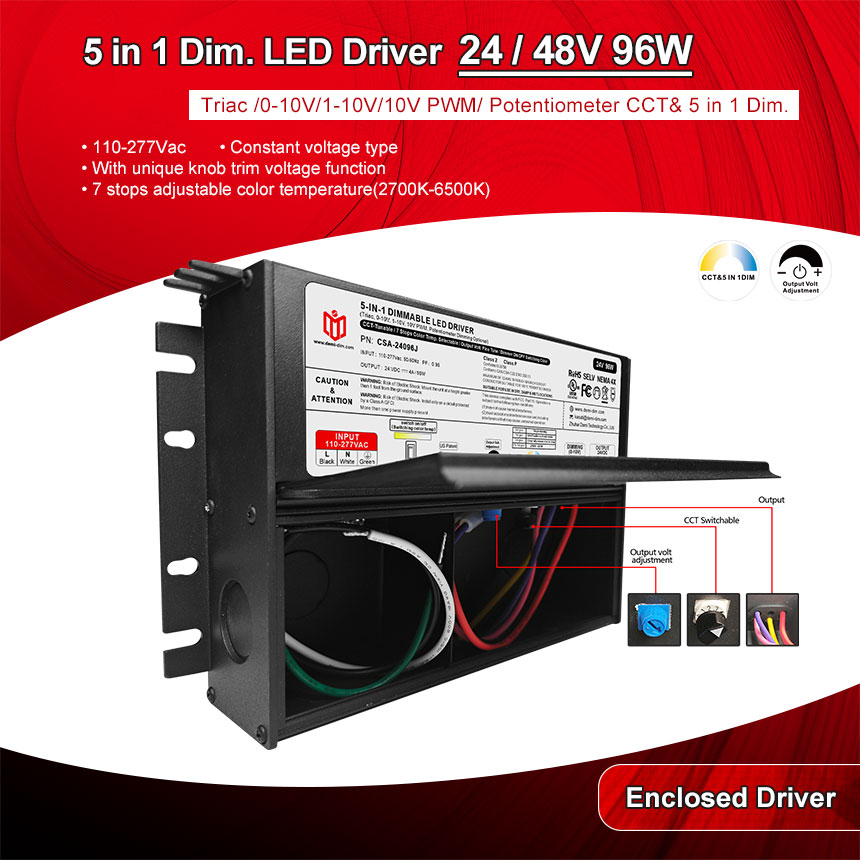

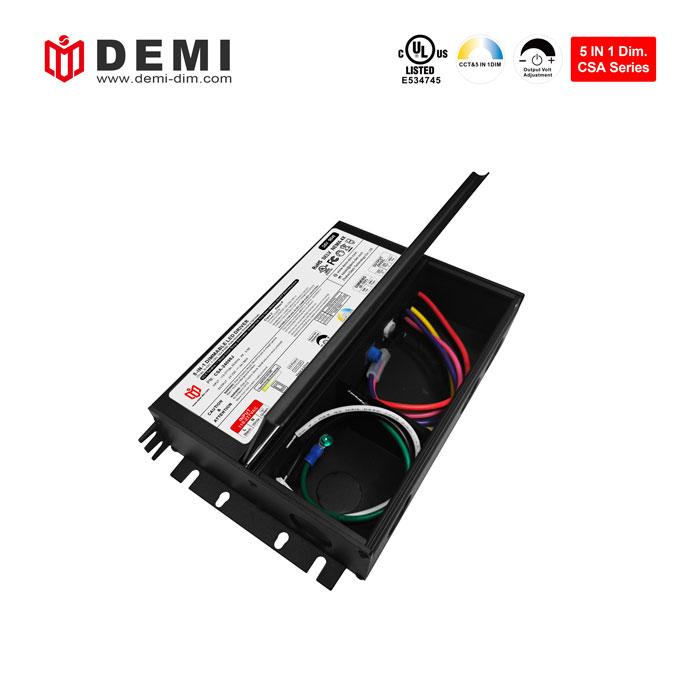

This 96w triac & 0 10v dimmable led driver has a dimming range of 0.1~100% ultra-deep dimming, and is compatible with popular leading and trailing-edge thyristor dimmers and systems, 0-10V dimmers and systems, such as Lutron 96W dimmer
Brand:
DEMIItem no.:
CSA-24096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 yearsUL class 2 24V 5 in 1 dimmable led light strip driver 96w manufacturers
UL certification CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable constant voltage led power supply, high working efficiency, with ultra-low load requirements, can work perfectly under 10%-100% load, easy and fast installation, save human effort
Model Number | CSA-24096J | CSA-48096J |
Output Type | ||
Reted Power | 96W | |
Reted Voltage | 24V | 48V |
Reted Current | 4A | 2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 85%@120VAC 86%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 1.02A | |
Inrush Current(Typ.) | 25A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

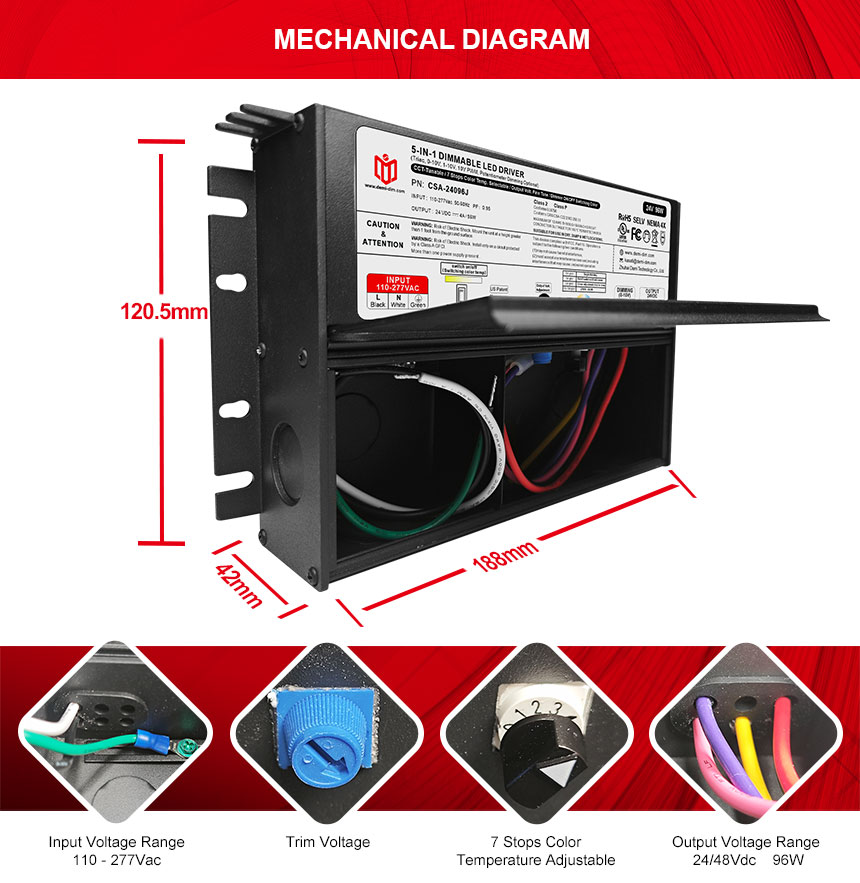

Dimension | 188x120.5x42mm (L*W*H) | |
Packing | - |
What does 5in1dimmable led driver mean?
5-in-1 refers to the five dimming methods of triac + PWM output + 0-10V + 10V PWM + resistor dimming. Any more than one kind of dimmer can be matched with this 5-in-1 power supply. The purpose of launching the 5 in 1 led power supply is mainly to facilitate some customers to use it in some projects. More importantly, it can reduce the inventory pressure on customers. If you buy one, you can use the same project without having to stock it separately.

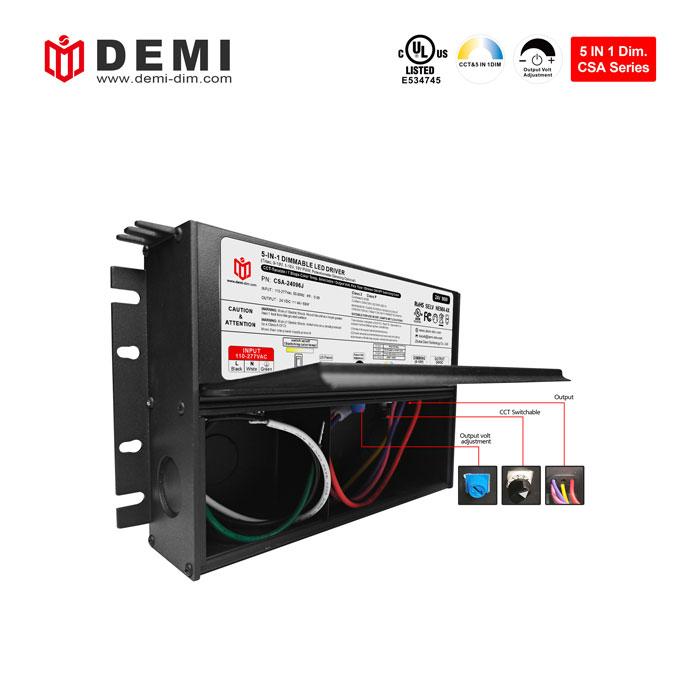

Fine tune voltage
See below:
12V output: 9V-13V
24V output: 17V-25V
48V output: 36V-49V
|
Switch to different gears See below:0:Single dimming{single channel LED strip/tape (2 wires)} 1:Switch on/off (Switching color temp) 2:Linear adjustment of color temperature 3-9:7 stops adjustable color temp(2700K-6500K)
Notes:gears 1-9 ,Works with Two channel CCT warm-dim
LED strip/tape (3 wires)
|
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
