48V 96W constant voltage led driver. The dimming method is CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer. The dimming range is between 0.1% and 100%. Compatible with most triac dimmers and 0 10v dimmers on the market to achieve smooth dimming. For example Leviton dimmer
Brand:
DEMIItem no.:
CSA-48096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

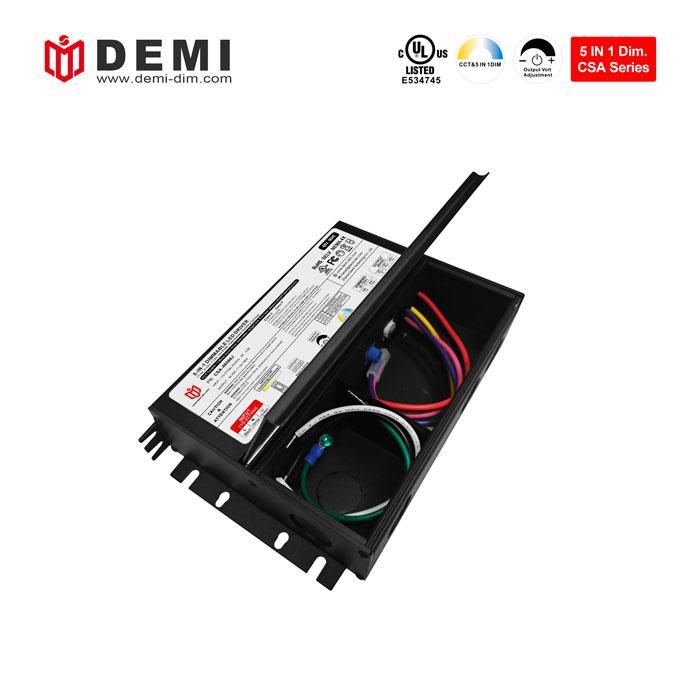

ul listed 48V 96W CCT & triac/0 10v constant voltage led driver Junction Box
CSA series 96W 48V CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, suitable for single-channel LED light strips. 110-277VAC input voltage range, UL certified, compliant with global safety lighting regulations. Also has short circuit/overload/overvoltage protection.

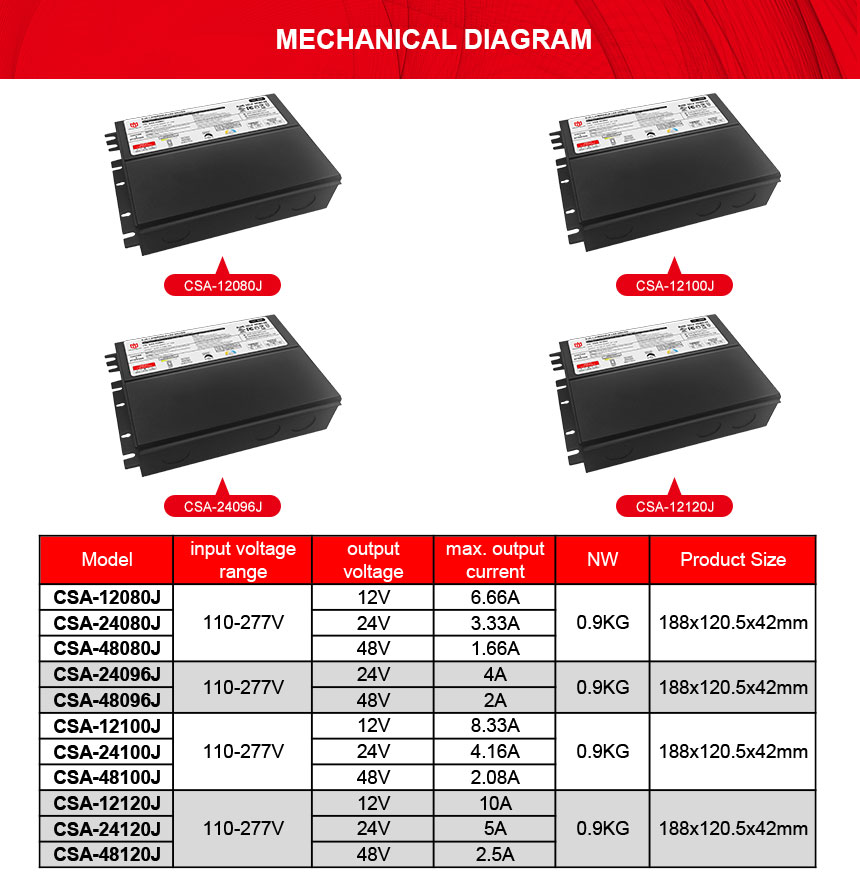

| Model Number | CSA-24096J | CSA-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |
To know more product details, please leave message or e-mail us !
|

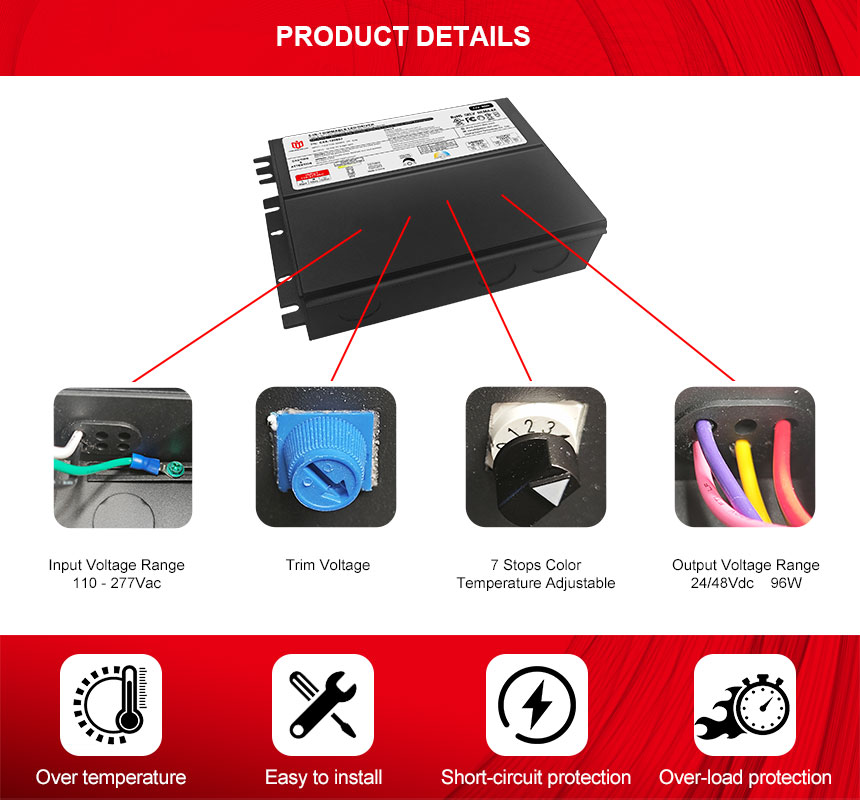

• Constant voltage type.fine tune of output voltage • Build in active PFC, typical power factor>0.95 •With unique knob trim voltage function |
• Super low loading request, works perfect at 10-100% load • Short-circuit, over-temperature, over-load protection • PWM Output: 4k/HZ Constant frequency |
48V 96w dimmable led driver constant voltage working mode, built-in active PFC function, efficiency up to 86%. It adopts aluminum shell design and has good heat dissipation. It can be used with LED advertising lighting modules and installed on billboards. Comes with 5 year warranty
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
