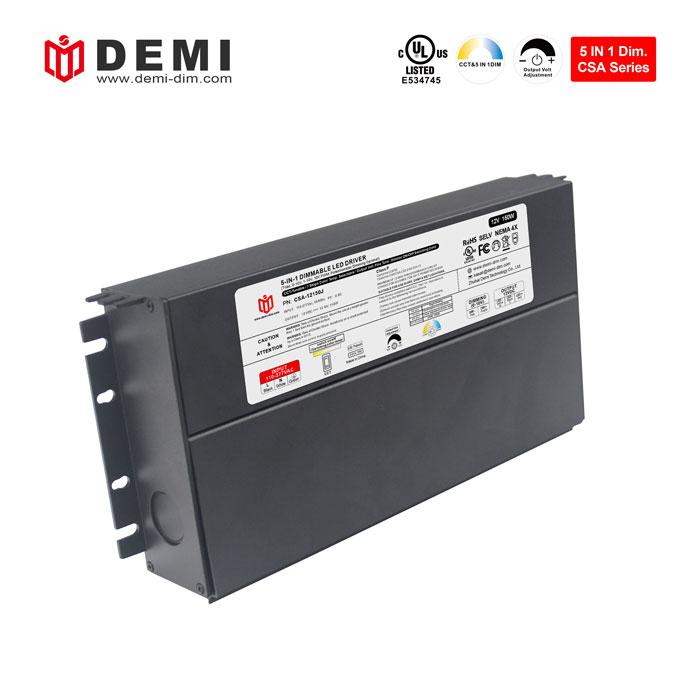

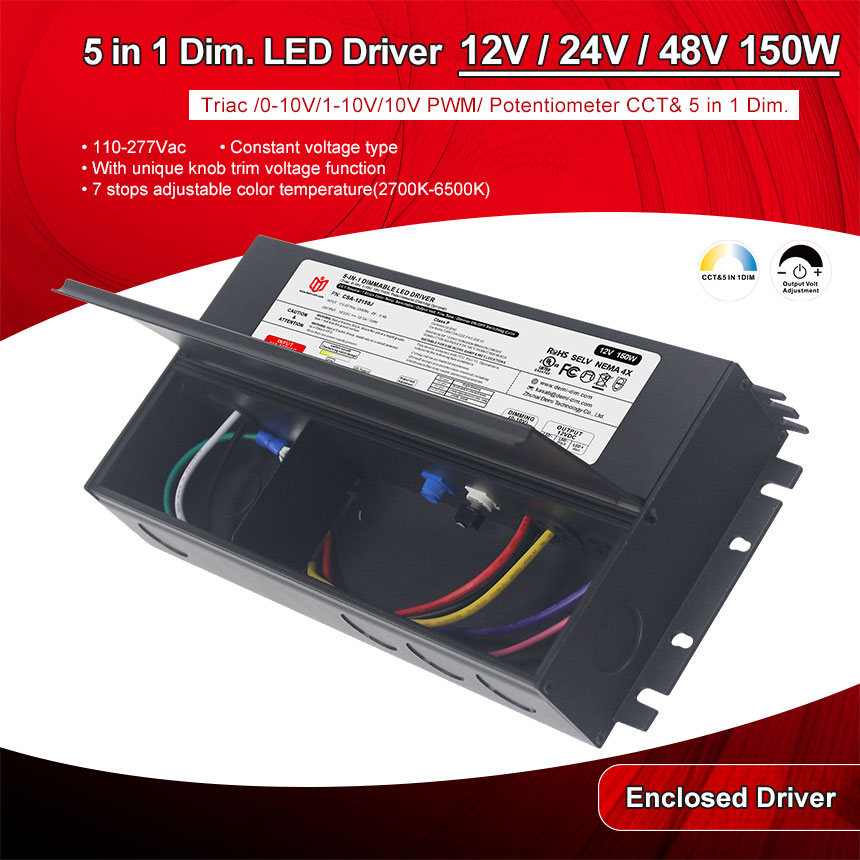

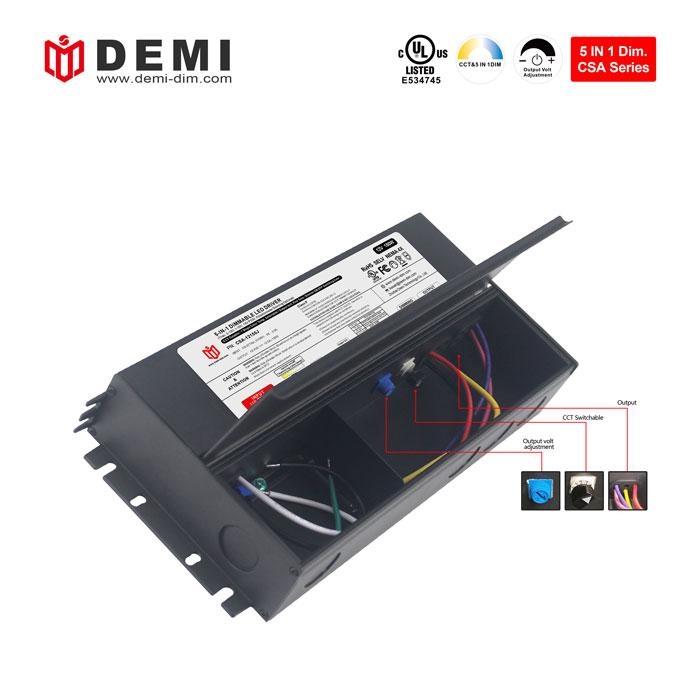

150w 12v constant voltage 5 in 1 dimmable led strip driver power supply
110-277vac input voltage triac & 0 10v dimmable 150W led driver constant voltage working mode, 0.1%-100% ultra-deep amplitude, with various lighting adjustment functions, allowing users to adjust the lighting of lamps in a variety of ways
| Model Number | CSA-12150J | CSA-24150J | CSA-48150J |
| Output Type | |||
| Reted Power | 150W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 12.5A | 6.25A | 3.13A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.55A | ||
| Inrush Current(Typ.) | 28A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

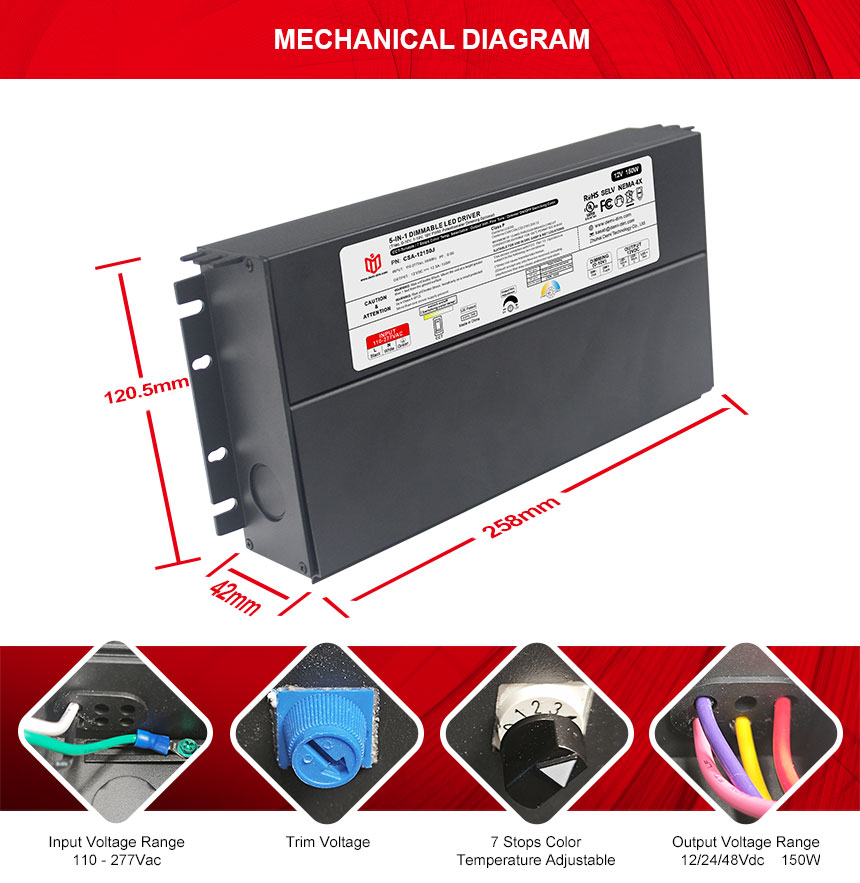

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
What are the advantages of using a fixed -fixed voltage technology?
Fixed frequency and fixed voltage means that the frequency of the dimming process will not fluctuate and the voltage is stable. High-frequency output is not handled well, and the level changes significantly during low-brightness dimming, which can only be solved by reducing voltage or frequency. At low brightness, the problem of layer-by-layer falling down is very uncomfortable to the naked eye. And the use of frequency conversion or voltage reduction will cause some lamps to fail to work properly. Our 5 in 1 dimming led power supply has fixed frequency and fixed voltage, and such adverse phenomena will not occur during the dimming process.
|
•With unique knob trim voltage function •110-277Vac Universal input.•Super low loading request |
•7 stops adjustable color temperature(2700K-6500K). •CCT-Tunable: Press Dimmer ON/OFF button to change color temp.） |
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 150W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· UsingTriac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :
CCT & triac/0 10v dimmable 30W 12V Constant voltage led driver has active PFC function, power factor>0.95, input voltage is between 100-277vac, has strong compatibility, can be compatible with CreeLighting's 30W LED floodlight
277VAC 60w constant voltage dimmable led driver works in constant voltage mode, has ultra-low load requirements, can work perfectly under 10-100% load, and is compatible with most dimmers on the market, such as Lutron triac /0 10v dimmer
UL listed CCT & 5 in 1 dimmable constant voltage 80w led power supply, the dimming mode is PWM, 0.1%~100% ultra-deep amplitude dimming range, which can match Lithonia Lighting's 80w LED downlight is well compatible to achieve smooth and flicker-free dimming
The triac & 0 10V constant voltage dimming 100W led driver is a pwm output mode, with a built-in fine-tuning voltage function knob, the input voltage is 110-277vac, passed UL certification, high working efficiency, and can be well connected with amplighting's 100W LED spotlight to achieve smooth dimming
This 96w triac & 0 10v dimmable led driver has a dimming range of 0.1~100% ultra-deep dimming, and is compatible with popular leading and trailing-edge thyristor dimmers and systems, 0-10V dimmers and systems, such as Lutron 96W dimmer
