Brand:
DEMIItem no.:
CSA-24150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

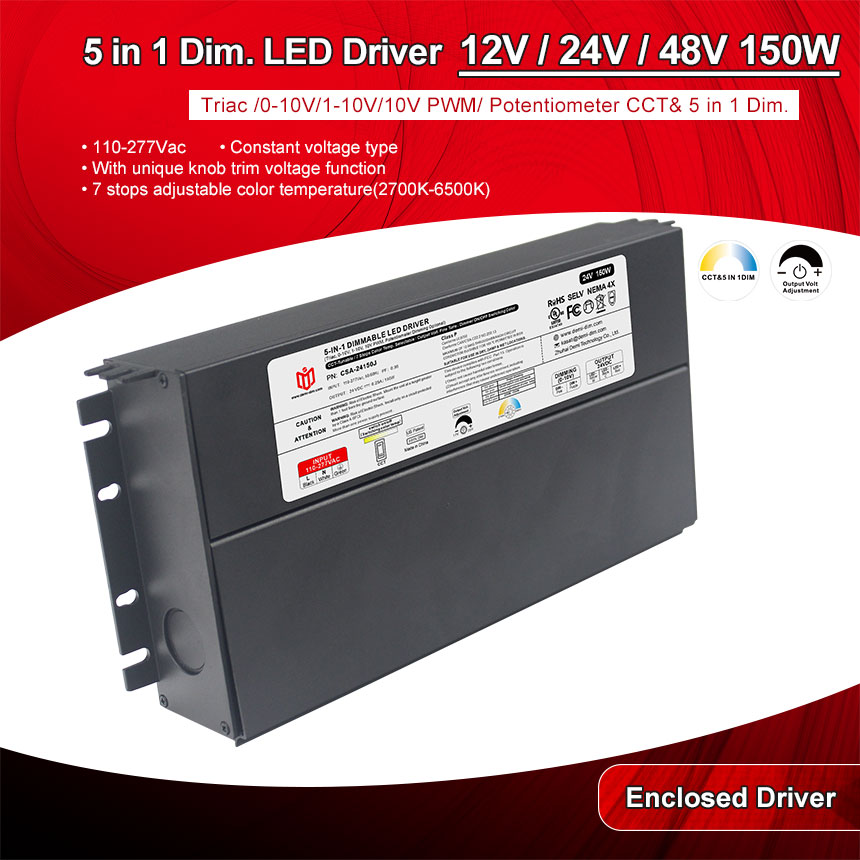

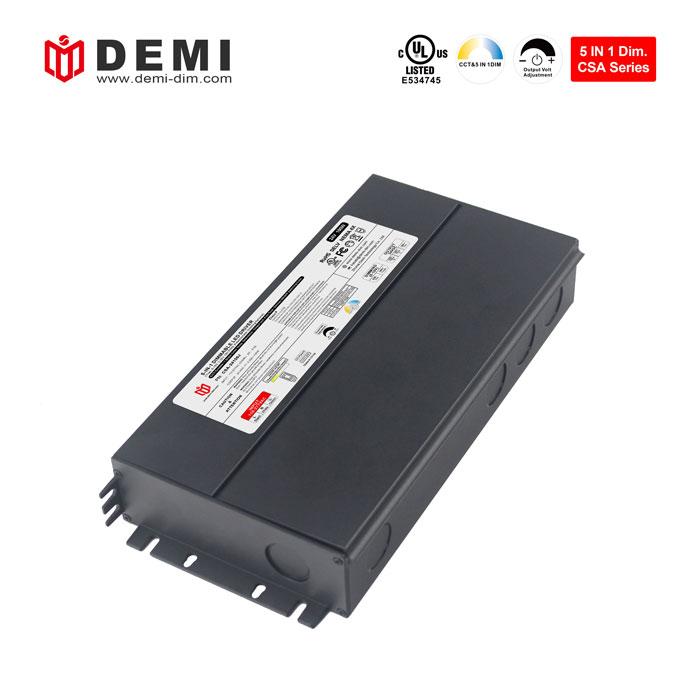

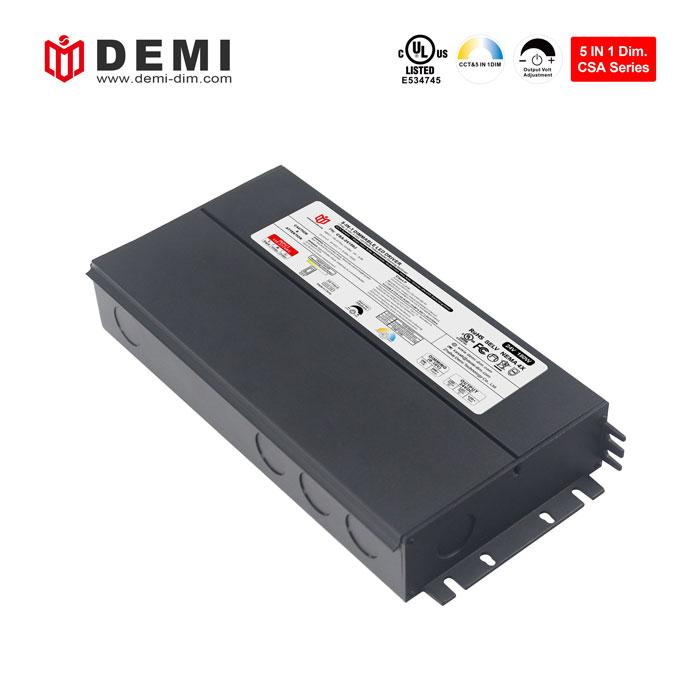

150w 12v constant voltage 5 in 1 dimmable led strip driver power supply

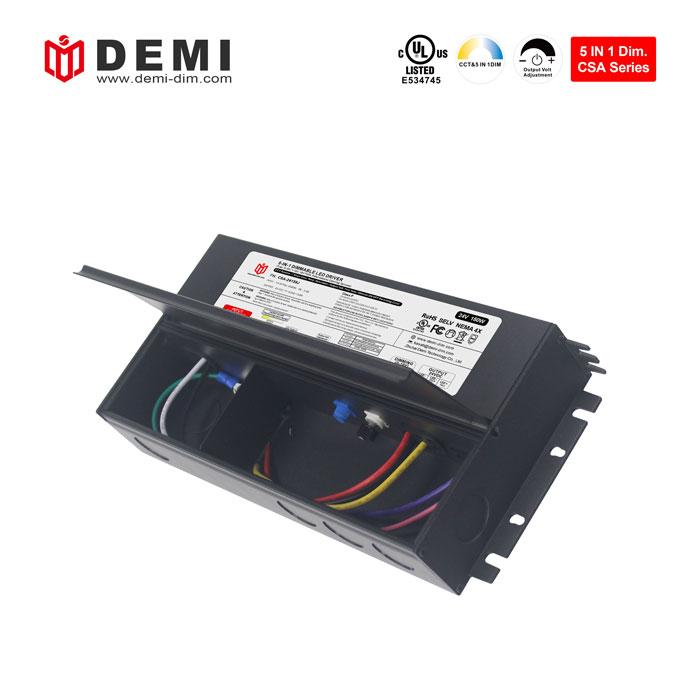

110-277vac universal input voltage range 150W 24V 5 in 1 dimmable led driver, constant voltage operating mode, built-in active PFC function. The dimming range is ultra-deep between 0.1-100%, and it has an exclusive patented design "Clamshell" junction box. The installation is convenient and quick, saving manpower.

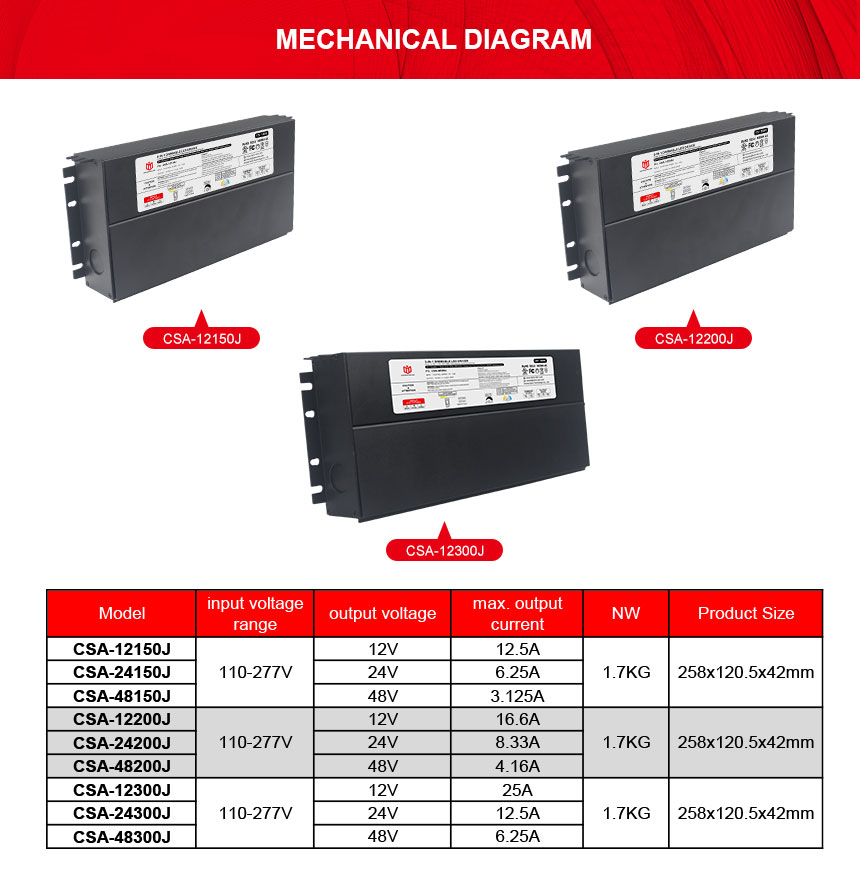

| Model Number | CSA-12150J | CSA-24150J | CSA-48150J |
| Output Type | |||
| Reted Power | 150W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 12.5A | 6.25A | 3.13A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.55A | ||
| Inrush Current(Typ.) | 28A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

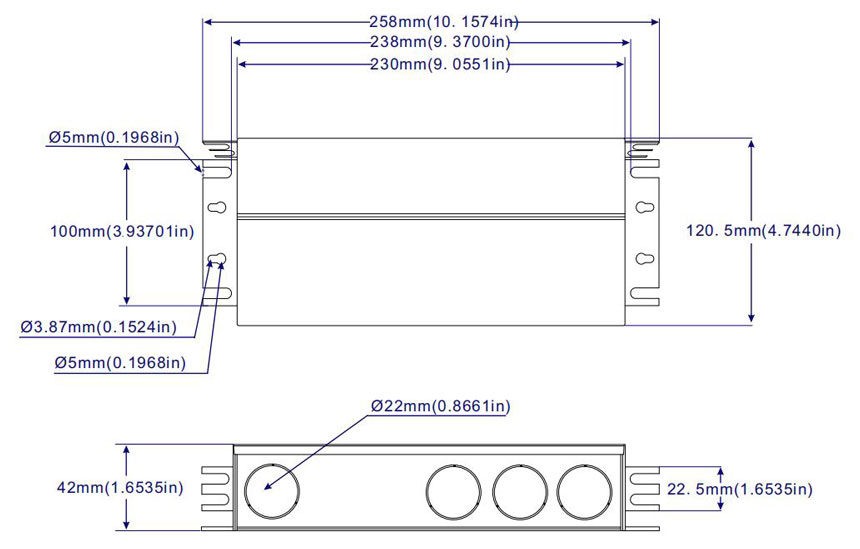

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !

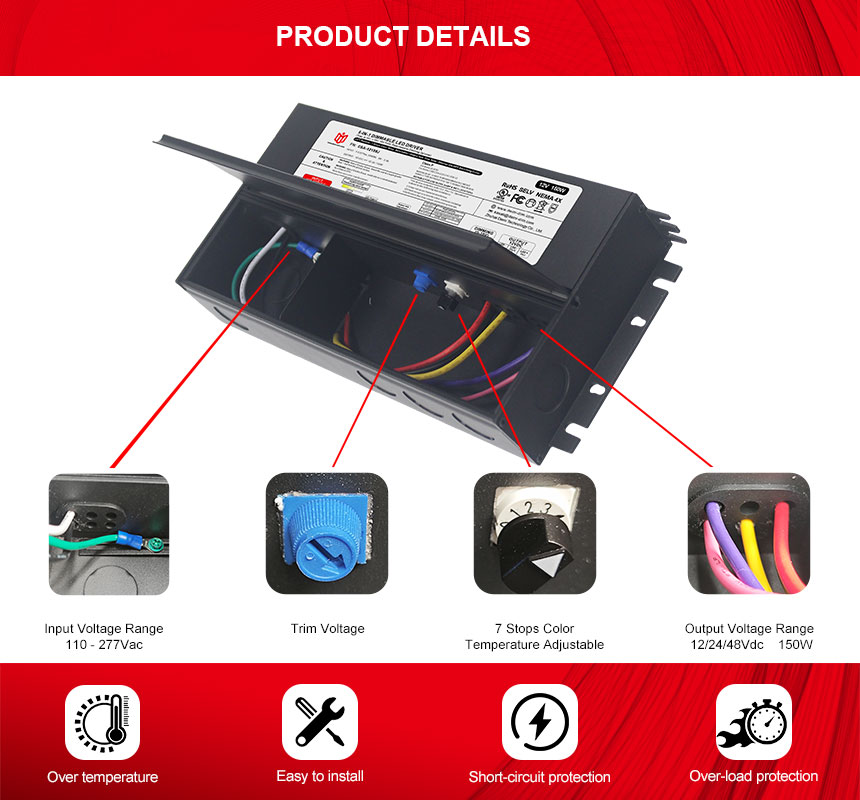

When installing this 150W 24V dimmable led driver, you need to pay attention to installing the product in a well-ventilated location to ensure that it will not cause overheating due to space sealing and affect the dimming effect of the product. Please be sure to refer to the LED driver manual during the installation process to ensure the correct connection of the lines. Ensure the normal and safe operation of the product.
|
•With unique knob trim voltage function •110-277Vac Universal input.•Super low loading request |
•7 stops adjustable color temperature(2700K-6500K). •CCT-Tunable: Press Dimmer ON/OFF button to change color temp.） |
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 150W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· UsingTriac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
