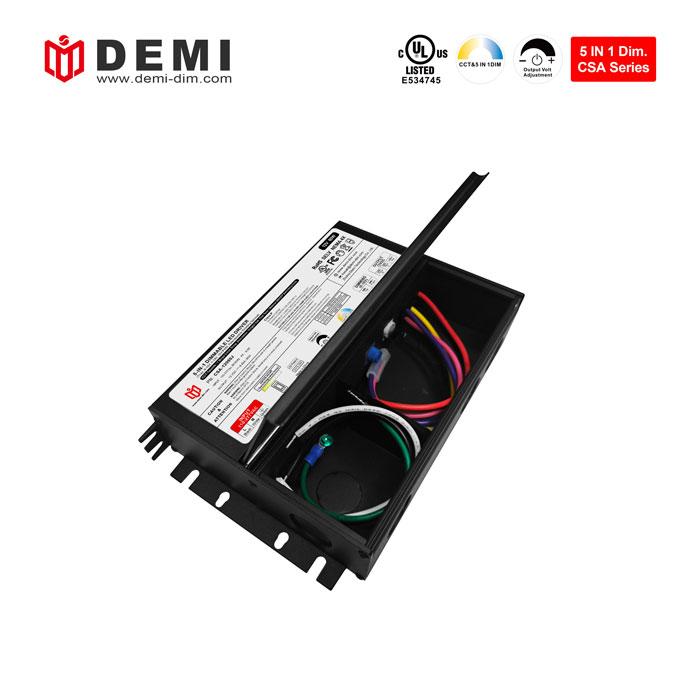

UL listed CCT & 5 in 1 dimmable constant voltage 80w led power supply, the dimming mode is PWM, 0.1%~100% ultra-deep amplitude dimming range, which can match Lithonia Lighting's 80w LED downlight is well compatible to achieve smooth and flicker-free dimming
Brand:
DEMIItem no.:
CSA-12080JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
80WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
UL listed 12v 80W constant voltage triac & 0 10v dimmable led power supply

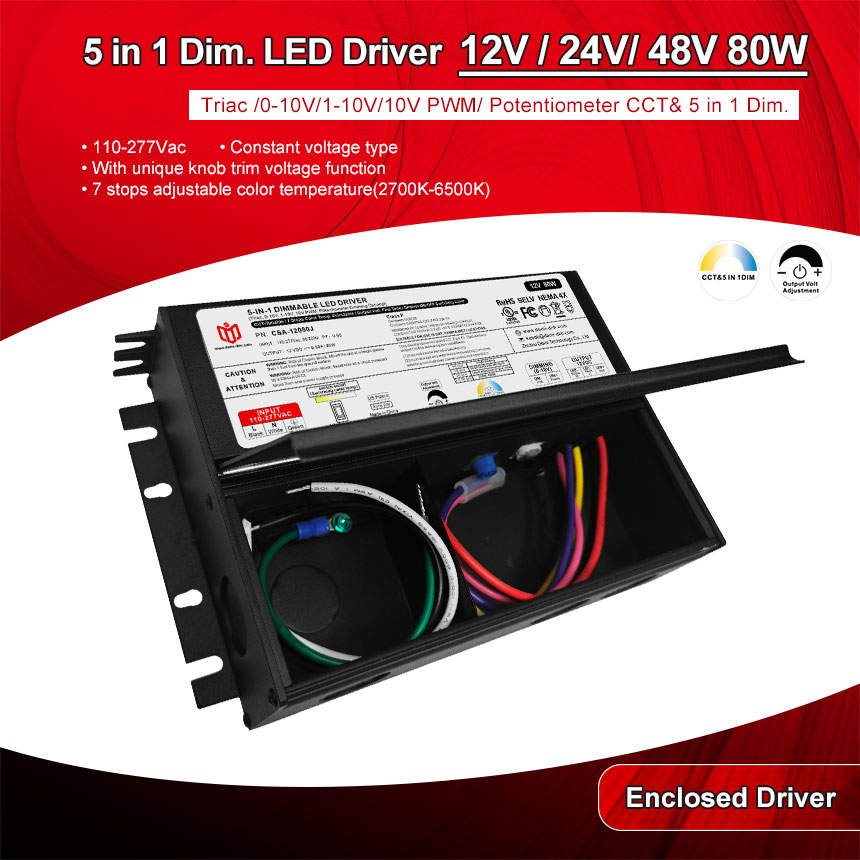

CCT-tunable & triac/0 10v 80W dimmable led driver Constant voltage output mode, This 80W led driver is integrated with junction box， can be used for residential lighting and commercial lighting project installation
| Model Number | CSA-12060J | CSA-24060J | CSA-48060J |
| Output Type | |||
| Reted Power | 60W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 5A | 2.5A | 1.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.65A | ||
| Inrush Current(Typ.) | 20A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp.,Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

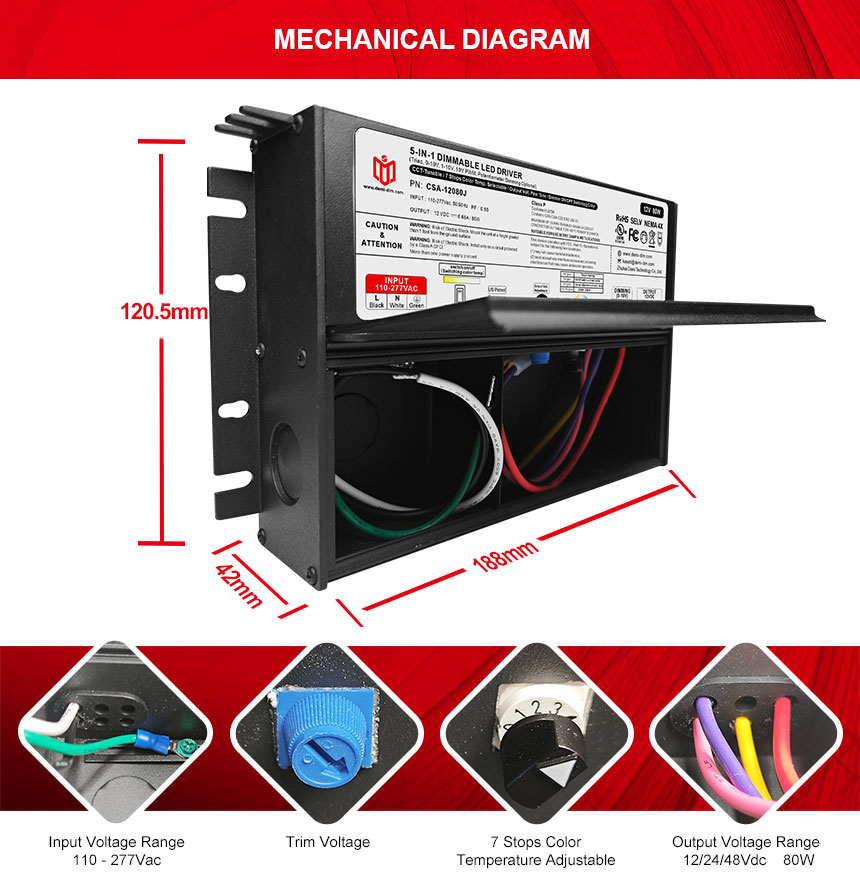

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|
Fine tune voltage
See below：
12V output: 9V-13V
24V output: 17V-25V
48V output: 36V-49V
|
Switch to different gears See below：0：Single dimming{single channel LED strip/tape (2 wires)} 1：Switch on/off (Switching color temp) 2：Linear adjustment of color temperature 3-9：7 stops adjustable color temp(2700K-6500K)
Notes：gears 1-9 ,Works with Two channel CCT warm-dim
LED strip/tape (3 wires)
|
CSA series CCT & triac/0 10v dimmable led driver can be used with constant voltage three-wire dual color temperature lamps. According to the switch, different color temperatures can be selected to be used in different places: hotels, shops, offices, restaurants, restaurants, waiting rooms, entertainment venues, Parking lots, commercial plazas, etc.
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
Tags :
CCT & triac/0 10v dimmable 30W 12V Constant voltage led driver has active PFC function, power factor>0.95, input voltage is between 100-277vac, has strong compatibility, can be compatible with CreeLighting's 30W LED floodlight
277VAC 60w constant voltage dimmable led driver works in constant voltage mode, has ultra-low load requirements, can work perfectly under 10-100% load, and is compatible with most dimmers on the market, such as Lutron triac /0 10v dimmer
The triac & 0 10V constant voltage dimming 100W led driver is a pwm output mode, with a built-in fine-tuning voltage function knob, the input voltage is 110-277vac, passed UL certification, high working efficiency, and can be well connected with amplighting's 100W LED spotlight to achieve smooth dimming
This 96w triac & 0 10v dimmable led driver has a dimming range of 0.1~100% ultra-deep dimming, and is compatible with popular leading and trailing-edge thyristor dimmers and systems, 0-10V dimmers and systems, such as Lutron 96W dimmer
