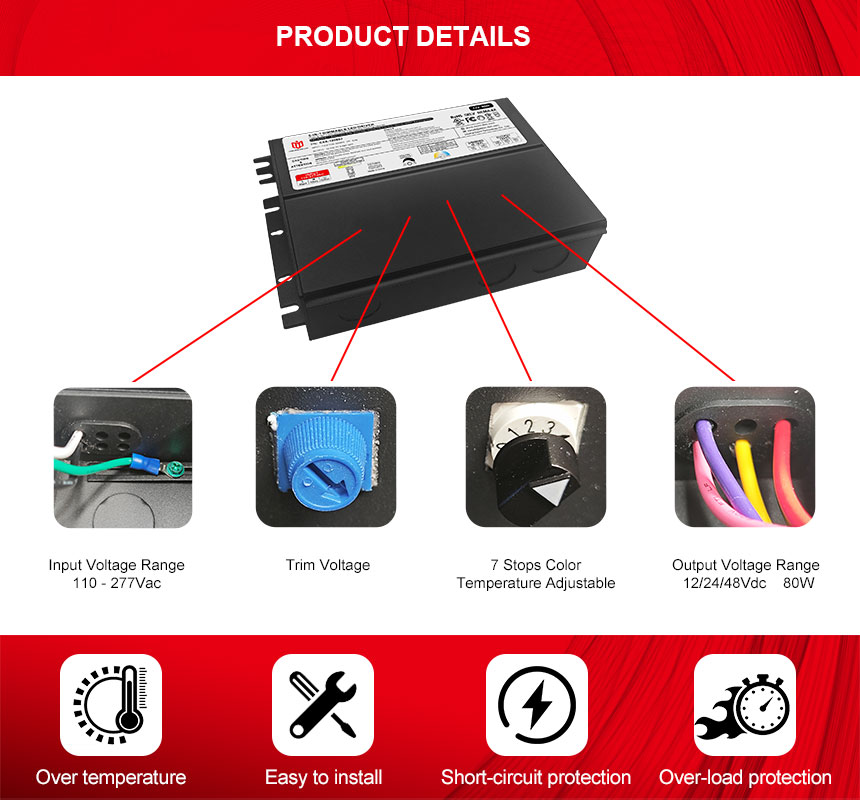

24V 80W 5 in 1 dimmable led driver has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp at +1v. Constant voltage working mode, dimming range from 0.1% to 100% direct ultra-deep amplitude. The dimming performance is as good as Magnitude Lighting's 80W dimmable led driver.
Brand:
DEMIItem no.:
CSA-24080JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
80WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years24v 80w CCT & 5 in 1 constant voltage led driver power supply for led strip lights
24V 80W 5 in 1 dimmable led driver has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp at +1v. Constant voltage working mode, dimming range from 0.1% to 100% direct ultra-deep amplitude. The dimming performance is as good as Magnitude Lighting's 80W dimmable led driver.

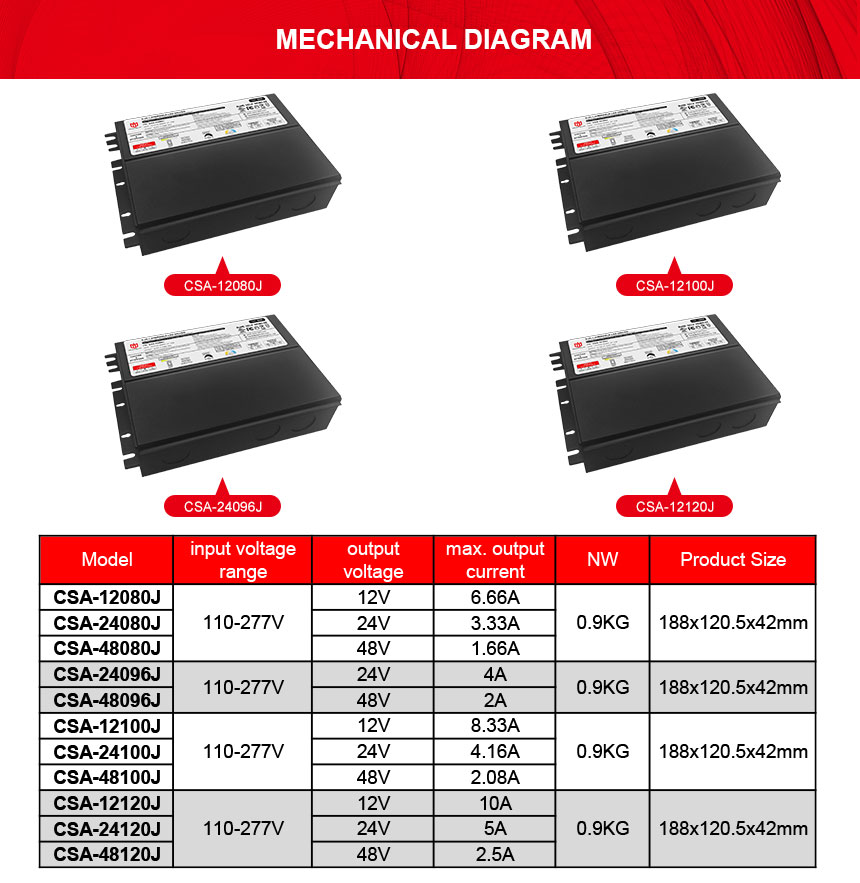

Model Number | CSA-12060J | CSA-24060J | CSA-48060J |
Output Type | |||
Reted Power | 60W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 5A | 2.5A | 1.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.65A | ||
Inrush Current(Typ.) | 20A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp.,Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||
Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |
• PWM Output: 4k/HZ Constant frequency • Exclusive patent design of “Clamshell” junction box • Constant voltage type.fine tune of output voltage |
• PWM dim mode: 100-0.1% dim, flicker-free • Super low loading request, works perfect at 10-100% load • 110-277Vac Universal input |

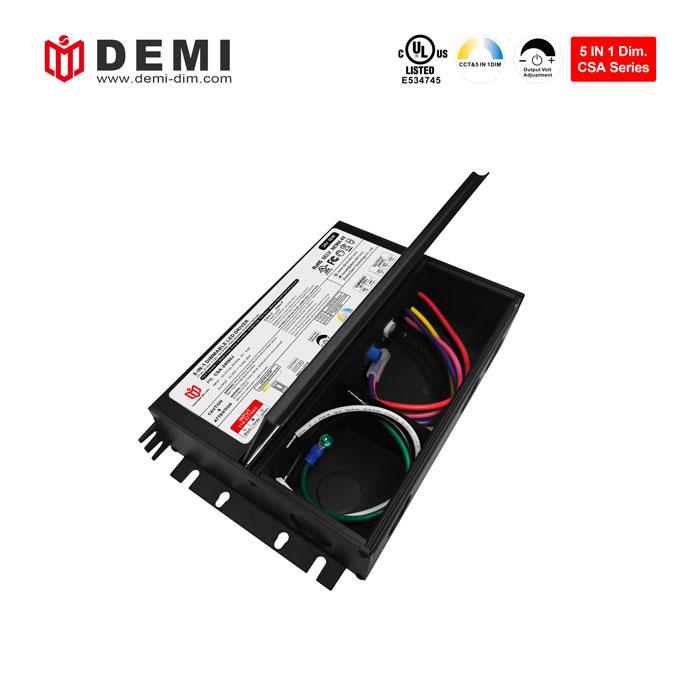

24v 80W dimmable led driver PWM output mode, 4K/HZ constant frequency optional. It adopts the exclusive patented design of "Clamshell" junction box, which is convenient and quick to install and can save a lot of manpower. With short circuit/overload/over temperature protection.
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
