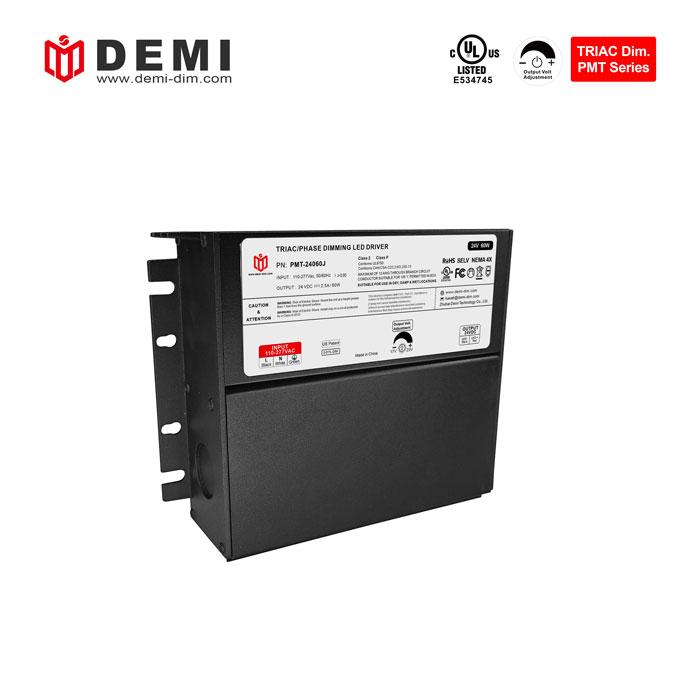

PMT-24060JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
110-277vac pwm triac dimmable led power supply for strip lights
This PMT-J triac dimmable led power supply 60W has a constant voltage working mode and a built-in voltage fine-tuning function knob. It has short circuit/overload/overtemperature protection functions. Exclusive "Clamshell" junction box patented design. Suitable for outdoor LED lighting project installation. For example, it can be used on billboards and used with LED advertising lighting modules.

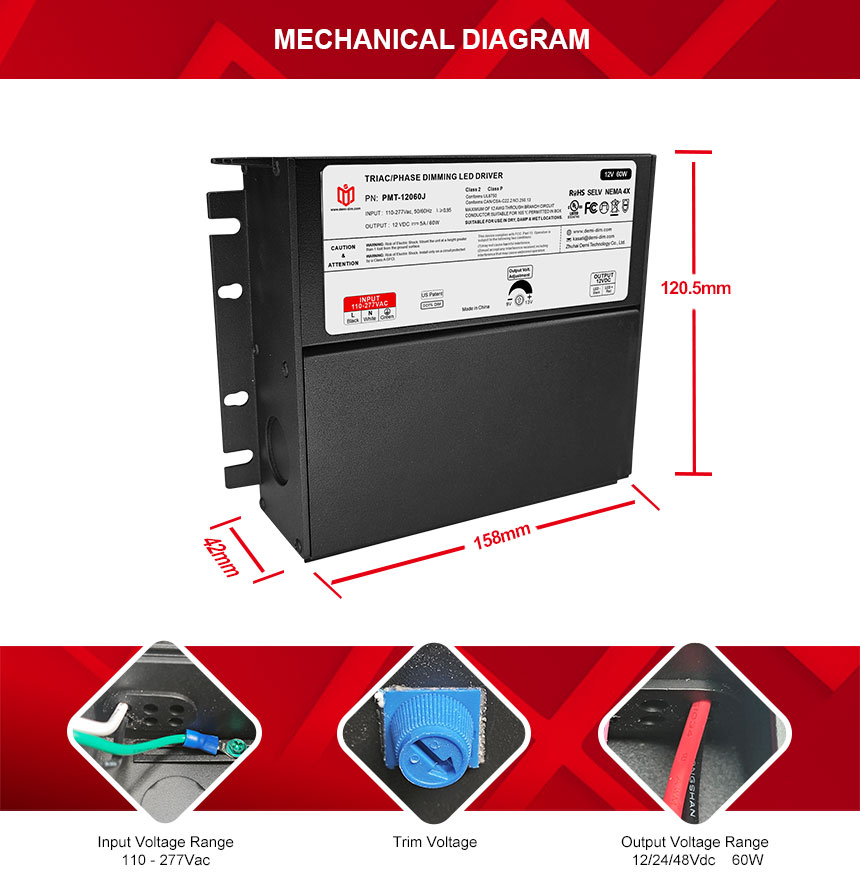

| Model Number | PMT-12060J | PMT-24060J | PMT-48060J |
| Output Type | |||
| Reted Power | 60W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 5A | 2.5A | 1.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.65A | ||
| Inrush Current(Typ.) | 20A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

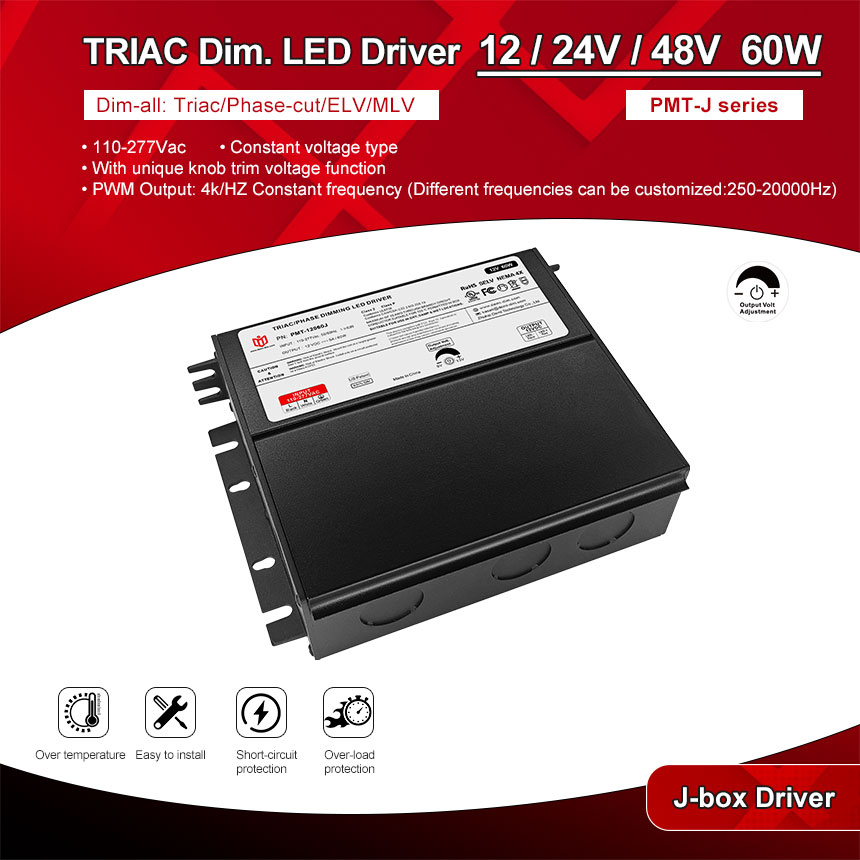

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range:100-0.1% , flicker-free. |

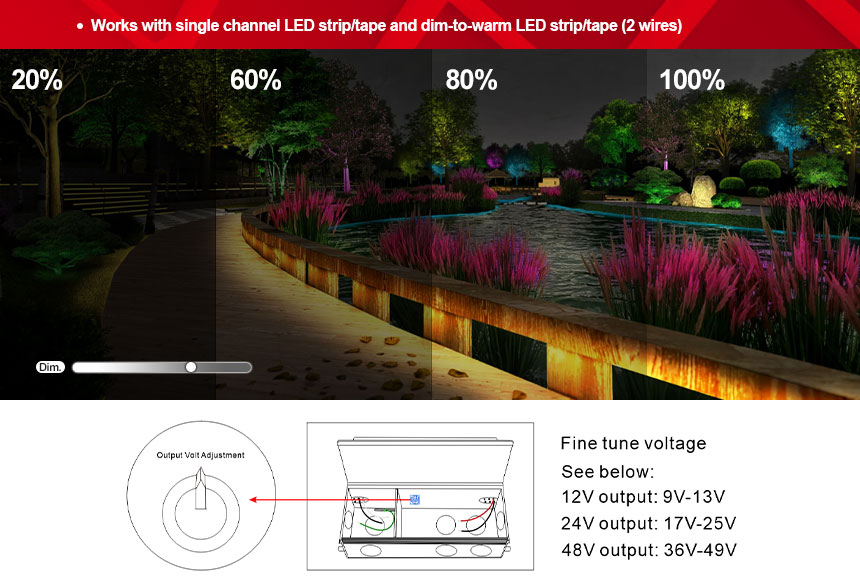

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
Triac/Phase-cut/ELV/MLV dimmable led driver 60W Integrated with junction box. Constant voltage operation mode, built-in active PFC function. With ultra-low load requirements, stable operation at 10-100% load. Complies with global safety lighting regulations. With 5-year warranty
| PMT-J | Input | Output | |||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | / | / | / |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | / | / | / |
| AC N | White | 18AWG | DC- | Black | 18AWG | / | / | / | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |

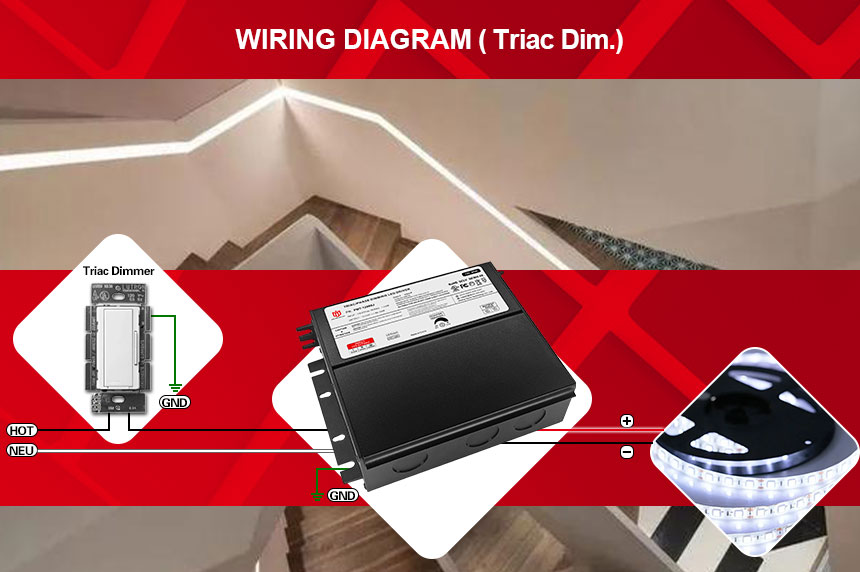

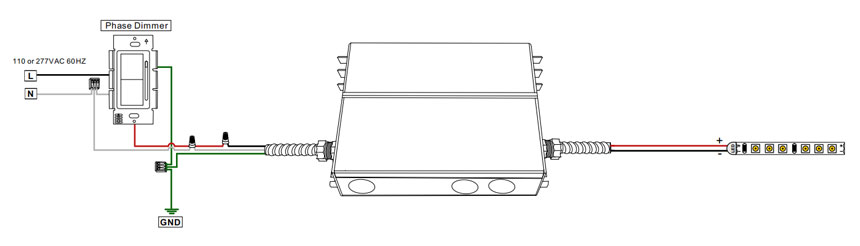

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using Triac ELV wiring diagram
