The whole series is available in 12Vdc, 24Vdc, 30W 60W 96W 120W 150W 200W 300W.
higher power Class 2 version:
12Vdc: 180W 300W
24Vdc: 192W, 288W, 384W
Brand:
DEMIItem no.:
PMT-H24192JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
218x120.5x42mmWeight:
1.5KGCertification:
UL, ROHS, FCCWarranty:
5 years

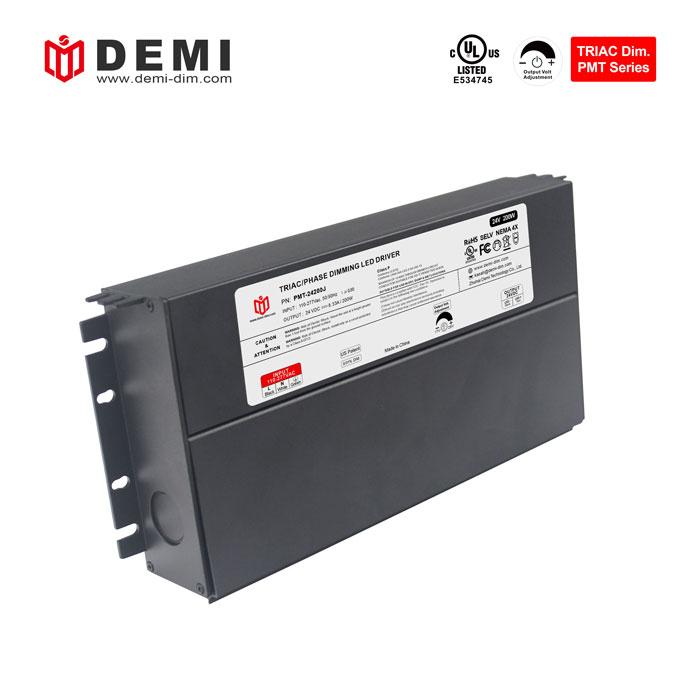

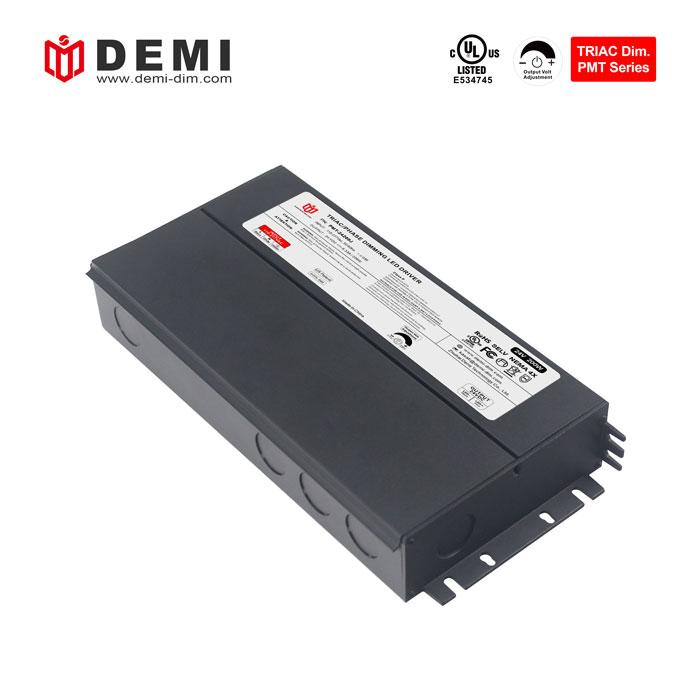

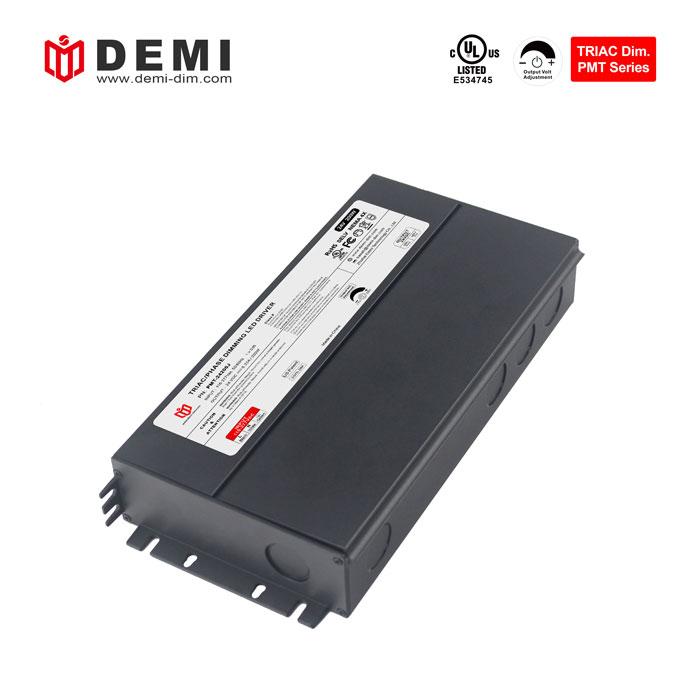

100-277vac best 192w triac dimmable led driver strip lights 24v power supply for outdoor
DM's new PMT-J series triac dimmable LED driver 192W 24V constant voltage working mode has ultra-low load requirements and can work perfectly under 10-100% load. It is well compatible with most triac dimmers on the market to achieve smooth flicker-free dimming. For example, Lutron dimmer
| Model Number | PMT-H24192J | PMT-H48192J |
| Output Type | ||
| Reted Power | 192W(2CH*96W) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 2CH*4A | 2CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.2A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

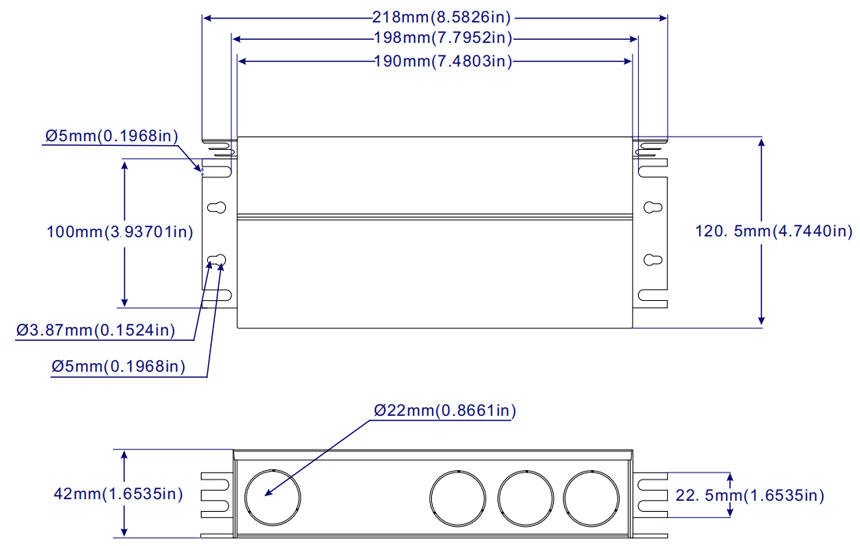

| Dimension | 218x120.5x42mm (L*W*H) | |
| Packing | - | |
|

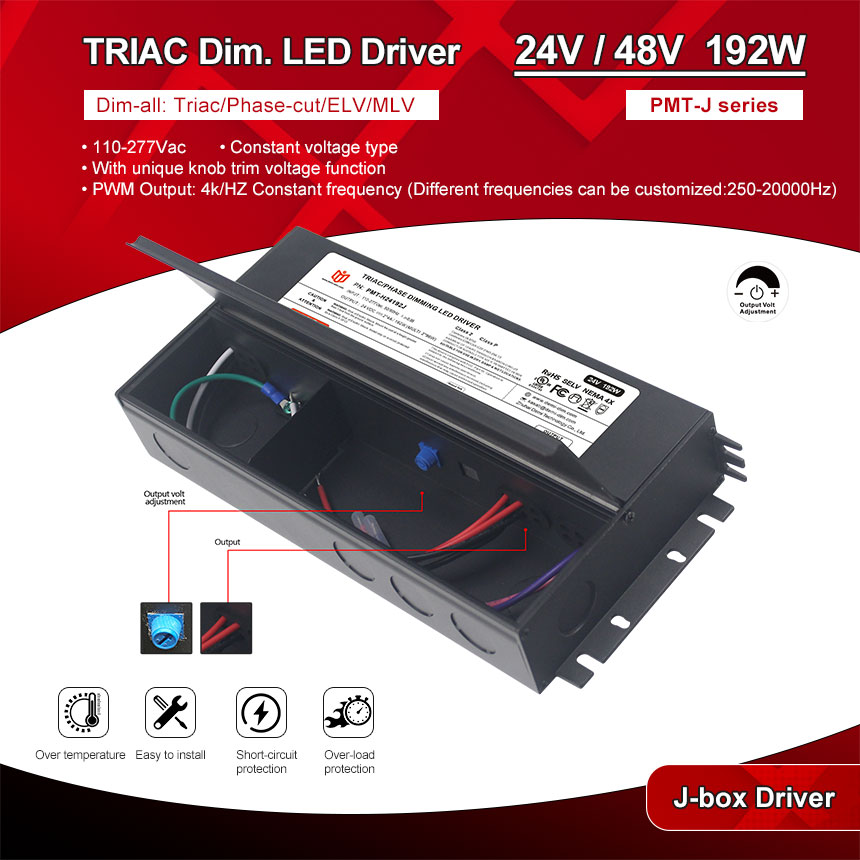

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range:100-0.1% , flicker-free. |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
| PMT-J | Input | Output | |||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | / | / | / |
| 192W | AC L | Black | 18AWG | DC+ | Red | 18AWG | / | / | / |
| AC N | White | 18AWG | DC- | Black | 18AWG | / | / | / | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |

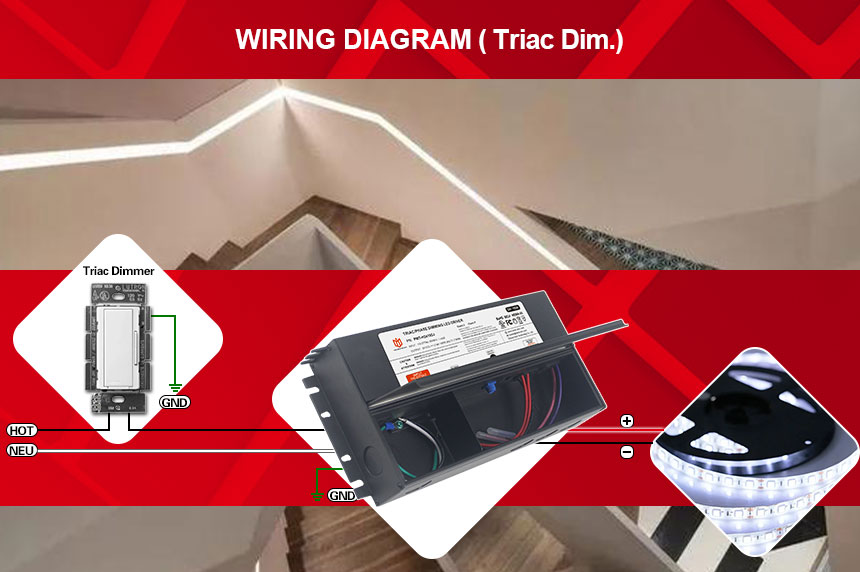

Wiring Diagram

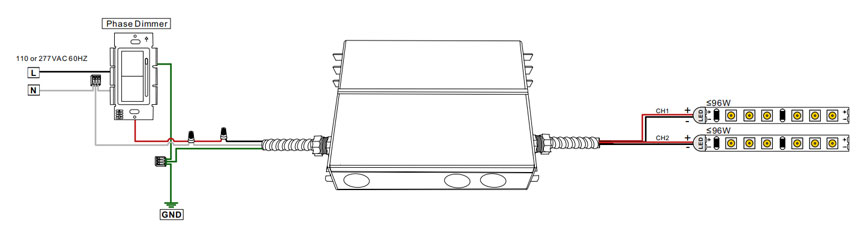

· Using Triac/MLV wiring diagram

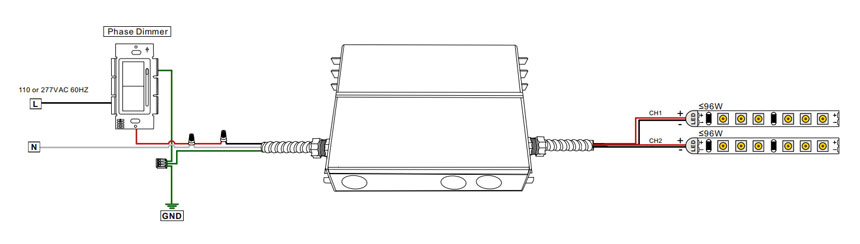

· Using Triac ELV wiring diagram
