This PMA series 48v 96W 5 in 1 dimmable LED driver adopts PWM output mode, 4k/HZ constant frequency is optional. It has a built-in fine-tuning voltage function knob to solve the voltage drop problem caused by installation and wiring. It has a 5-year warranty
Brand:
DEMIItem no.:
PMA-48096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:

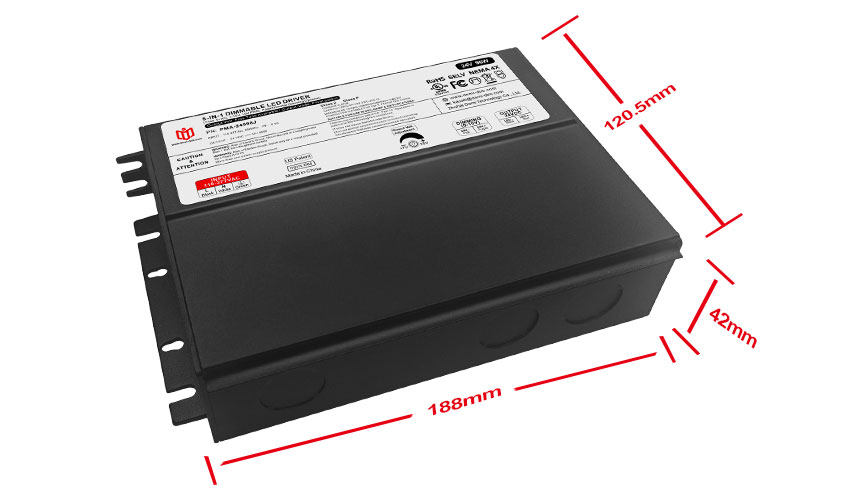

188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

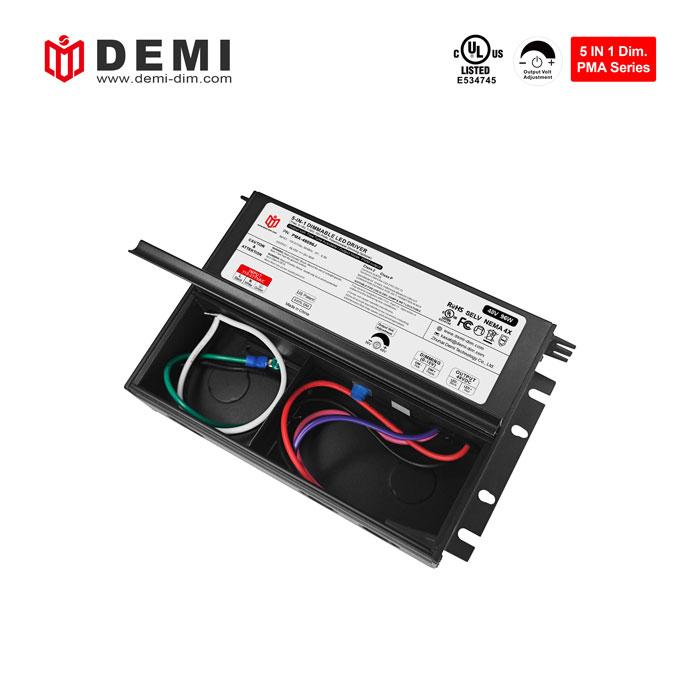

96w 48v constant voltage 5 in 1 dimmable led strip lights driver power supply junction box
96w constant voltage triac & 0 10v led driver with built-in active PFC function, power factor>0.95. With ultra-low load requirements, it can work perfectly at 10-100% load. With short circuit/over temperature/overload protection function
| Model Number | PMA-24096J | PMA-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |
|

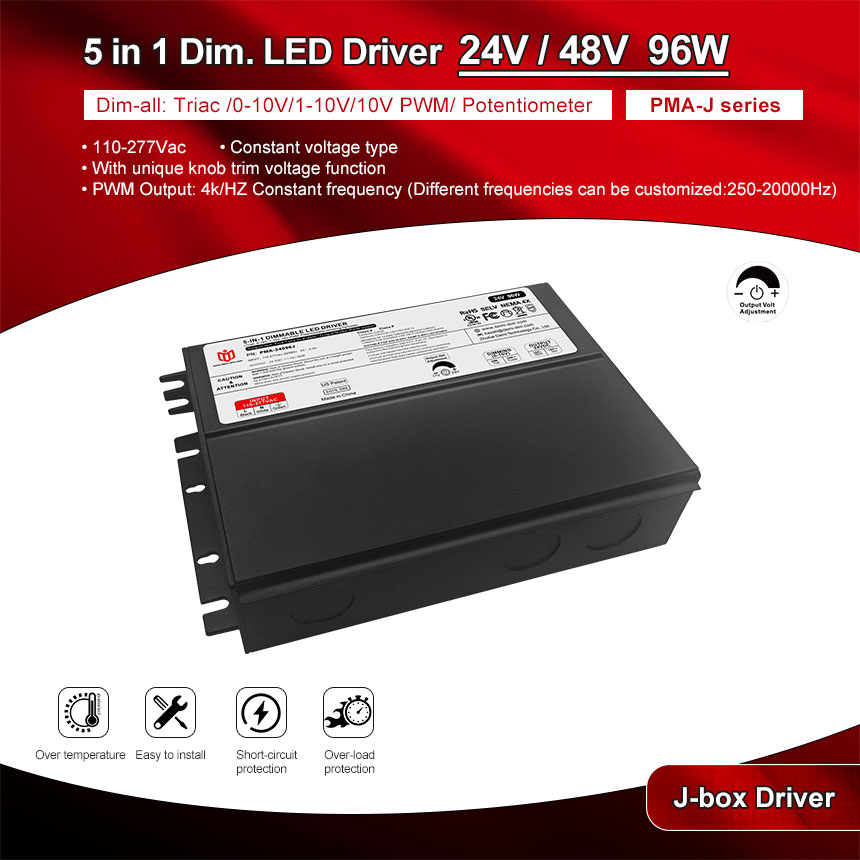

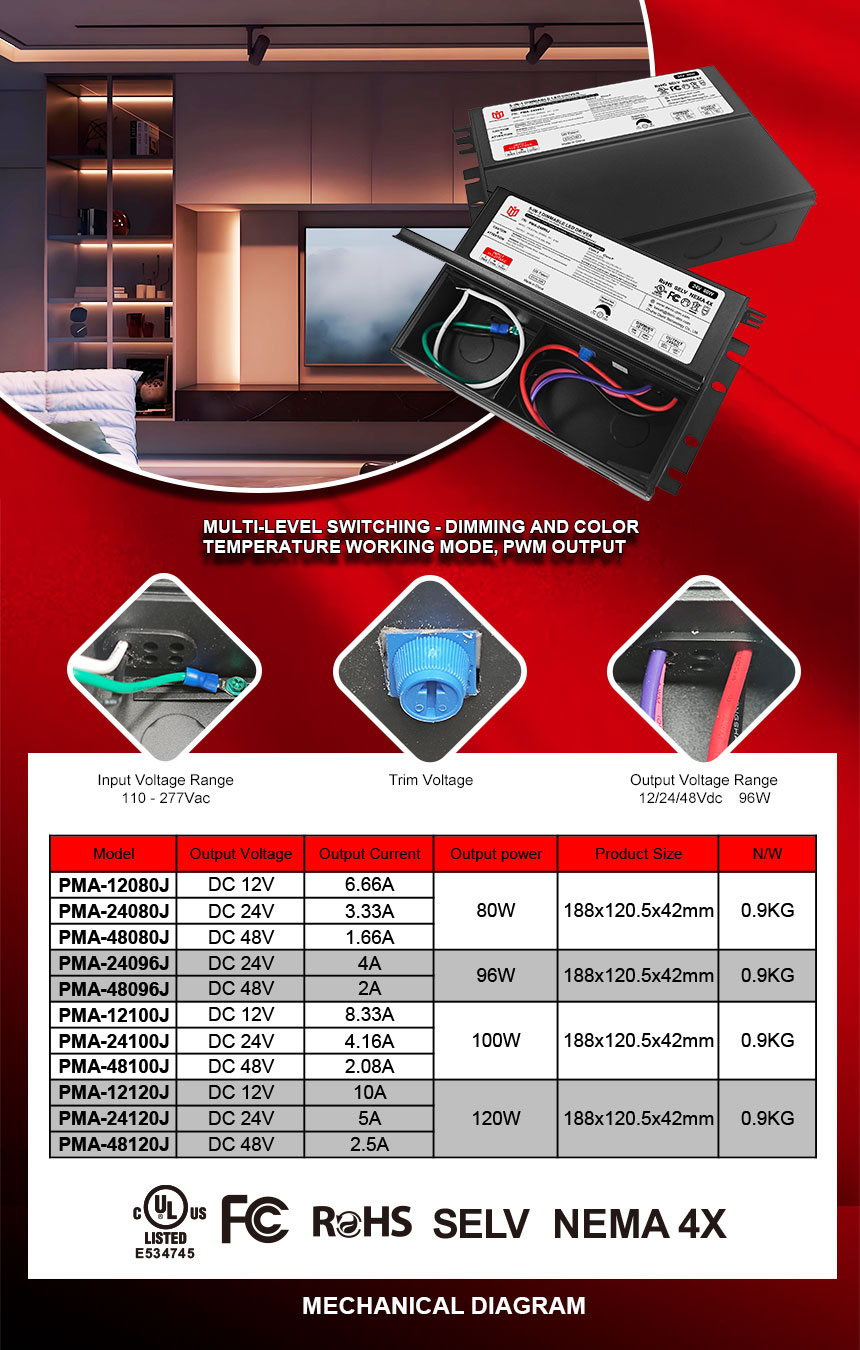

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range: 100%-0.1% Ultra Deep Amplitude |

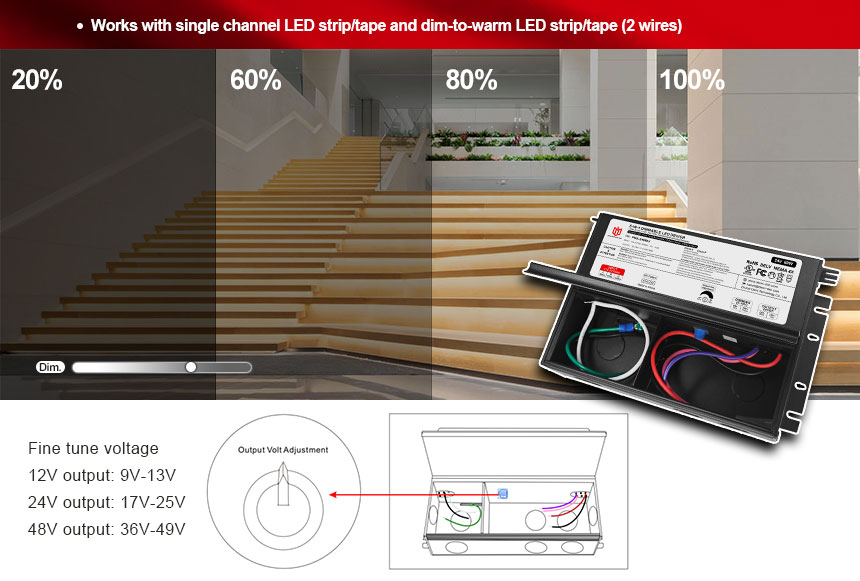

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
During the installation of this 96W 48V constant voltage LED driver, you need to ensure that the input and output terminals of the LED driver are correctly connected. Make sure that the power supply is disconnected during the installation process, and read and follow the installation manual and operating instructions carefully to avoid accidents during installation.
| PMA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 96W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

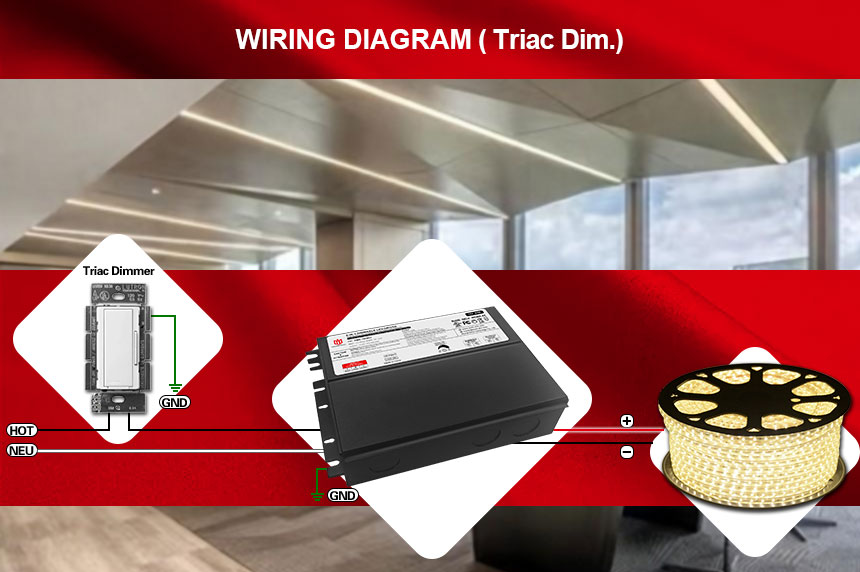

· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
