This PMA series 100W 24V 5 in 1 dimmable led power supply has a built-in fine-tuning voltage function knob. The dimming range is between 0.1-100% with ultra-deep dimming. The dimming effect is as good as the 100W LED driver from Inventronics. With a 5-year warranty
Brand:
DEMIItem no.:
PMA-24100JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
100WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

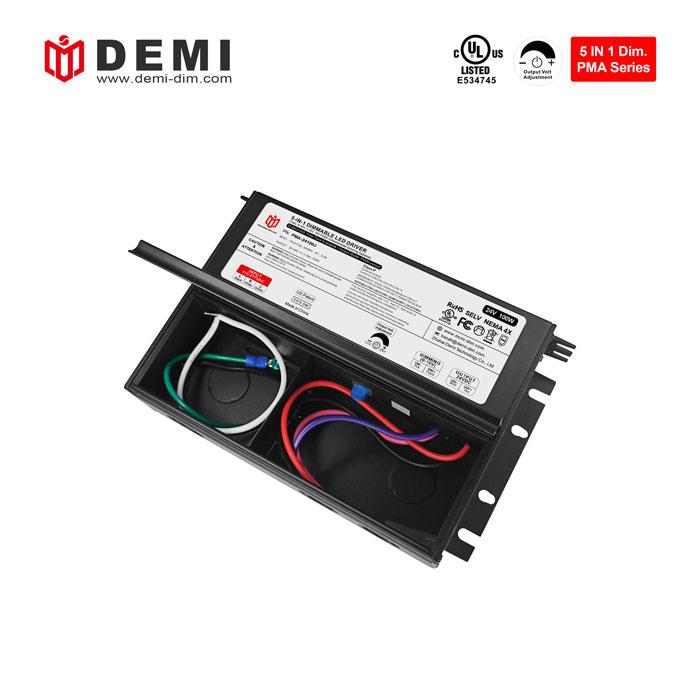

24v 100W triac & 0 10v dimmable constant voltage led strip light driver power supply Junction Box
PWM output mode 5 in 1 dimmable LED driver with built-in active PFC function. Constant voltage working mode, ultra-low load requirement, can work perfectly under 10-100% load. UL certified, in line with global safety lighting regulations.
| Model Number | PMA-12100J | PMA-24100J | PMA-48100J |
| Output Type | |||
| Reted Power | 100W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 8.33A | 4.16A | 2.08A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 86%@120VAC 87%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.04A | ||
| Inrush Current(Typ.) | 26A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, Class 2 | ||
| Safety standards | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

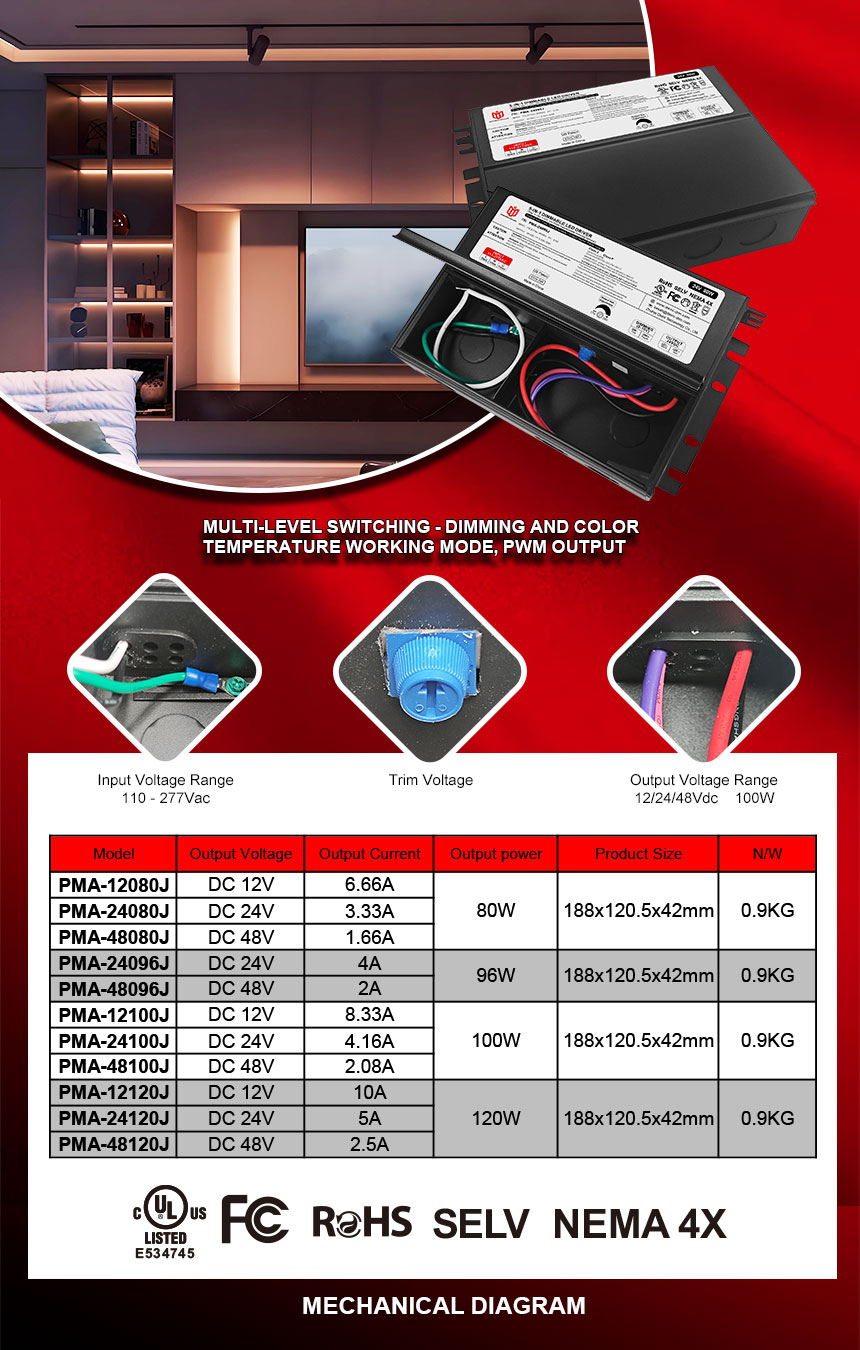

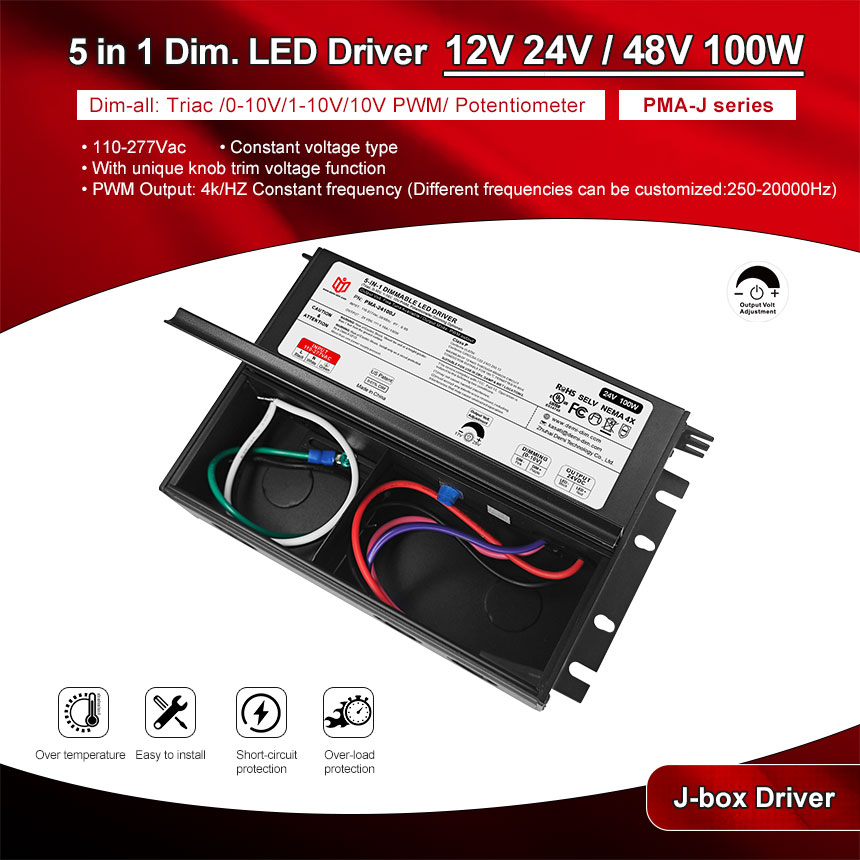

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range: 100%-0.1% Ultra Deep Amplitude |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
110-277VAC universal input voltage range 100W triac & 0 10V dimmable LED driver Aluminum housing design, integrated with the junction box. Passed NEMA 4X standard, good heat dissipation. With short circuit / overload / over temperature protection function. Suitable for single channel LED lighting projects.
| PMA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

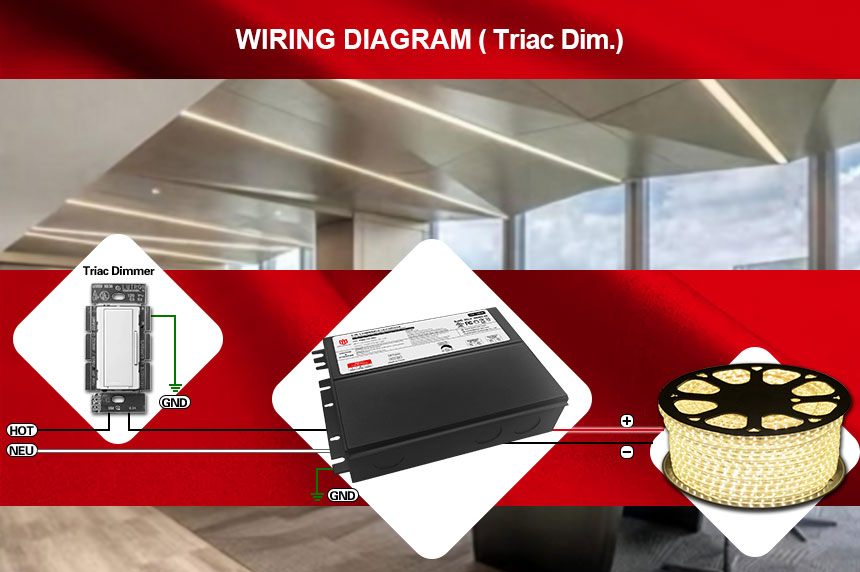

· UsingTriac MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
Tags :
The CCT & triac/0 10v dimmable led driver 30W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and adjust the brightness. It is compatible with popular front and rear triac dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
triac & 0 10v dimmable 12v 60W led power supply easy and quick to install, built-in active PFC function, power factor >0.95, very compatible with CreeLighting's 60W LED floodlight, achieving smooth flicker-free dimming, 5 years Warranty
110-277vac 5 in 1 dimmable 80W 12v led driver has short circuit/over temperature/overload protection function, suitable for use in wet and dry lighting projects, compatible with popular front and rear edge thyristor dimmers and systems, 0-10V dimmers and systems, Such as Lutron dimmer
CCT& 5 in 1 dimmable led power supply input voltage range 110vac-277vac, aluminum housing design, good heat dissipation, easy and fast installation, well compatible with AQ Lighting's 96W LED strip/light strip, achieving smooth flicker-free dimming
PMA output triac & 0 10v dimmable led driver 100W 12V constant voltage output mode, able to provide stable protection for LED lamps, with short circuit/overload/overtemperature functions, 5-year warranty
triac & 0 10v dimmable 120W 12V LED power supply, PWM output, built-in fine-tuning voltage function knob for light attenuation compensation, dimming range between 0.01~100%, high working efficiency, constant voltage working mode, can be used for billboards on, used with LED advertising lighting modules
