Brand:
DEMIItem no.:
CSA-12300JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
300WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years110-277vac triac & 0 10v dimming constant voltage indoor LED driver 12v 300w

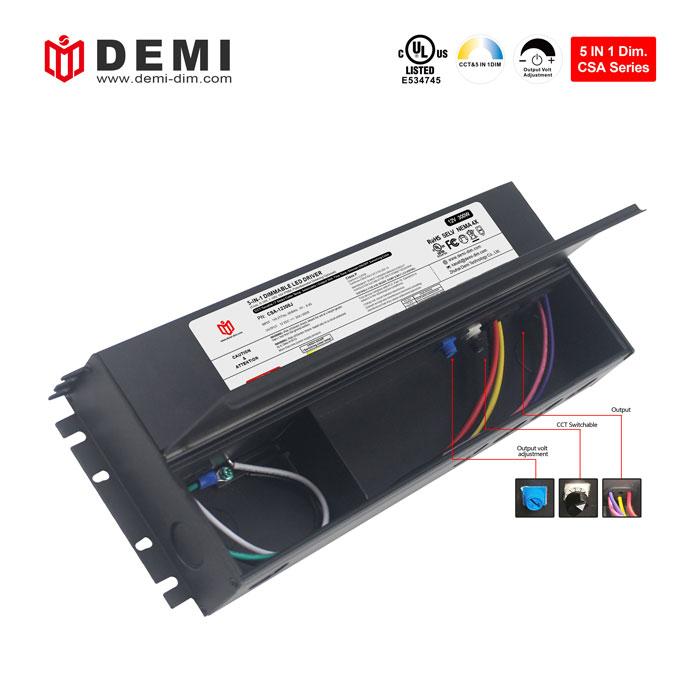

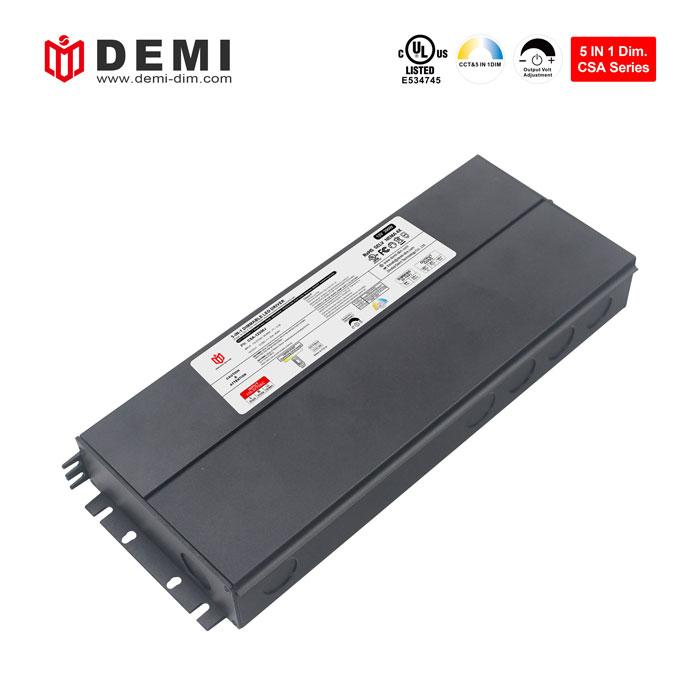

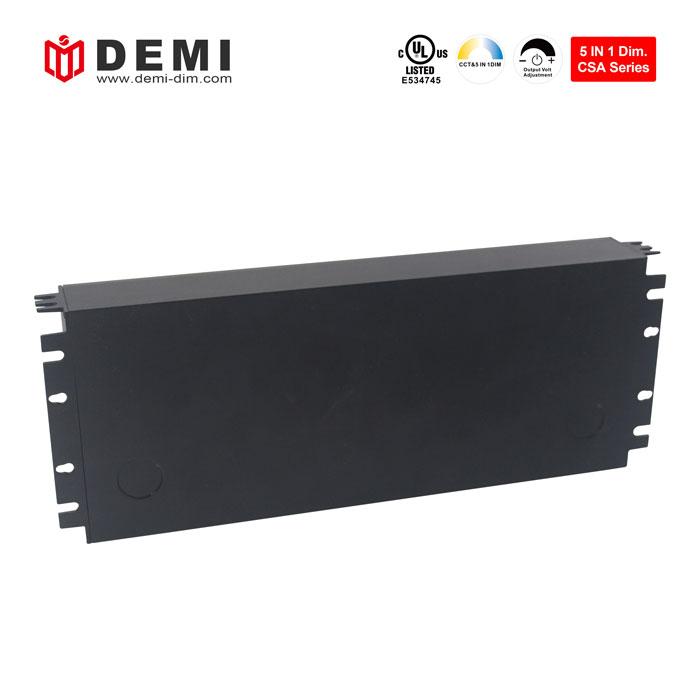

300W 5 in 1 dimmable led driver, this led driver has constant voltage output, uses high-quality electronic components and strict quality assurance, has overload/overtemperature/short circuit protection functions, can provide power output up to 300W, and can meet most high-end Brightness LED lighting projects for use, including industrial facilities and outdoor lighting equipment, with a five-year warranty
Model Number | CSA-12300J | CSA-24300J | CSA-48300J |
Output Type | |||
Reted Power | 300W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 25A | 12.5A | 6.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 91%@120VAC 92%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 3.04A | ||
Inrush Current(Typ.) | 35A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

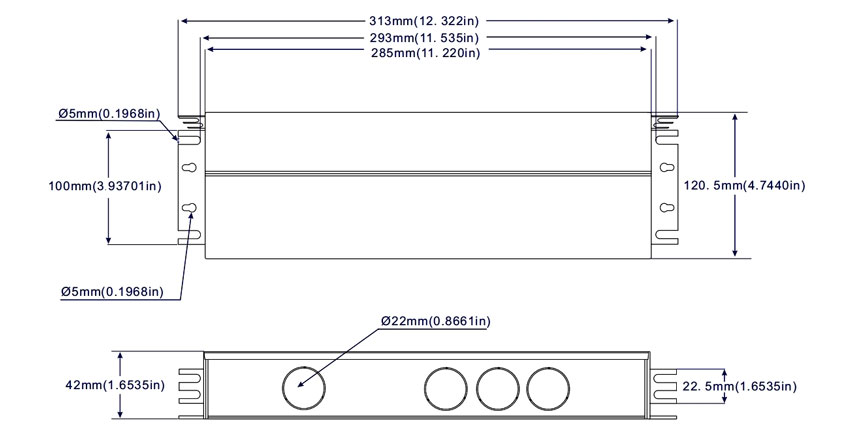

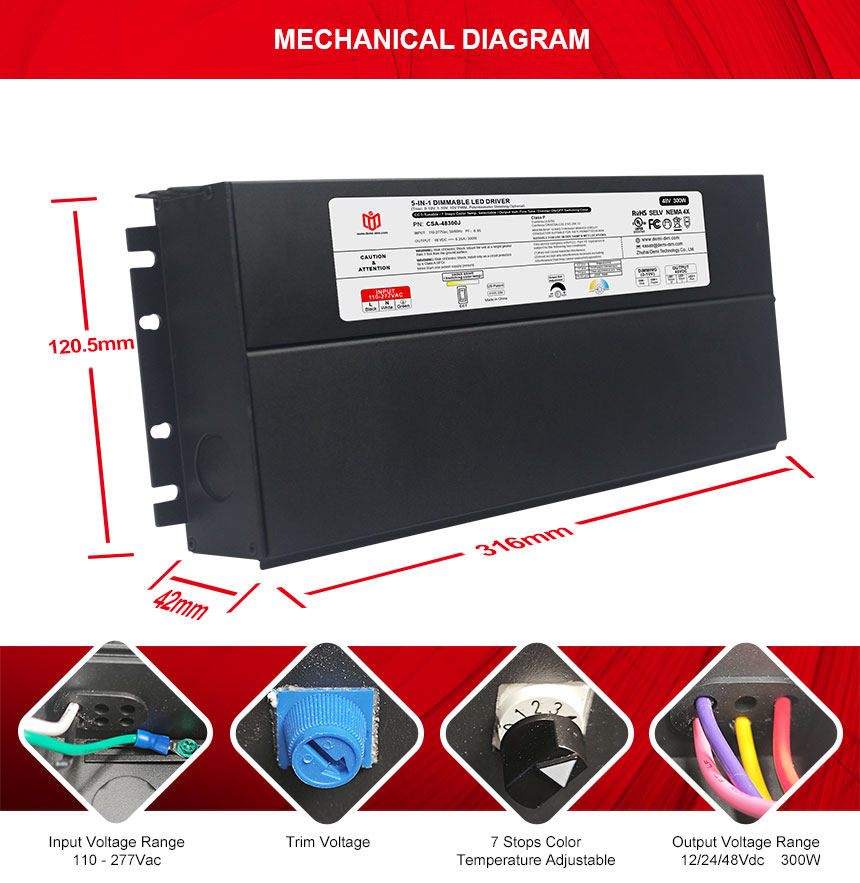

Dimension | 316x120.5x42mm (L*W*H) | ||
Packing | - |
To know more product details, please leave message or e-mail us !
When installing and wiring a 300W constant voltage LED driver, you need to ensure that the LED power supply and LED driver are correctly connected and used. You need to read the product manual carefully and install it correctly according to the wiring guide provided by the supplier. Make sure the ground wire of the led driver is connected correctly, after completing the wiring work, test it using a suitable tool to make sure the connection is working correctly

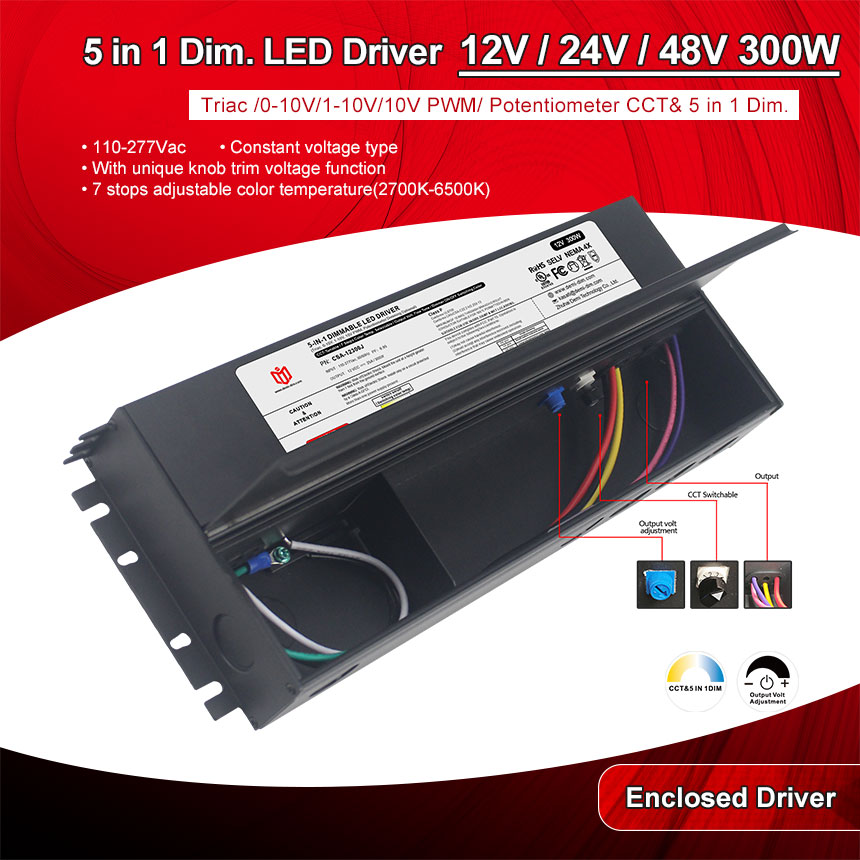

•With unique knob trim voltage function •110-277Vac Universal input.•Super low loading request |
•7 stops adjustable color temperature(2700K-6500K). •CCT-Tunable: Press Dimmer ON/OFF button to change color temp.) |
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
300W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / |
Wiring Diagram

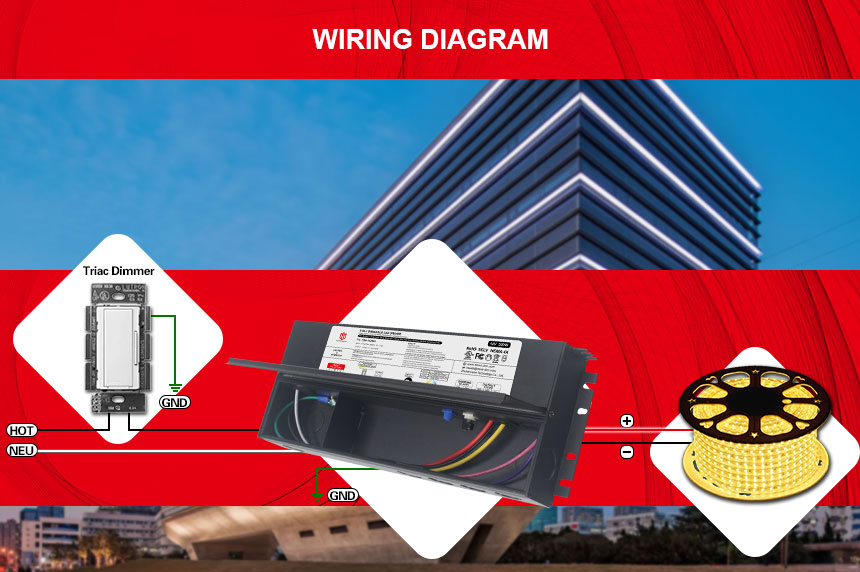

· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· UsingTriac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
