Brand:
DEMIItem no.:
CSA-24200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

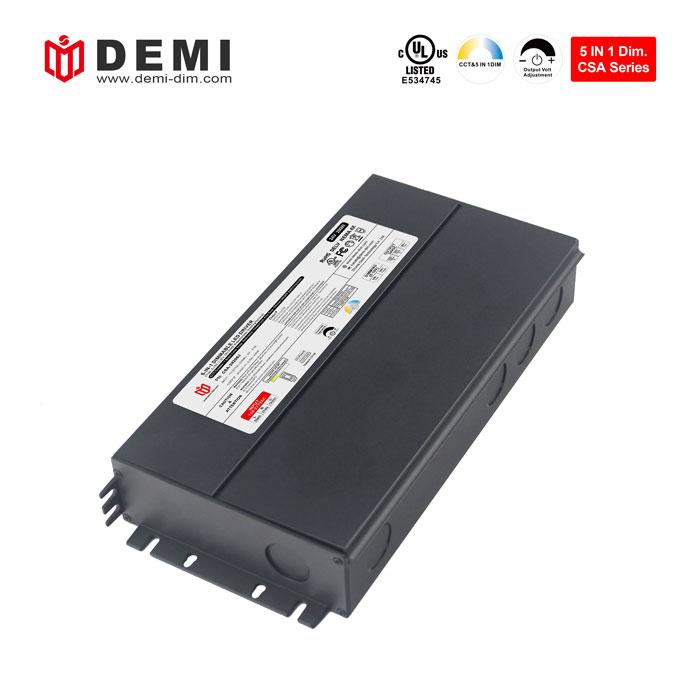

200w 24v CCT & triac/0 10v dimmable constant voltage led strip light driver for sale

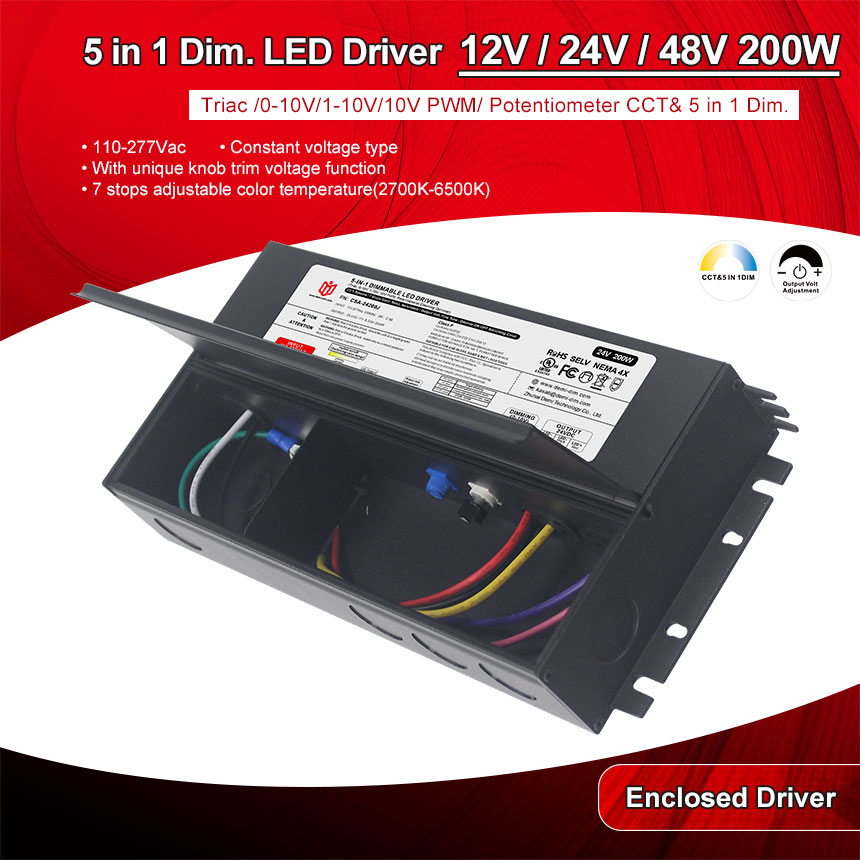

200W 24V CCT & triac/0 10v dimmable led driver has a unique built-in fine-tuning voltage function knob. Constant voltage operating mode, with ultra-low load requirements, can work perfectly under 10-100% load. 5 years warranty

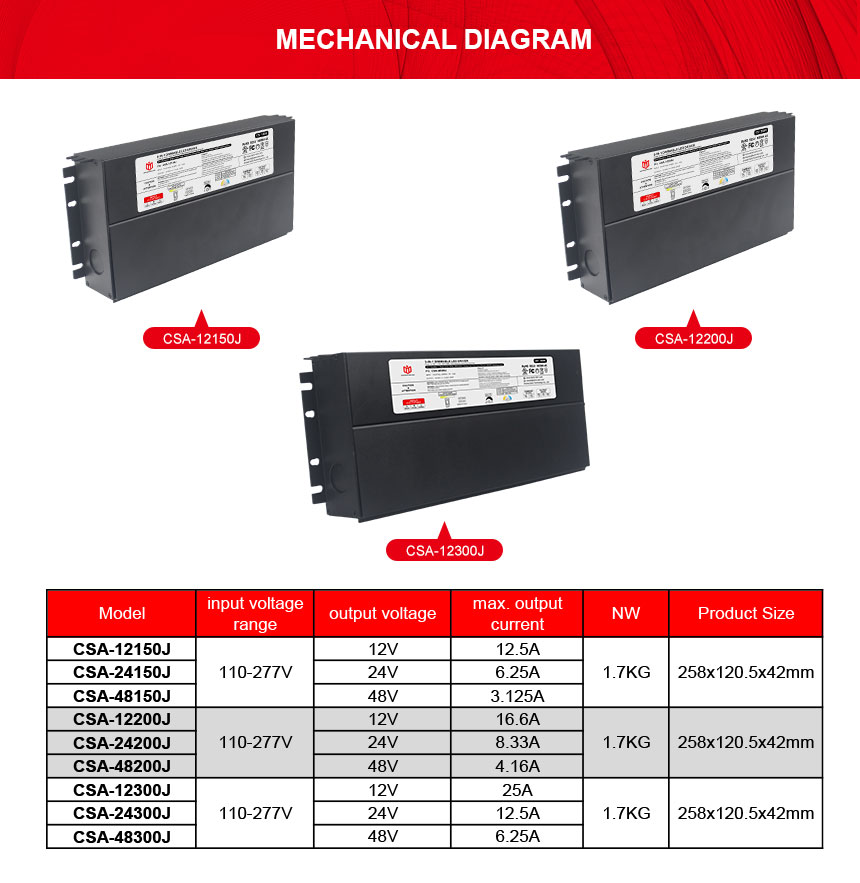

| Model Number | CSA-12200J | CSA-24200J | CSA-48200J |
| Output Type | |||
| Reted Power | 200W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 16.6A | 8.33A | 4.16A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 89%@120VAC 90%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 2.06A | ||
| Inrush Current(Typ.) | 30A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
|

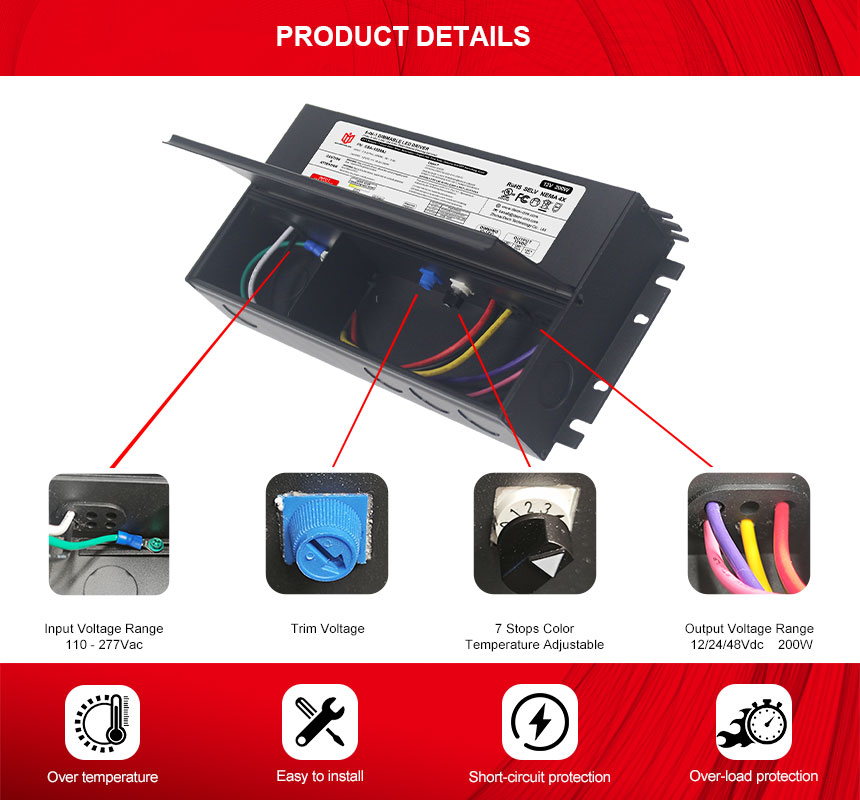

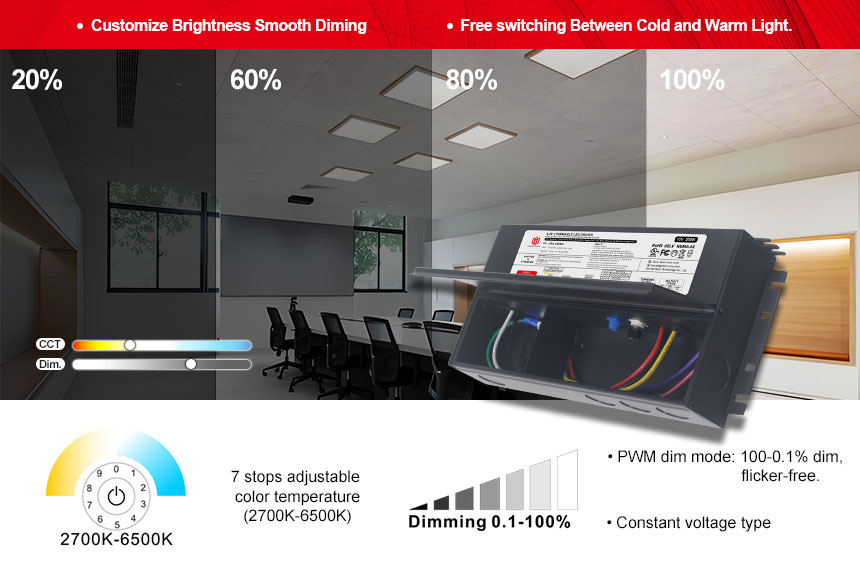

•With unique knob trim voltage function •110-277Vac Universal input.•Super low loading request |
•7 stops adjustable color temperature(2700K-6500K). •CCT-Tunable: Press Dimmer ON/OFF button to change color temp.） |
This CSA series dimmable led driver is designed with an aluminum casing, has passed the NEMA 4X standard, and has good heat dissipation. There needs to be enough heat dissipation space during installation to avoid installing the LED driver in a high-temperature environment or in direct contact with heat sources, which may cause product failure.

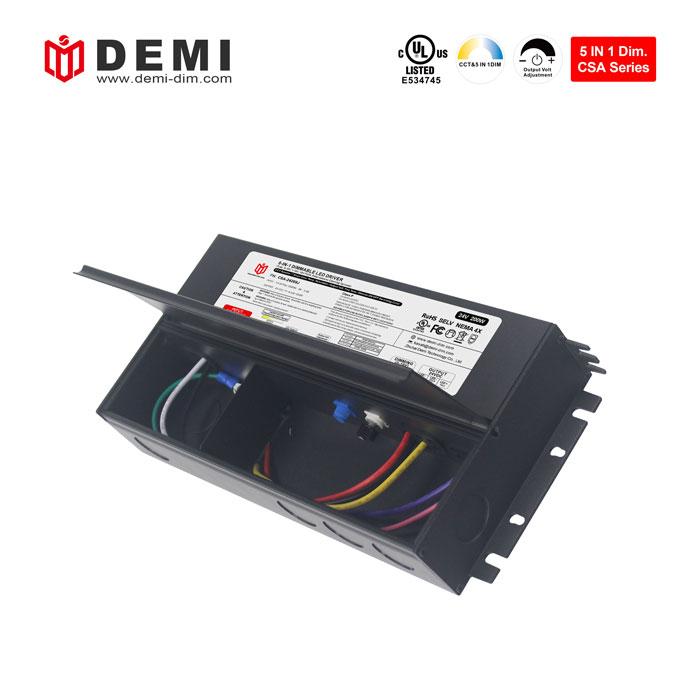

| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 200W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· UsingTriac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
