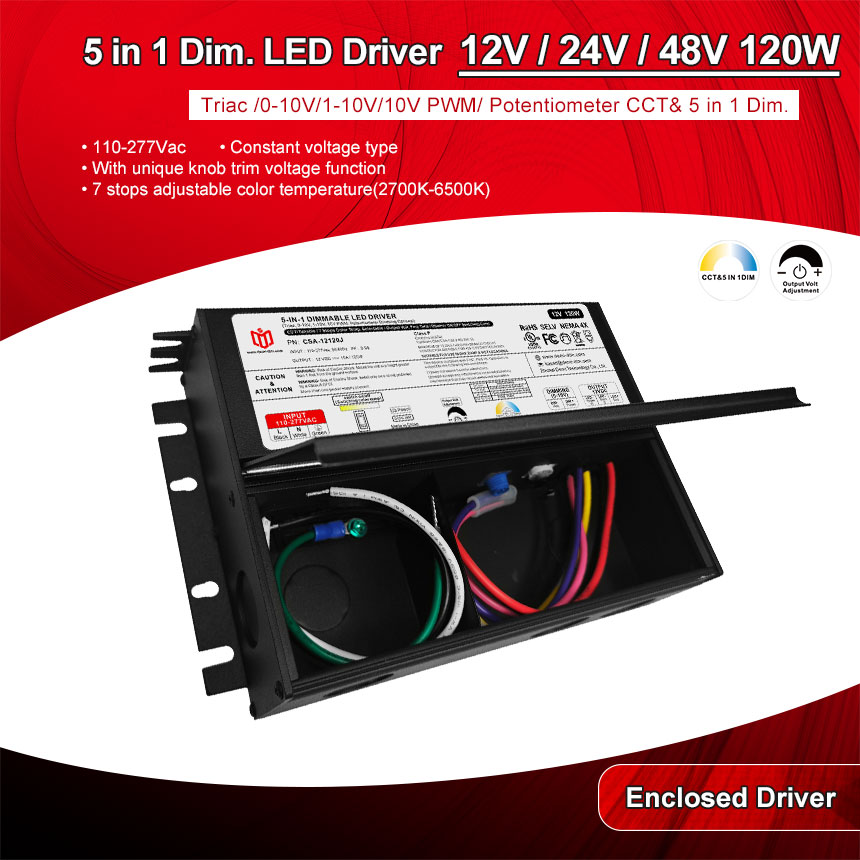

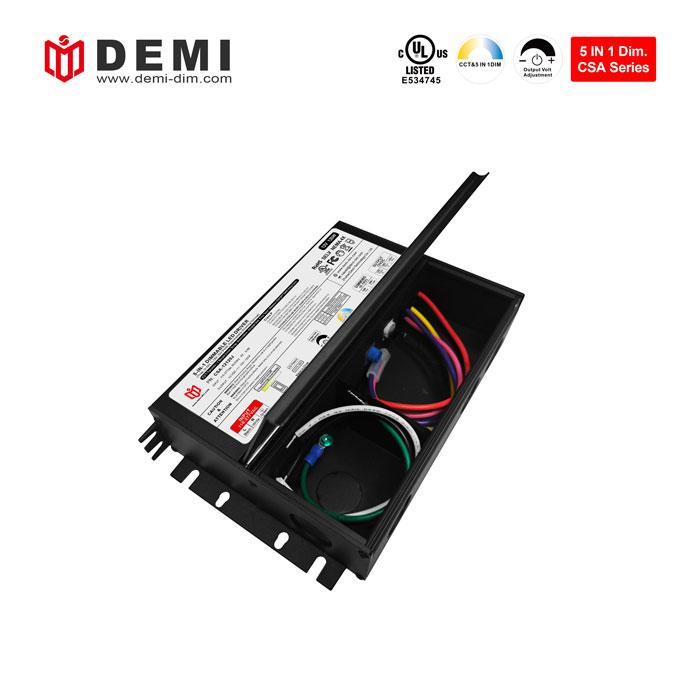

12v/24v 120w triac & 0 10v dimmable constant voltage led power supply strip light driver
277VAC input voltage constant voltage led driver 120W has 7-level linear adjustment color temperature function (2700K-6500K) built-in active PFC function, PF>0.95, has ultra-low load requirements, works perfectly under 10-100% load, UL certification, complies with Global Safety Lighting Code, 5 Year Warranty
| Model Number | CSA-12120J | CSA-24120J | CSA-48120J |
| Output Type | |||
| Reted Power | 120W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 8.33A | 4.16A | 2.08A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

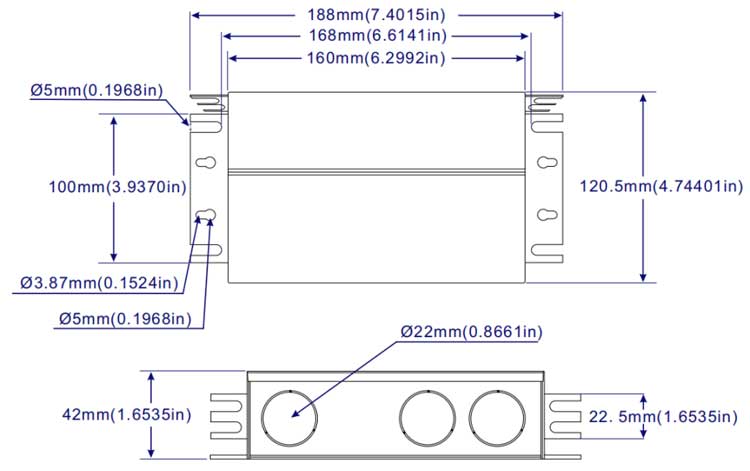

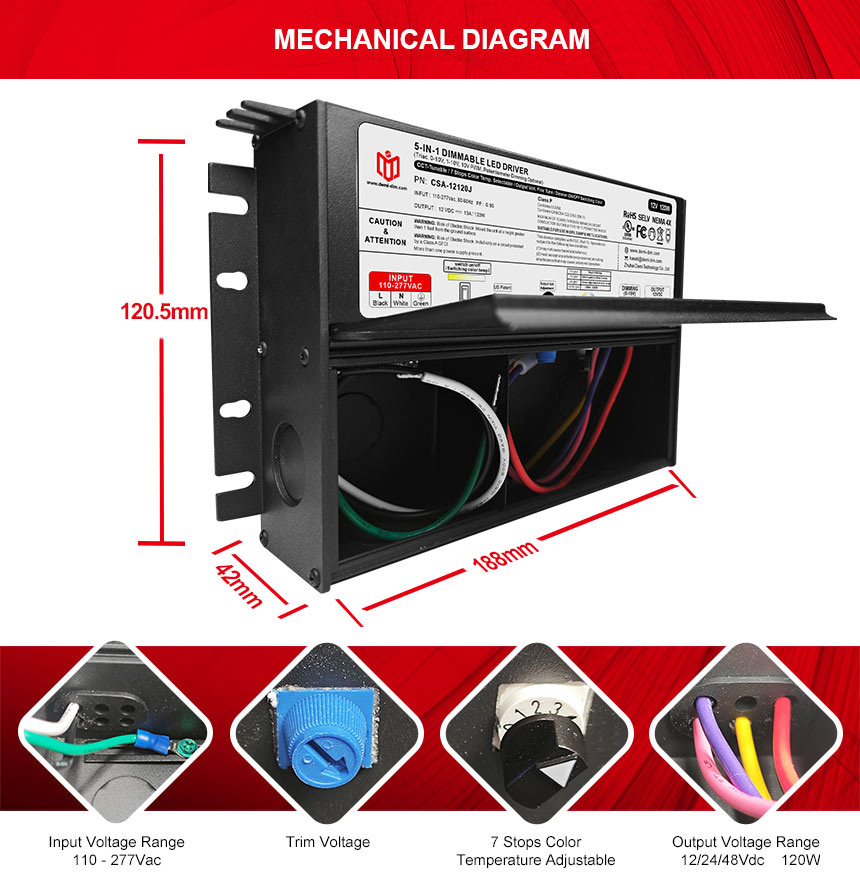

| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
120W dimmable led driver CCT & triac/0 10v dimmable mode to meet users’ lighting requirements for different scenes. Not only suitable for lighting systems in homes, businesses and offices, but also widely used in indoor and outdoor landscape lighting, advertising lighting and stage lighting. It is compatible with most dimmer switches and control systems on the market.
|
Fine tune voltage
See below：
12V output: 9V-13V
24V output: 17V-25V
48V output: 36V-49V
|
Switch to different gears See below：0：Single dimming{single channel LED strip/tape (2 wires)} 1：Switch on/off (Switching color temp) 2：Linear adjustment of color temperature 3-9：7 stops adjustable color temp(2700K-6500K)
Notes：gears 1-9 ,Works with Two channel CCT warm-dim
LED strip/tape (3 wires)
|
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |

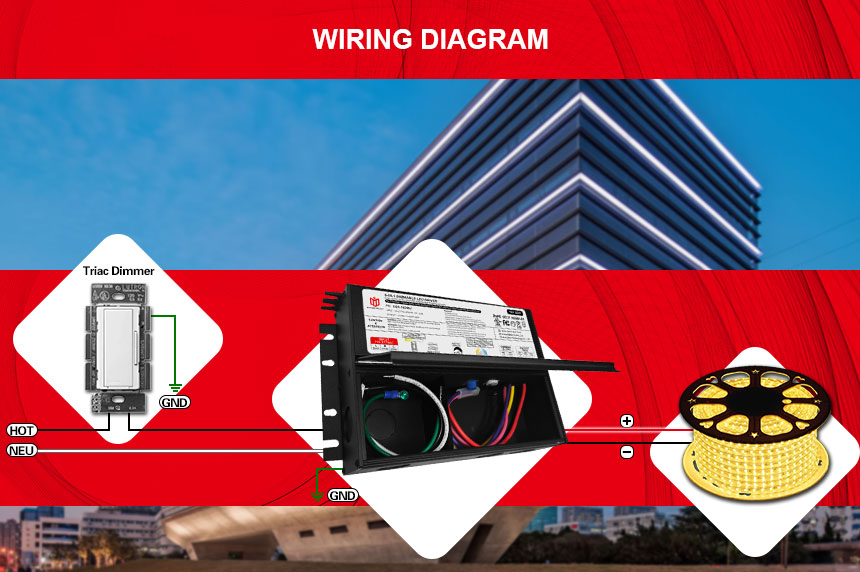

Wiring Diagram

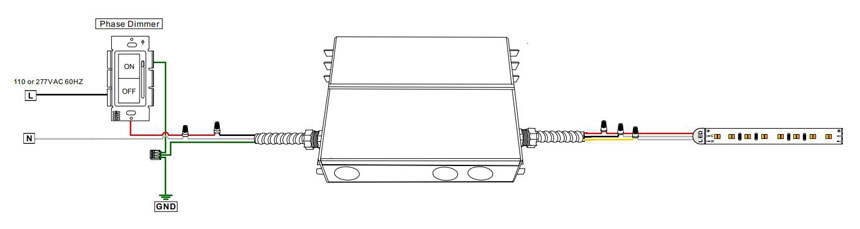

· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
Tags :
