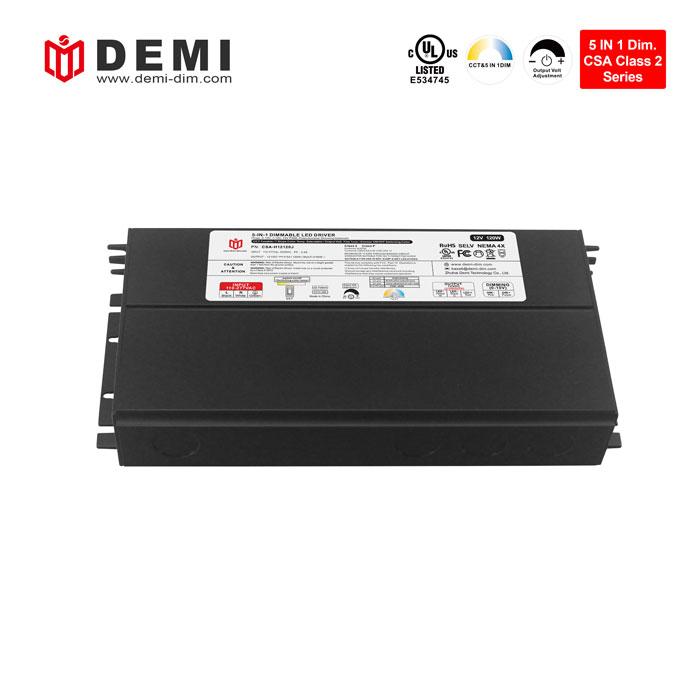

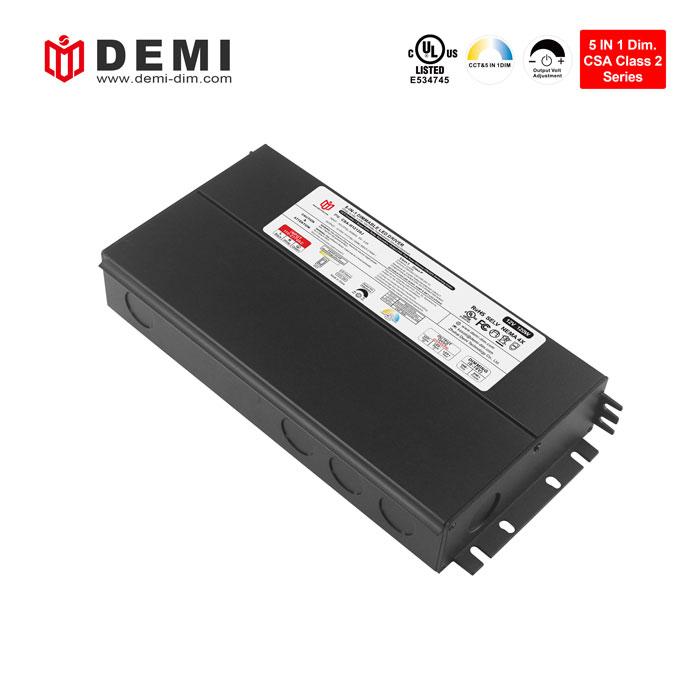

This CSA series 120W dimmable led driver has a built-in 7-level color temperature adjustment function, which can adjust the required color temperature according to user needs. It has a constant voltage working mode, and the input voltage range is between 100-277vac. It has strong compatibility and can be used with most major products on the market. Some triac dimmers are well connected to 0 10v dimmers, such as INSTEON dimmers
Brand:
DEMIItem no.:
CSA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

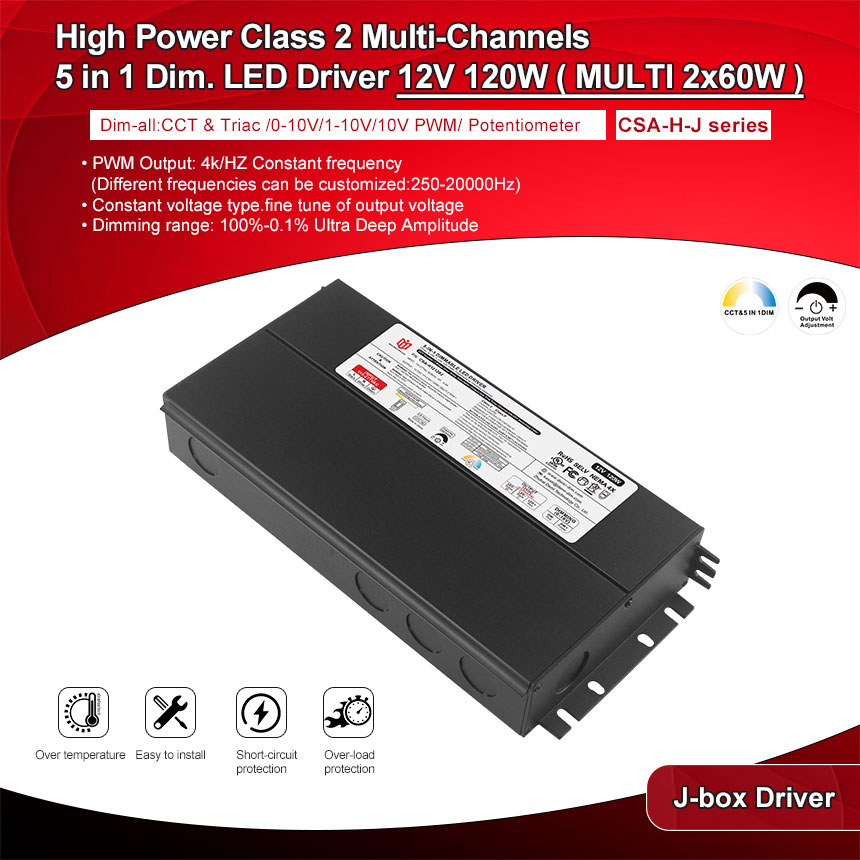

class 2 12 volt constant voltage triac & 0 10v dimmable 120w led driver
Class 2 120W dimmable constant voltage led driver has built-in active PFC function, has ultra-low load requirements, and can work perfectly under 10-100% load. It is suitable for use on cabinets and with cabinet lights.
| Model Number | CSA-H12120J |
| Output Type | |
| Reted Power | 120W(MULTI 60W * 2) |
| Reted Voltage | 12V |
| Reted Current | 2CH*5A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 1.25A |
| Inrush Current(Typ.) | 27A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

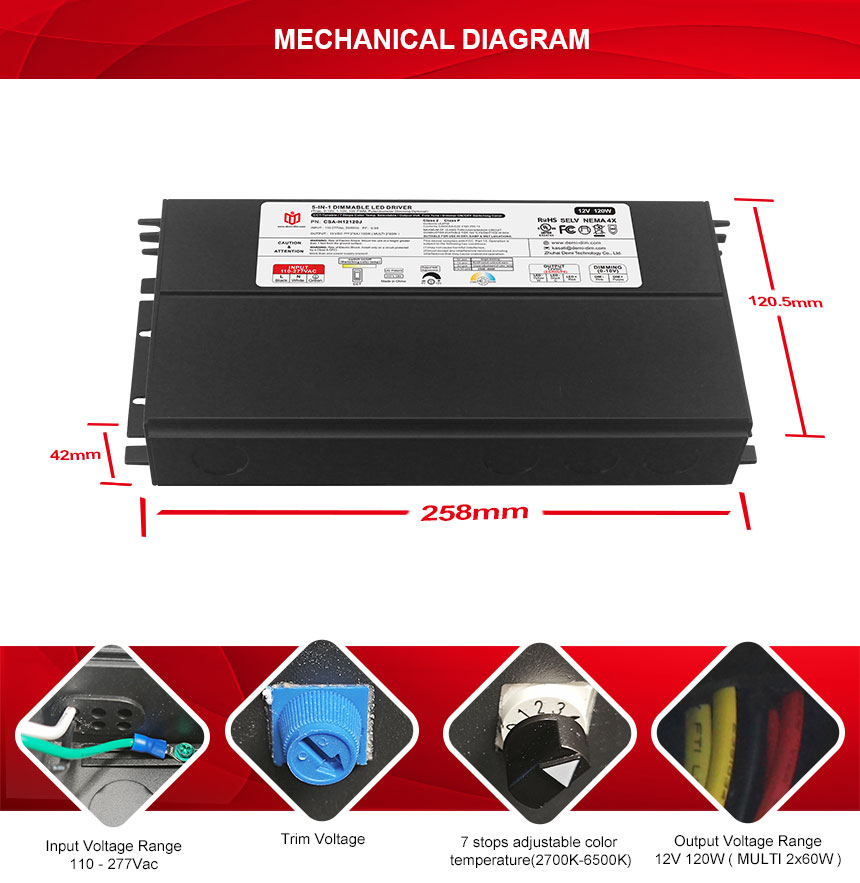

| Dimension | 188x120.5x42mm (L*W*H) |
| Packing | - |
|
•Works with two channel CCT warm-dim LED strip/tape (3 wires) •Dimming effect: PWM dim mode: 100-0.1% dim, flicker-free. •With unique knob trim voltage function |

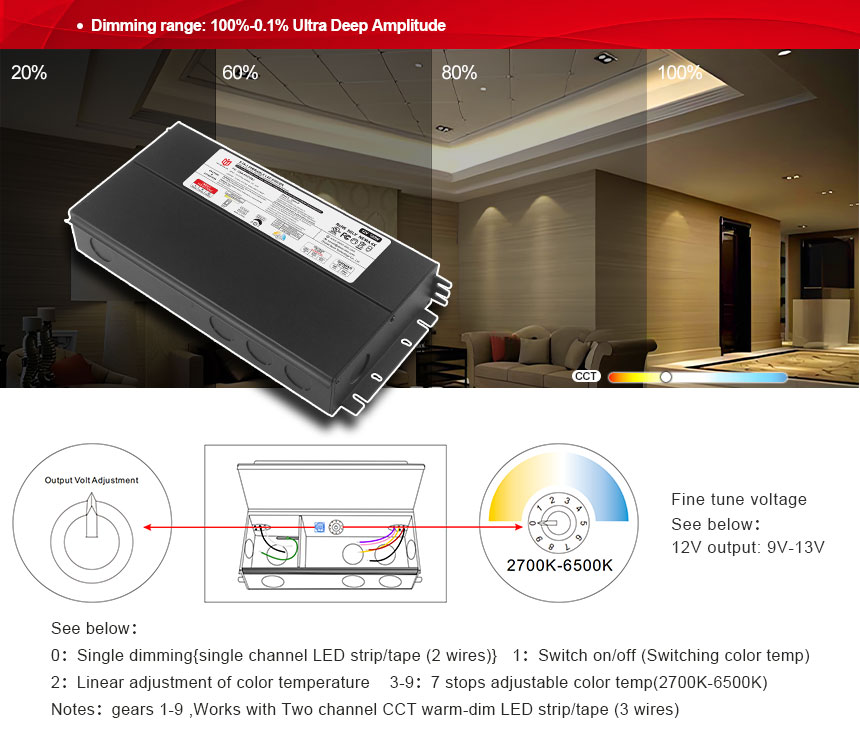

•Short-circuit, over-temperature, over-load protection. •CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K).
|

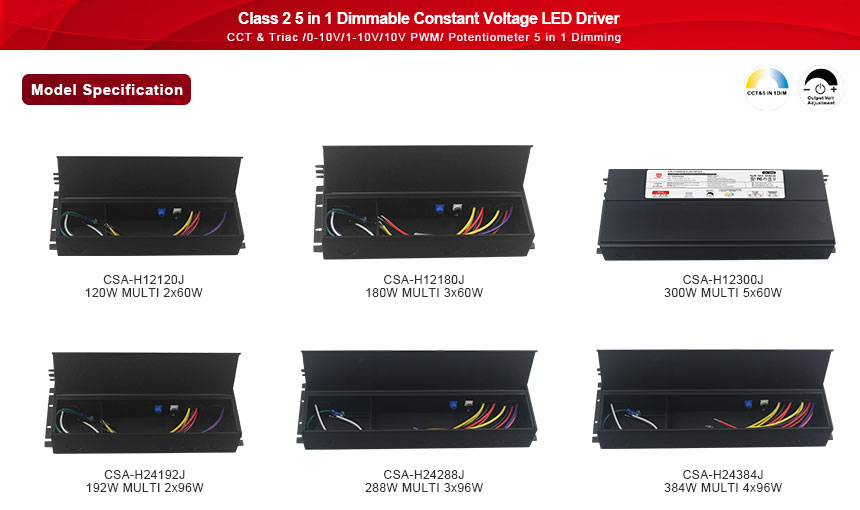

CCT & 5 in 1 dimmable led driver 120W PWM output, 4K/Hz specified output mode, dimming range from 0.1 to 100% ultra-deep amplitude, with two outputs, capable of providing stable power protection for multiple lamps at the same time. Comes with 5 year warranty

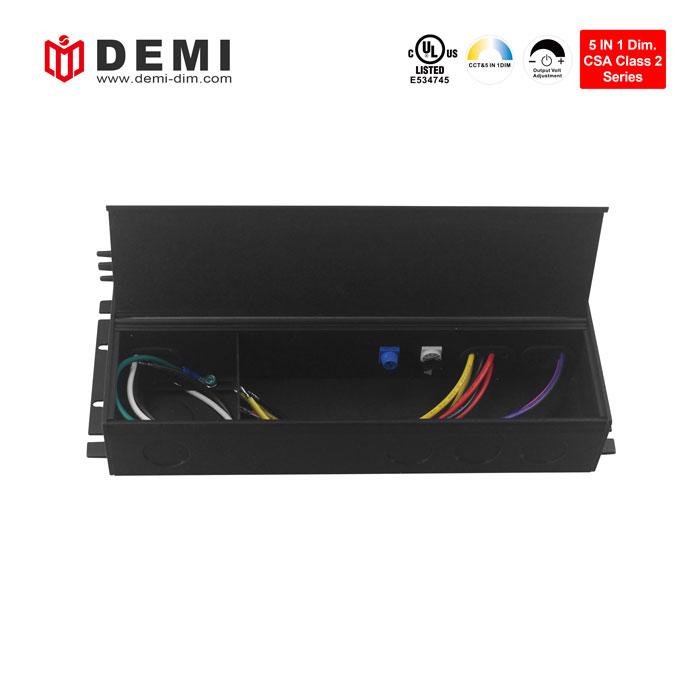

| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
120W (MULTI 2*60W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | / | / | / | |

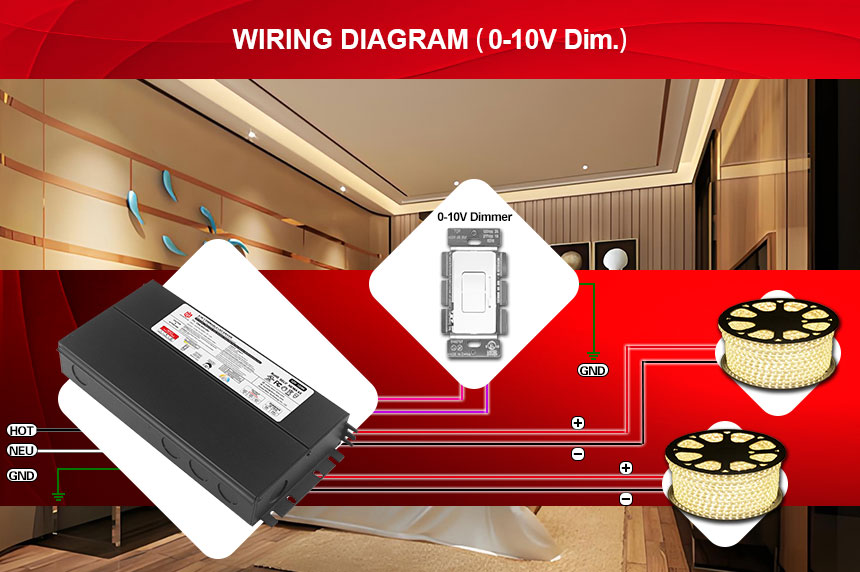

Wiring Diagram
· Using Triac MLV wiring diagram
· Using Triac ELV wiring diagram
