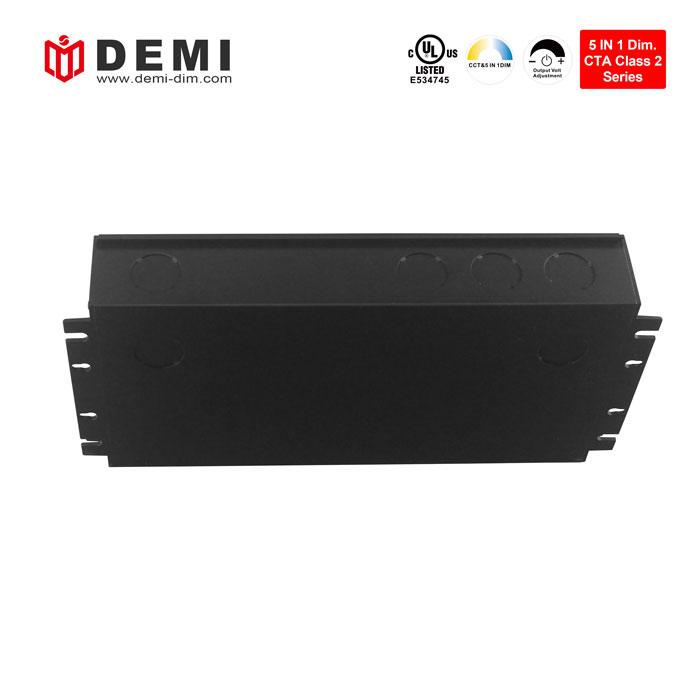

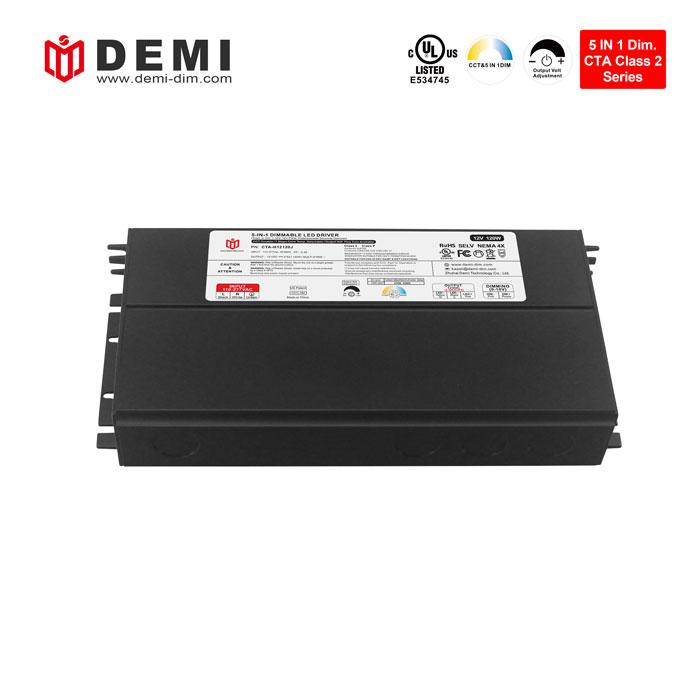

CTA series CCT & 5 in 1 dimmable led driver 120W 12V has a built-in fine-tuning voltage function knob, which is highly compatible and can be well connected with most triac dimmers and 0 10v dimmers on the market to achieve smooth flicker-free dimming, such as ELEGRP dimmer
Brand:
DEMIItem no.:
CTA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
class 2 12v 120W constant voltage dimmable led strip light driver power supply suppliers
This Class 2 120W dimmable led driver 110-277vac has a universal input voltage mode, built-in active PFC function, constant voltage working mode, working efficiency up to 91%, aluminum shell design, good heat dissipation, UL certification, in line with global safety lighting regulations, with 5 years warranty

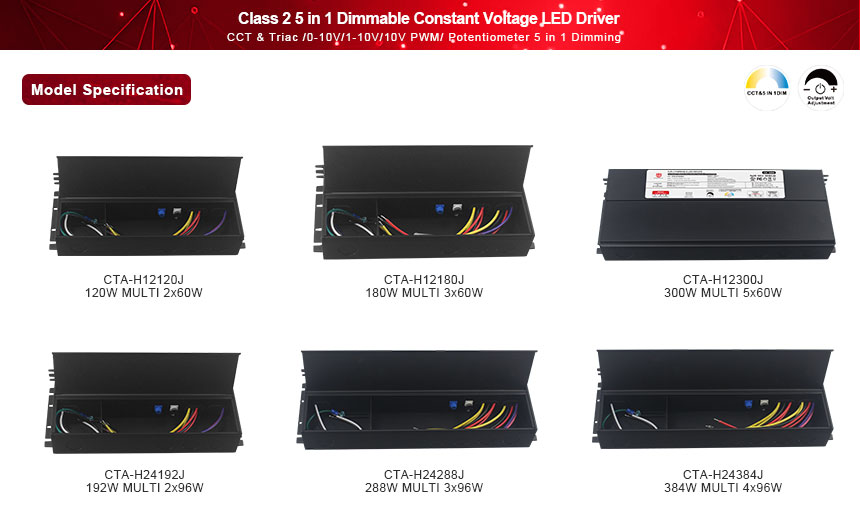

| Model Number | CTA-H12120J | |
| Output Type | ||
| Reted Power | 120W(MULTI 2*60W) | |
| Reted Voltage | 12V | |
| Reted Current | 2CH*5A | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.25A | |
| Inrush Current(Typ.) | 27A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

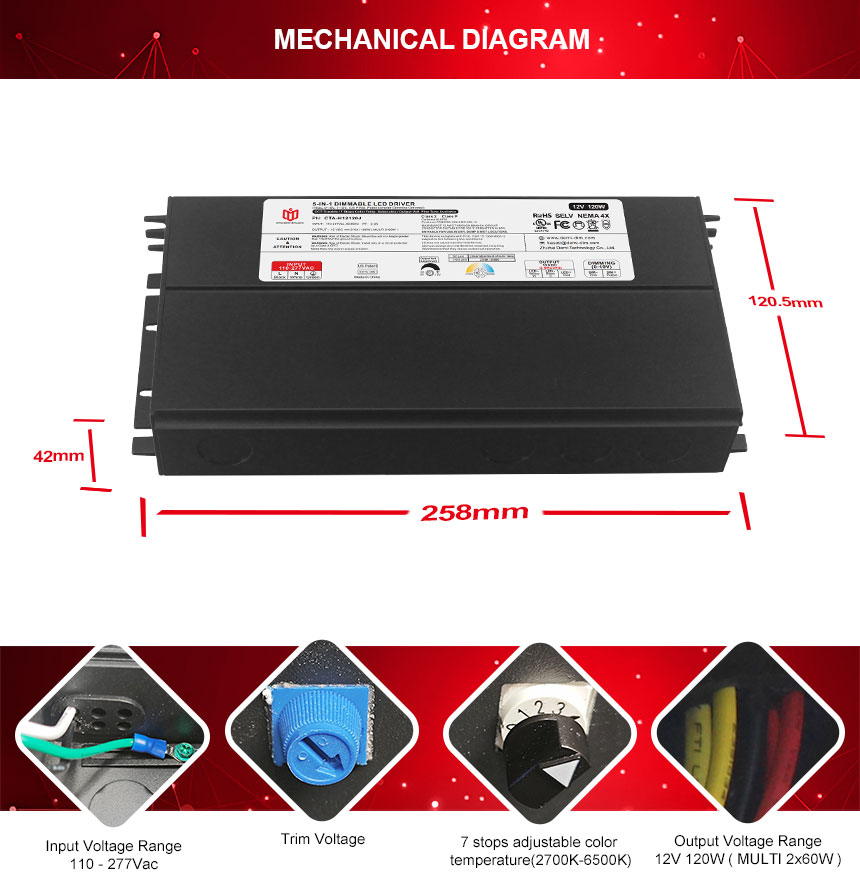

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |
|

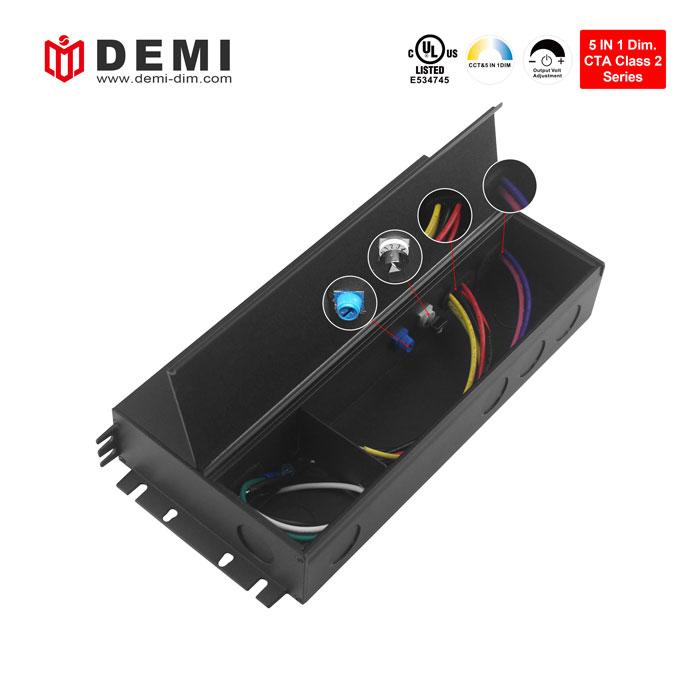

•Works with two channel CCT warm-dim LED strip/tape (3 wires) •Exclusive patent design of “Clamshell” junction box •Customization:the curve which can be customize. |

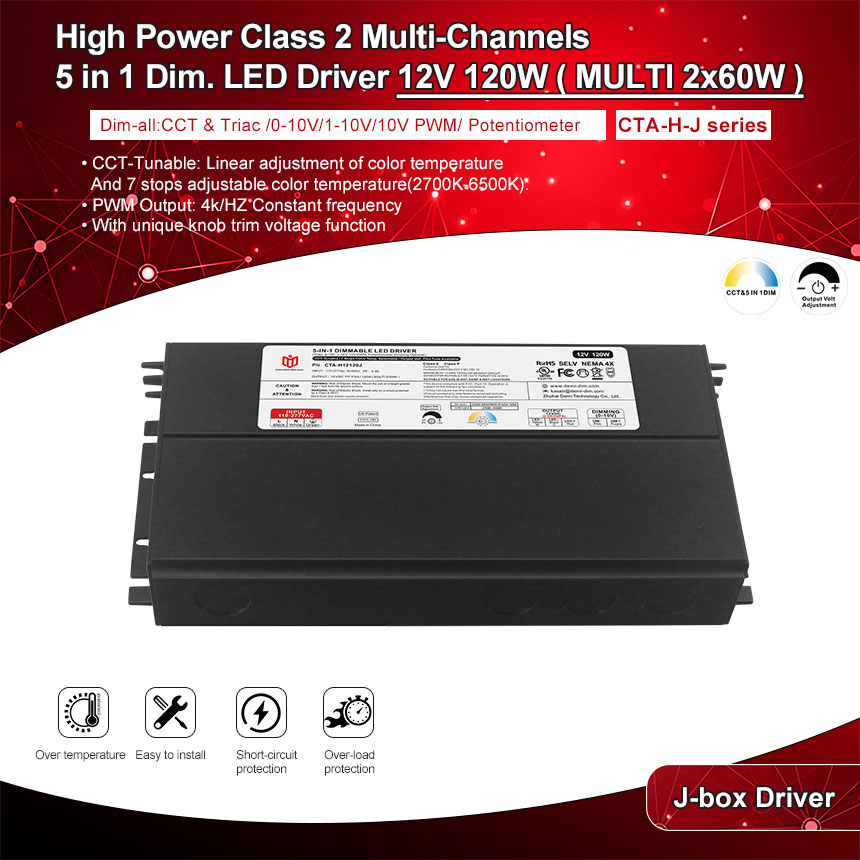

•Short-circuit, over-temperature, over-load protection. •CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K).
|

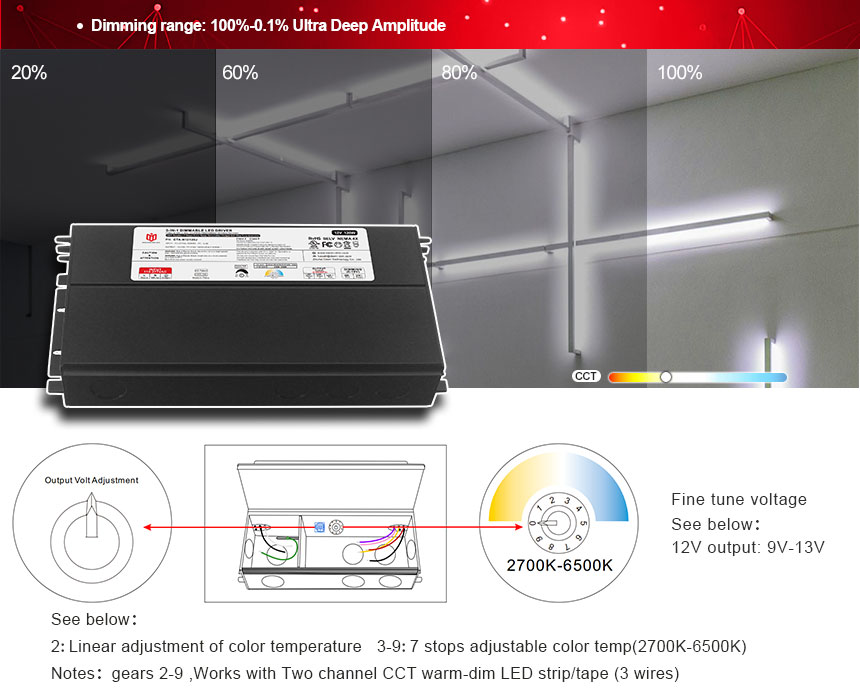

This CTA series constant voltage LED driver 120W has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp at +1v, which can solve the voltage drop problem caused during installation and wiring. It also has a multi-level knob adjustment mode, which can be adjusted according to the user's needs. Adjust the selected specific color temperature according to different needs
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
120W (MULTI 2*60W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | / | / | / | |
Wiring Diagram

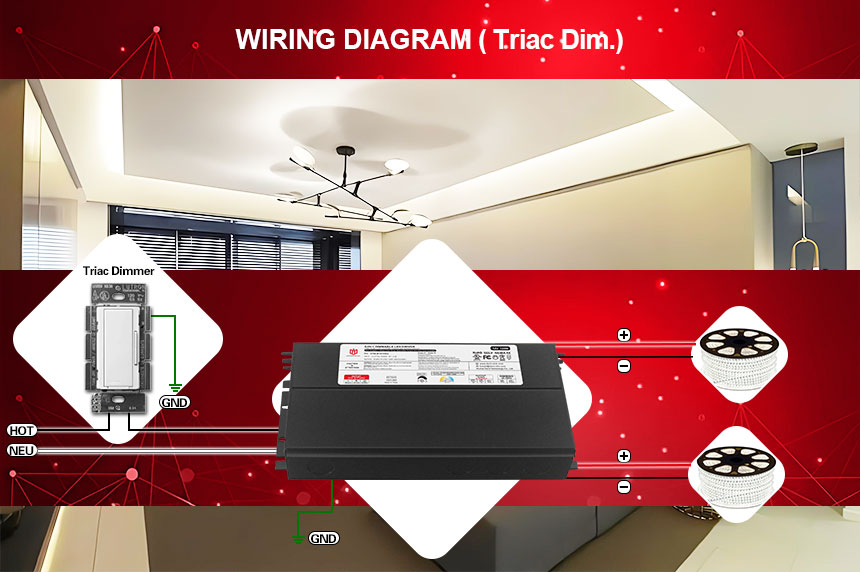

· Using Triac MLV wiring diagram
· Using Triac ELV wiring diagram
