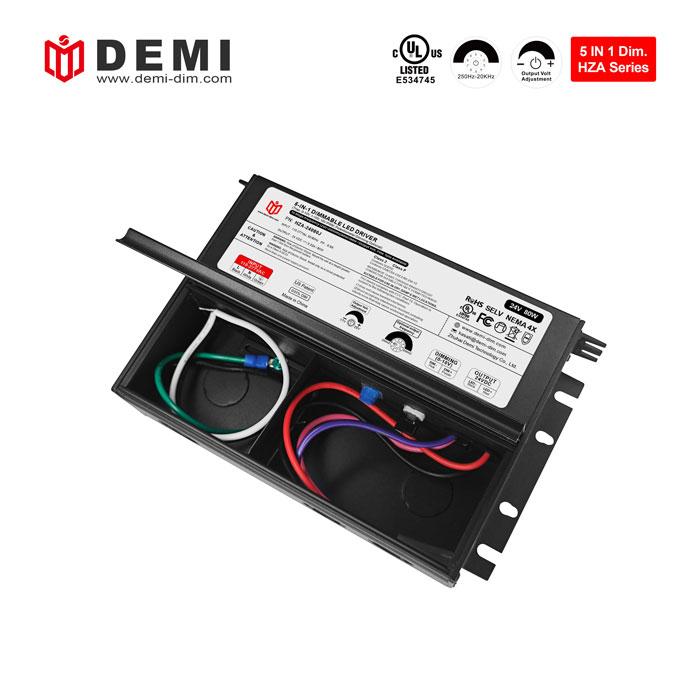

PWM output type 80W dimmable led driver, dimming range between 100%-0.1%, constant voltage output, built-in 9-level output voltage function knob, compatible with ELEGRP dimmer to achieve perfect dimming effect
Brand:
DEMIItem no.:
HZA-12080JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
80WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:

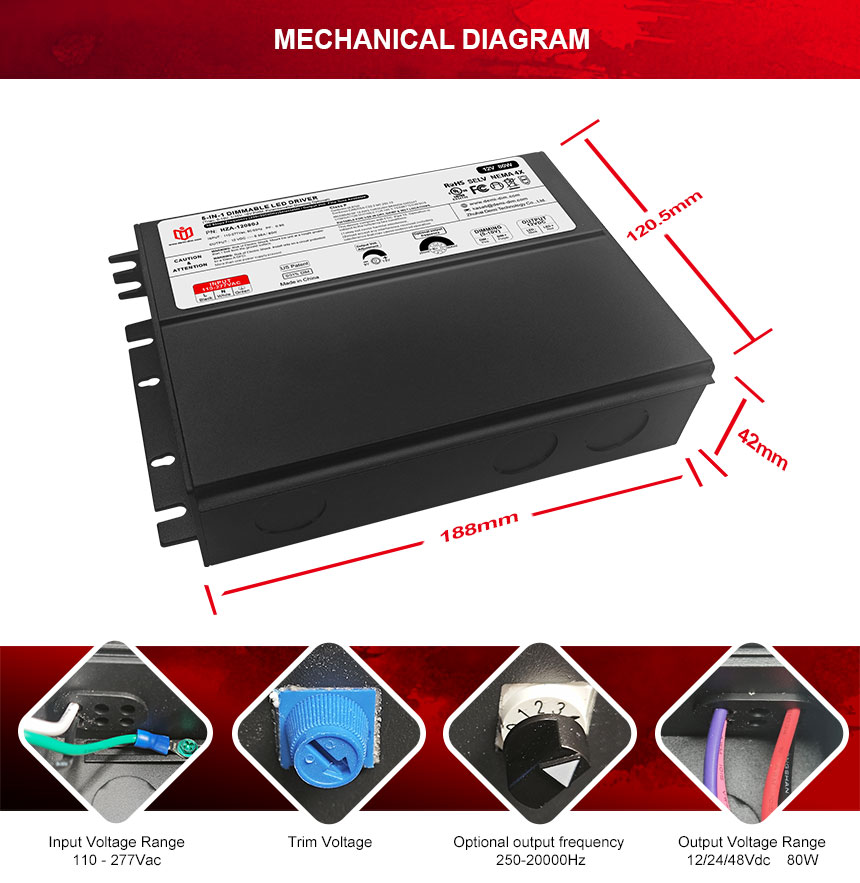

188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years12v 80w 5 in 1 dimmable constant voltage LED drivers strip lights power supply
triac & 0 10v dimmable led driver has built-in fine-tuning voltage function knob, aluminum body design, passed NEMA 4X, good heat dissipation performance, dimming range from 0.1% to 100% ultra-deep dimming, and has a 5-year warranty
Model Number | HZA-12080J | HZA-24080J | HZA-48080J |
Output Type | |||
Reted Power | 80W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 6.66A | 3.33A | 1.66A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 88%@120VAC 89%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.85A | ||
Inrush Current(Typ.) | 22A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

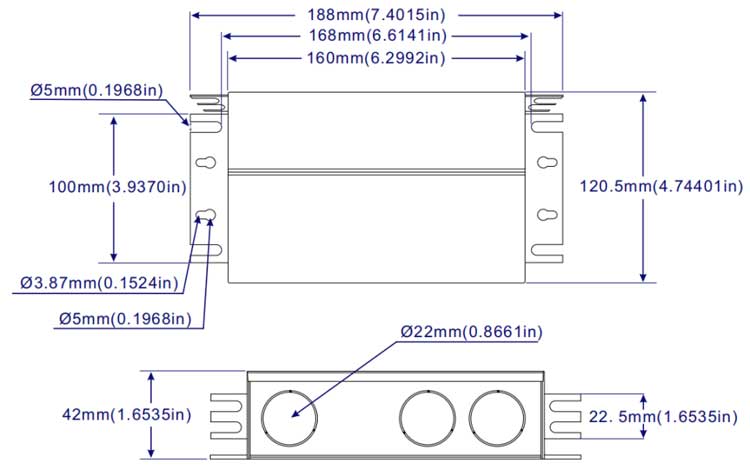

Dimension | 188x120.5x42mmmm (L*W*H) | ||
Packing | - |
DM develops a new product 5 in 1 dimmable led driver. The series has multiple different functions for users to choose different models of dimmable led driver according to different needs. The CSA series has multiple levels of switching between different working modes, which can achieve both single-tone dimming and multiple modes of dimming and color temperature. DSD series is a 0-10V dual signal dimming and color LED driver

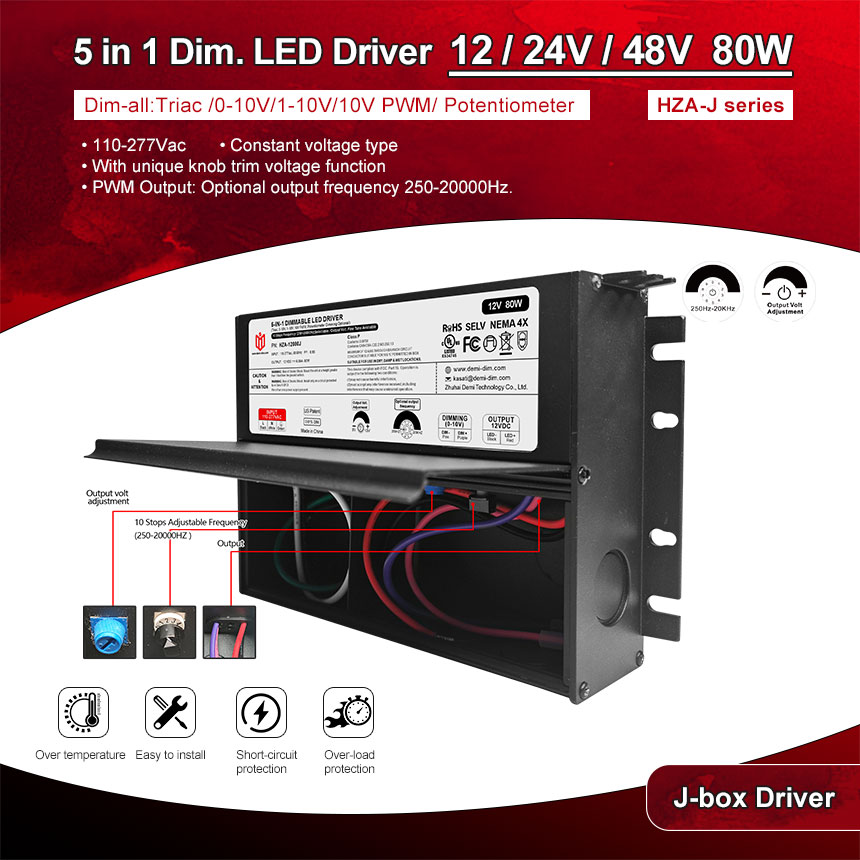

•PWM Output: Optional output frequency 250-20000Hz •Short-circuit, over-temperature, over-load protection. |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|
HZA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram
· Using Triac ELV wiring diagram

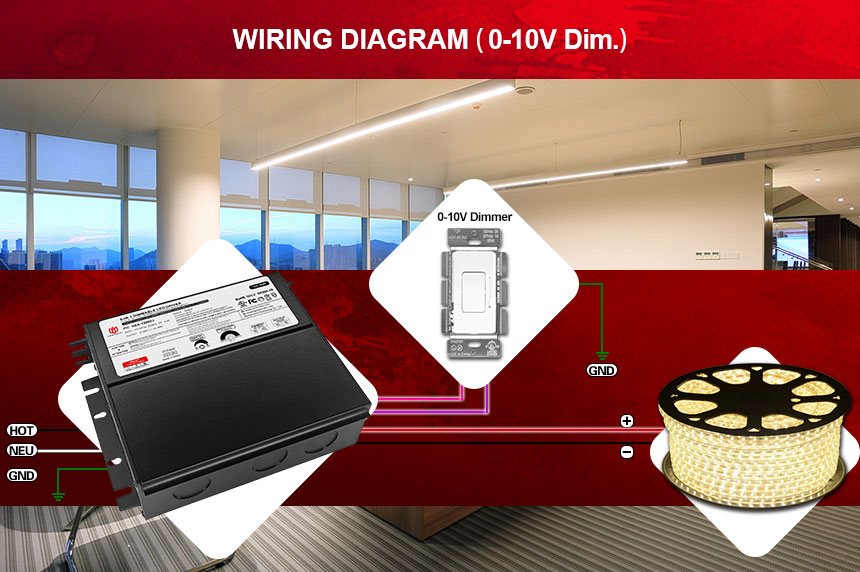

·Using 0-10/1-10V dimming(This driver is independently connected to the input)
