150W CCT & 5 in 1 dimmable led driver has built-in unique fine-tuning voltage function knob, constant voltage working mode, has ultra-low load requirements, can work perfectly under 10-100% load, and has a 5-year warranty
Brand:
DEMIItem no.:
DSD-12150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:

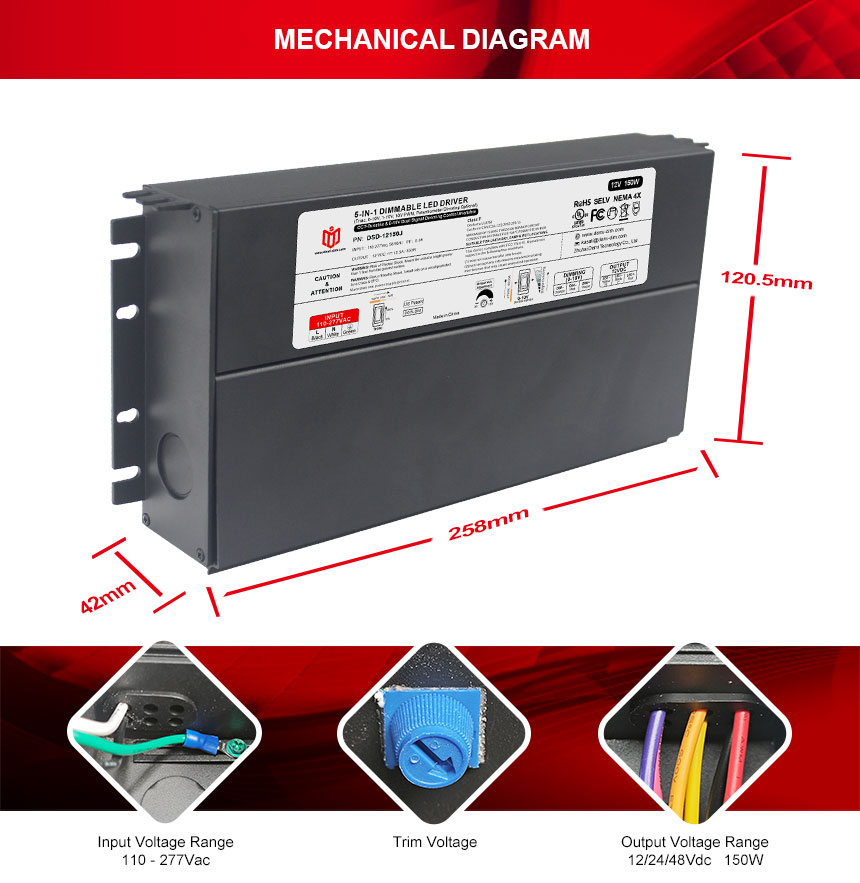

258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years12v 150w constant voltage triac & 0 10V dimming constant voltage LED driver
110-277vac universal output function 0 10v dual signal dimming and color adjustment function 12v 150W led power supply has strong compatibility and can be used with most triac and 0 10 v dimmers on the market to achieve smooth and flicker-free dimming, such as Lutron dimming Optical device
Model Number | DSD-12150J | DSD-24150J | DSD-48150J |
Output Type | |||
Reted Power | |||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 12.5A | 6.25A | 3.13A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.55A | ||
Inrush Current(Typ.) | 28A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||
Dimension | 218x120.5x42mm (L*W*H) | ||
Packing | - |

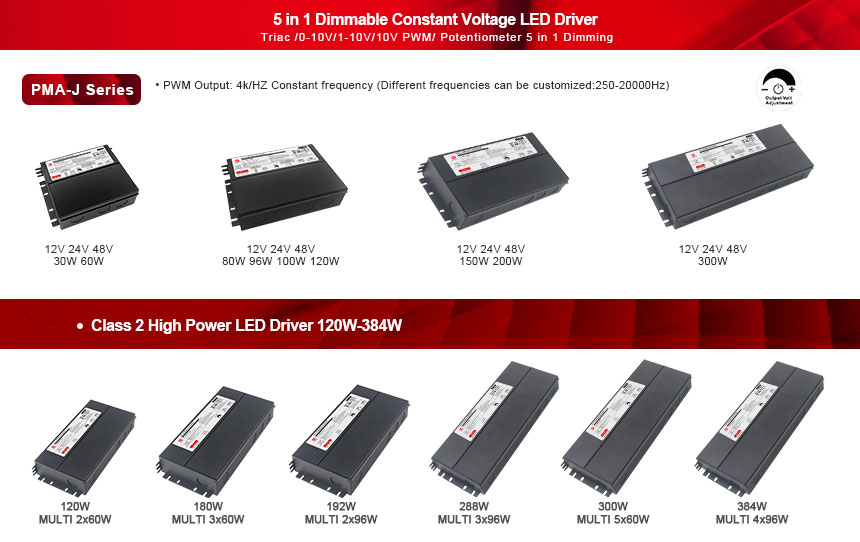

In addition to the ordinary standard version, the DSD series 5 in 1 dimmable led driver also has a high-power Class 2 version for users to choose from. It not only has multi-channel output capability, but also complies with Class 2 safety standards.Enables efficient dimming, safe and reliable LED lighting scenarios
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

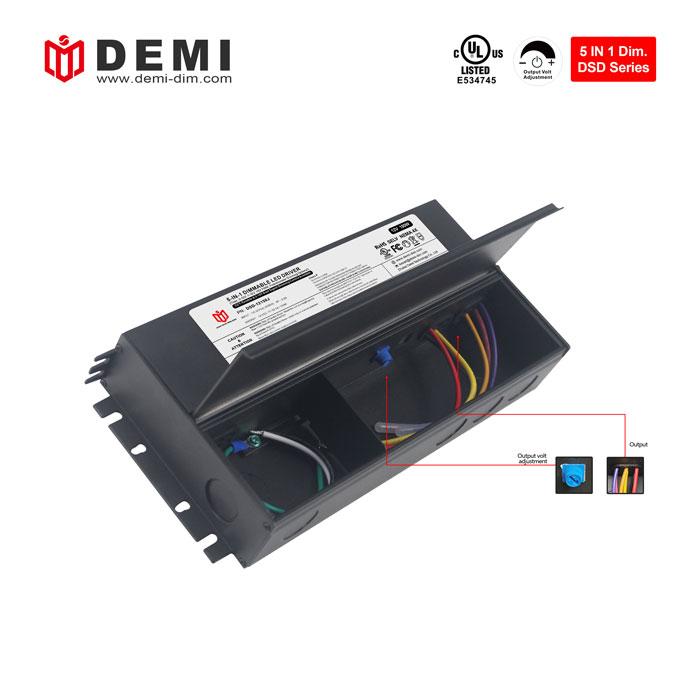

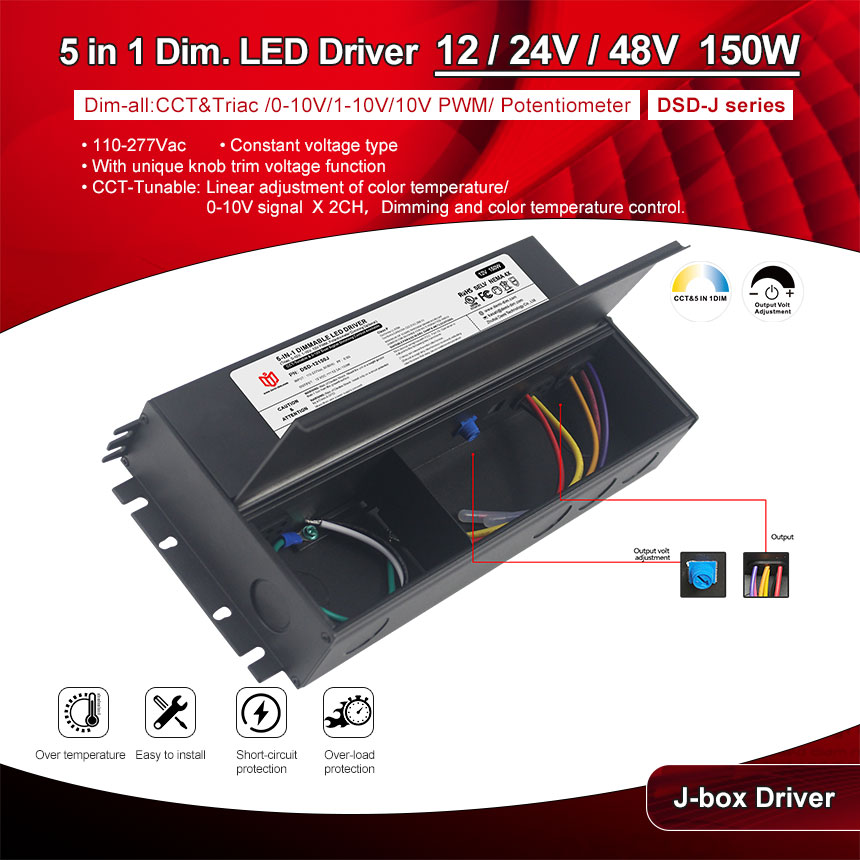

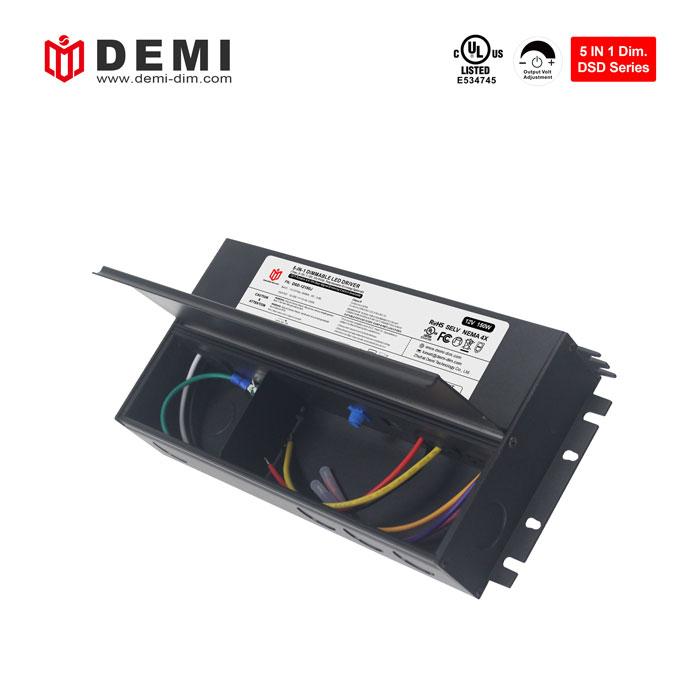

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
150W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG |
Wiring Diagram

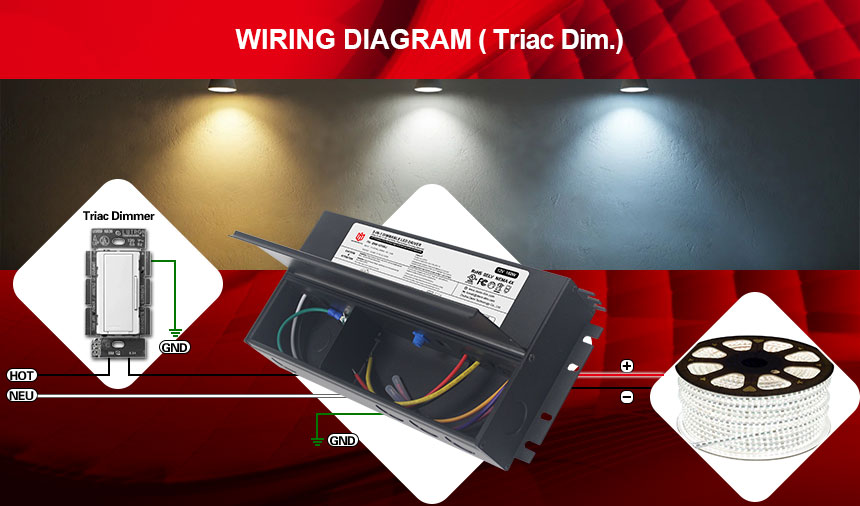

· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
