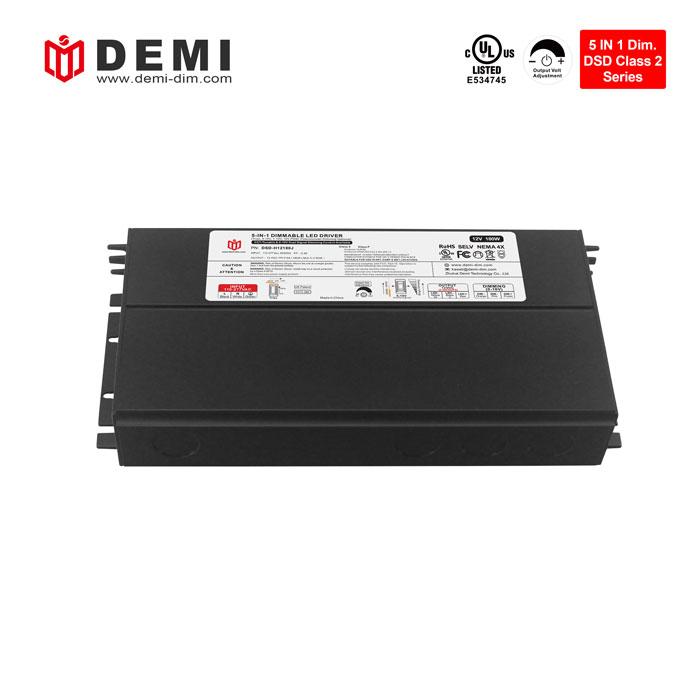

180W 12v triac & 0 10v dimmable led driver, constant voltage working mode, ultra-deep dimming range between 0.1~100%, built-in active PFC function, power factor >0.95, with short circuit/overload/over-temperature protection function.
Brand:
DEMIItem no.:
DSD-H12180JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

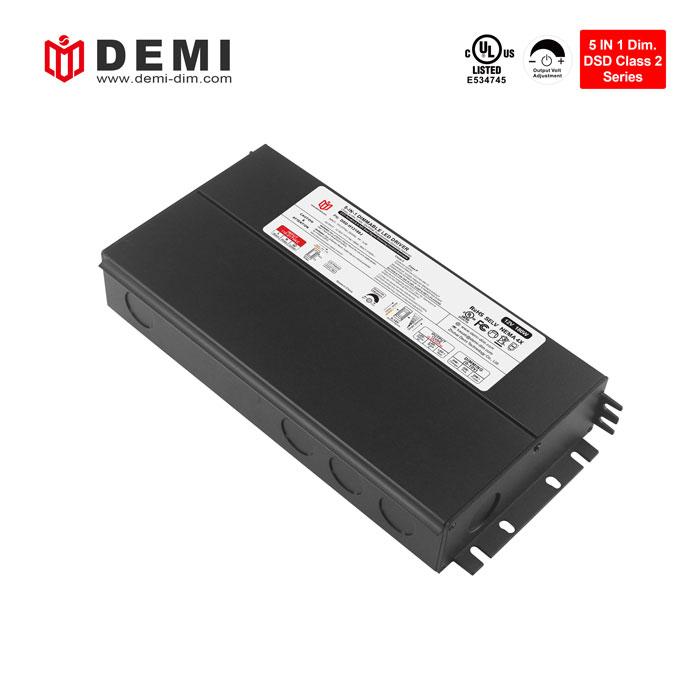

12v 180W PWM 5 in 1 dimmable constant voltage led power supply driver factory

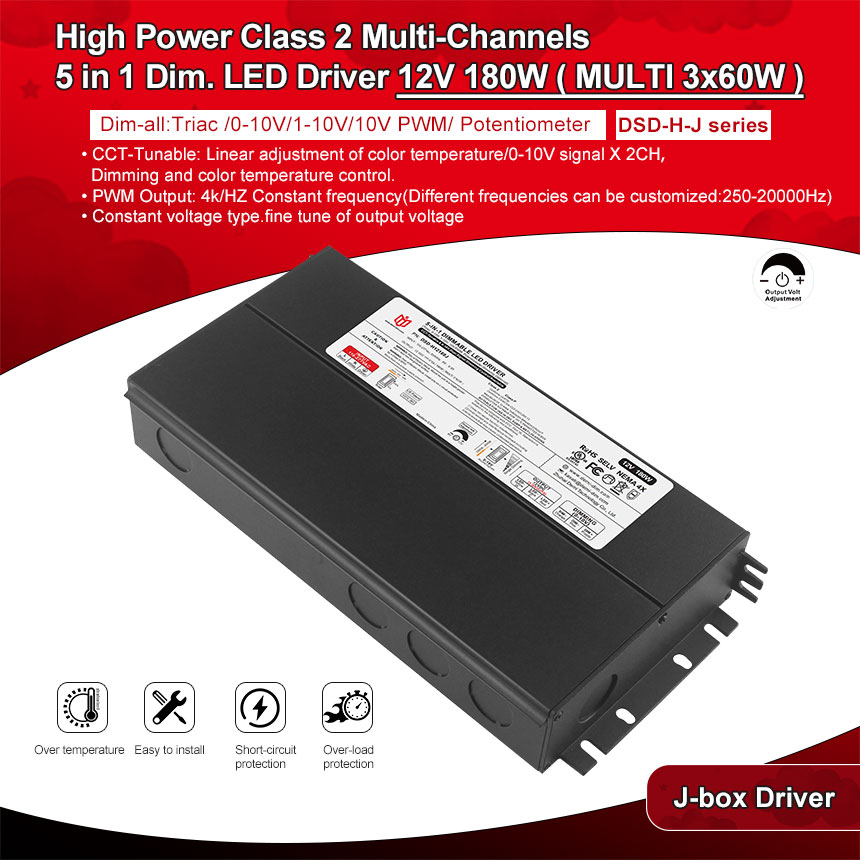

Class 2 180W 12V CCT & 5 in 1 dimmable led power supply uses 0 10v dual signal dimming, one signal is responsible for dimming, and the other signal is responsible for color temperature adjustment. Strong compatibility, compatible with most triac dimmers and 0 10v dimmers on the market, achieving smooth flicker-free dimming, such as LUTRON 120W dimmer
| Model Number | DSD-H12180J | |
| Output Type | ||
| Reted Power | 180W(MULTI 3*60W) | |
| Reted Voltage | 12V | |
| Reted Current | 3CH * 5A | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.88A | |
| Inrush Current(Typ.) | 28A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

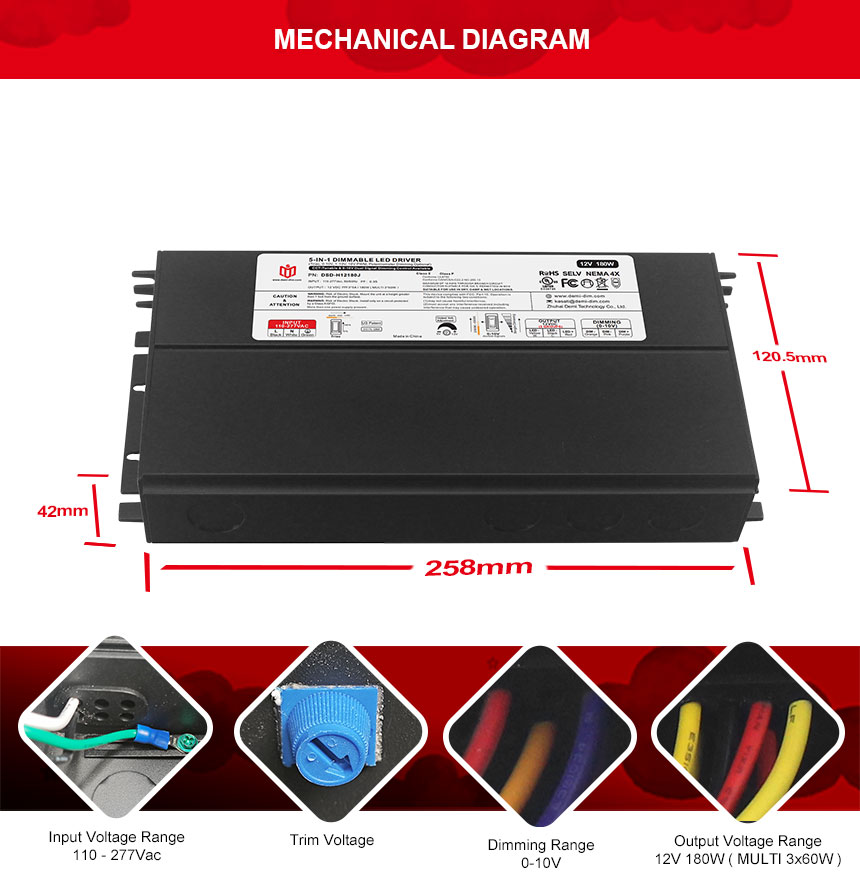

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |

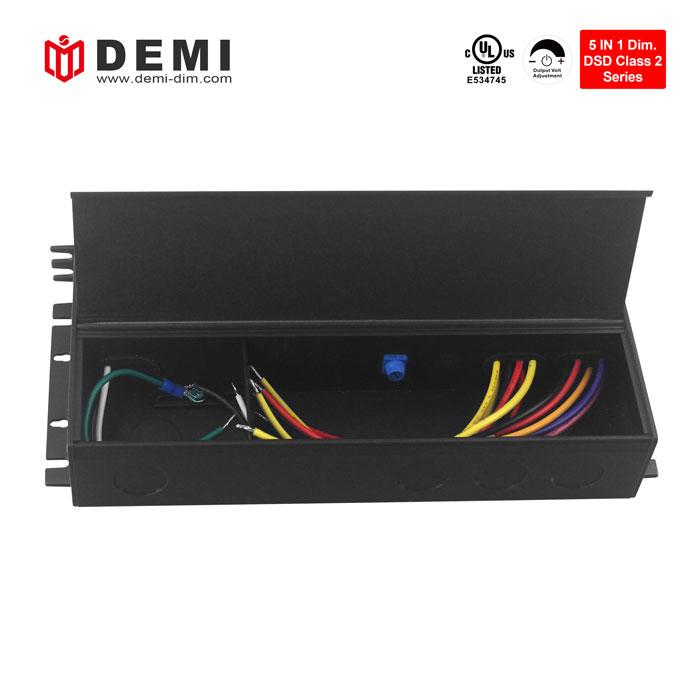

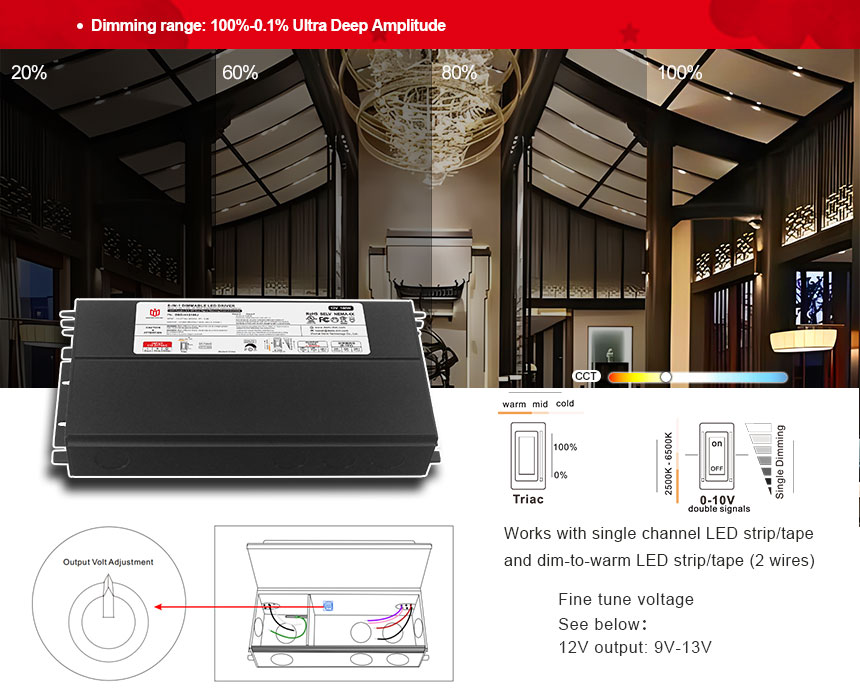

This DSD series 180W dimmable led driver is Class 2 standard and adopts 3-way output mode, which can provide stable protection for multiple lamps at the same time. The aluminum shell design has passed NEMA 4X and has good heat dissipation performance, capable of operating in the range of 10%-100 Works perfectly under % load and comes with a 5-year warranty
|
•AM(Amplitude Modulation) Voltage Reduce output type •Exclusive patent design of “Clamshell” junction box |
•Constant voltage type.fine tune of output voltage •Short-circuit, over-temperature, over-load protection
|
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
180W (MULTI 3*60W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*3 | Dim- | Orange | 18AWG | |
Wiring Diagram

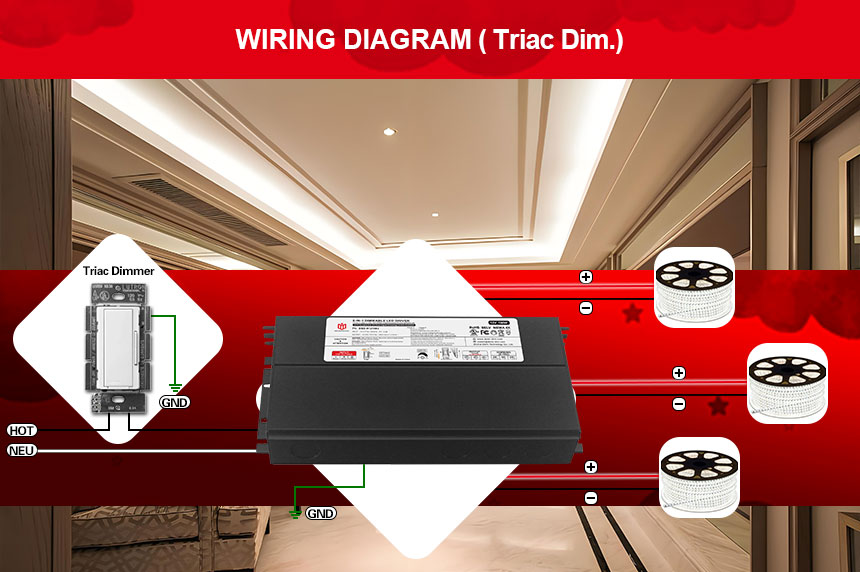

· Using Triac MLV wiring diagram

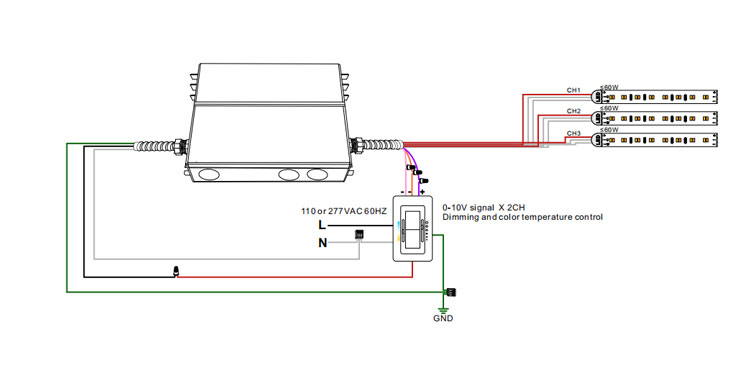

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
