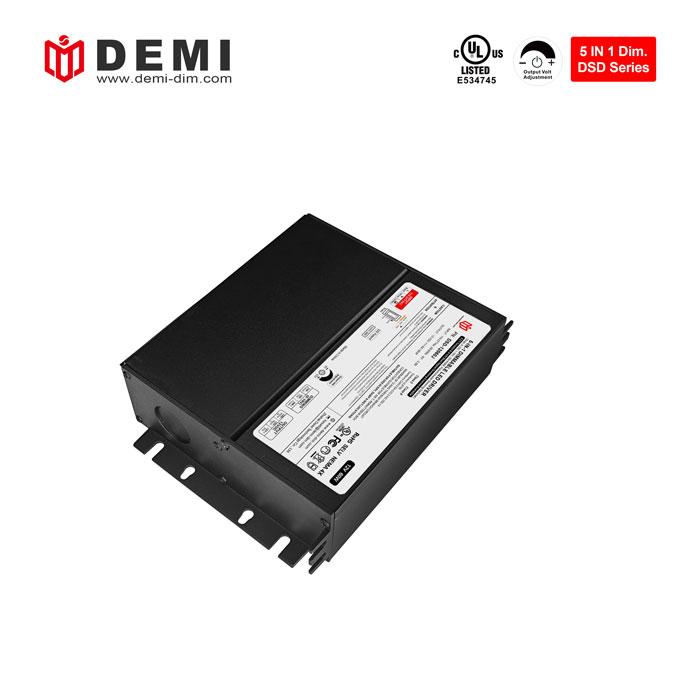

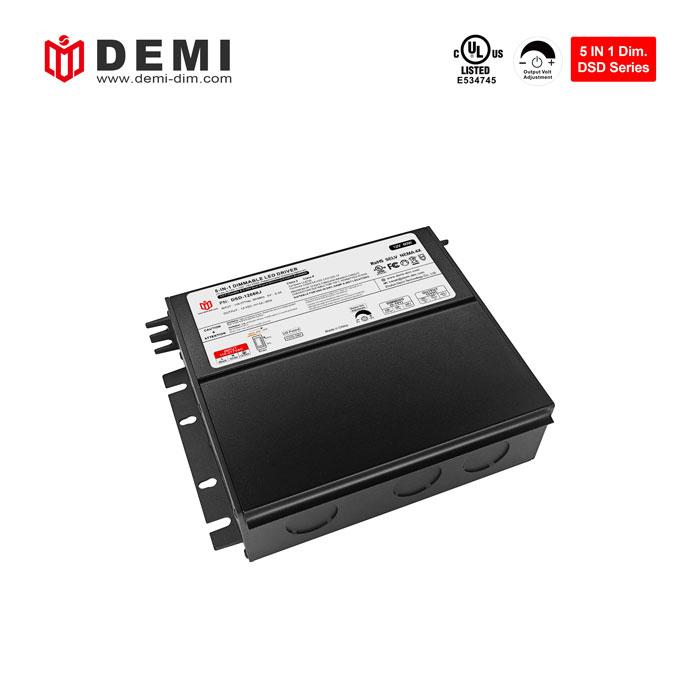

CCT & 5 in 1 dimmable led driver 60W with 0-10V dual signal dimmable color function, aluminum housing design, passed NEMA 4X, good heat dissipation, It is small in size and easy to install. It has 5 years warranty
Brand:
DEMIItem no.:
DSD-12060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years60w 12v/24v/48v CCT & Triac/0 10v dimmable constant voltage led driver power supply for strip lights
This 60w CCT & TRIAC/0 10V dimmable led driver has built-in active PFC function, power factor >0.95, uses PWM output, dimming range is 100%-0.1% ultra-deep amplitude, has strong compatibility and can be used with large-scale LED displays on the market. Some triac dimmers are very compatible with 0 to 10v dimmers, such as Lutron dimmers
Model Number | DSD-12060J | DSD-24060J | DSD-48060J |
Output Type | |||
Reted Power | 60W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 5A | 2.5A | 1.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.65A | ||
Inrush Current(Typ.) | 20A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over | ||
load is removed | |||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

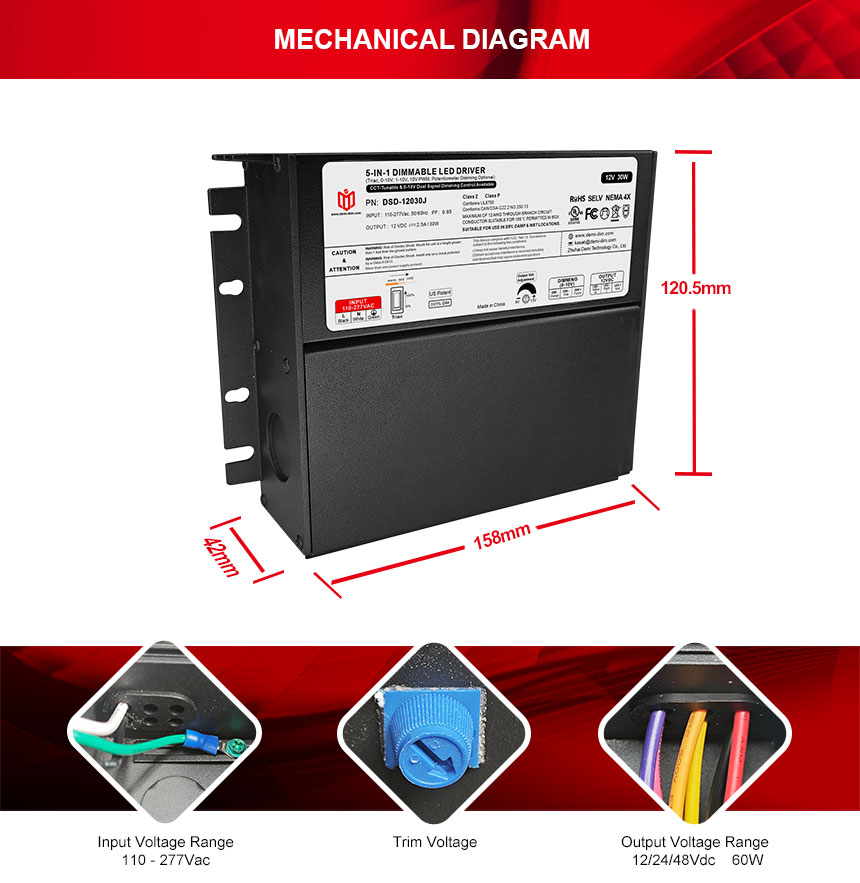

Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |

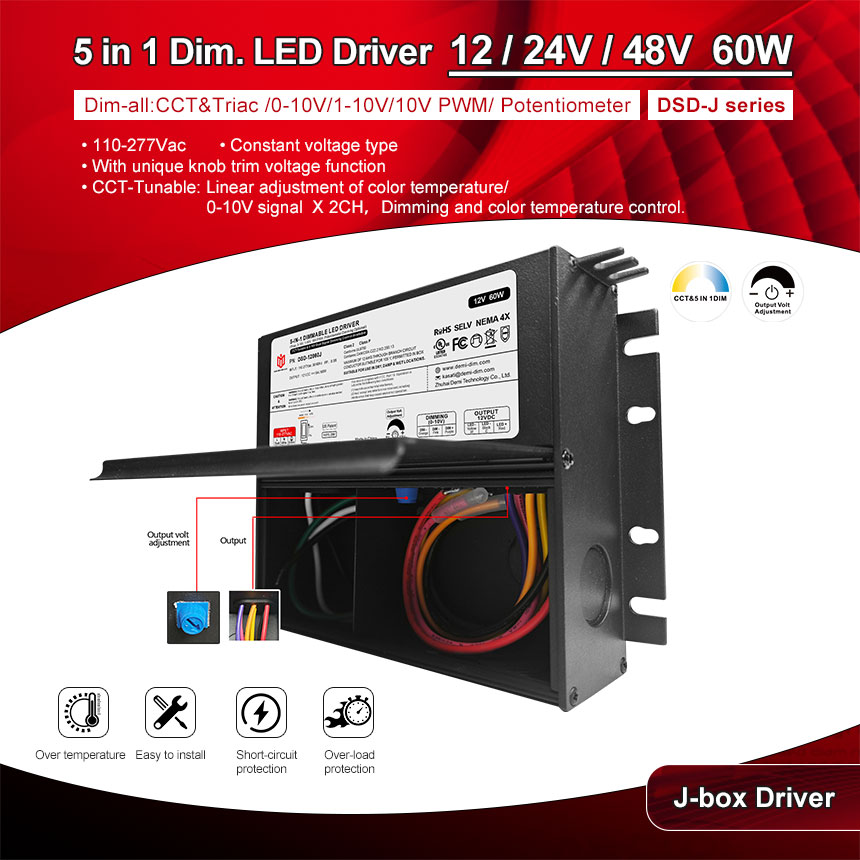

The unique function of the DSD series 0 10v dual signal dimming and color LED driver 60w 12v/24v/48v can simultaneously realize the adjustment function of light brightness and color temperature. This flexibility can make the application of LED power supply in different scenarios more convenient. Diversified to meet general lighting needs
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

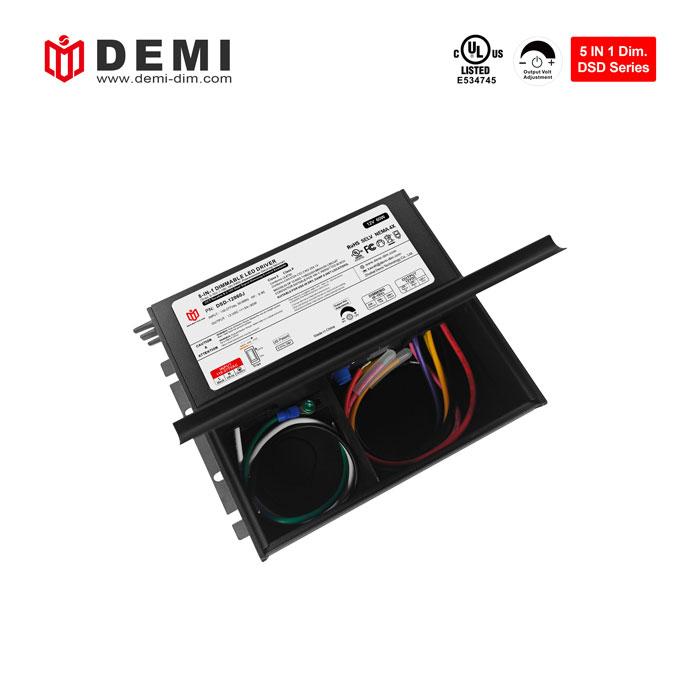

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG |

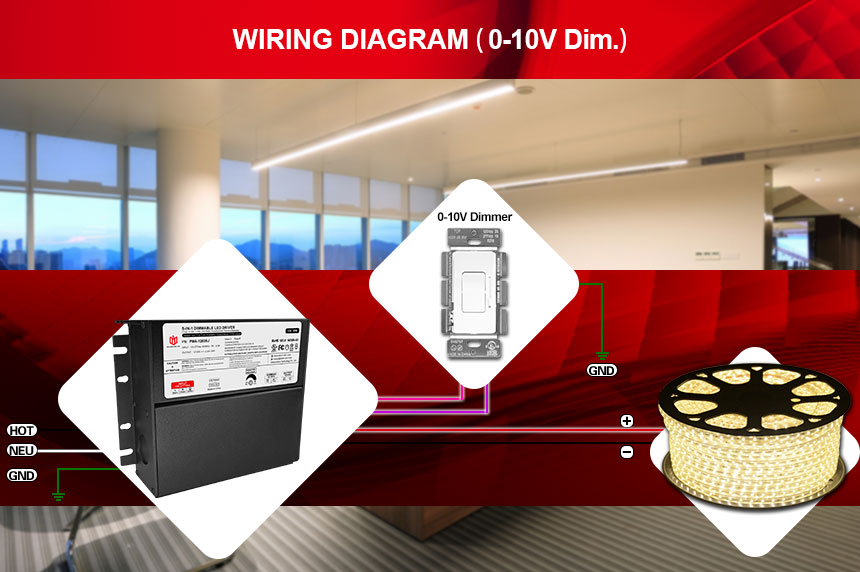

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
