This 120W 5 in 1 led driver with junction box, VRA series AM output--Voltage Reduce, 110-277vac universal input, compatible with popular front and rear edge triac dimmers and systems, 0-10V dimmers and systems on the market.
Brand:
DEMIItem no.:
VRA-12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 yearstriac & 0 10v dimming constant voltage 100W led light strip driver junction box
VRA series new product UL certified triac & 0 10v dimmable 120W led driver dimmable range between 0~100% ultra-low amplitude, good heat dissipation, passed NEMA 4X, aluminum shell design, with overload/short circuit/over-temperature protection function
Model Number | VRA-12120J | VRA-24120J | VRA-48120J |
Output Type | |||
Reted Power | 120W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 10A | 5A | 2.5A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.25A | ||
Inrush Current(Typ.) | 27A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

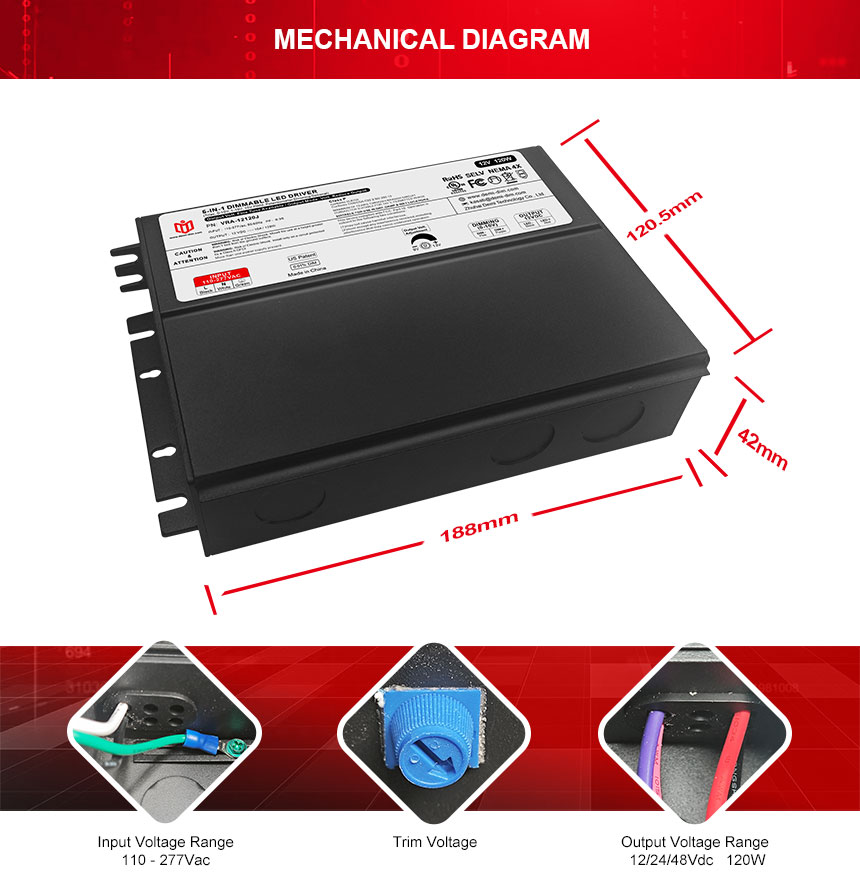

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |
To know more product details, please leave message or e-mail us !

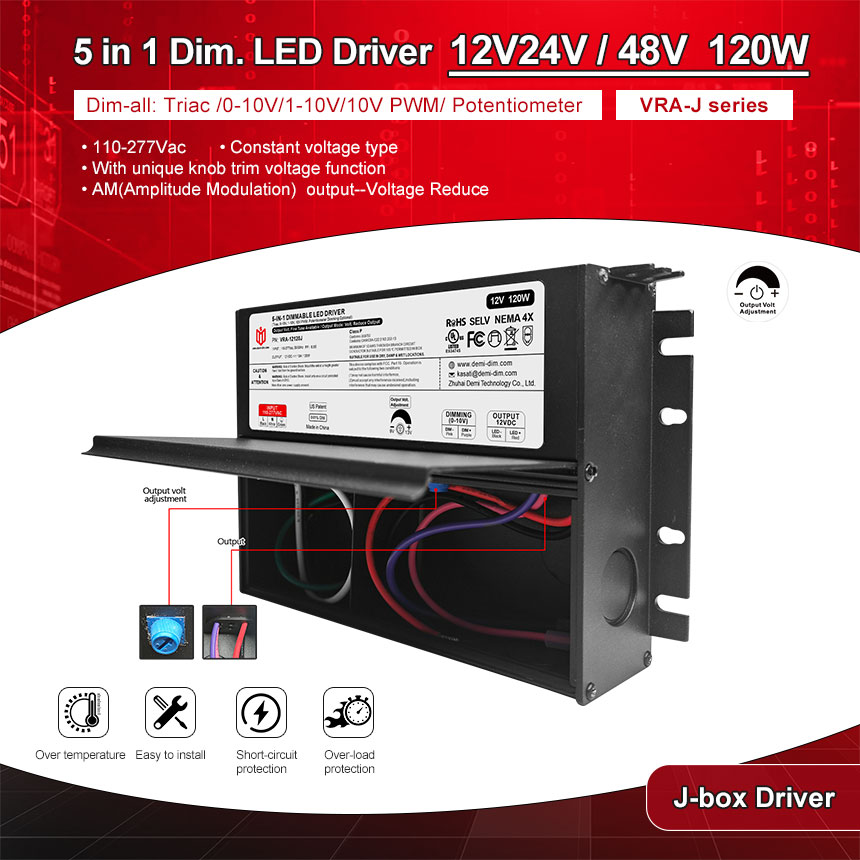

•Output type: AM(Amplitude Modulation) output--Voltage Reduce •With unique knob trim voltage function |

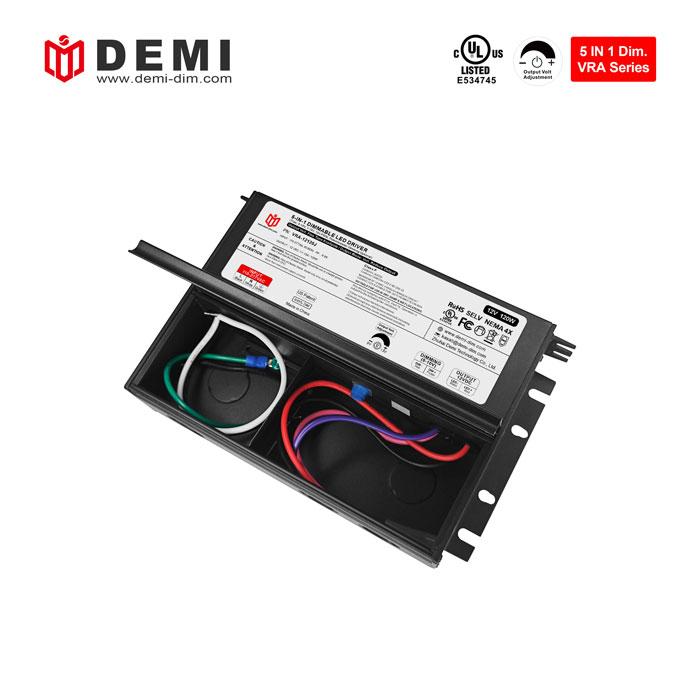

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Constant voltage type.fine tune of output voltage
|
First make sure that the supply voltage you provide matches the input voltage range of the 5 in 1 dimmable constant voltage LED driver you choose. Using the wrong power supply voltage may damage the drive or even cause personal injury. It is recommended to consult a professional electrical engineer or technician for detailed guidance
VRA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

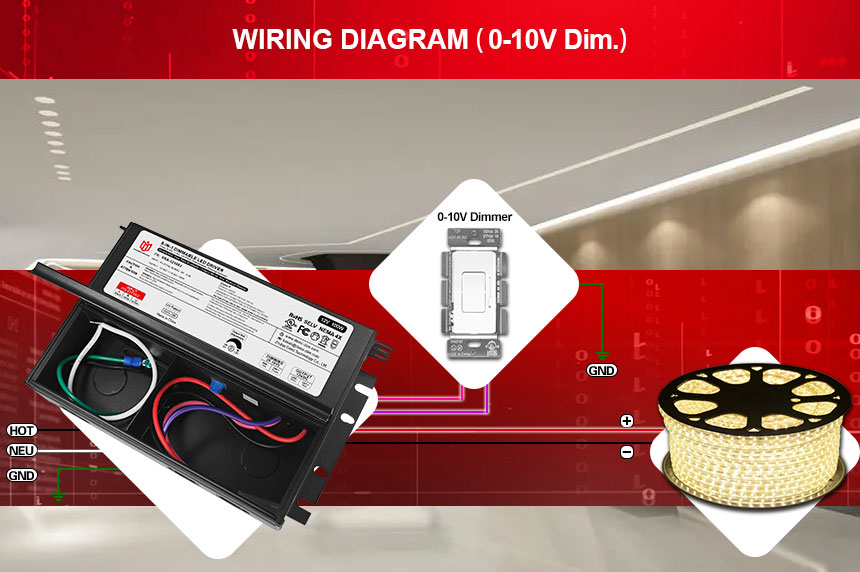

Wiring Diagram
· Using Triac/MLV wiring diagram
·Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
