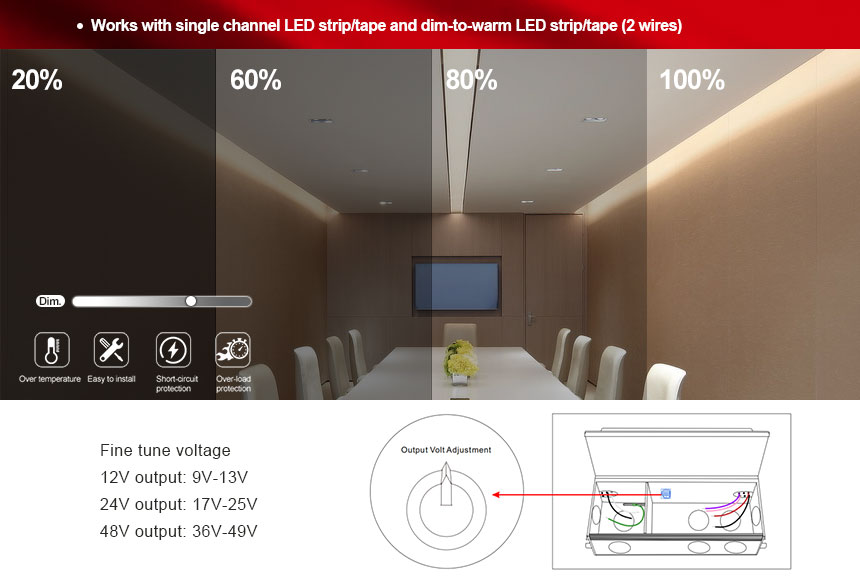

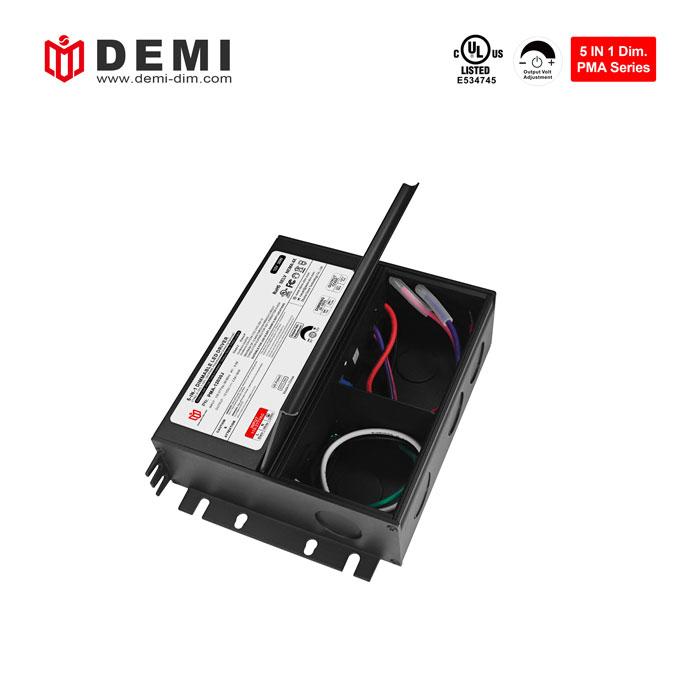

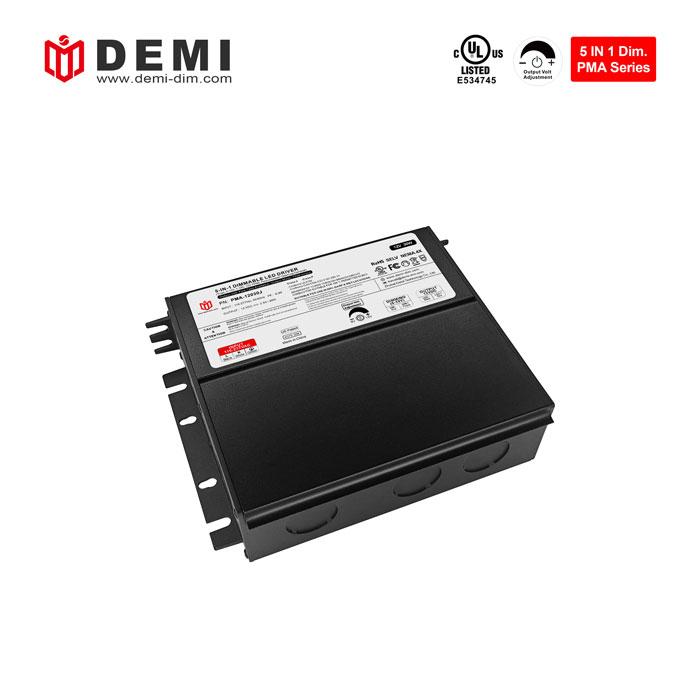

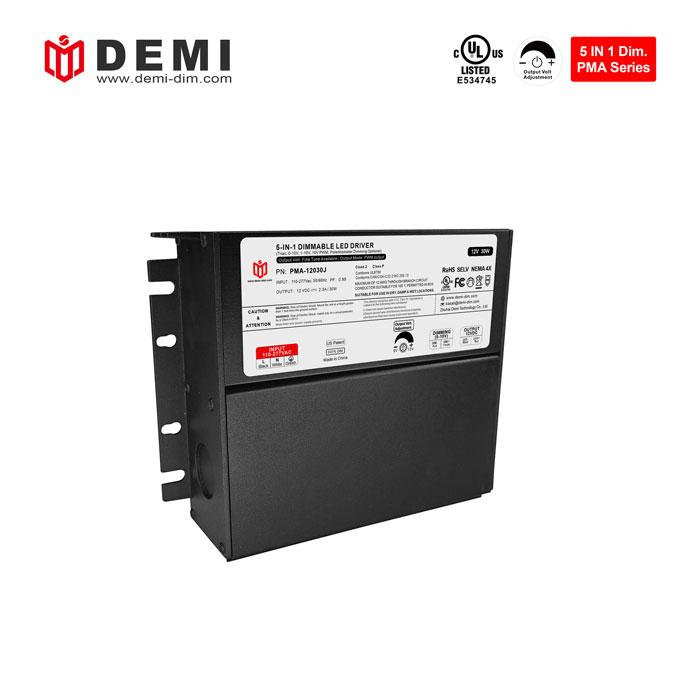

The CCT & triac/0 10v dimmable led driver 30W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and adjust the brightness. It is compatible with popular front and rear triac dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
Brand:
DEMIItem no.:
PMA-12030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:

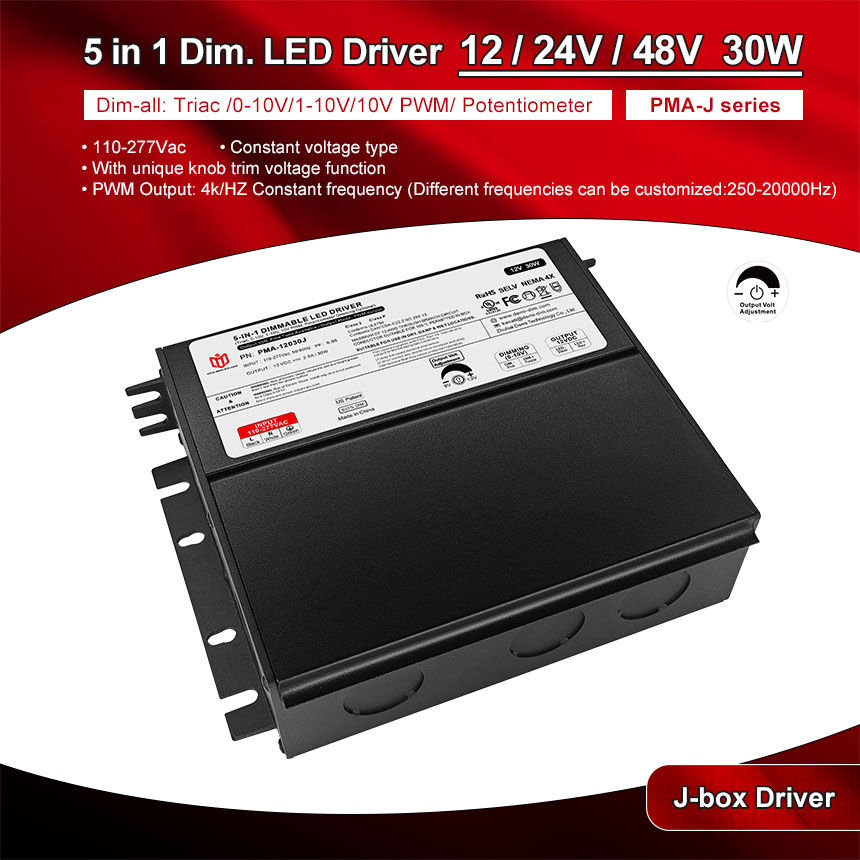

5 years12v/24v/48v triac & 0 10v dimmable LED driver power supply for led strip
This triac & 0 10v dimmable led driver constant voltage output mode has ultra-low load requirements, can work perfectly at 10-100% load, and comes with a five-year warranty
Model Number | PMA-12030J | PMA-24030J | PMA-48030J |
Output Type | |||
Reted Power | 30W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 2.5A | 1.25A | 0.63A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 79%@120VAC 80%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.35A | ||
Inrush Current(Typ.) | 18A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

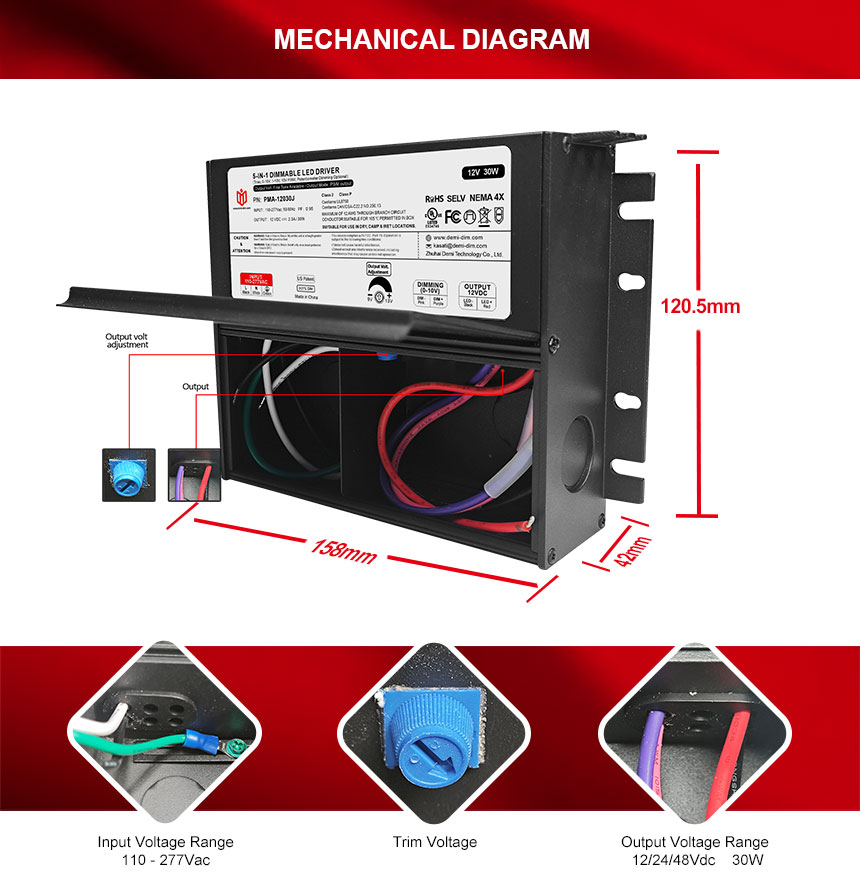

Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Dimming range: 100%-0.1% Ultra Deep Amplitude |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
PMA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

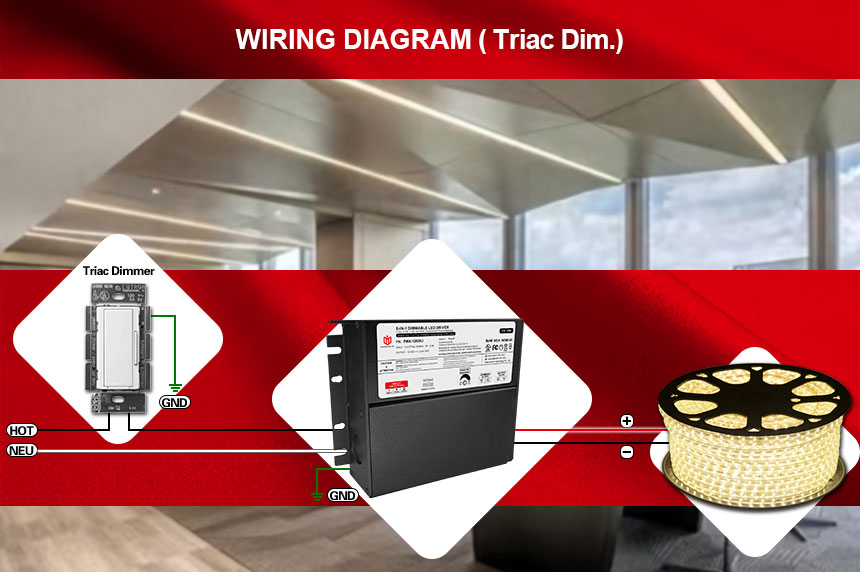

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
