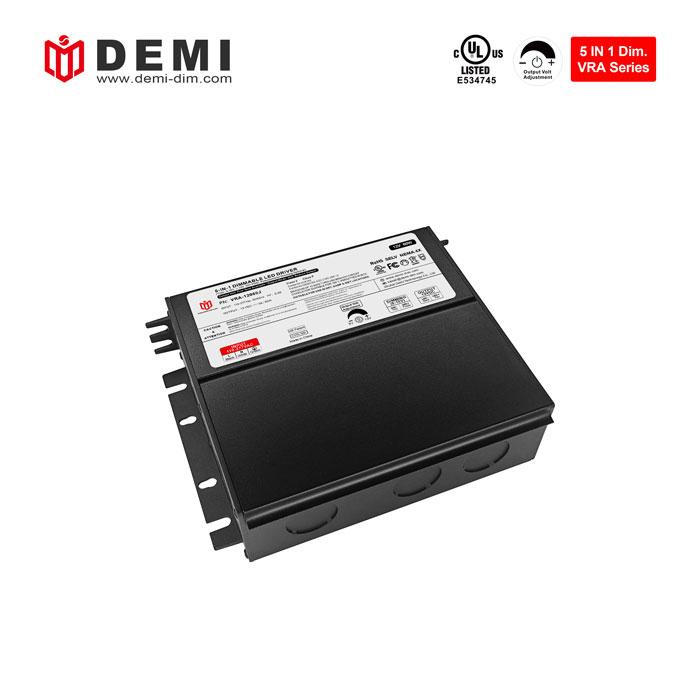

110-277vac constant voltage 5 in 1 dimmable led power supply 80W, UL certified, Comply with global safety lighting regulations,Ultra-low load requirements, able to work perfectly at 10-100% load
Brand:
DEMIItem no.:
VRA-12080JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
80WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years80W 12V/24V/48V triac & 0 10v dimmable led strip light driver for indoor

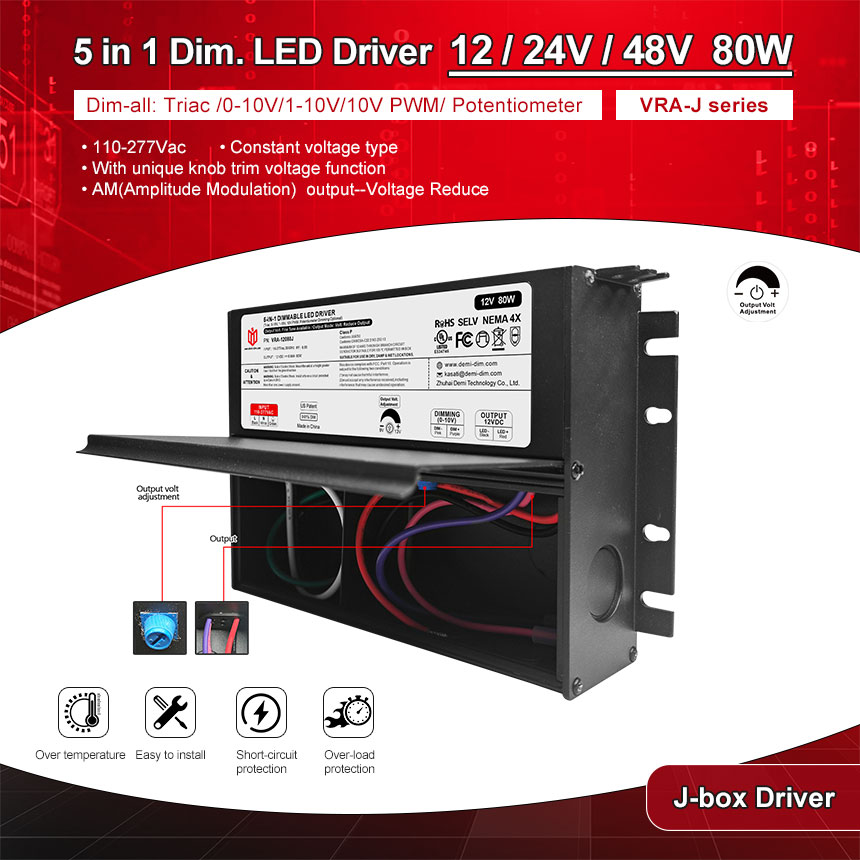

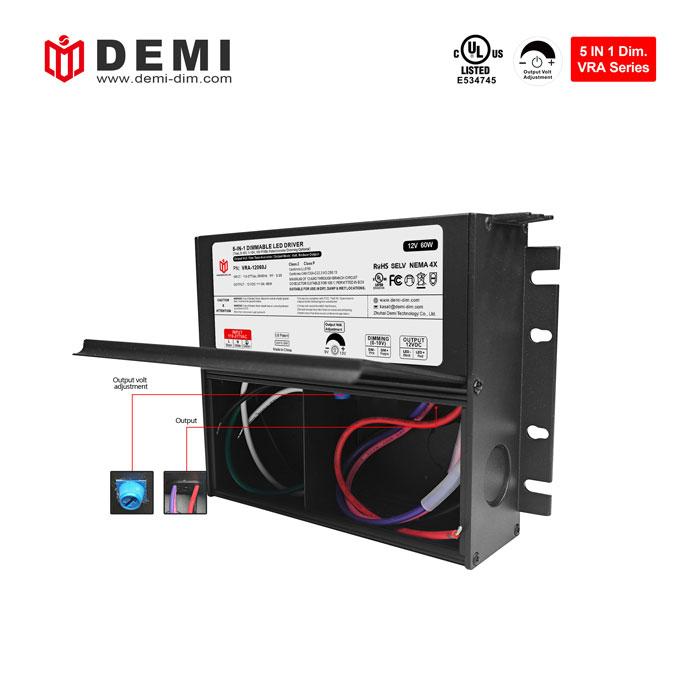

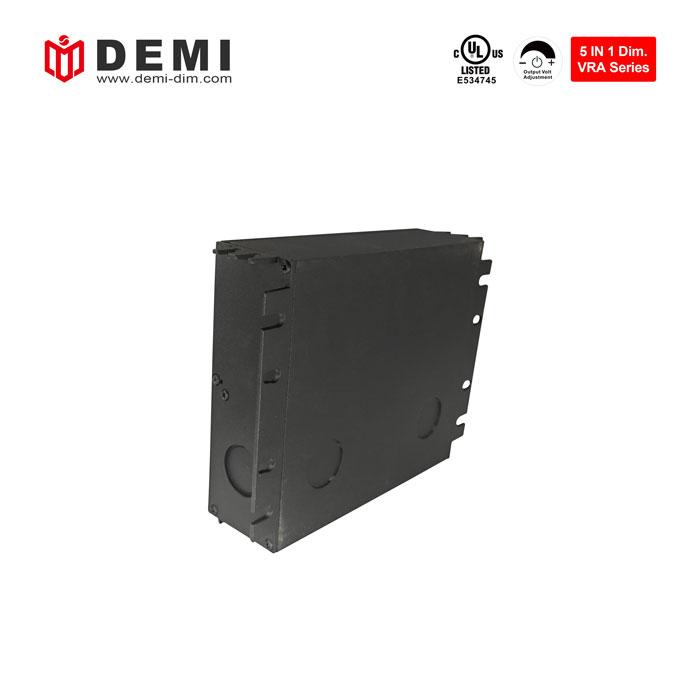

This VRA series triac & 0 10v dimmable led driver 80W 12V Exclusive patent design of “Clamshell” junction box,Fixed without screws Aluminum shell design, good heat dissipation, easy and fast installation, with 5-year warranty
Model Number | VRA-12080J | VRA-24080J | VRA-48080J |
Output Type | |||
Reted Power | 80W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 6.66A | 3.33A | 1.66A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 84%@120VAC 85%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.85A | ||
Inrush Current(Typ.) | 22A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

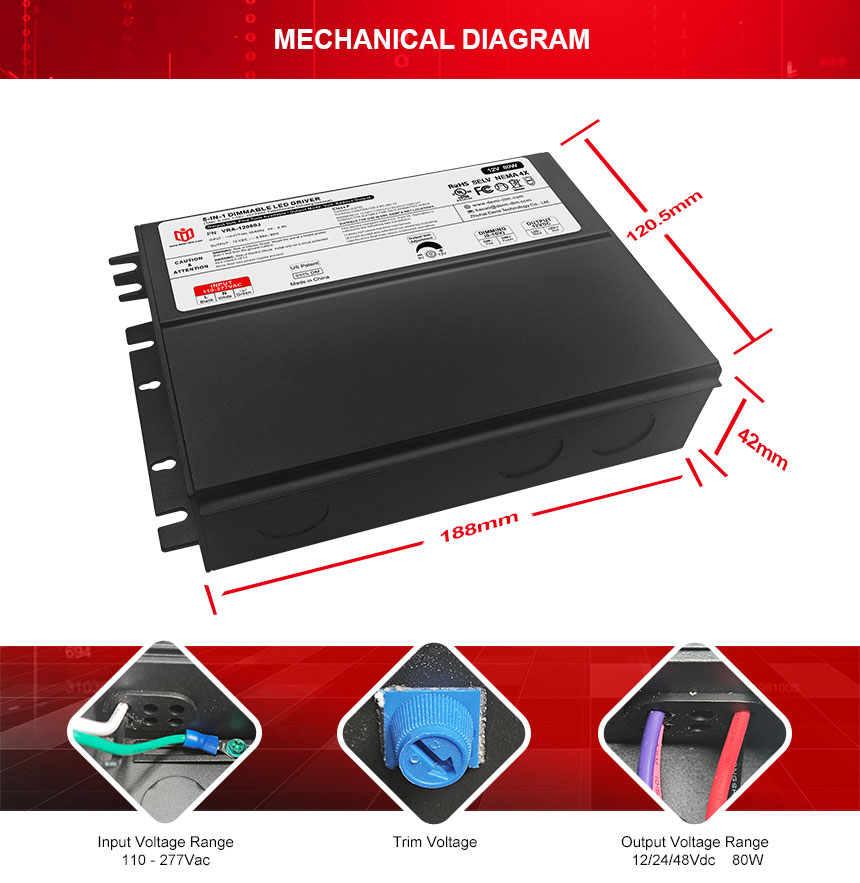

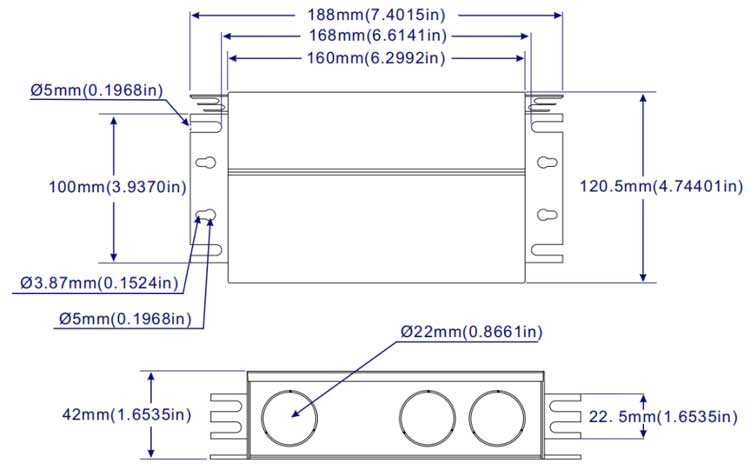

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |
DM new product 5 in 1 dimmable led power supply. Each series provides users with more flexibility and choices, and functional diversity. Based on the five-in-one dimmable function, different working modes can be switched through the knob switch. Users The most appropriate configuration can be selected according to different supporting lamps.
•Output type: AM(Amplitude Modulation) output--Voltage Reduce •With unique knob trim voltage function |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Constant voltage type.fine tune of output voltage
|
VRA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram

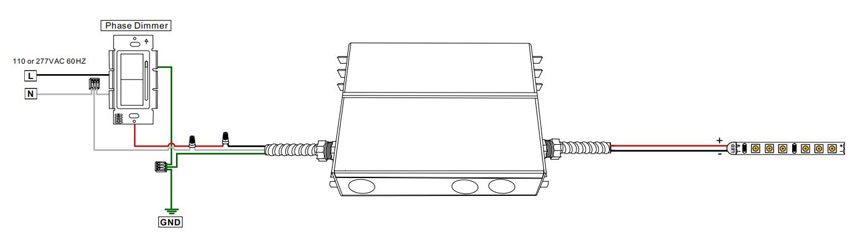

· Using Triac/MLV wiring diagram
·Using Triac ELV wiring diagram
