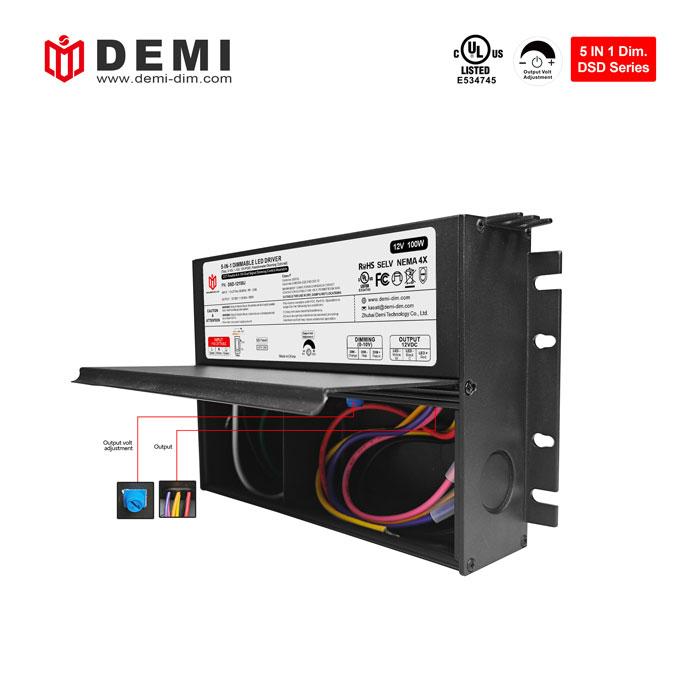

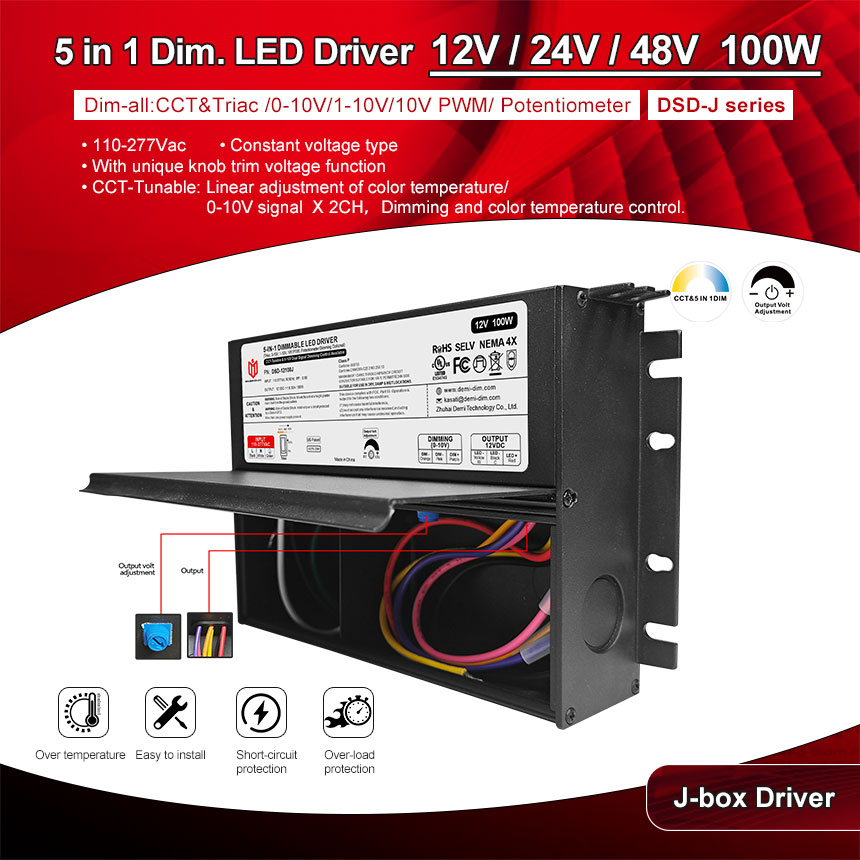

5 in 1 dimmable led driver 100W has a built-in fine-tuning voltage function knob. This product is integrated with the junction box and has a 5-year warranty. It can be used in commercial and office environment lighting scenarios. It can be well connected with CreeLighting's 100W LED floodlight.
Brand:
DEMIItem no.:
DSD-12100JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
100WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 yearstriac & 0 10v dimmable constant voltage 100w 12v led strip light driver power supply manufacturer
This triac & 0 10v dimmable led driver has 0 10v dual signal dimmable color function, built-in active PFC function, constant voltage working mode, UL certification, complies with global safety lighting regulations, has strong compatibility, can be dimmed with LTECH dimmer is well connected and used
Model Number | DSD-12100J | DSD-24100J | DSD-48100J |
Output Type | |||
Reted Power | 100W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 8.33A | 4.16A | 2.08A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.04A | ||
Inrush Current(Typ.) | 26A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

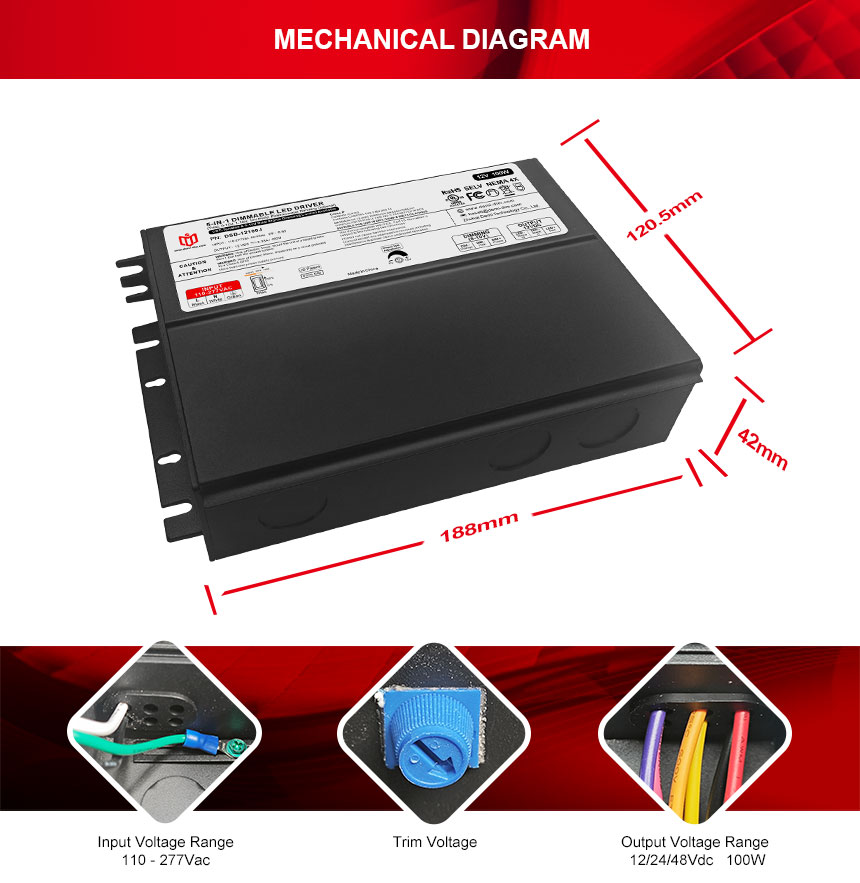

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |

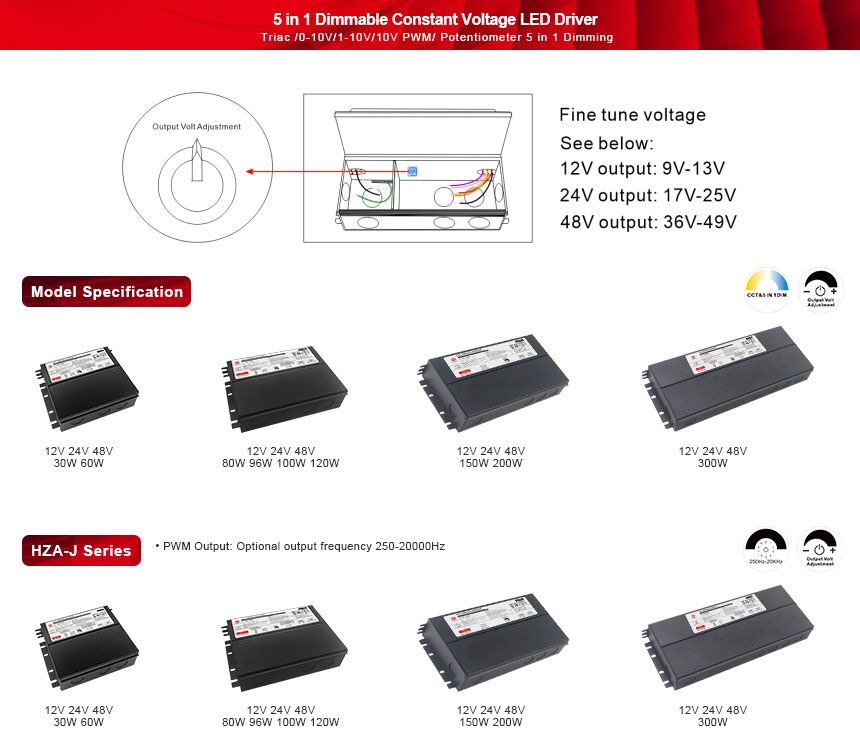

The DSD series 5 in 1 dimmable led driver has power supply ratings from 30W-300W to choose from to meet different brightness and power consumption requirements. These drivers can serve as their own junction boxes and have overload, short circuit, and over-temperature protection functions. Ensure the safe operation of LED power supplies and lamps
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
100W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG |
Wiring Diagram

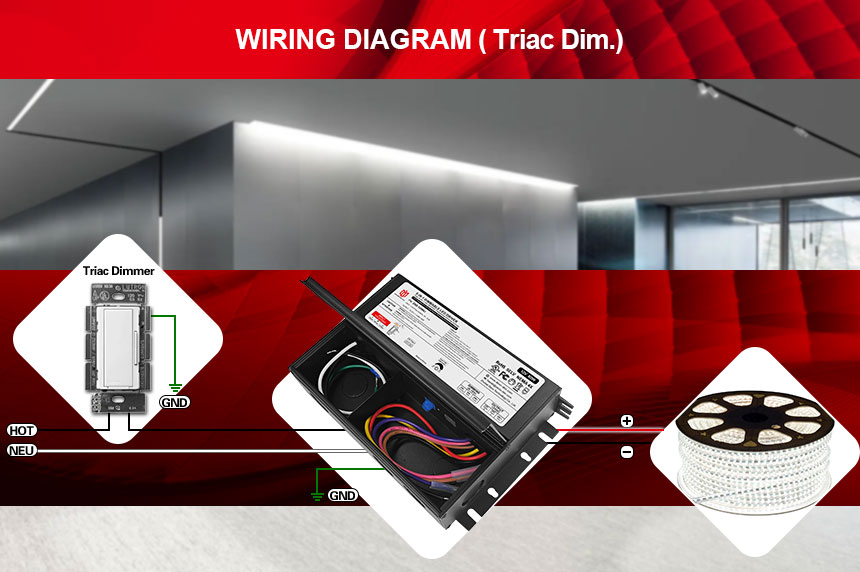

· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
