This DSD series has a unique 0-10V dual signal dimming and color adjustment function. The 24v 150W LED driver has a built-in fine-tuning voltage function knob. Constant voltage working mode, the dimming range is between 0.1-100% with ultra-deep amplitude. Strong compatibility, can be well connected with most triac dimmers and 0 10v dimmers on the market. For example, ELEGRP dimmer
Brand:
DEMIItem no.:
DSD-24150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

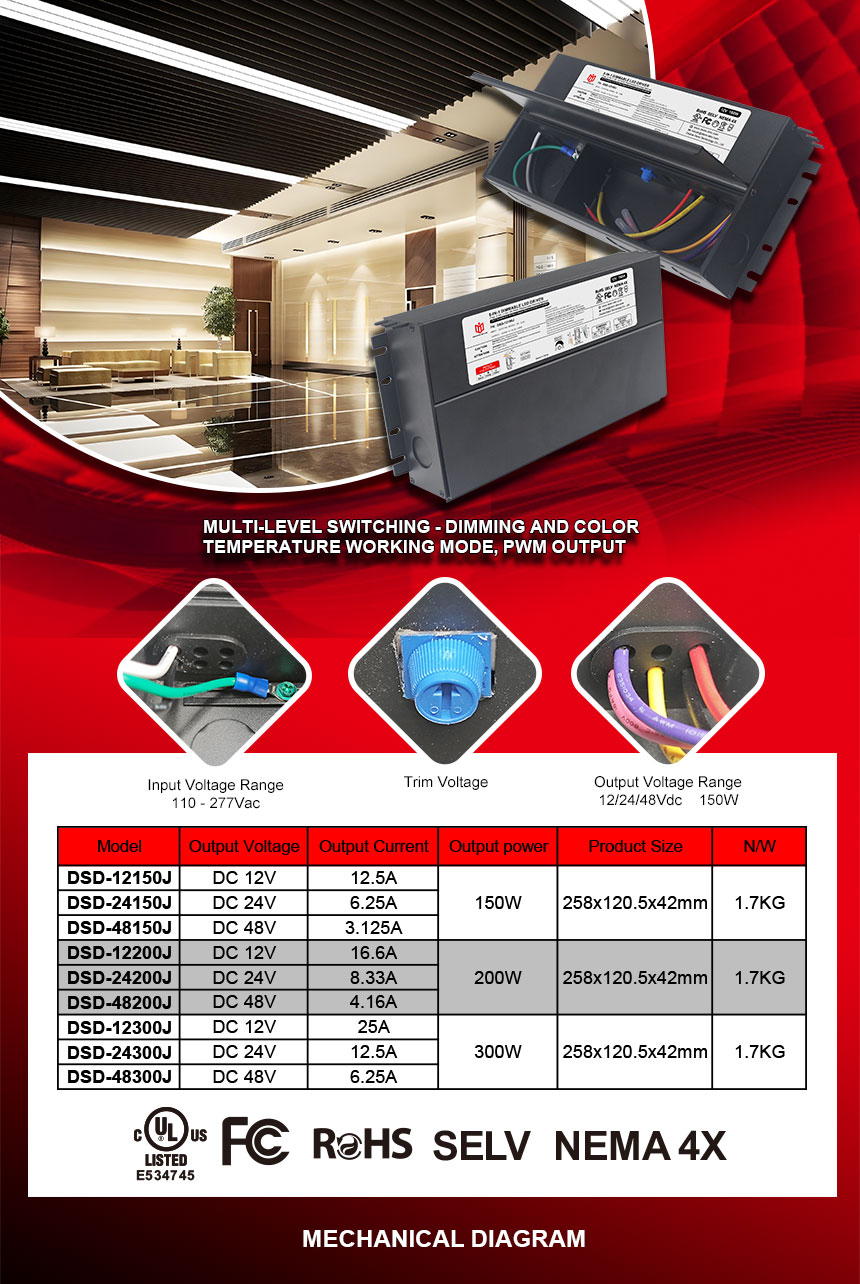

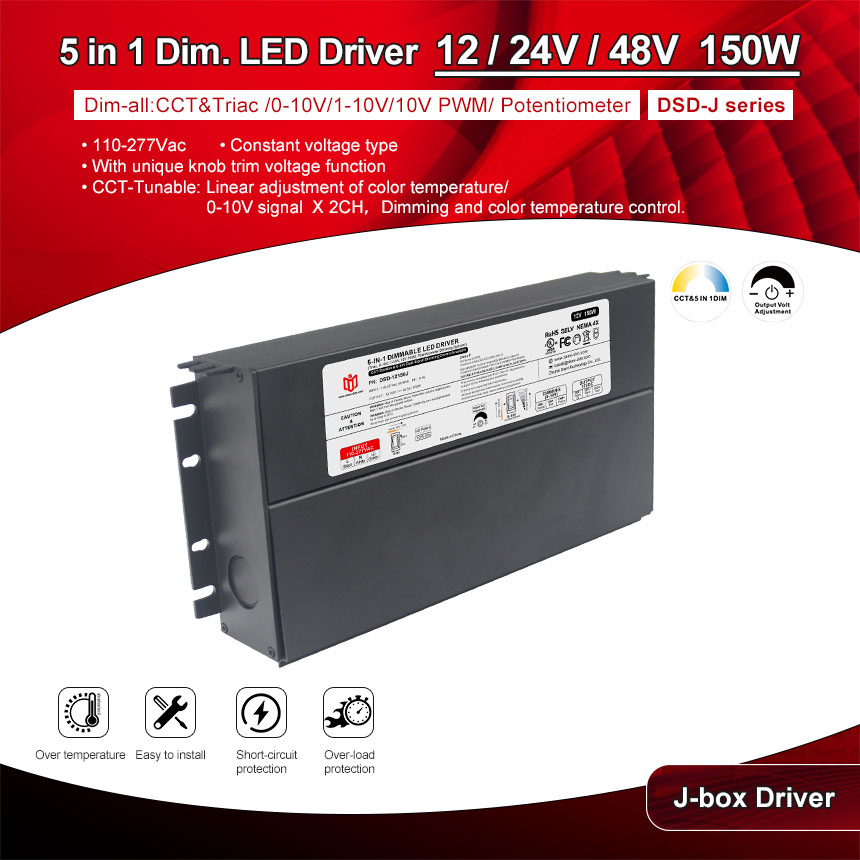

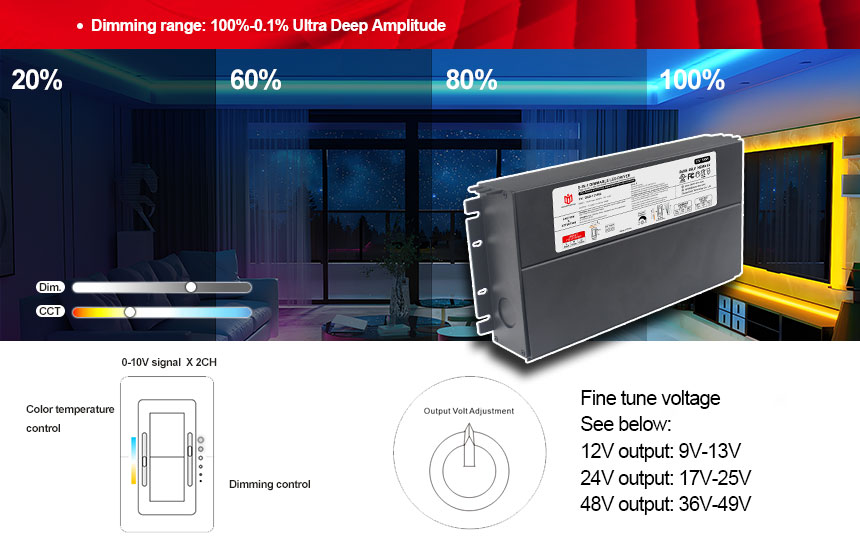

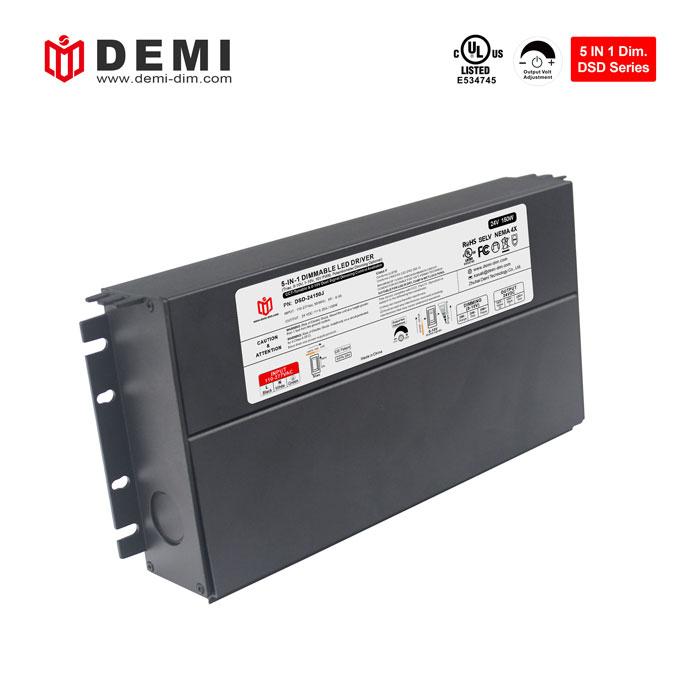

24v 150W triac & 0 10v dimmable constant voltage led driver strip power supply junction box
This PWM output CCT & 5 in 1 dimmable LED power supply has built-in active PFC function, power factor>0.95. It has ultra-low load requirements and can work perfectly at 10-100% load. UL listed, complies with global safety lighting regulations, and has a five-year warranty
| Model Number | DSD-12150J | DSD-24150J | DSD-48150J |
| Output Type | |||
| Reted Power | |||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 12.5A | 6.25A | 3.13A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.55A | ||
| Inrush Current(Typ.) | 28A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

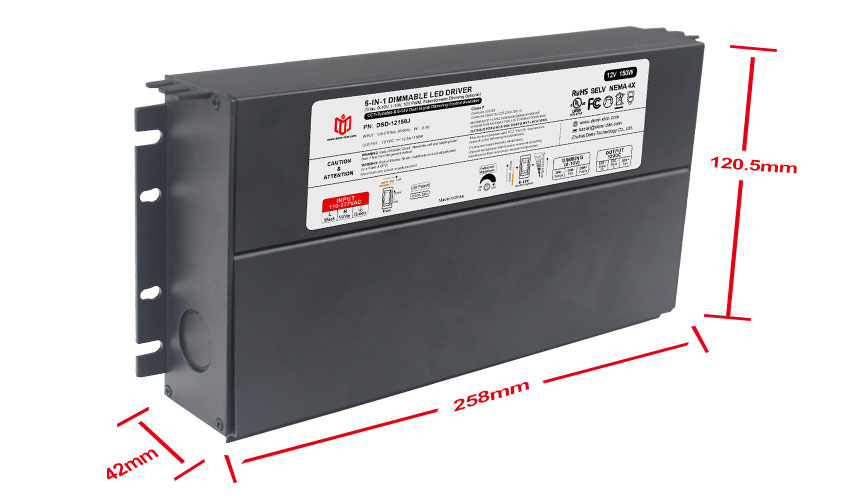

| Dimension | 218x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

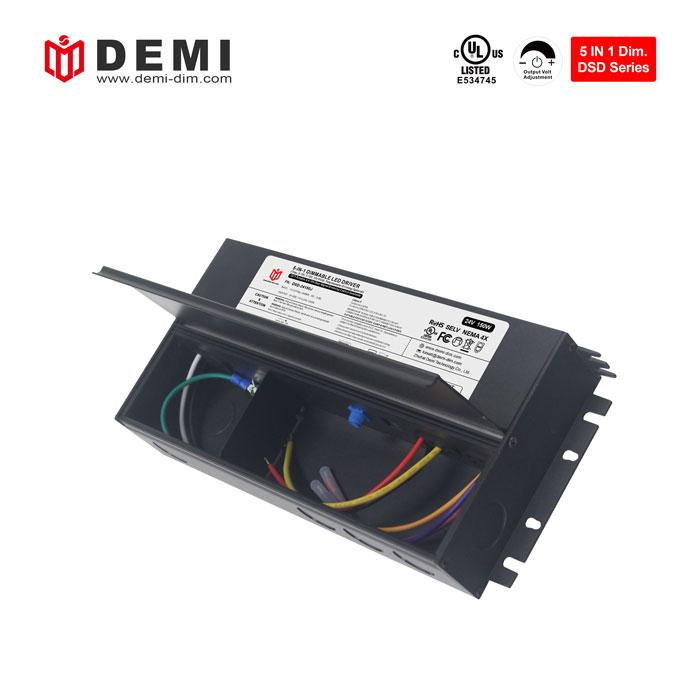

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
110-277VAC universal input voltage range DSD series dimmable LED driver 150W 24V Junction Box, aluminum housing design, truly passed the NEMA 4X standard, good heat dissipation performance. The body has multiple mounting feet to meet the user's installation needs in different scenarios. Can be used for large parking lot lighting projects
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 150W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG | |

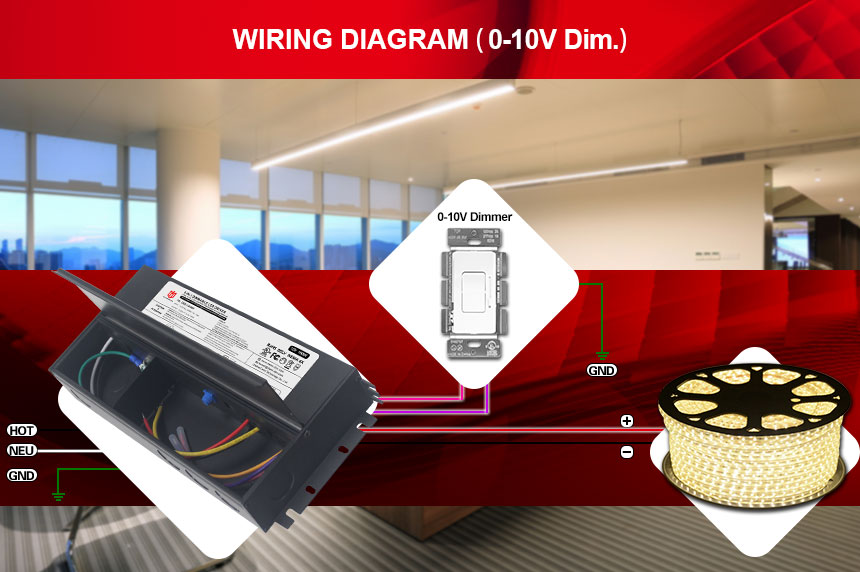

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
Tags :
DSD series CCT-Tunable triac & 0 10v dimmable 30W led driver 110-277vac universal input mode, strong compatibility, well compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market Use for smooth, flicker-free dimming
CCT & 5 in 1 dimmable led driver 60W with 0-10V dual signal dimmable color function, aluminum housing design, passed NEMA 4X, good heat dissipation, It is small in size and easy to install. It has 5 years warranty
110-277VAC input voltage 5 in 1 dimmable led driver 80W with CCT-Tunable: Linear adjustment of color temperature/0-10V signal 2CH, Dimming and color temperature control, 5 years warranty
96W CCT &5 in 1 dimmable led driver, constant voltage working mode, with fine-tuning voltage function knob, 0-10V dual signal dimmable and color function design, which can effectively meet user needs, 5-year warranty
5 in 1 dimmable led driver 100W has a built-in fine-tuning voltage function knob. This product is integrated with the junction box and has a 5-year warranty. It can be used in commercial and office environment lighting scenarios. It can be well connected with CreeLighting's 100W LED floodlight.
12V/24V/48V CCT & TRIAC & 0 10V dimmable led driver 120W PWM dimming mode, with a unique fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp. It has strong compatibility and can be well connected with most dimmers on the market, such as Lutron dimmer.
150W CCT & 5 in 1 dimmable led driver has built-in unique fine-tuning voltage function knob, constant voltage working mode, has ultra-low load requirements, can work perfectly under 10-100% load, and has a 5-year warranty
This 200W 0-10V dual signal dimming and color adjustment dimmable led driver PWM output mode can be customized with different output frequencies and has strong compatibility. It is almost compatible with the popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as LTECH dimmers
