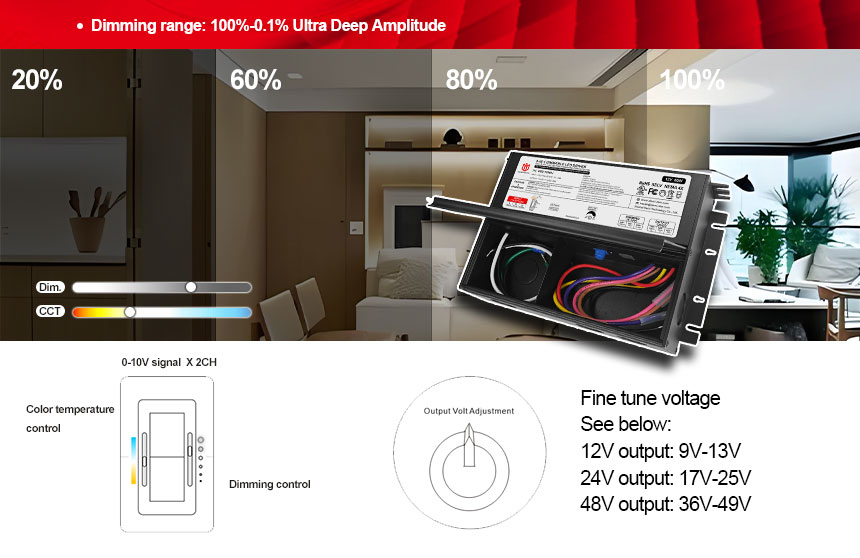

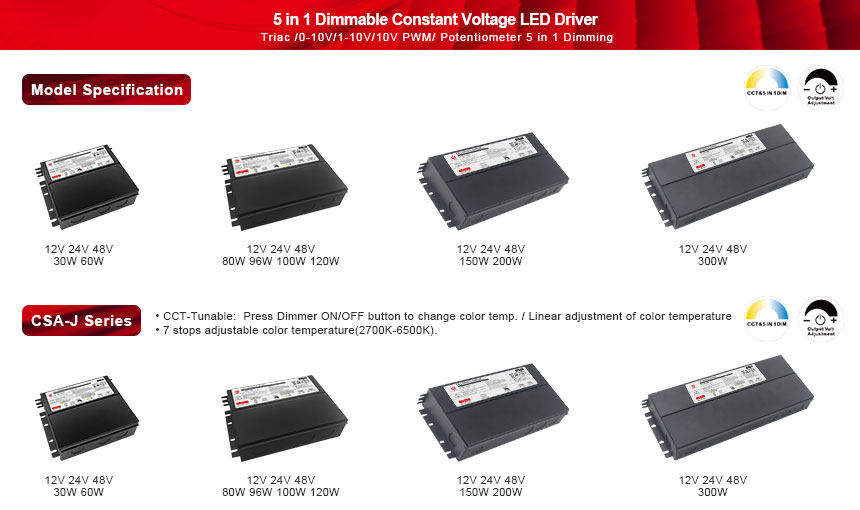

DSD series 120W 24V CCT & 5 in 1 dimmable led power supply, constant voltage working mode, dimming range is 0.1~100% ultra deep dimming. Dimming effect is as good as LTechnology's 120W dimmable led driver
Brand:
DEMIItem no.:
DSD-24120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
pwm output triac & 0 10V dimmable constant voltage 120W 24V led driver power supply for led strip lights
24v 120W constant voltage CCT & triac/0 10v dimmable led driver integrated with junction box. PWM output mode, customizable frequency between 250-20k HZ. With ultra low load requirement, able to work perfectly at 10-100% load.

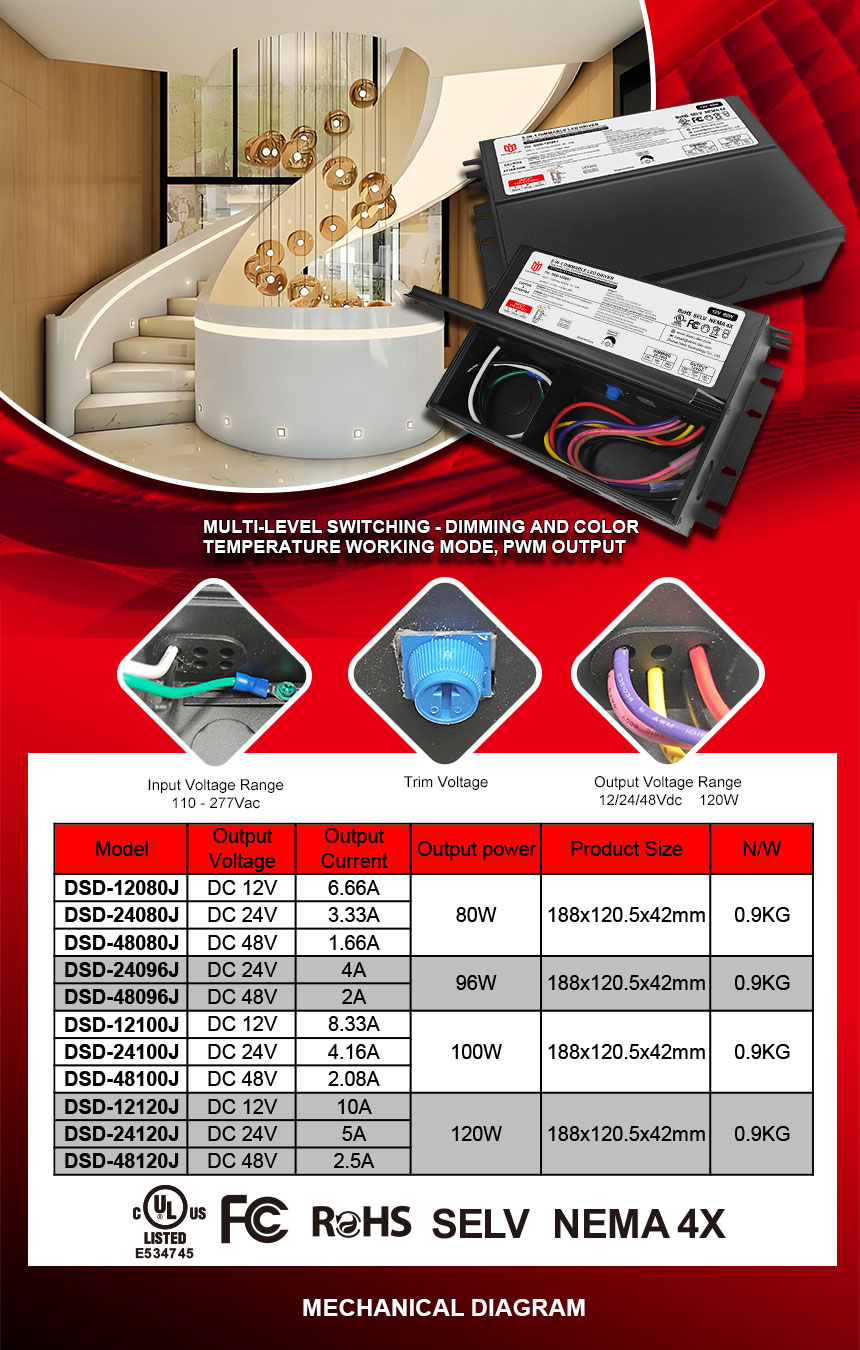

| Model Number | DSD-12120J | DSD-24120J | DSD-48120J |
| Output Type | |||
| Reted Power | |||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 10A | 5A | 2.5A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after load is removed over | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

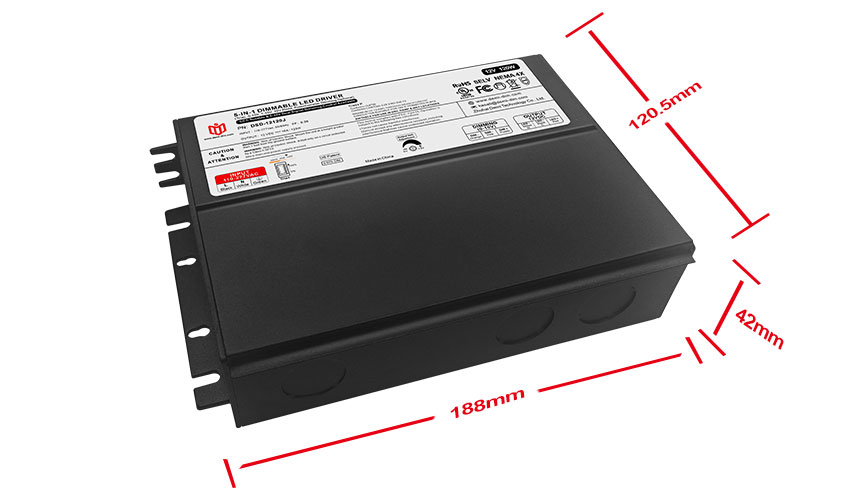

| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

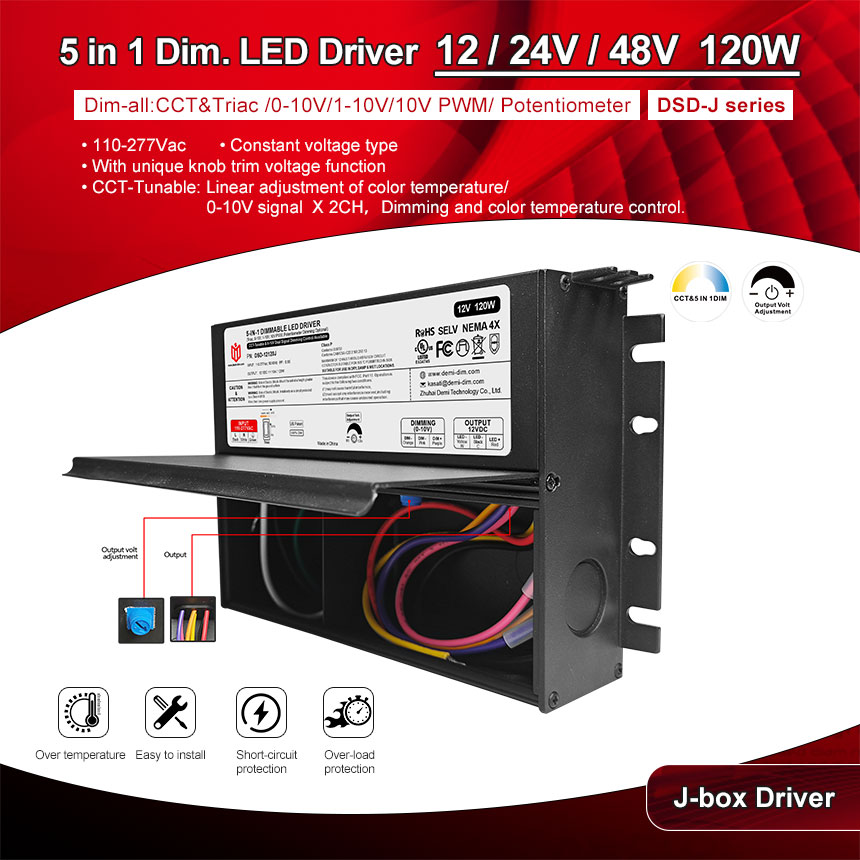

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|

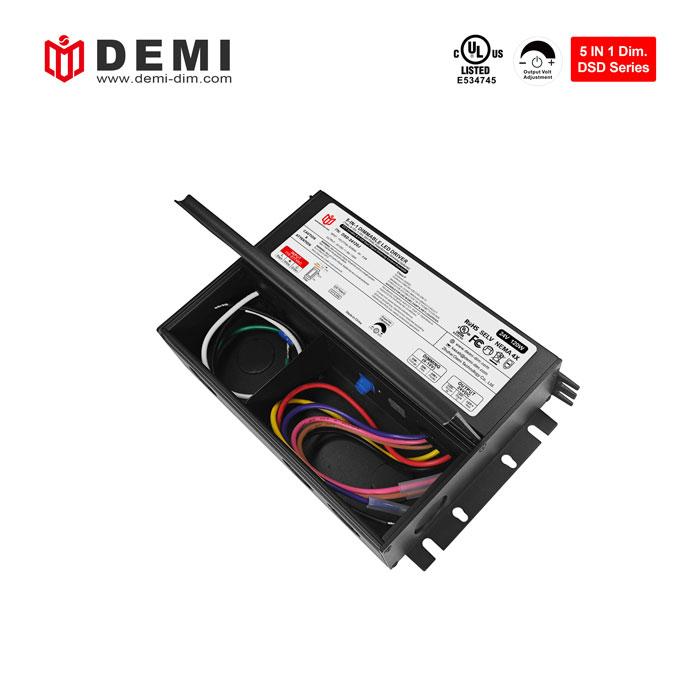

This DSD series constant voltage 120w 24v dimmable led driver has an aluminum housing design with good heat dissipation. When installing, you need to pay attention to installing the product in a ventilated position to avoid direct contact with the heat source, which will affect the normal operation of the led driver. It has multiple mounting feet and can be installed according to user needs.
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG | |
Wiring Diagram

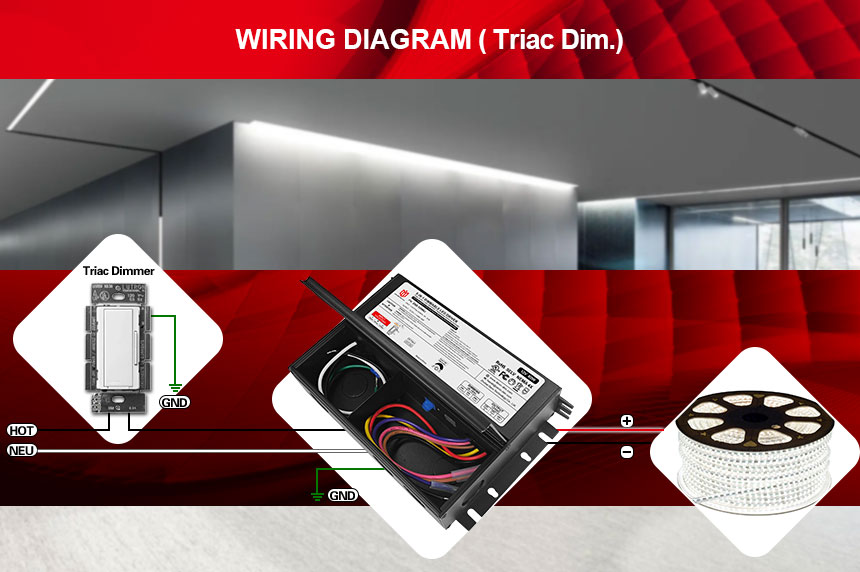

· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
