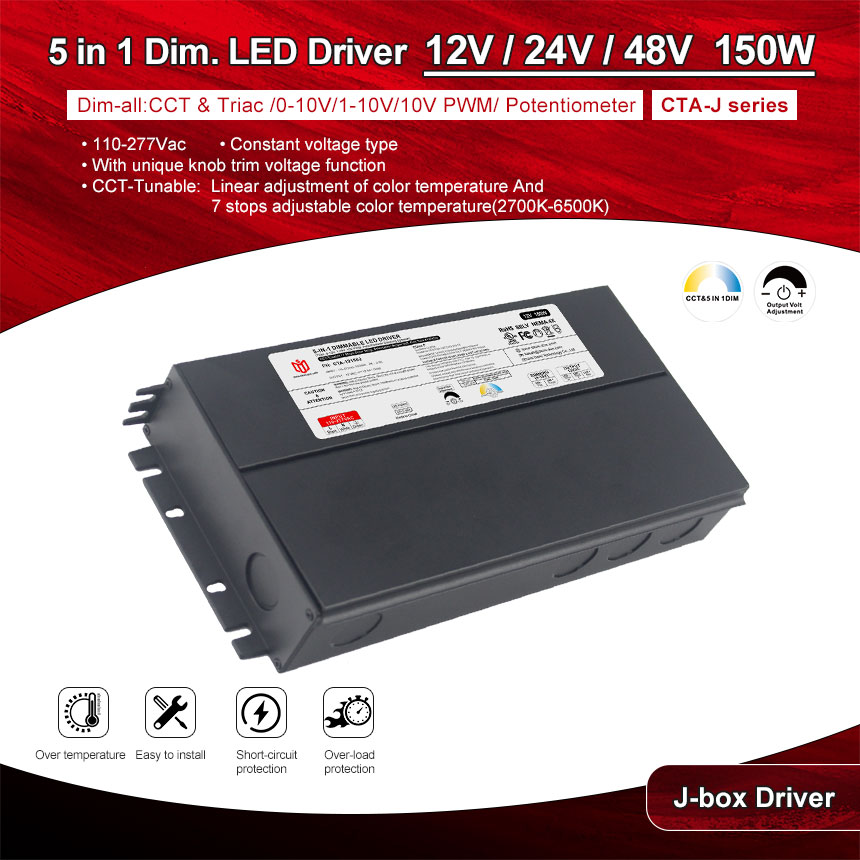

CTA series 150W 24V dimmable led driver has a built-in knob with multiple switching modes, and the dimming process is smooth, noise-free and flicker-free. The dimming effect is as good as zhenhuan electronics 150W dimmable led driver
Brand:
DEMIItem no.:
CTA-24150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

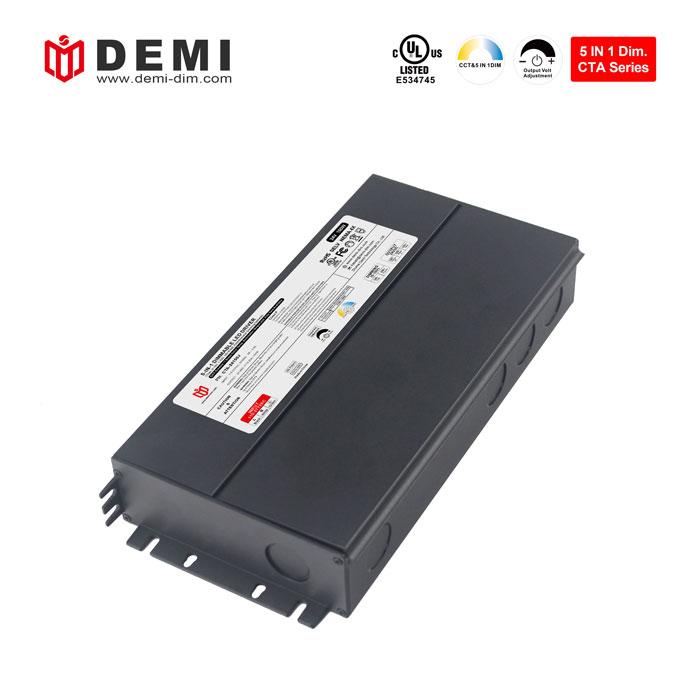

UL Listed 150w 24v CCT & triac/0 10v dimmable led power supply for outdoor
110-277vac CCT & 5 in 1 dimmable led driver and junction box integrated design, easy and fast installation, built-in active PFC function, with ultra-low load requirements, can work perfectly under 10-100% load. 5 years warranty
| Model Number | CTA-12150J | CTA-24150J | CTA-48150J |
| Output Type | |||
| Reted Power | 150W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 12.5A | 6.25A | 3.13A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.55A | ||
| Inrush Current(Typ.) | 28A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

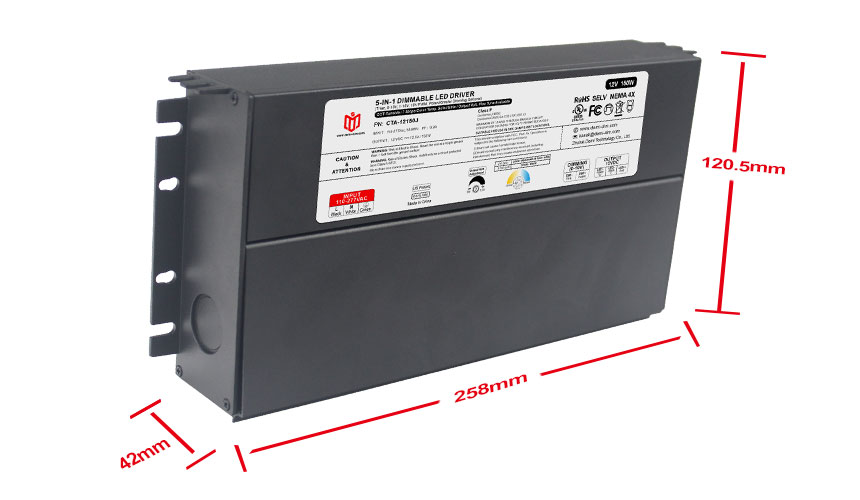

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

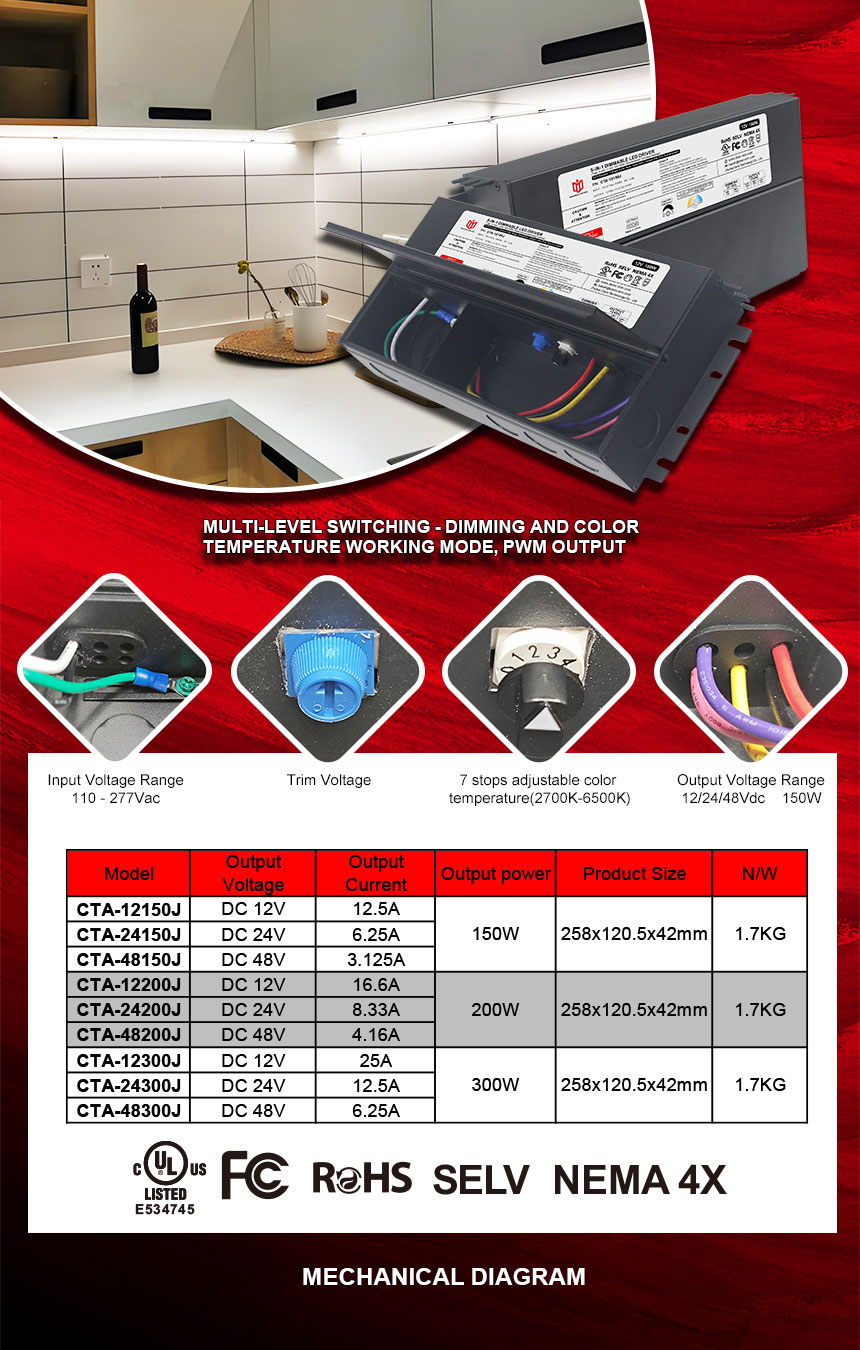

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|

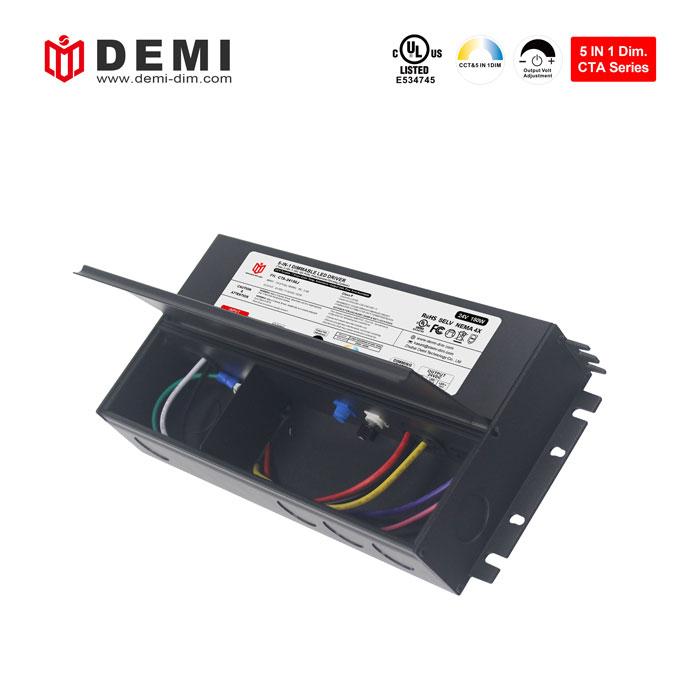

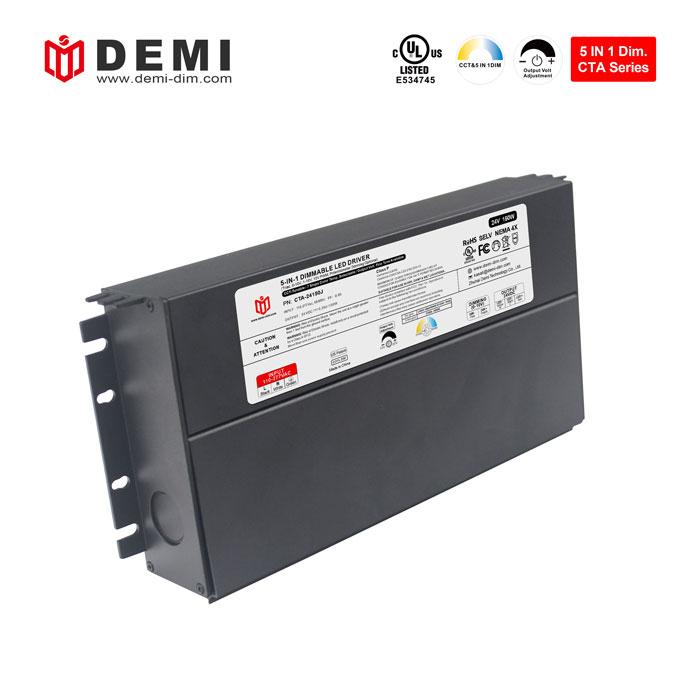

This CTA series 150W dimmable led power supply has an aluminum shell design with good heat dissipation performance. The unique "Clamshell" junction box design can save manpower and is easy and fast to install. Suitable for indoor smart LED lighting projects, such as entertainment venues, used with 12v/24v/48v underground lights
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 150W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |

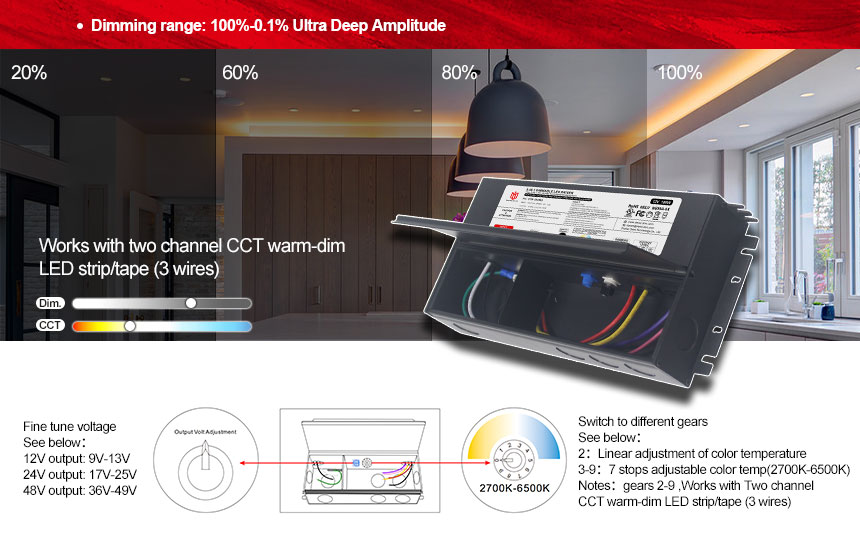

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
