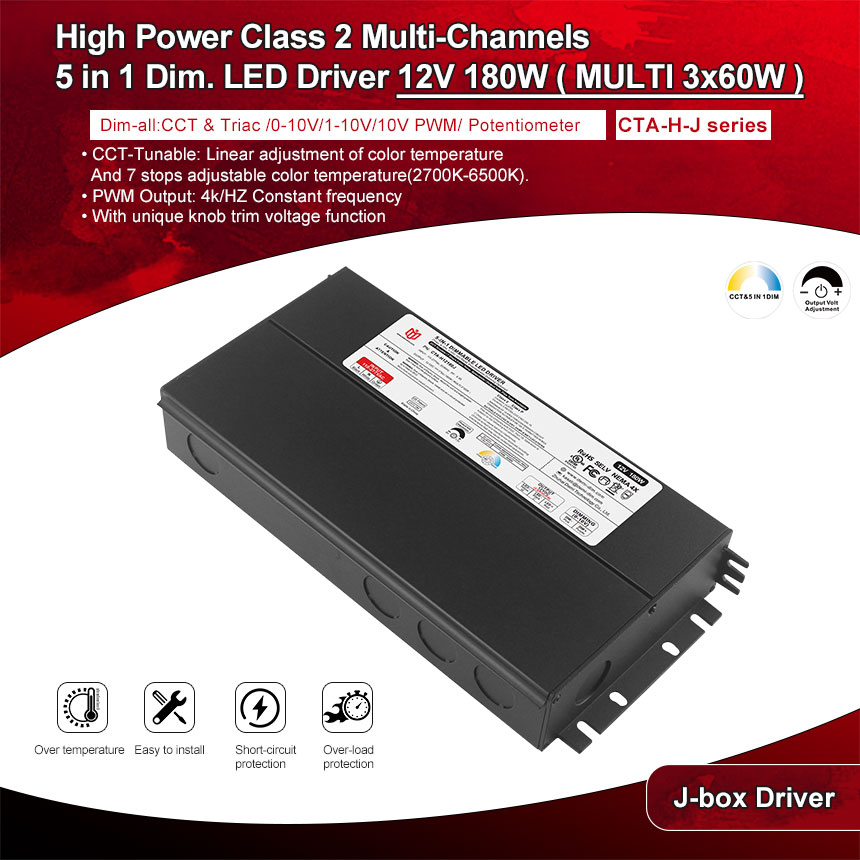

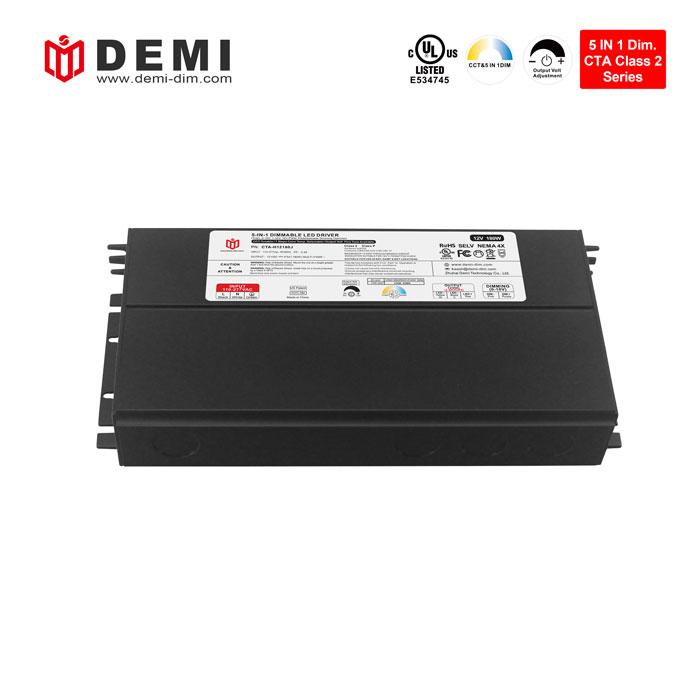

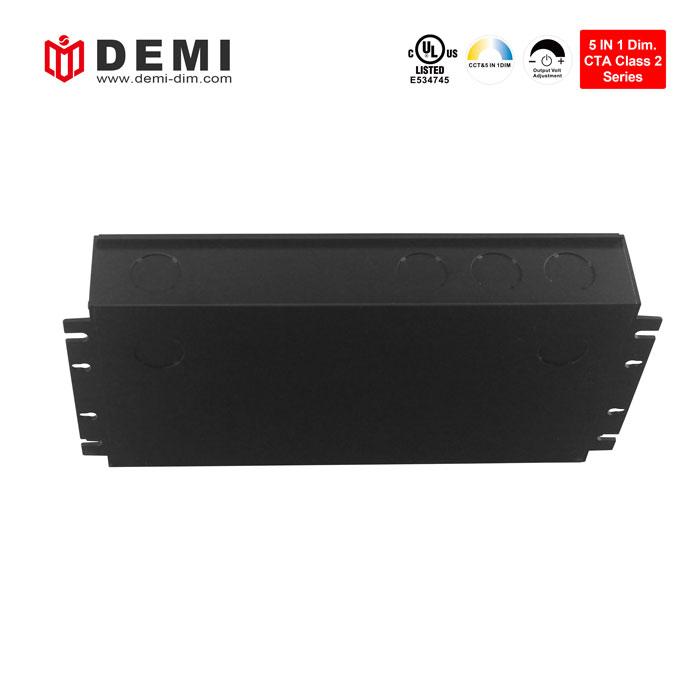

This 180W CCT & TRIAC/0 10v dimmable led driver adopts PWM output mode, with 4K/HZ constant frequency optional. The dimming range is ultra-deep between 0.1% and 100%, with strong compatibility. The dimming performance is as good as Magnitude Lighting’s 180W dimmable led driver.
Brand:
DEMIItem no.:
CTA-H12180JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
ul class 2 180w 12v constant voltage dimmable led light strip driver power supply with pwm dimming
CCT & 5 in 1 dimmable led driver 180W has a unique fine-tuning voltage function knob, capable of light attenuation compensation for lamps, 110-277vac universal input voltage, with short-circuit/overload/over-temperature protection function, UL certification, in compliance with global safety lighting regulations, with 5 years warranty
| Model Number | CTA-H12180J | |
| Output Type | ||
| Reted Power | 180W(MULTI 3*60W) | |
| Reted Voltage | 12V | |
| Reted Current | 3CH*5A | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.88A | |
| Inrush Current(Typ.) | 28A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

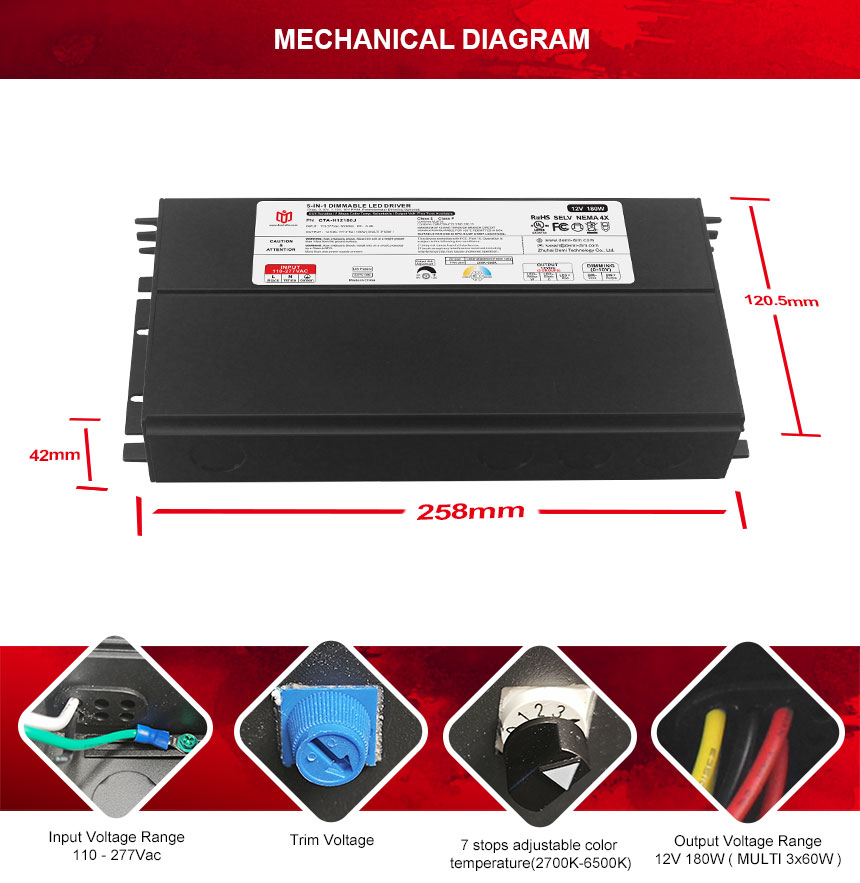

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |

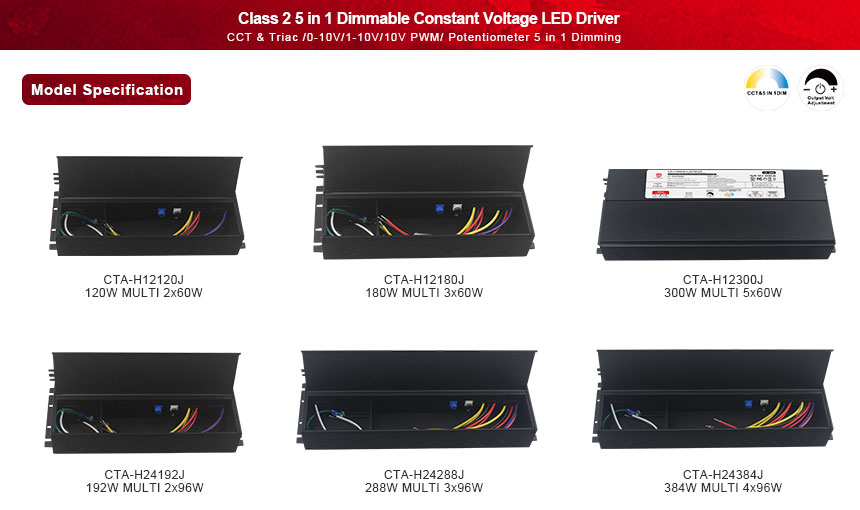

This Class 2 standard CTA series CCT & TRIAC / 0 10v dimmable led driver 120W-384W has multiple outputs, which can provide stable power for multiple lamps at the same time. Different output modes can be selected according to user needs. It can be suitable for high-end hotels and villas, with LED soft Use of light strips/hard light strips
|

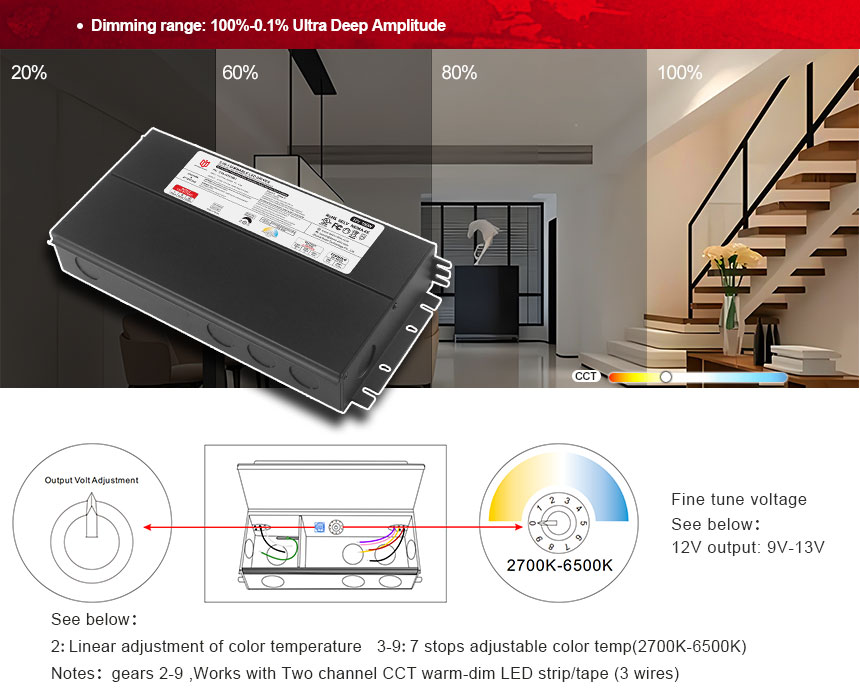

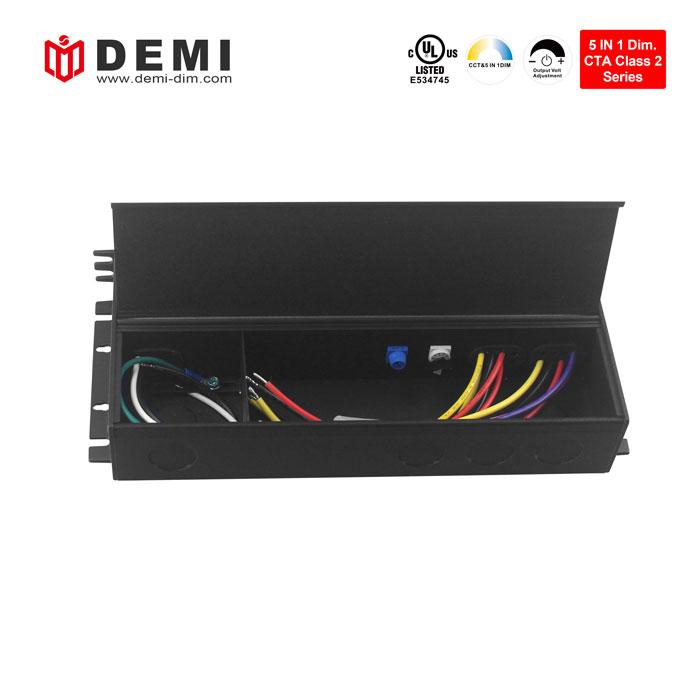

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K). •Exclusive patent design of “Clamshell” junction box |
•Super low loading request, works perfect at 10-100% load. •Constant voltage type.fine tune of output voltage Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
180W (MULTI 3*60W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*3 | / | / | / | |

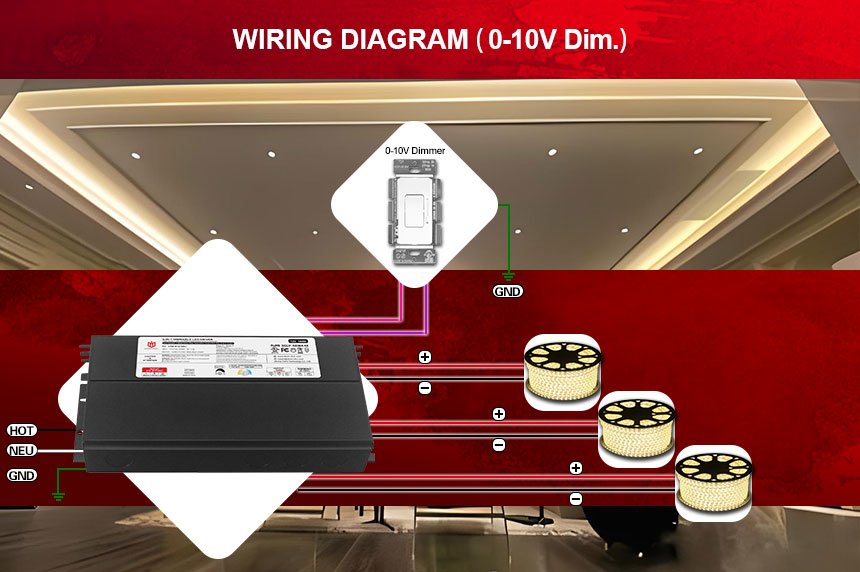

Wiring Diagram
· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
