200w CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, of which +1V can compensate for light attenuation of the lamp. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems on the market, 0-10V Dimmers and systems such as BESTTEN dimmer
Brand:
DEMIItem no.:
CTA-12200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

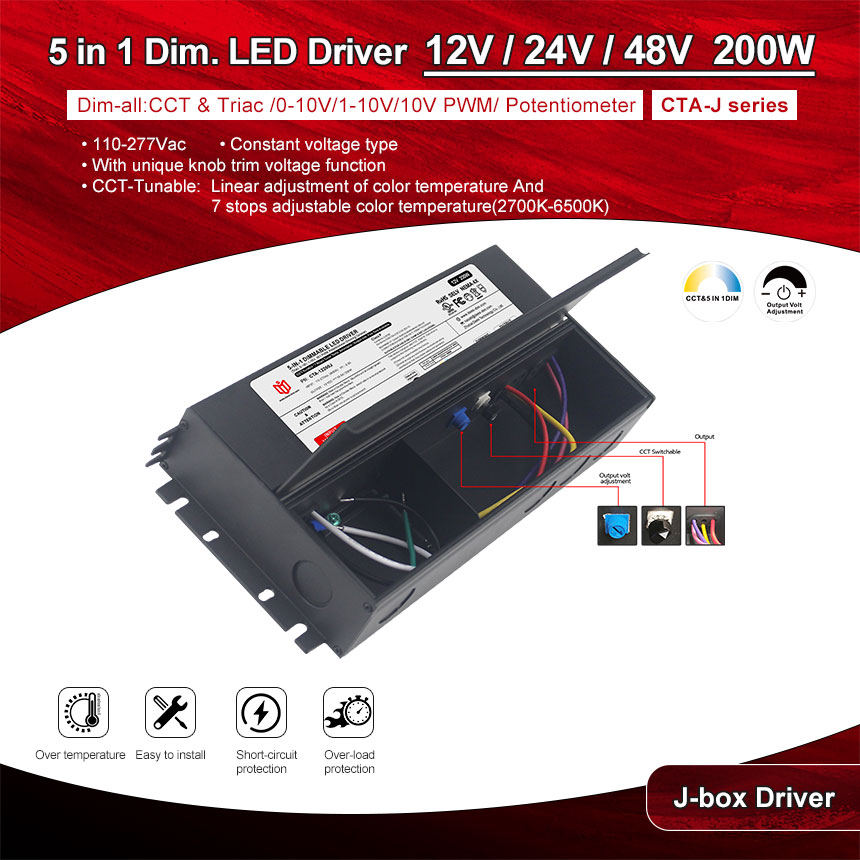

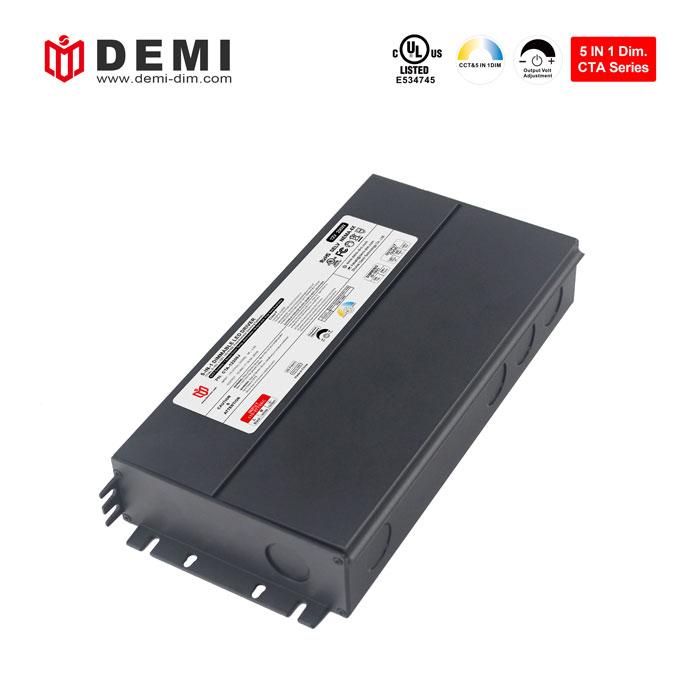

12v/24v/48v constant voltage CCT & 5 in 1 dimmable 200w led driver for led lights
CTA series constant voltage 5 in 1 dimmable led deiver 12v 200W PWM output mode, built-in active PFC function, has ultra-low load requirements, can work perfectly under 10-100% load, five-year warranty
| Model Number | CTA-12200J | CTA-24200J | CTA-48200J |
| Output Type | |||
| Reted Power | 200W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 16.6A | 8.33A | 4.16A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 2.06A | ||
| Inrush Current(Typ.) | 30A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

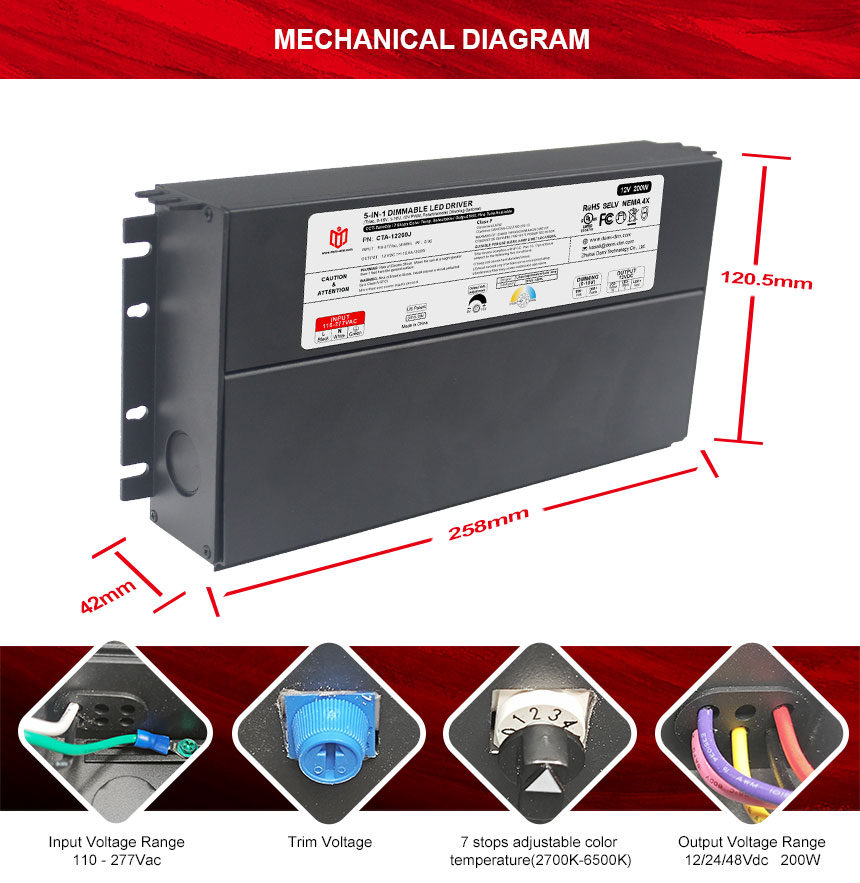

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||

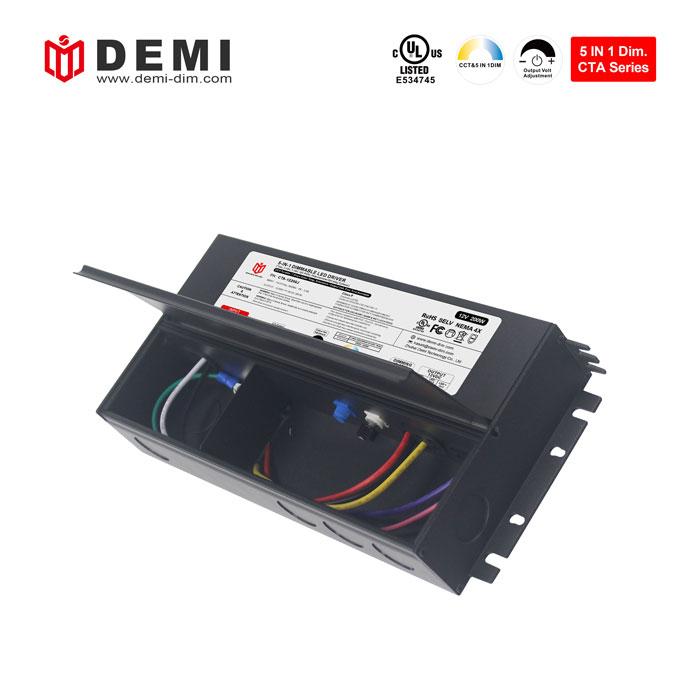

This 110-277vac CCT & 5 in 1 dimmable 200W led driver is mainly used for three-wire color temperature LEDs and can be used for LED advertising lighting modules, and 12v/24v cabinet lights. The flip cover does not require screwing, and it saves labor when unwiring the junction box. , more convenient
|
•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 200W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |
Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)

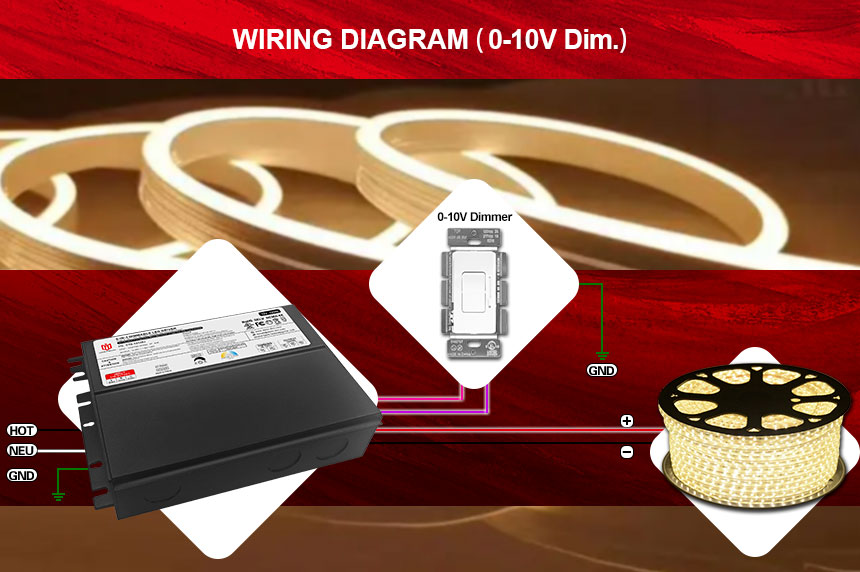

· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :

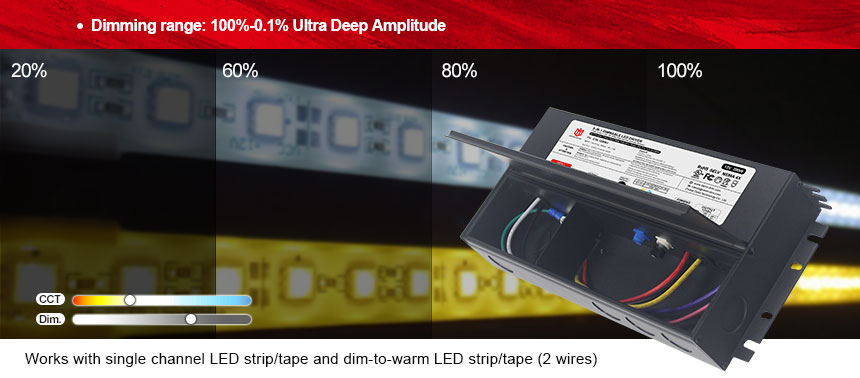

The best-selling product of the CTA series is the 30W CCT & triac/0 10v dimmable led driver integrated with the junction box. The dimmable range is 0.1~100% ultra-deep range. It has strong compatibility and can be used well with Legrand's 30W dimmer. Achieve smooth flicker-free dimming
CTA series 5 in 1 60W dimmable led driver has built-in active PFC function, ultra-low load requirements, and can work perfectly under 10-100% load. Compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as INSTEON dimmer
UL certified CTA series 80W constant voltage dimmable 12v led driver, 110-277vac input voltage, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as BESTTEN 80W dimmer
CTA series 96w 24v constant voltage led driver It is a PWM output mode. Strong compatibility, dimming performance is as good as Inventronics' 96W dimmable led driver, with 5-year warranty
This CTA series constant voltage dimming 120W LED driver has a dimming range of 0.1~100% ultra-deep amplitude and is compatible with most popular dimmers on the market, such as Leviton dimmer
CTA series 150W 5 in 1 dimmable led driver PWM dimming mode, the dimming range is smooth and flicker-free between 100%-0.1%. Strong compatibility,Dimming effect is as good as Magnitude Lighting’s 150W dimmable led driver
CTA series 300W dimmable led driver has constant voltage working mode, can work perfectly under 10-100% load, has short circuit/overload/over-temperature protection function, strong compatibility, and the dimming performance is as good as zhenhuan electronics 300W LED driver
CTA series CCT & 5 in 1 dimmable led driver 120W 12V has a built-in fine-tuning voltage function knob, which is highly compatible and can be well connected with most triac dimmers and 0 10v dimmers on the market to achieve smooth flicker-free dimming, such as ELEGRP dimmer
