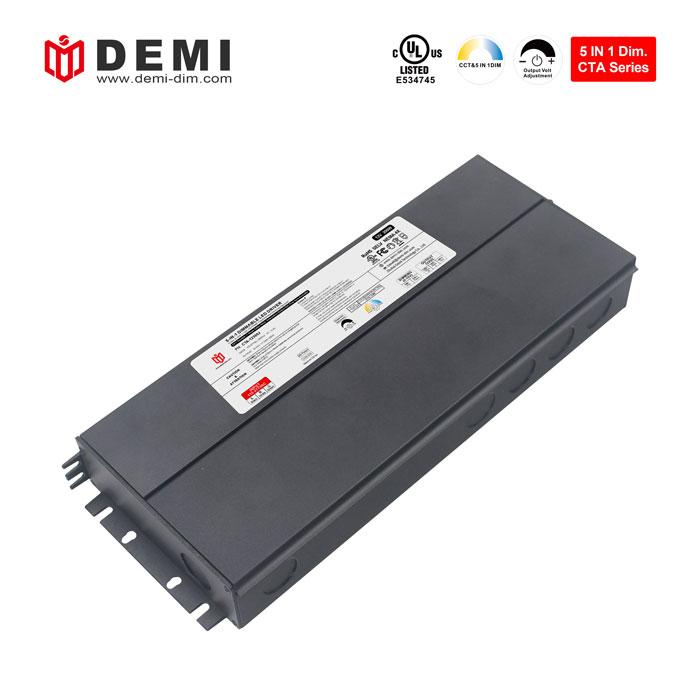

CTA series 300W dimmable led driver has constant voltage working mode, can work perfectly under 10-100% load, has short circuit/overload/over-temperature protection function, strong compatibility, and the dimming performance is as good as zhenhuan electronics 300W LED driver
Brand:
DEMIItem no.:
CTA-12300JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
300WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316*120.5*42mmWeight:
1.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

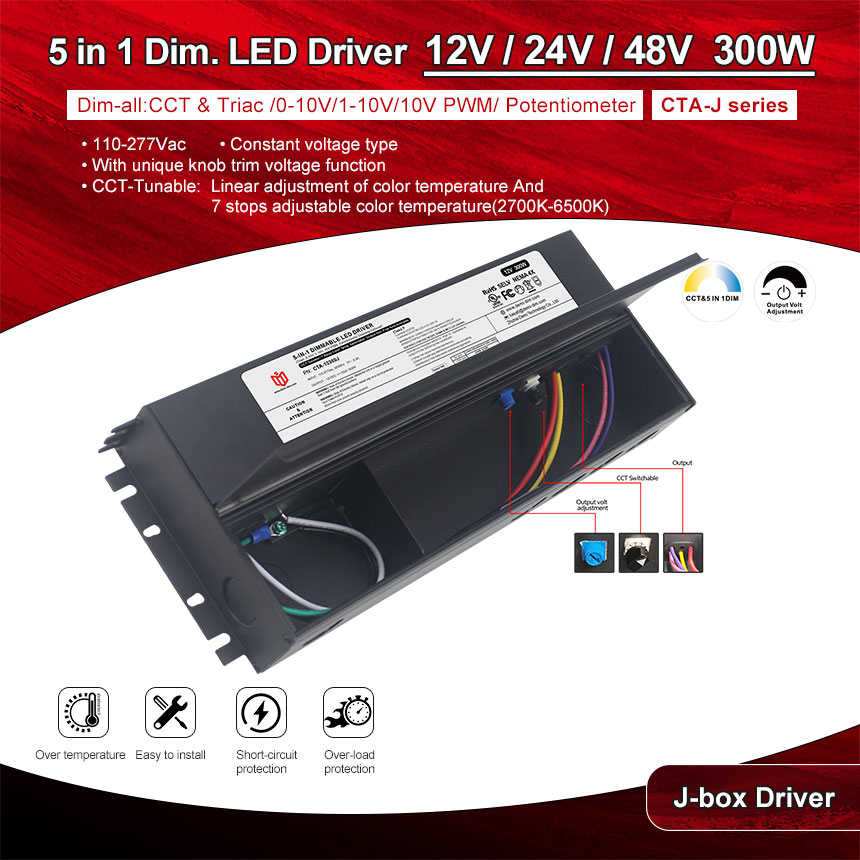

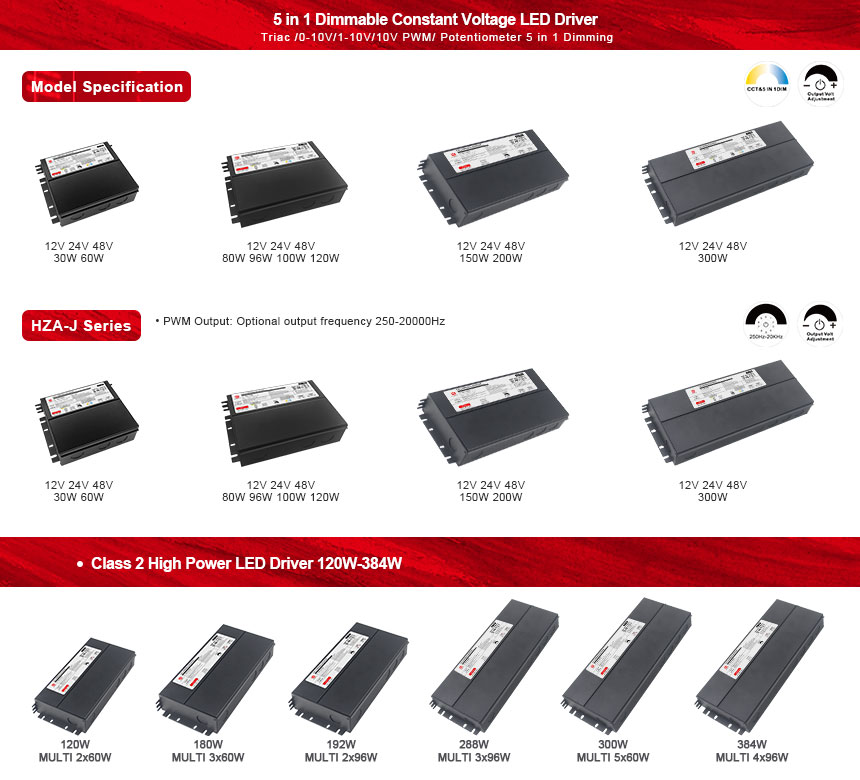

12v/24v/48v constant voltage CCT & 5 in 1 dimmable 200w led driver for led lights
300W high power dimmable led driver has a built-in 7-level adjustable function mode knob, which can switch different function modes according to user needs to achieve perfect lighting effects. UL certified is mainly sold to North America and complies with global safety lighting regulations.
| Model Number | CTA-12300J | CTA-24300J | CTA-48300J |
| Output Type | |||
| Reted Power | 300W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 25A | 12.5A | 6.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 3.04A | ||
| Inrush Current(Typ.) | 35A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

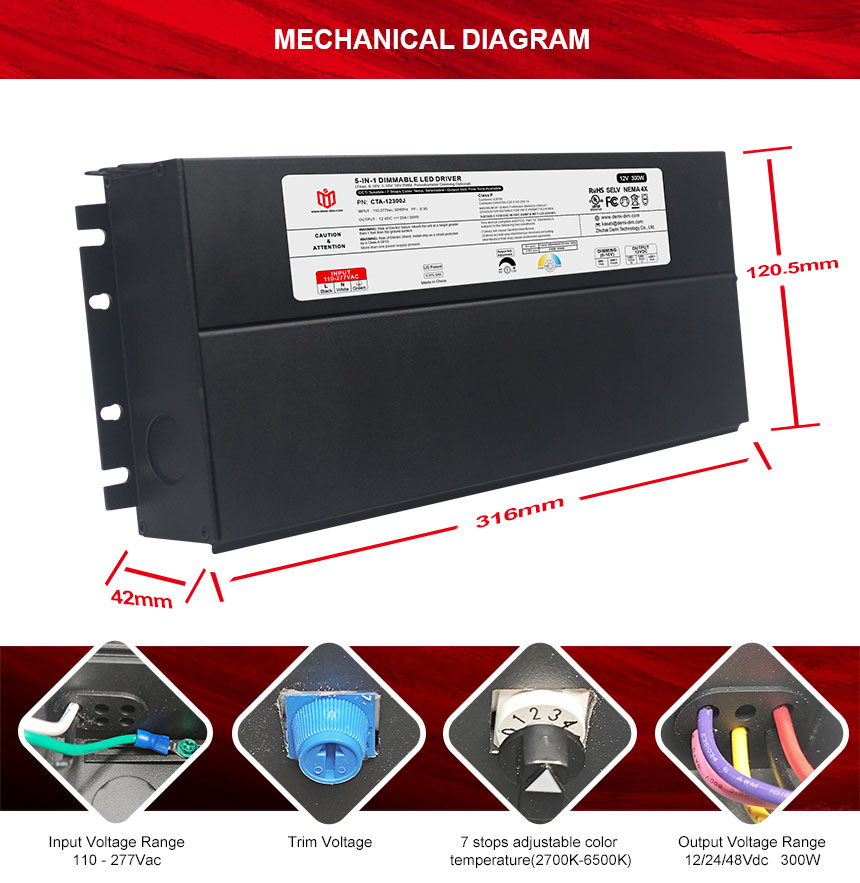

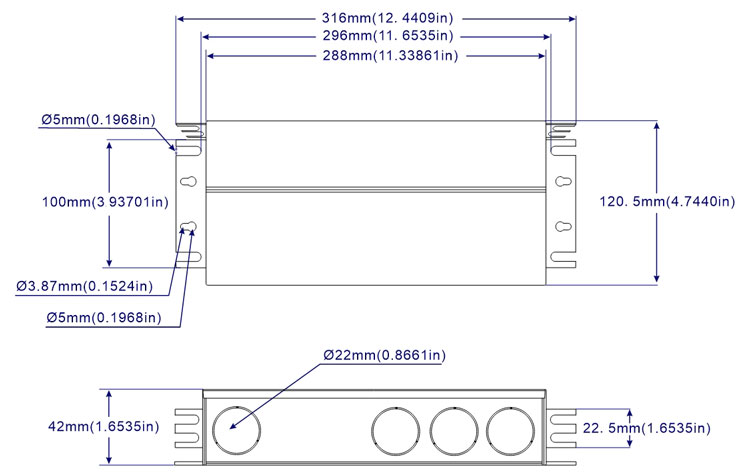

| Dimension | 316x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|
•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
CTA series CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, which can compensate for light attenuation of the lamp and solve the voltage drop problem caused by installation and wiring. It also has short circuit/overload/over-temperature protection function, 5 years Warranty

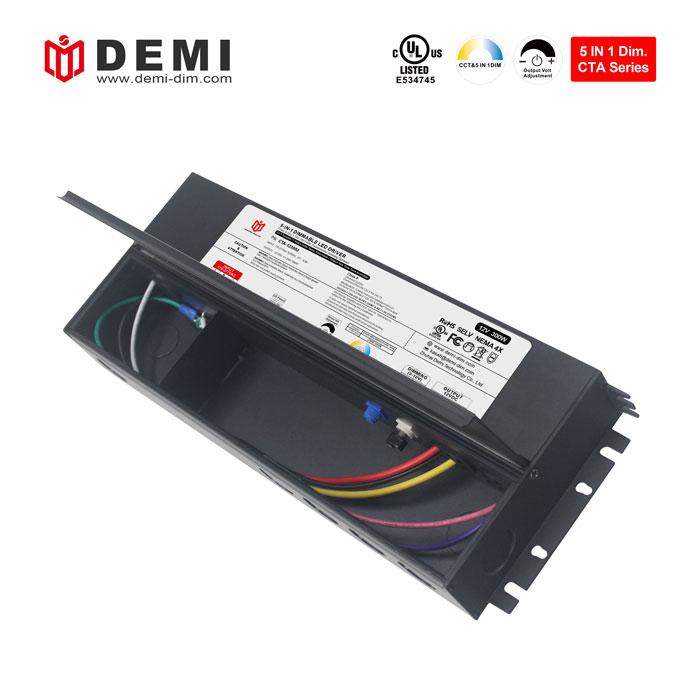

| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 300W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |

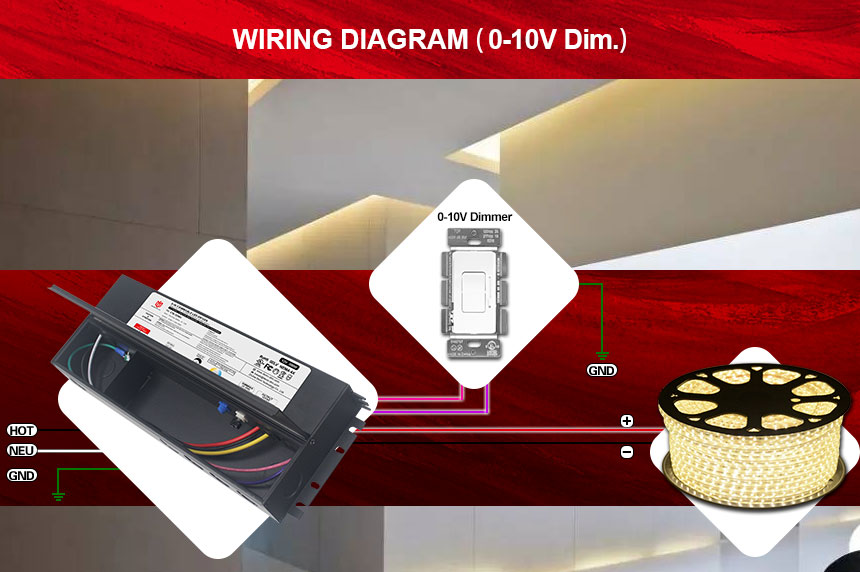

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
