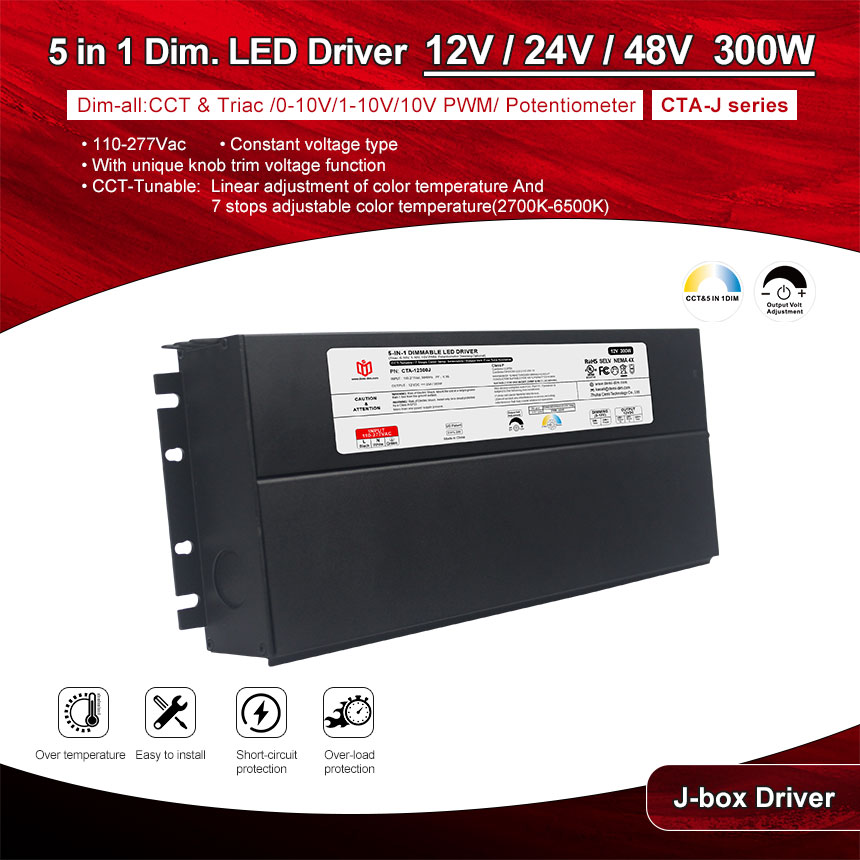

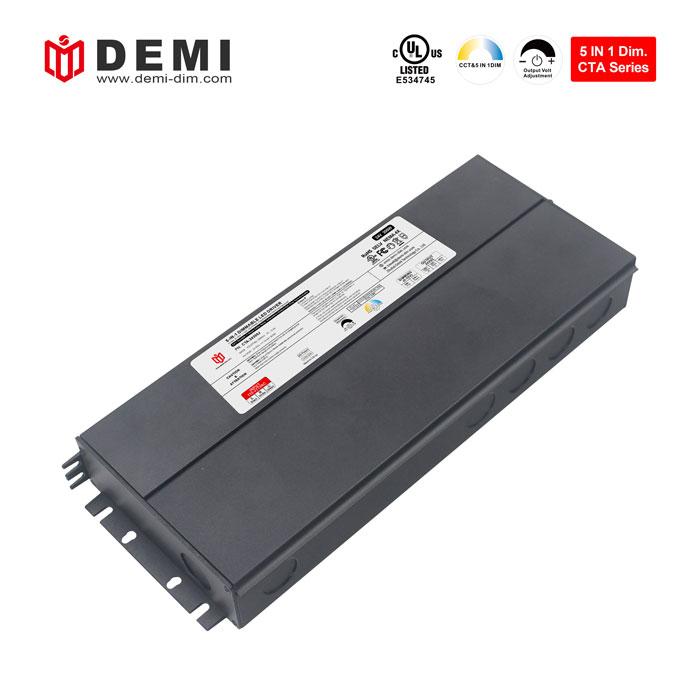

The 300w high power constant voltage dimmable led driver has a built-in fine-tuning voltage function knob. +1v can compensate for the light attenuation of the lamp and can also solve the voltage drop problem during installation and wiring. Dimming performance is as good as LTechnology 300W LED driver.
Brand:
DEMIItem no.:
CTA-24300JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
300WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316*120.5*42mmWeight:
1.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
110-277vac ul listed CCT & 5 in 1 dimmable 24v 300W led driver for led strip lights
This CTA series 24v 300W dimmable led power supply has built-in active PFC function, and the dimming range is ultra-deep between 0.1-100%. Ultra-low load requirements, able to work perfectly under 10-100% load. 5 years warranty

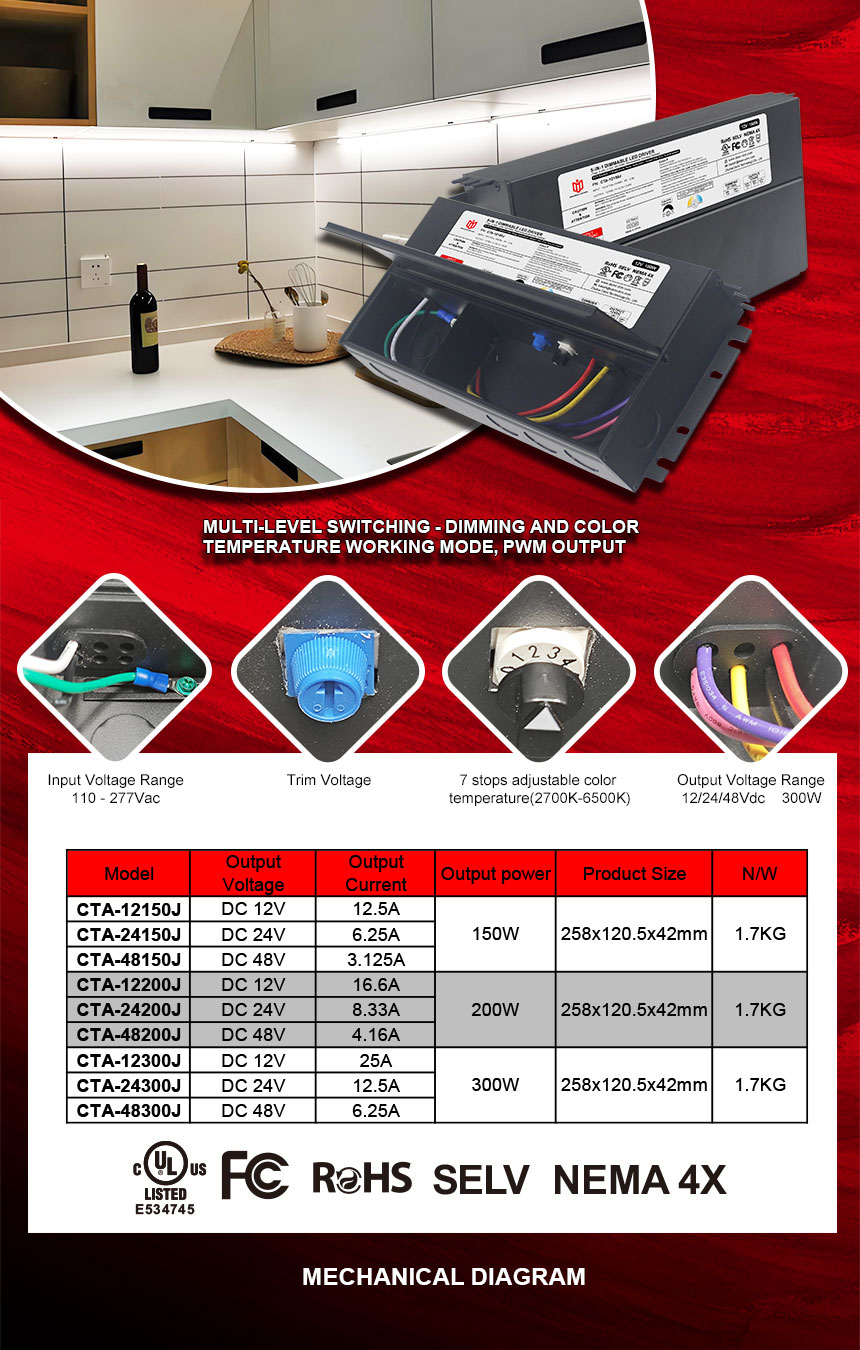

| Model Number | CTA-12300J | CTA-24300J | CTA-48300J |
| Output Type | |||
| Reted Power | 300W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 25A | 12.5A | 6.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 3.04A | ||
| Inrush Current(Typ.) | 35A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

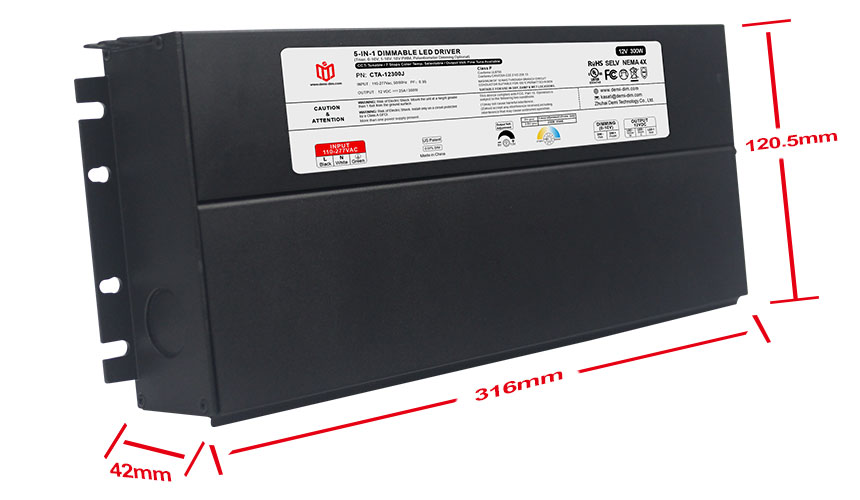

| Dimension | 316x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

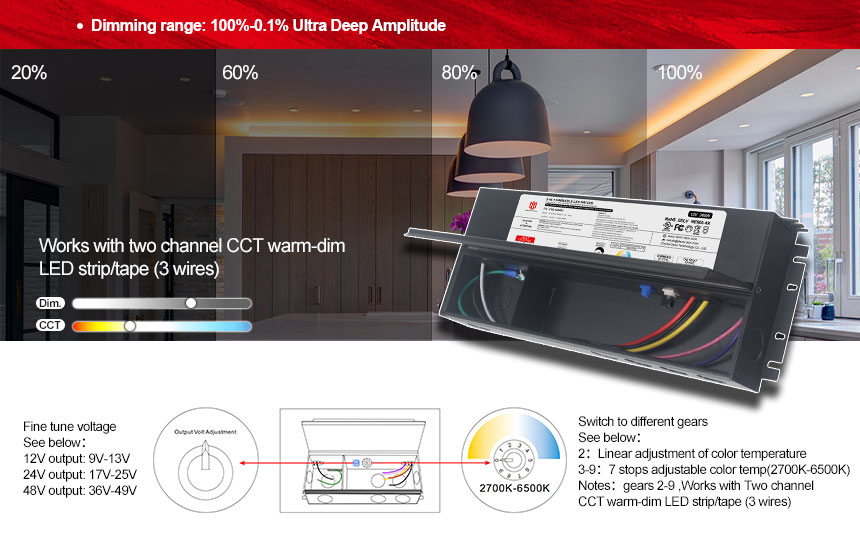

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|

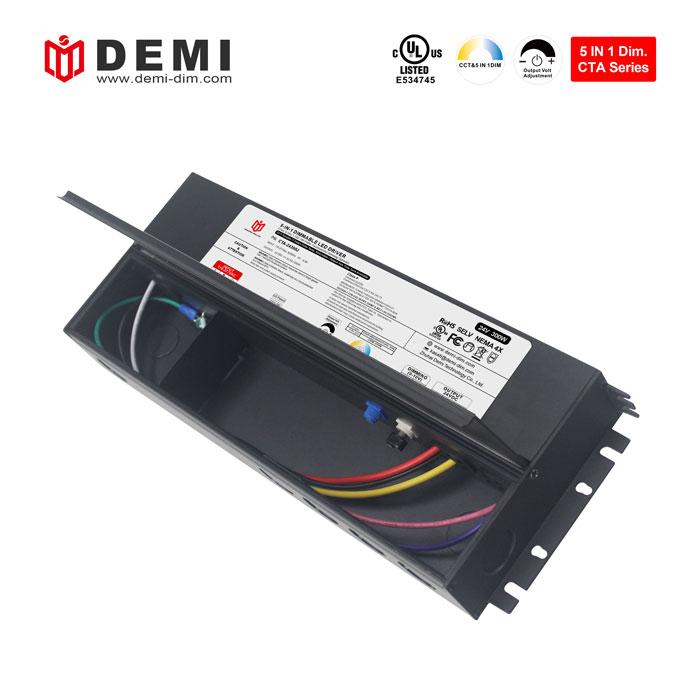

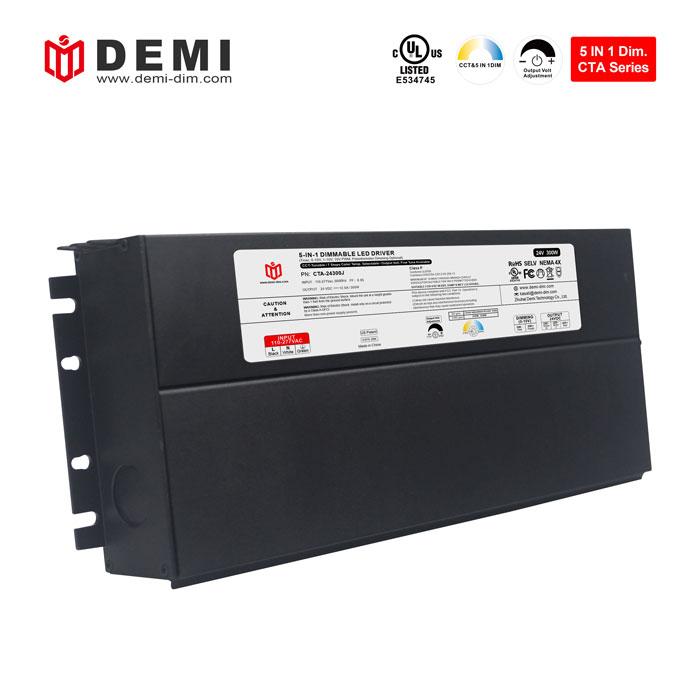

DM's new CTA series 300W CCT& 5 IN 1 dimmable led driver has an exclusive patented Clamshell junction box. The installation is convenient and quick, saving manpower. It has multiple mounting feet to meet users’ installation needs in different scenarios. Suitable for installation on advertising light boards and used with LED lighting modules.
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 300W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / | |
Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)

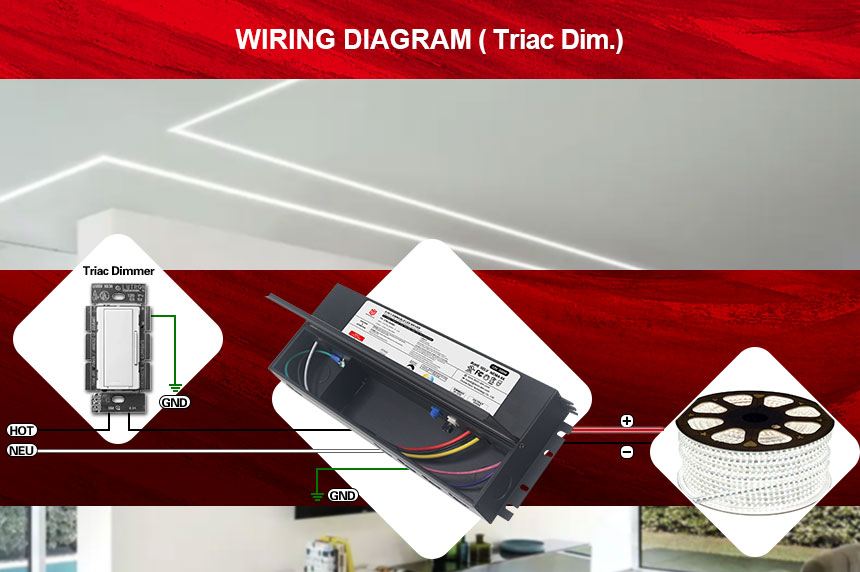

· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :
The best-selling product of the CTA series is the 30W CCT & triac/0 10v dimmable led driver integrated with the junction box. The dimmable range is 0.1~100% ultra-deep range. It has strong compatibility and can be used well with Legrand's 30W dimmer. Achieve smooth flicker-free dimming
CTA series 5 in 1 60W dimmable led driver has built-in active PFC function, ultra-low load requirements, and can work perfectly under 10-100% load. Compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as INSTEON dimmer
UL certified CTA series 80W constant voltage dimmable 12v led driver, 110-277vac input voltage, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as BESTTEN 80W dimmer
CTA series 96w 24v constant voltage led driver It is a PWM output mode. Strong compatibility, dimming performance is as good as Inventronics' 96W dimmable led driver, with 5-year warranty
This CTA series constant voltage dimming 120W LED driver has a dimming range of 0.1~100% ultra-deep amplitude and is compatible with most popular dimmers on the market, such as Leviton dimmer
CTA series 150W 5 in 1 dimmable led driver PWM dimming mode, the dimming range is smooth and flicker-free between 100%-0.1%. Strong compatibility,Dimming effect is as good as Magnitude Lighting’s 150W dimmable led driver
200w CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, of which +1V can compensate for light attenuation of the lamp. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems on the market, 0-10V Dimmers and systems such as BESTTEN dimmer
CTA series 300W dimmable led driver has constant voltage working mode, can work perfectly under 10-100% load, has short circuit/overload/over-temperature protection function, strong compatibility, and the dimming performance is as good as zhenhuan electronics 300W LED driver
